European Elegance

Plan 80652PM

  • 5,518

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • An elegant European facade makes a stunning statement and will welcome you home with pride.
  • A wrought-iron balcony decorates the second floor media room.
  • Set in a turret, the study has three large windows to bring in light.
  • The informal eating nook is also set in a bay with even more windows for cheerful informal dining.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
  • **Plans DO NOT include electrical, HVAC or plumbing details (other than the location of plumbing fixtures)**


Plan details



European Elegance

  • 5,518

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,675
  • 8 Sets $1,720
  • Reproducible Set $1,760
  • PDF - single-use $1,760
  • CAD $2,410
  • View all purchase option online

About This Plan

  • An elegant European facade makes a stunning statement and will welcome you home with pride.
  • A wrought-iron balcony decorates the second floor media room.
  • Set in a turret, the study has three large windows to bring in light.
  • The informal eating nook is also set in a bay with even more windows for cheerful informal dining.

Floor Plans

  • Basement

  • Basement

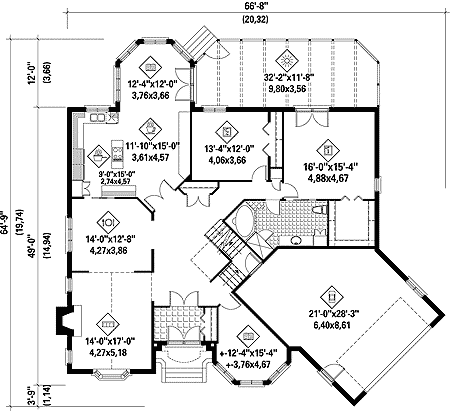

  • Main Level

  • Main Level

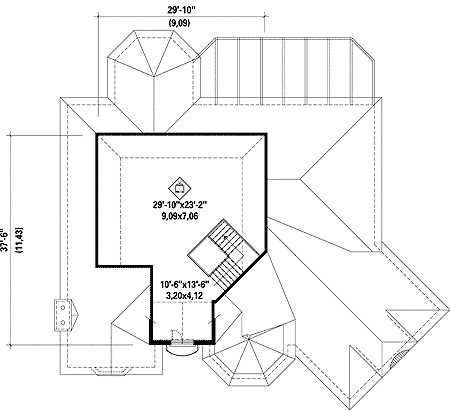

  • 2nd Floor

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,518 sq. ft.
  • Lower Level: 2,331 sq. ft.
  • 1st Floor: 2,264 sq. ft.
  • 2nd Floor: 923 sq. ft.
  • Workshop: 237 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 8"
  • Depth: 64' 9"
  • Max ridge height: 34' 7"

Garage

  • Type: Attached
  • Area: 592 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
