Plan: 69026AM

European Home Plan For Sloping Lot

4,808 4 5 1 3
Pageloader

European Home Plan For Sloping Lot

Plan 69026AM

  • 4,808

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Designed to fit a side and rear-sloping lot, this gorgeous home brings together cedar shingle siding and stone for an impressive facade. The double-door entry with arched transom opens to an immense central foyer that leads to virtually all main-level areas.
  • A den with a bay window and built-ins lies to the left of the foyer, immediately beyond the entry. A half-bath and coat closet are to the right. An elegant stairway addresses lower-level space.
  • The sunken great room serves both formal and informal occasions and is highlighted by a corner fireplace and a built-in media center. The formal dining room, with an attached butler's pantry, sits in close proximity to the well-appointed kitchen and a casual breakfast nook. A wrapping deck, beyond a covered porch, is accessed from the great room or from the nook with its special door system.
  • Look to the master bedroom for ultimate luxury. The bedroom features a tray ceiling, a sitting room and a built-in corner media center. The attached bath also has a tray ceiling and pampers with a spa tub, dual sinks, a walk-in closet and a huge step-in shower.
  • The lower level completes the home nicely with three bedrooms (all with private baths) and a games room. Built-ins and a corner fireplace enhance the sunken games room.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



European Home Plan For Sloping Lot

  • 4,808

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,475
  • PDF - single-use $1,825
  • 5 Sets $1,975
  • 5 Sets PLUS $2,025
  • CAD - multi-use $3,650
  • View all purchase option online

About This Plan

  • Designed to fit a side and rear-sloping lot, this gorgeous home brings together cedar shingle siding and stone for an impressive facade. The double-door entry with arched transom opens to an immense central foyer that leads to virtually all main-level areas.
  • A den with a bay window and built-ins lies to the left of the foyer, immediately beyond the entry. A half-bath and coat closet are to the right. An elegant stairway addresses lower-level space.
  • The sunken great room serves both formal and informal occasions and is highlighted by a corner fireplace and a built-in media center. The formal dining room, with an attached butler's pantry, sits in close proximity to the well-appointed kitchen and a casual breakfast nook. A wrapping deck, beyond a covered porch, is accessed from the great room or from the nook with its special door system.
  • Look to the master bedroom for ultimate luxury. The bedroom features a tray ceiling, a sitting room and a built-in corner media center. The attached bath also has a tray ceiling and pampers with a spa tub, dual sinks, a walk-in closet and a huge step-in shower.
  • The lower level completes the home nicely with three bedrooms (all with private baths) and a games room. Built-ins and a corner fireplace enhance the sunken games room.

Floor Plans

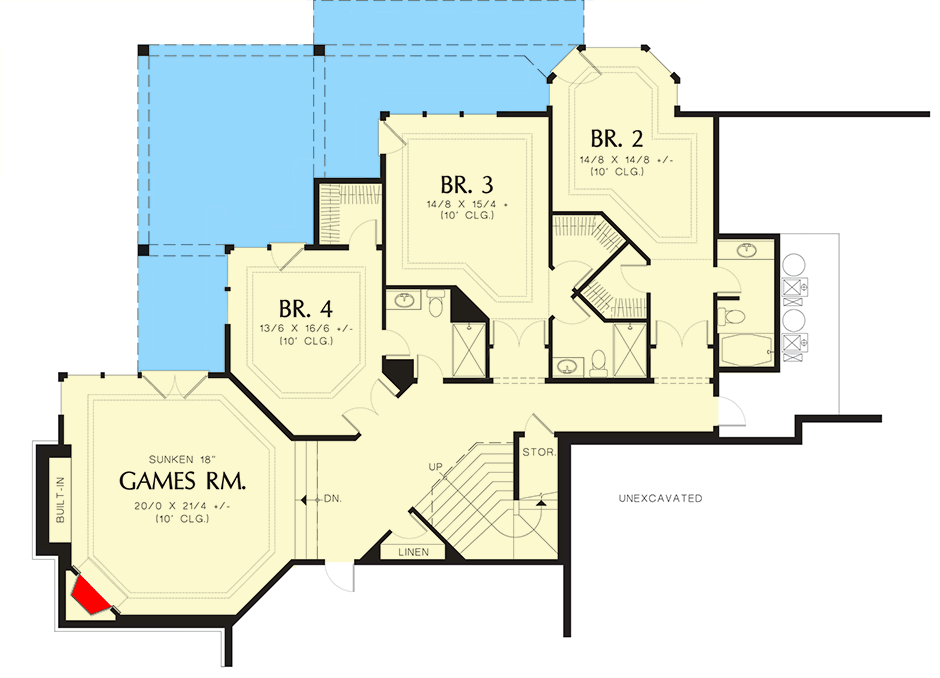

  • Basement

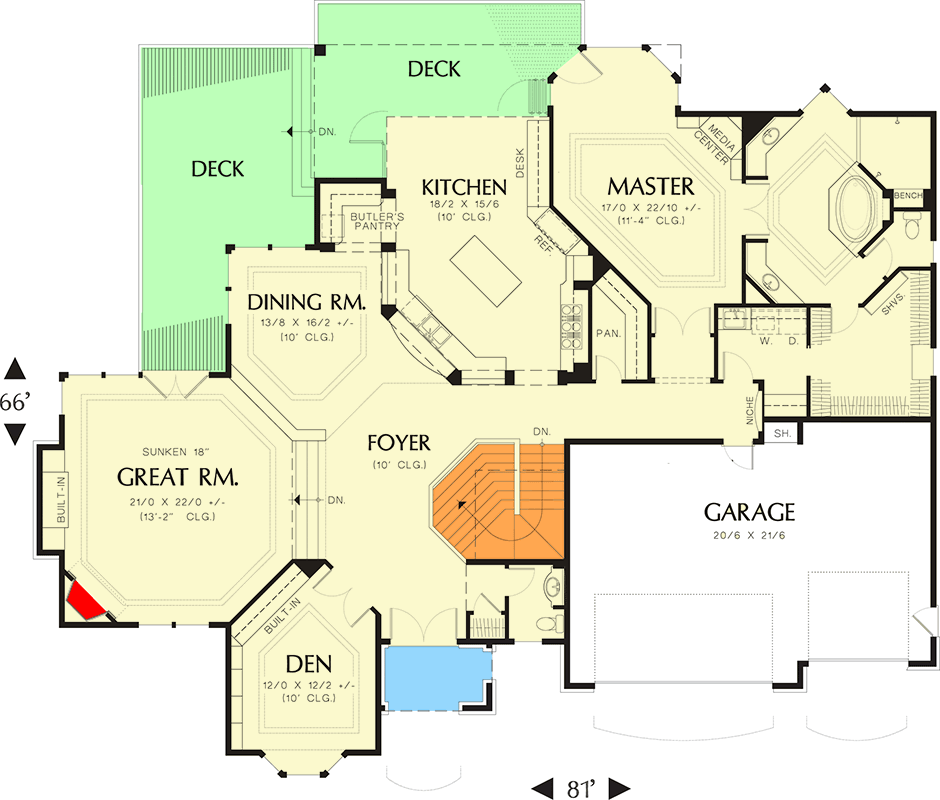

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,808 sq. ft.
  • Lower Level: 2,016 sq. ft.
  • 1st Floor: 2,792 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Combo Basement-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 66' 0"
  • Max ridge height: 33' 2"

Garage

  • Type: Attached
  • Area: 732 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Framing Type: Stick

Architectural Style

  • European
  • Northwest

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • MBR Sitting Area
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Luxury
  • Photo Gallery
  • Premium Collection
  • Sloping Lot
