Plan 81604AB

European Home Plan with Lower Level

European Home Plan with Lower Level

Plan 81604AB

  • 2,306

    Heated s.f.

  • 2-3

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Live all on the main level of this European home plan or spread out to the lower level.
  • Covered porches and a sun deck beckon you to come enjoy the fresh air.
  • Cozy up to the warm fireplace in the great room or head to your den for some quiet time.
  • The optional finished lower level is enormous and a huge wet bar aids in entertaining.
  • The exercise room could easily function as another bedroom should you need it.
  • The master walk-in closet measures a generous 9'5" by 9'10.5".

Plans include the following:

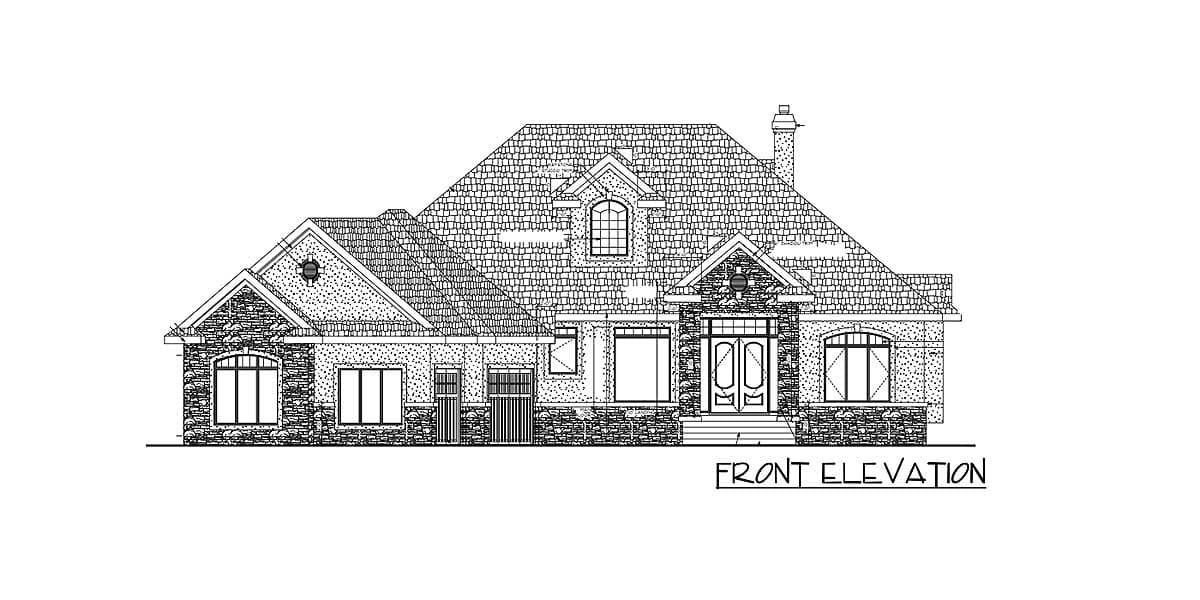

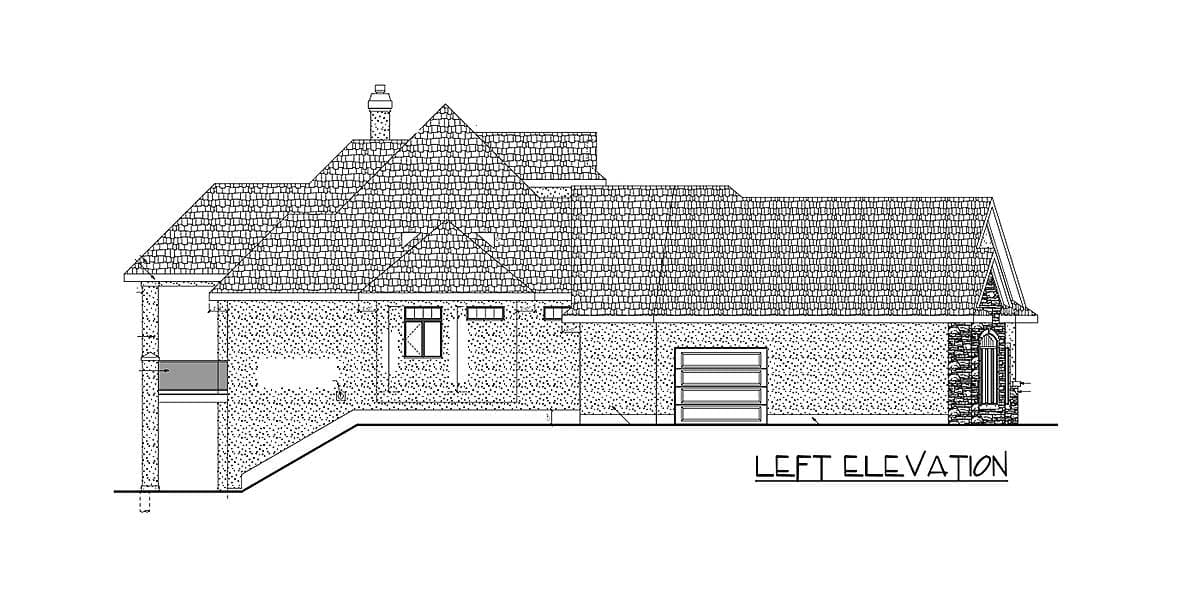

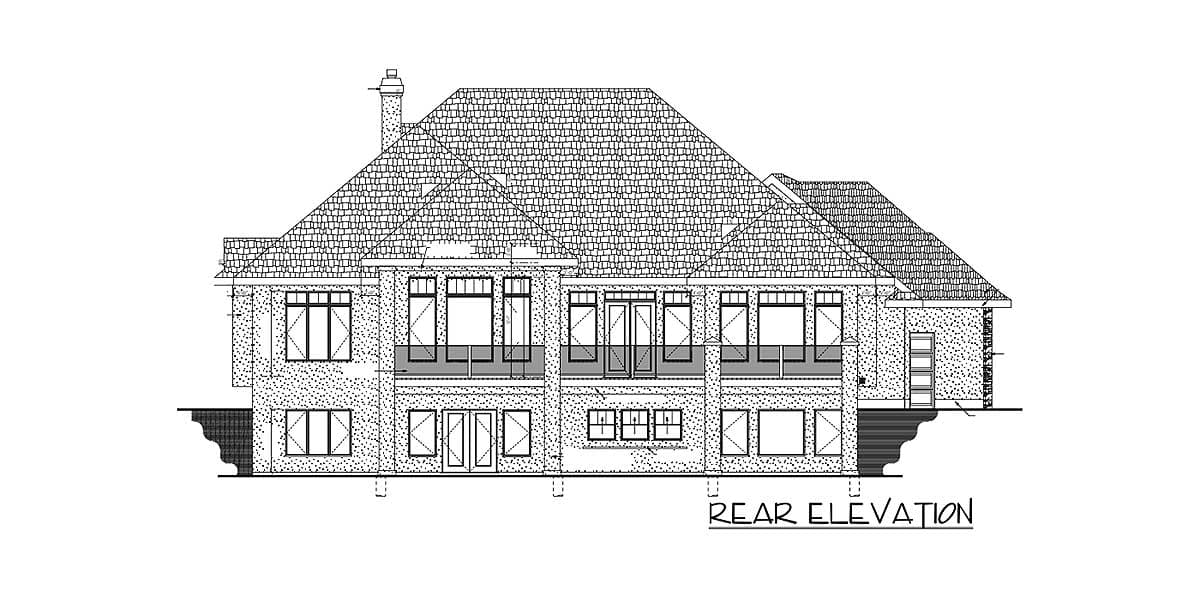

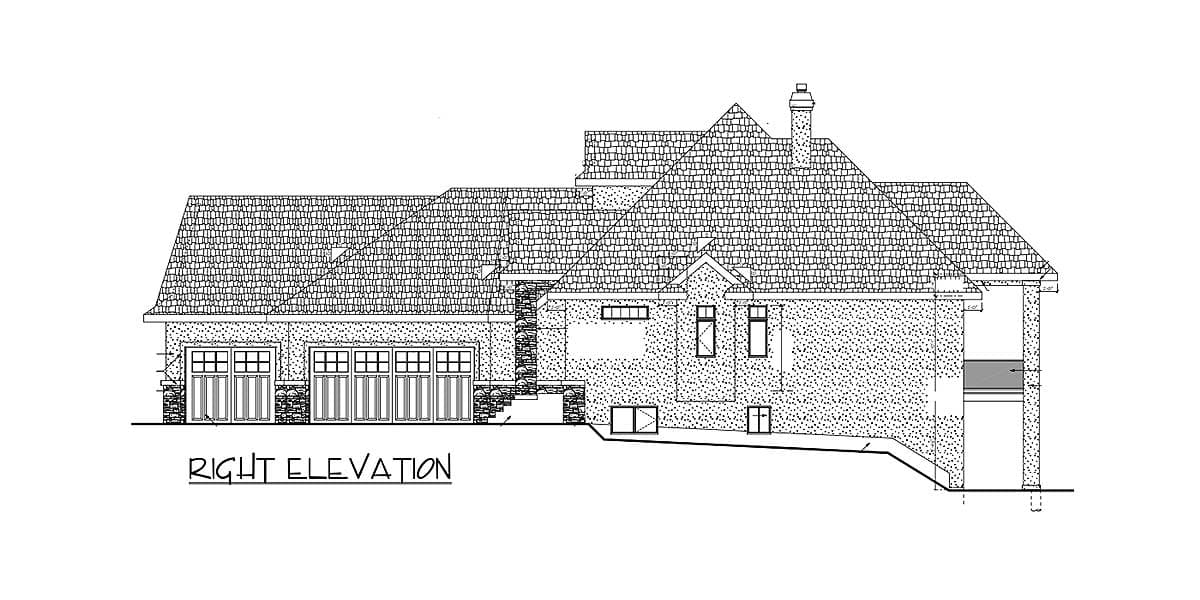

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

 We also include a list of building specifications, and notes for each page, with any important info the builder may need.

 What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

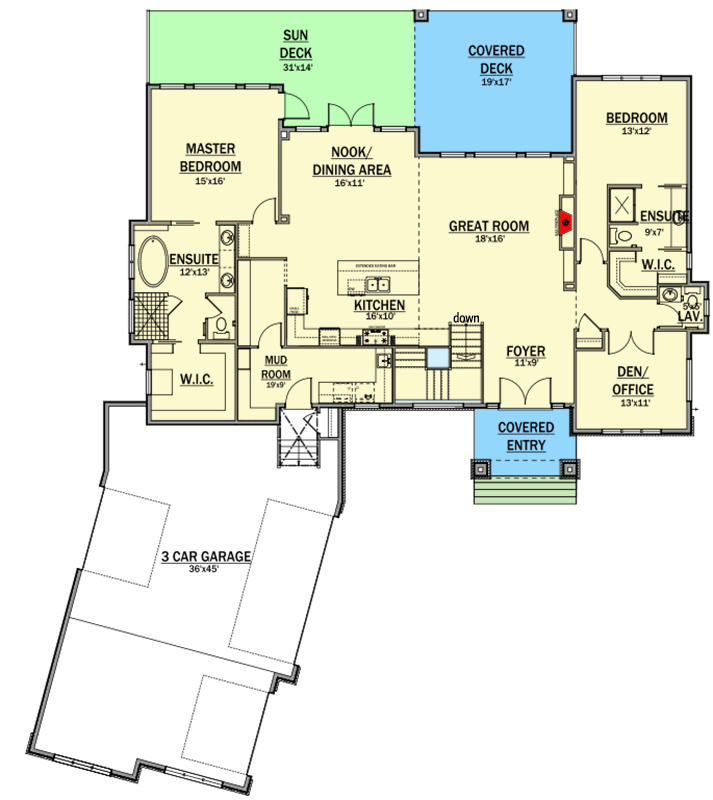

Floor Plan

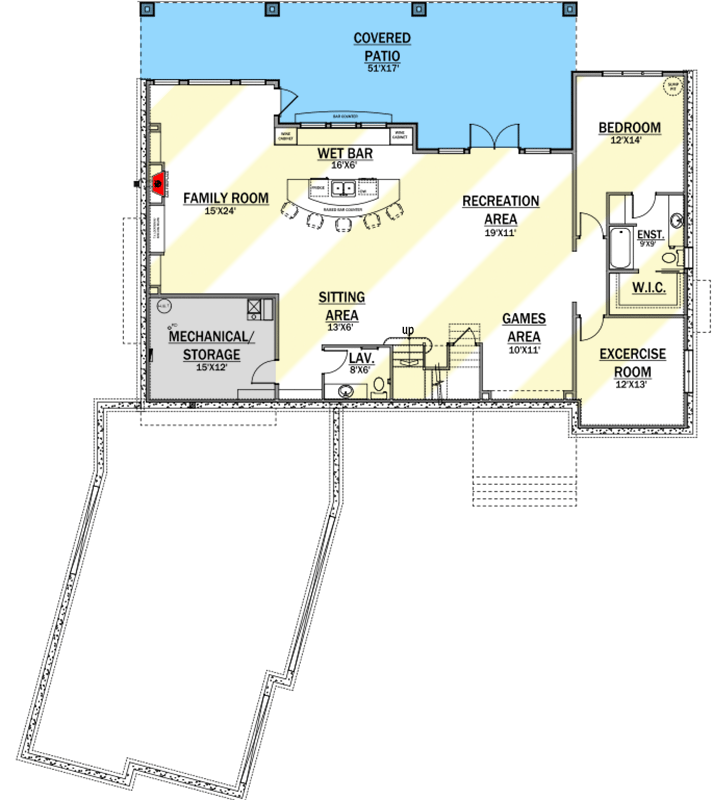

Optional Finished Lower Level

European Home Plan with Lower Level - 81604AB floor plan - Optional Finished Lower Level

Plan details



European Home Plan with Lower Level

  • 2,306

    Heated s.f.

  • 2 - 3

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,795
  • CAD $2,495
  • View all purchase option online

About This Plan

  • Live all on the main level of this European home plan or spread out to the lower level.
  • Covered porches and a sun deck beckon you to come enjoy the fresh air.
  • Cozy up to the warm fireplace in the great room or head to your den for some quiet time.
  • The optional finished lower level is enormous and a huge wet bar aids in entertaining.
  • The exercise room could easily function as another bedroom should you need it.
  • The master walk-in closet measures a generous 9'5" by 9'10.5".

Floor Plans

  • Main Level

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,306 sq. ft.
  • 1st Floor: 2,306 sq. ft.
  • Optional Lower Level: 1,825 sq. ft.
  • Deck: 678 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 93' 0"
  • Max ridge height: 33' 10"

Garage

  • Type: Attached
  • Area: 1225 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" basement 9' 5"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
