Plan 85052MS European Home with Deep Bay Garage

European Home with Deep Bay Garage

Plan 85052MS

  • 3,044

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • Store your RV or boat in this Traditional home with a deep bay garage stall.
  • Inside, the home feels light and bright with all its windows.
  • The two-story living room soars up for a dramatic effect.
  • The open layout lets the views flow from room to room.
  • When you want quiet time, head for the family room in back or the den which can also serve as a fourth bedroom.
  • The bathroom on this level is handicap accessible.
  • Three more bedrooms are up on the second floor along with a handy laundry room and a huge bonus space.

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

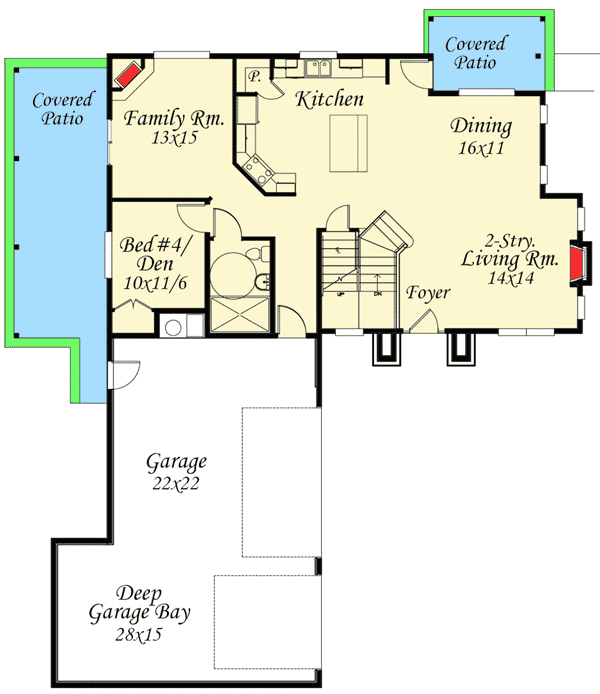

European Home with Deep Bay Garage - 85052MS floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

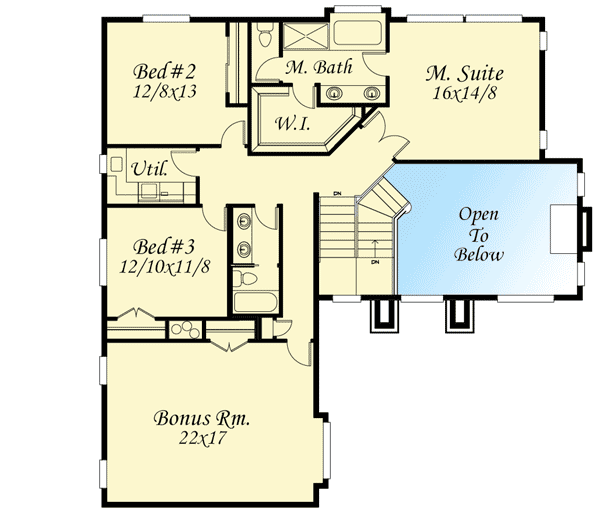

European Home with Deep Bay Garage - 85052MS floor plan - 2nd Floor

Plan details

European Home with Deep Bay Garage

  • 3,044

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,795
  • 6 Sets + PDF $2,130
  • CAD + PDF - Single-Build $3,044
  • View all purchase option online

About This Plan

  • Store your RV or boat in this Traditional home with a deep bay garage stall.
  • Inside, the home feels light and bright with all its windows.
  • The two-story living room soars up for a dramatic effect.
  • The open layout lets the views flow from room to room.
  • When you want quiet time, head for the family room in back or the den which can also serve as a fourth bedroom.
  • The bathroom on this level is handicap accessible.
  • Three more bedrooms are up on the second floor along with a handy laundry room and a huge bonus space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,044 sq. ft.
  • 1st Floor: 1,445 sq. ft.
  • 2nd Floor: 1,599 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 72' 0"

Garage

  • Type: Attached
  • Area: 904 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard
