Plan 69019AM

European House Plan for Sloping Lot

2,898 3 3 1 3
Pageloader

European House Plan for Sloping Lot

Plan 69019AM

  • 2,898

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Think one-story, then think again; it's a hillside home plan designed to make the best use of a sloping lot. Elegant in exterior appeal, the home uses high arches and a hipped room to promote a sense of style.
  • The main floor opens from a recessed entry to a central foyer with 13' ceiling. Box beams and columns define the formal dining area to the left and transition nicely into a beamed ceiling in the great room. Built-ins and a fireplace further the appeal. Nearby is a casual dining area with sliding glass doors to a deck, which acts as the roof for the patio below.
  • The master suite and a den are on the right side of the main level. A half-bath serves the den, while the master bath is replete with a spa tub, compartmented toilet, separate shower and dual lavatories. A service area off the kitchen leads to the three-car garage and has washer/dryer space.
  • Two bedrooms, a full bath and a games room on the lower level add to the great livability of the home. A wet bar in the games room is a bonus.
  • Related Plans: Get an alternate exterior with house plan 6964AM (2,964 sq. ft.).
  • Downsize with house plan 6898AM (2,656 sq. ft.).

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



European House Plan for Sloping Lot

  • 2,898

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $996
  • PDF - single-use $1,346
  • 5 Sets $1,496
  • 5 Sets PLUS $1,546
  • CAD - multi-use $2,692
  • View all purchase option online

About This Plan

  • Think one-story, then think again; it's a hillside home plan designed to make the best use of a sloping lot. Elegant in exterior appeal, the home uses high arches and a hipped room to promote a sense of style.
  • The main floor opens from a recessed entry to a central foyer with 13' ceiling. Box beams and columns define the formal dining area to the left and transition nicely into a beamed ceiling in the great room. Built-ins and a fireplace further the appeal. Nearby is a casual dining area with sliding glass doors to a deck, which acts as the roof for the patio below.
  • The master suite and a den are on the right side of the main level. A half-bath serves the den, while the master bath is replete with a spa tub, compartmented toilet, separate shower and dual lavatories. A service area off the kitchen leads to the three-car garage and has washer/dryer space.
  • Two bedrooms, a full bath and a games room on the lower level add to the great livability of the home. A wet bar in the games room is a bonus.
  • Related Plans: Get an alternate exterior with house plan 6964AM (2,964 sq. ft.).
  • Downsize with house plan 6898AM (2,656 sq. ft.).

Floor Plans

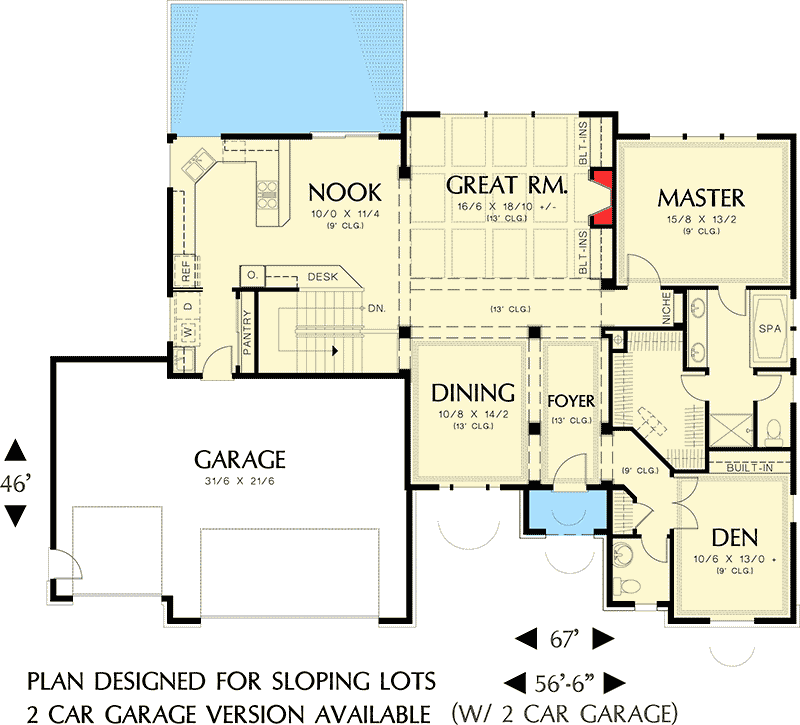

  • Main Level

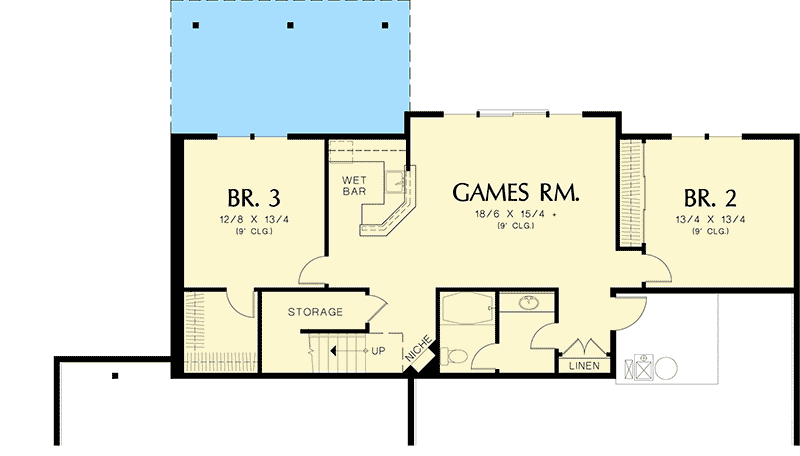

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,898 sq. ft.
  • Lower Level: 1,155 sq. ft.
  • 1st Floor: 1,743 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Combo Basement-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 46' 0"
  • Max ridge height: 21' 7"

Garage

  • Type: Attached
  • Area: 708 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • European
  • Traditional
