Plan 62583DJ
European House Plan with Master Sitting Room
Heated S.F.
1,976
Beds
3
Baths
2.5
Stories
2
Cars
1
Plan Details

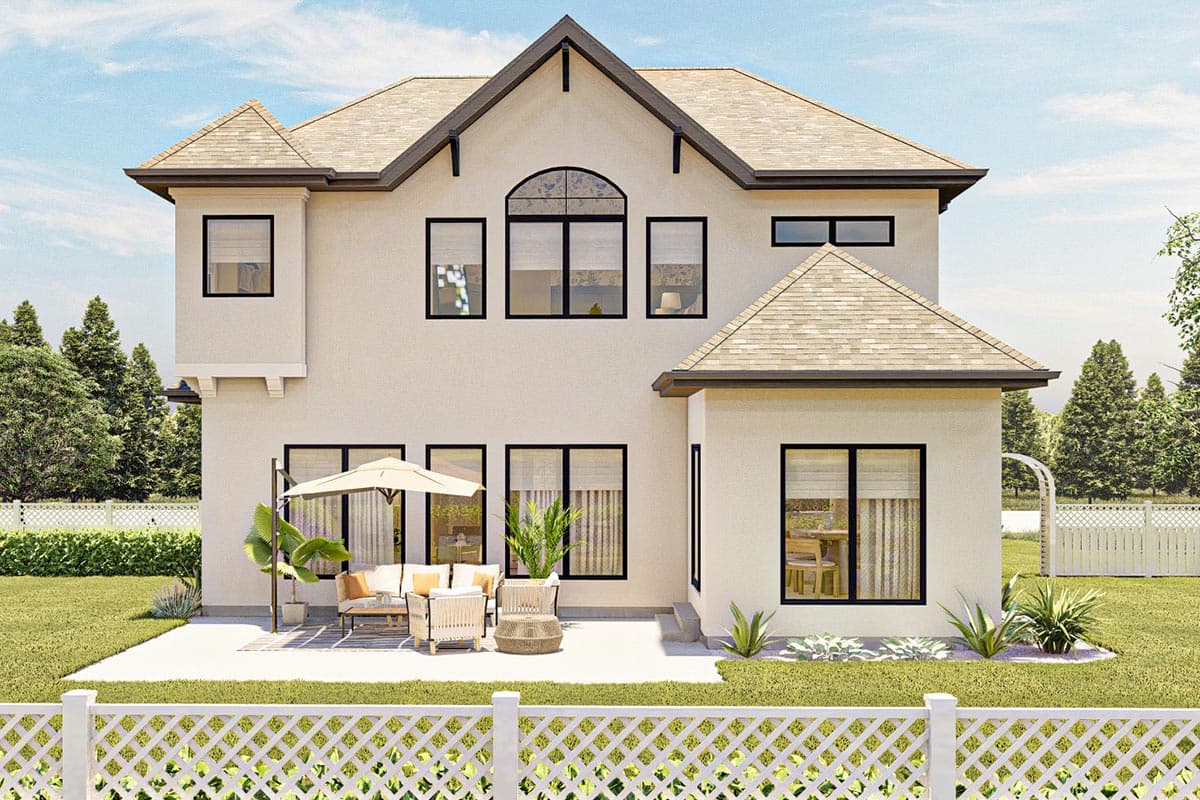

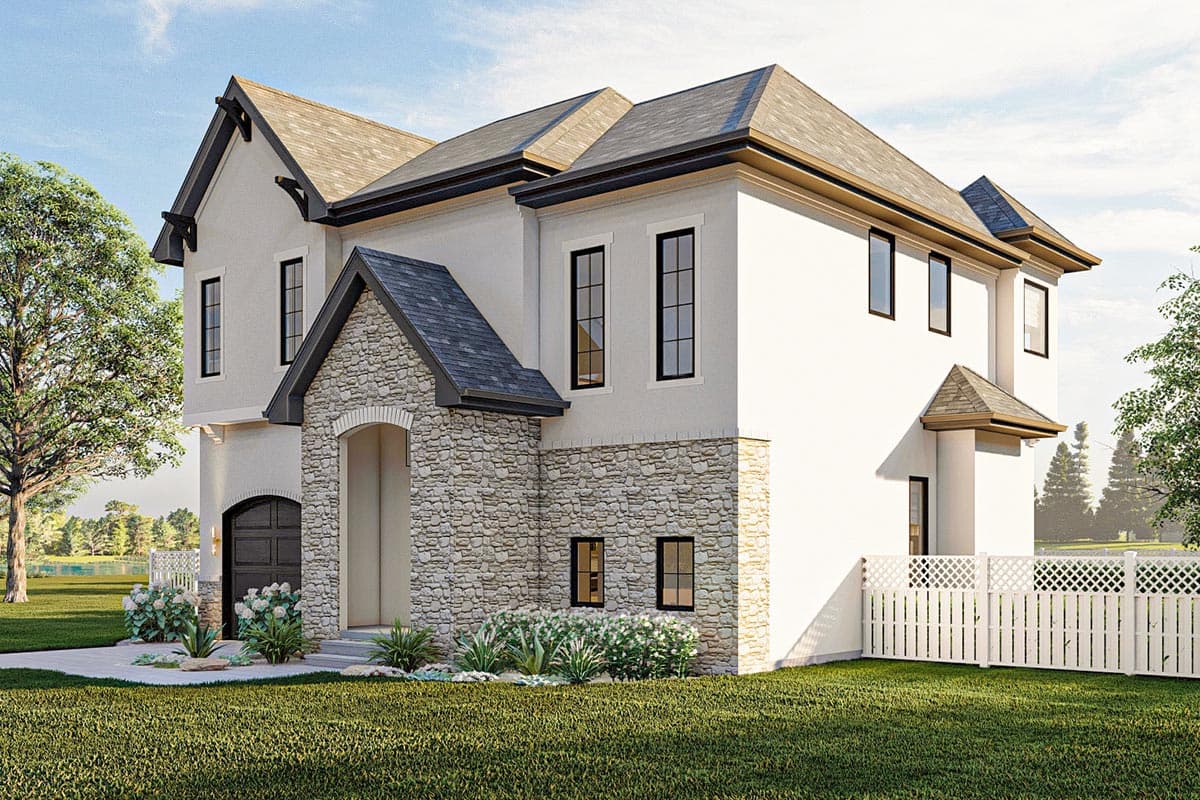

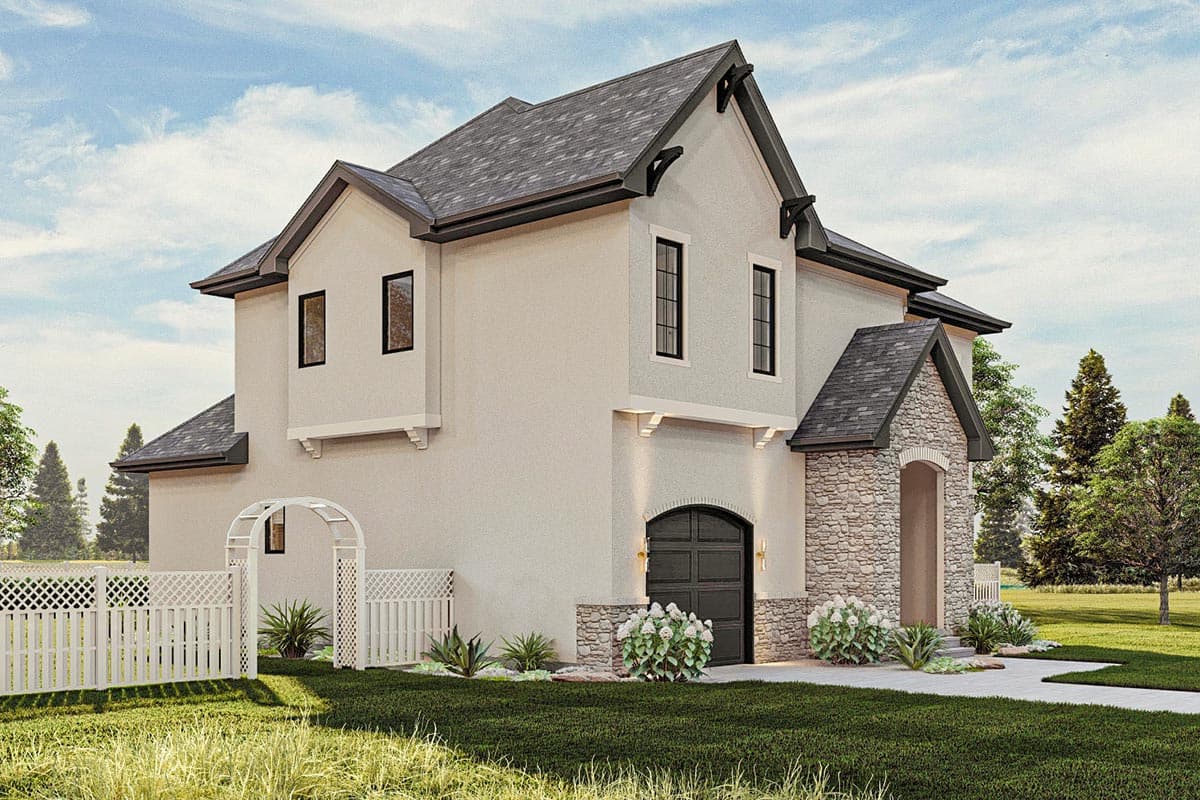

  • The stone and stucco exterior and steep hip roof give this European house plan a well-blended facade.

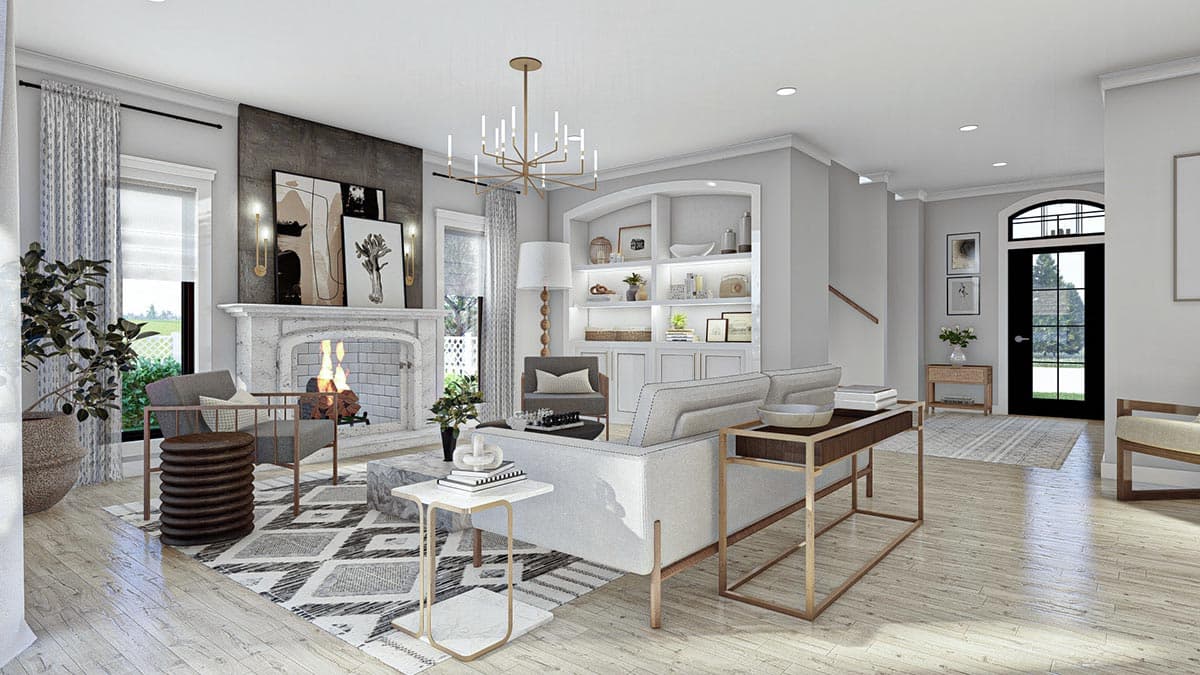

  • From the foyer, two interior columns introduce the huge great room with its wall of windows overlooking the back deck.

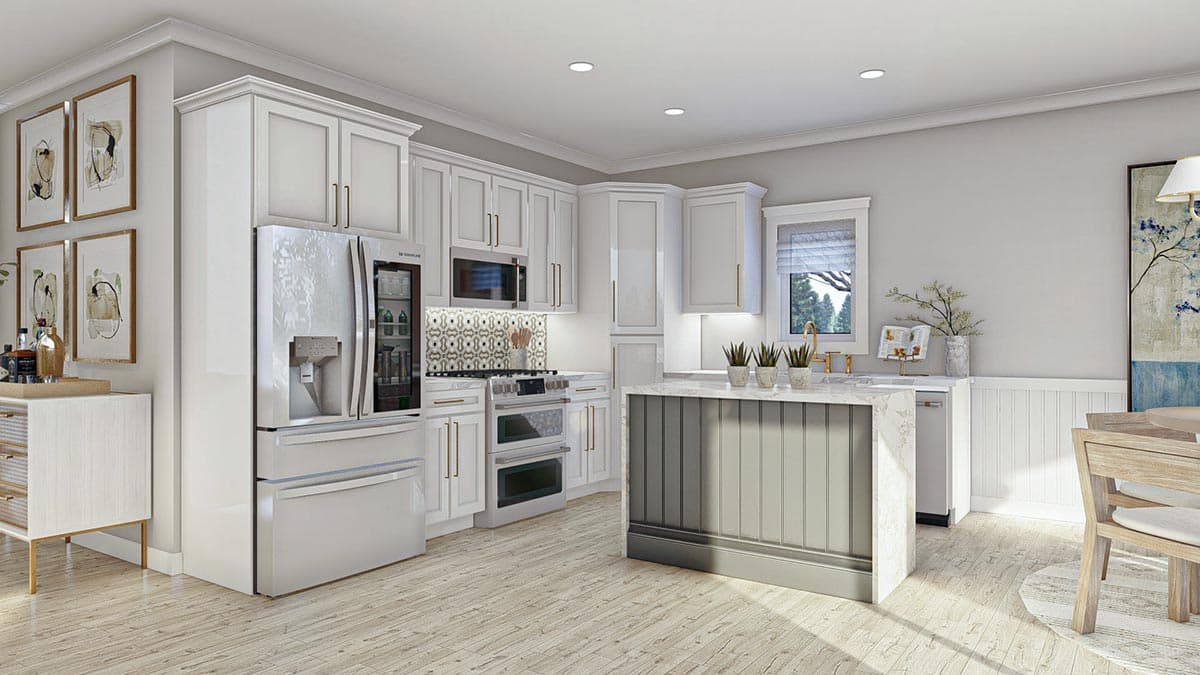

  • The kitchen is nicely placed to view both the great room and the dining area.

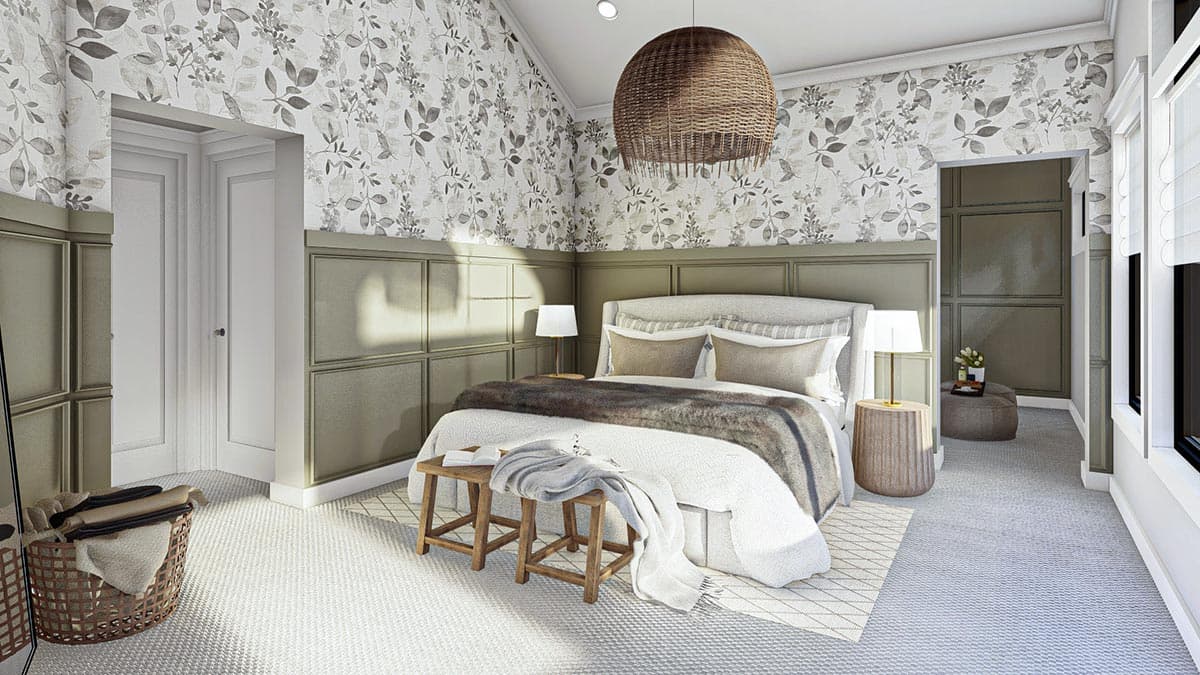

  • On the second floor, the amazing master suite gets a vaulted ceiling and a separate sitting room plus a large corner soaking tub.
  • The laundry room has been placed on this floor, right where most of the laundry is generated.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

European House Plan with Master Sitting Room

  • 1,976

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

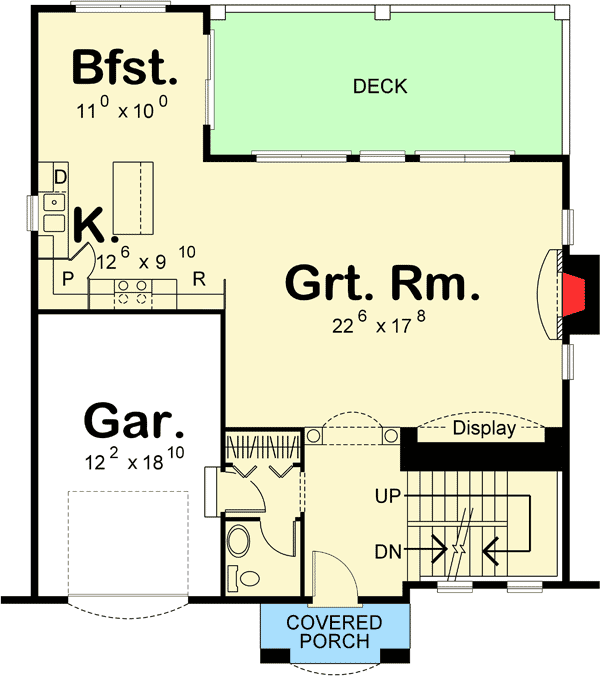

  • Main Level

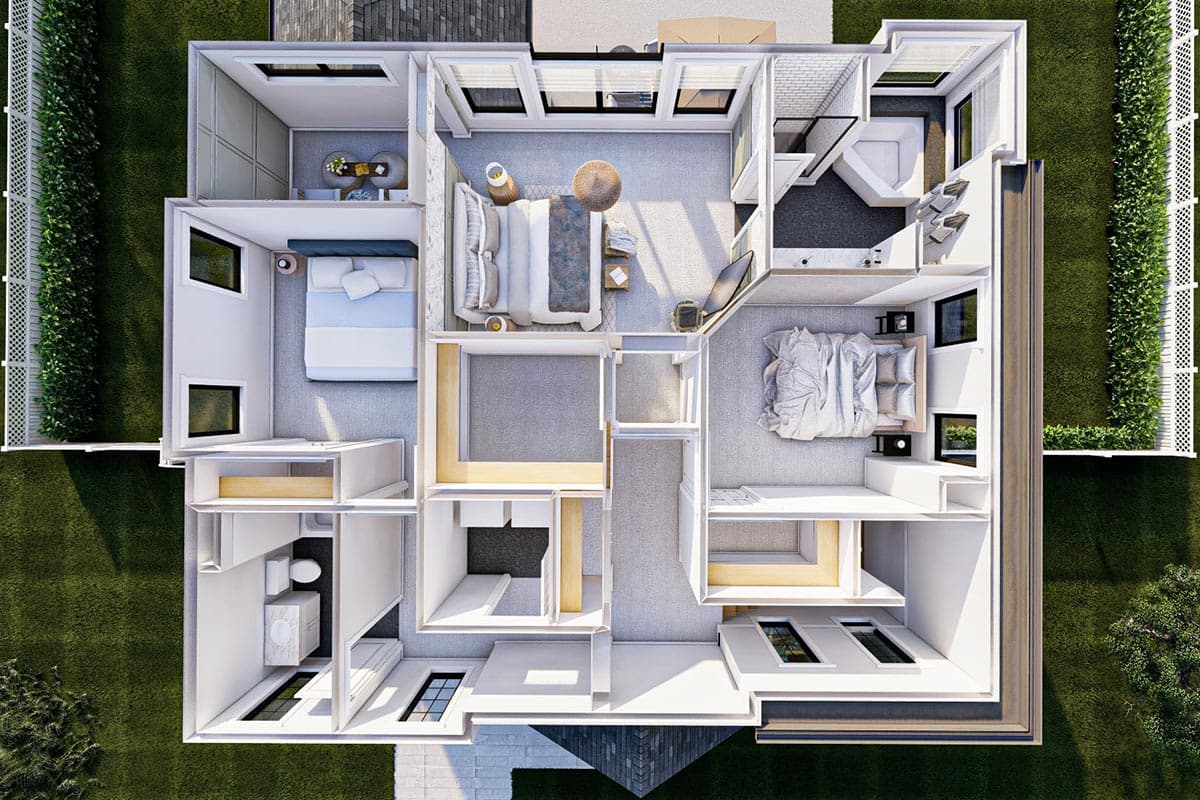

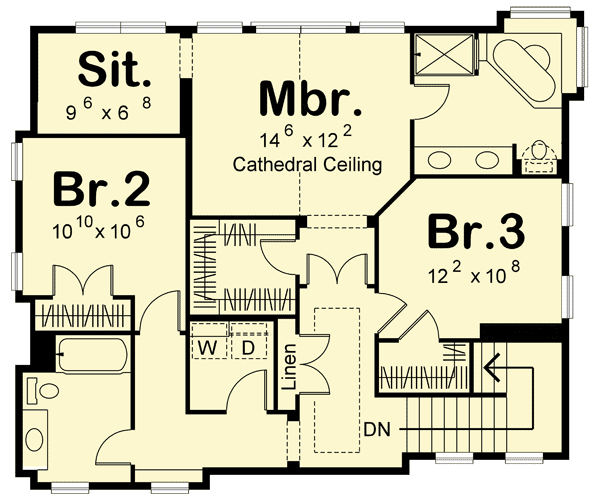

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,976 sq. ft.
  • 1st Floor: 944 sq. ft.
  • 2nd Floor: 1,032 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 44' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 242 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 12 on 12
