Plan 81701AB European House Plan with Second Floor In-Law Apartment

3,219 3-5 3.5 - 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

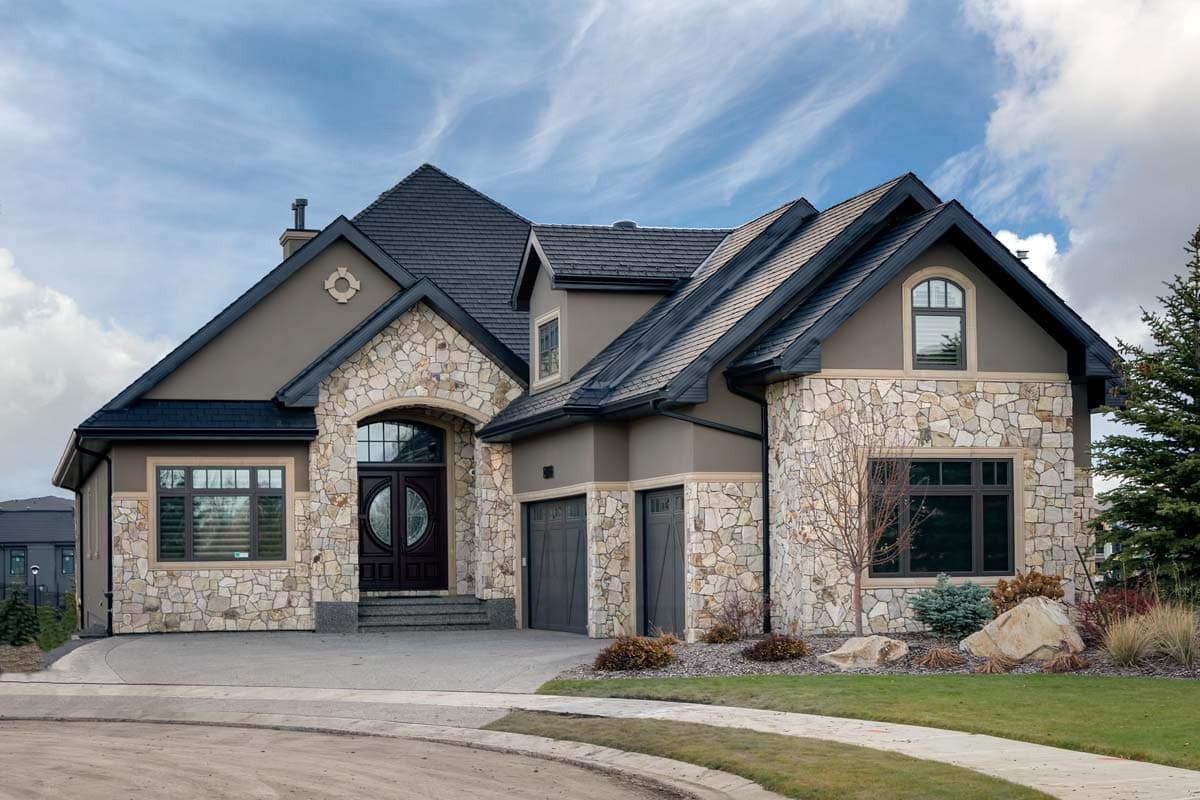

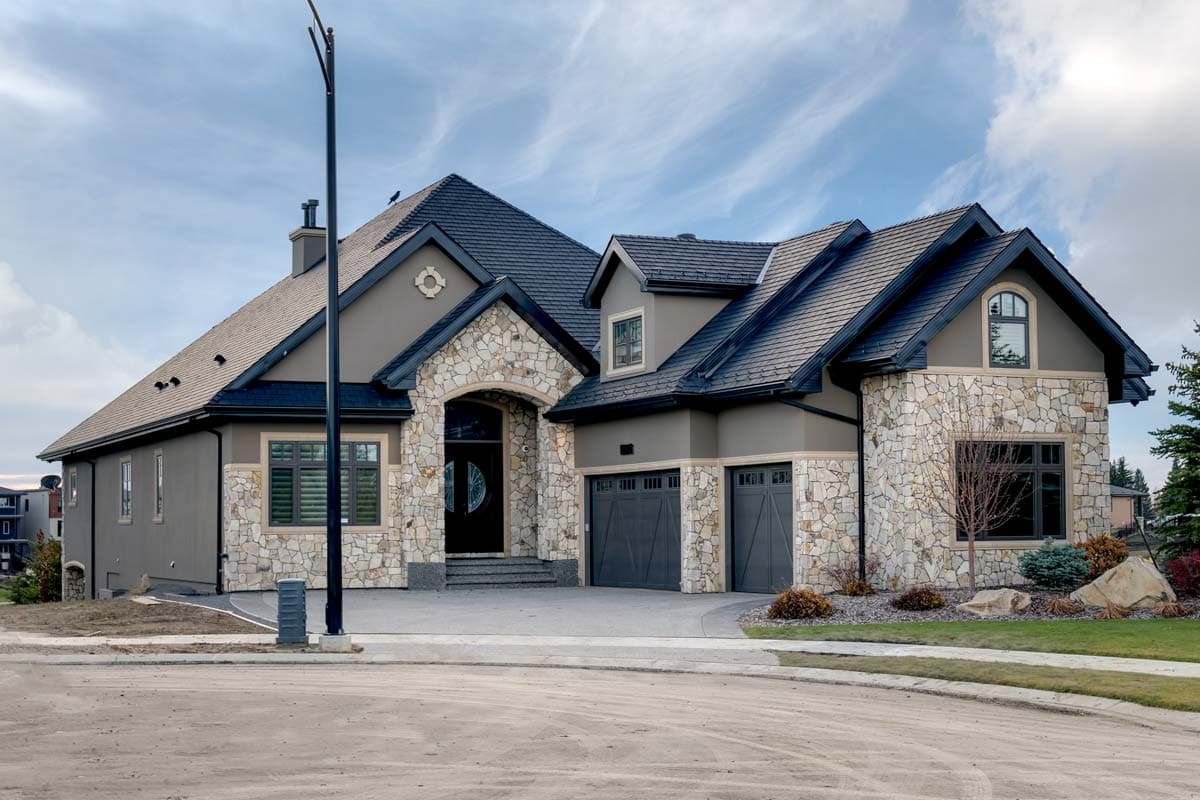

European House Plan with Second Floor In-Law Apartment

Plan 81701AB

  • 3,219

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This multi-generational European house plan comes with a self-contained second floor apartment complete with kitchen, living area and separate bedroom.
  • The main floor of the home boasts a huge open floor plan with sweeping views from the formal dining room to the enormous kitchen with its unusual island to the great room that has a lovely and impressive coffered ceiling.
  • There are two outdoor fireplaces on the expansive covered deck, one with storage closets on either side.
  • A spacious master suite opens to the rear deck and a second bedroom on this floor faces the front.
  • Expand this home by finishing the optional lower level with a large wine cellar, exercise room and two more bedrooms plus a kitchenette for hosting parties.

Plans include the following:

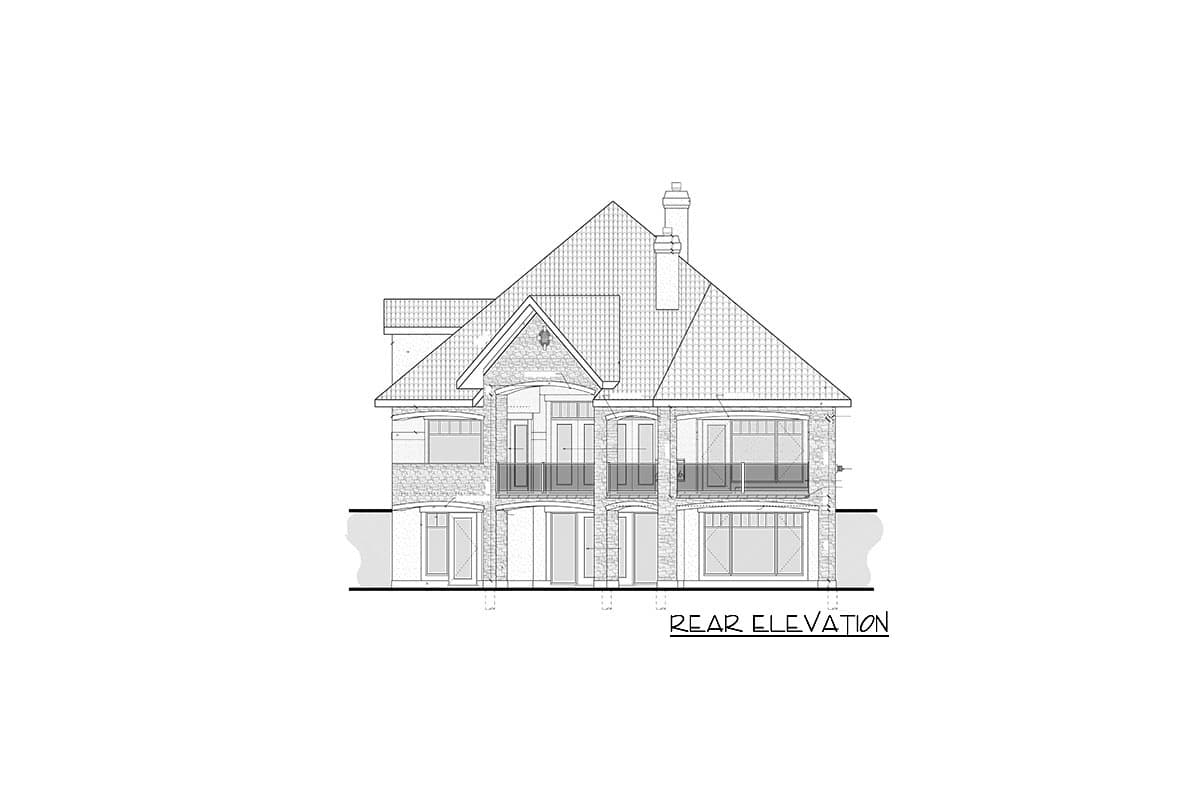

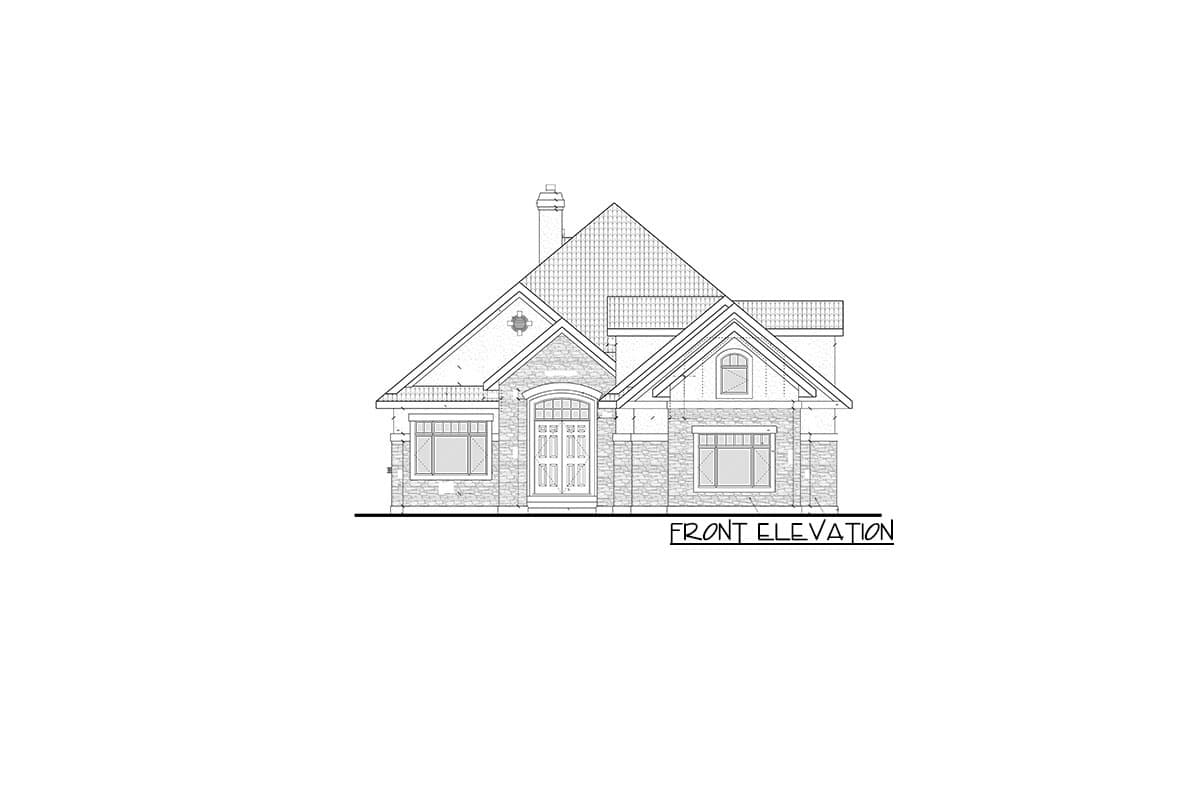

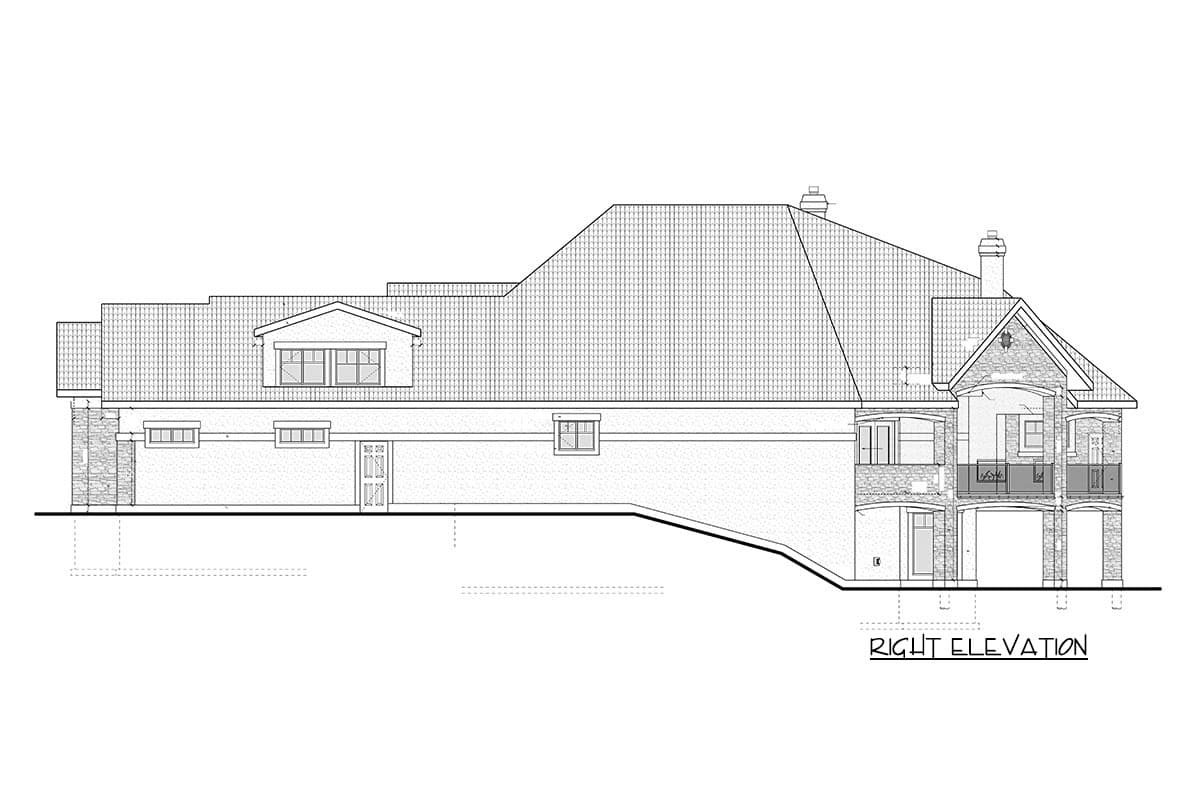

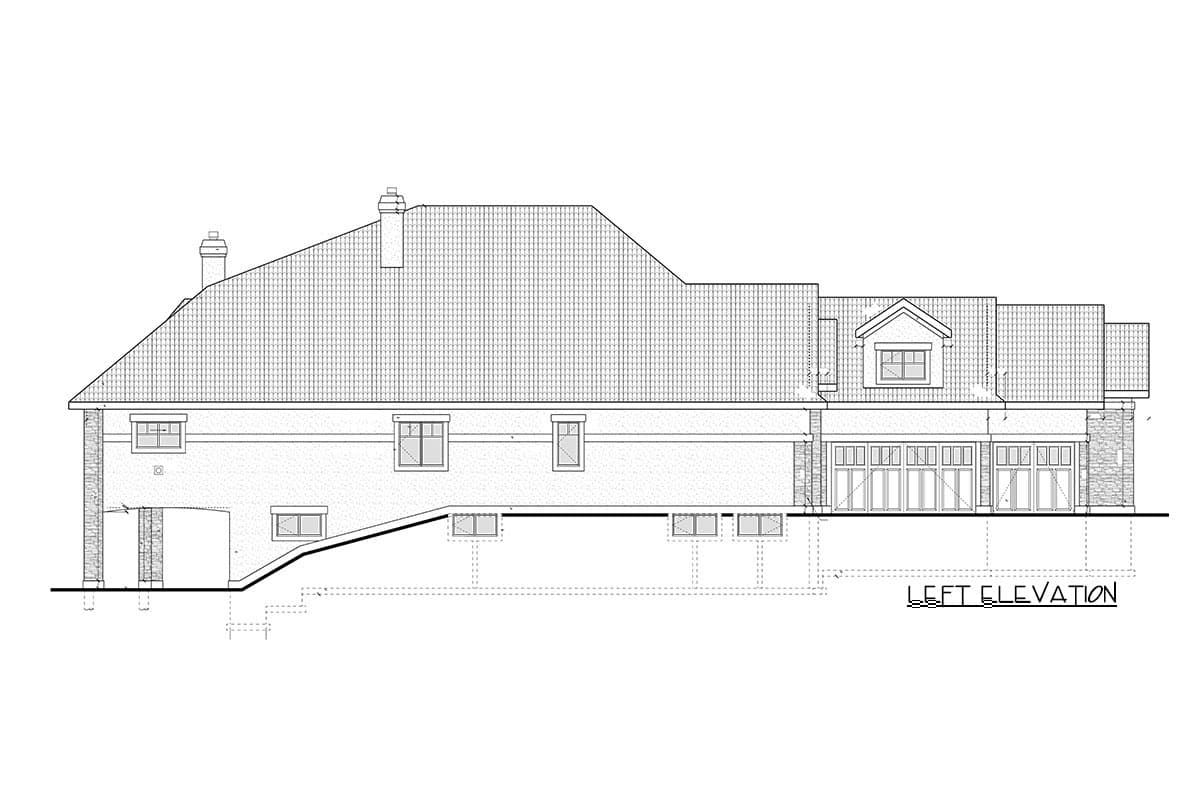

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

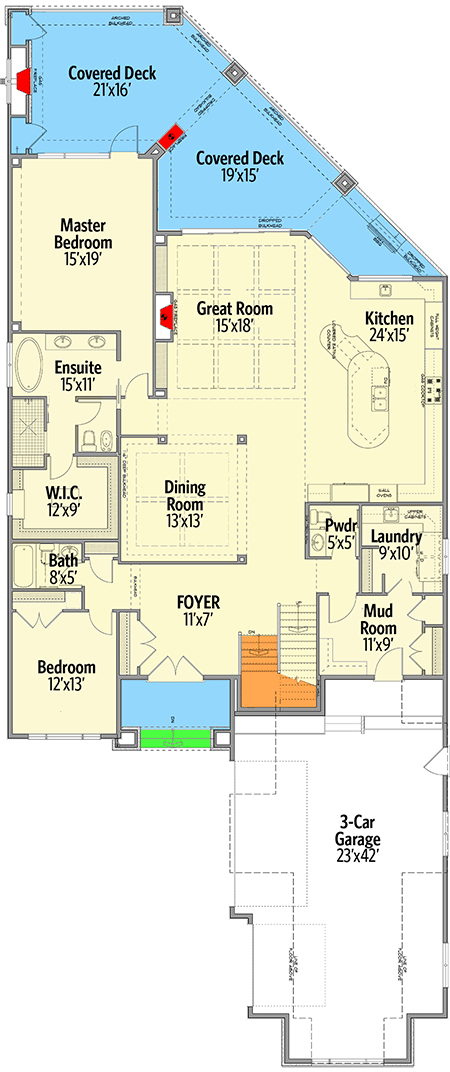

European House Plan with Second Floor In-Law Apartment - 81701AB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

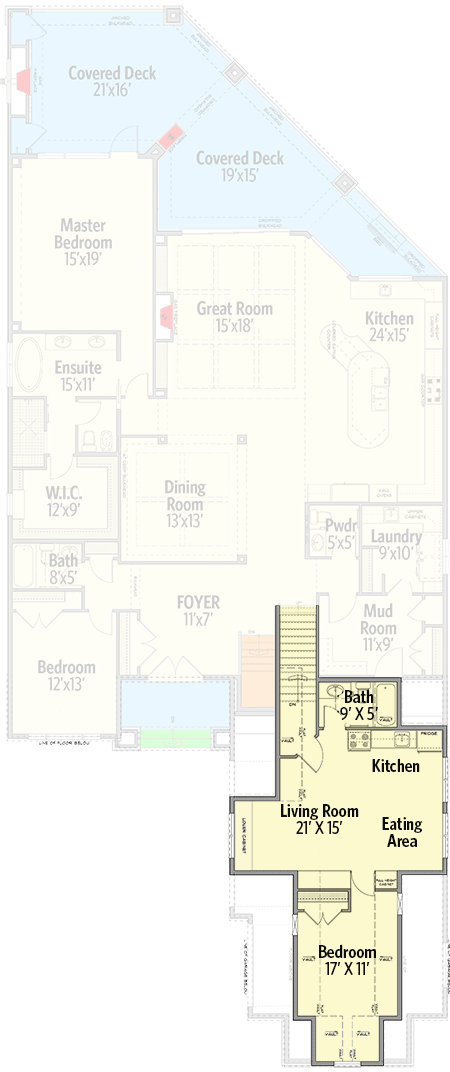

European House Plan with Second Floor In-Law Apartment - 81701AB floor plan - 2nd Floor

Optional Finish Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

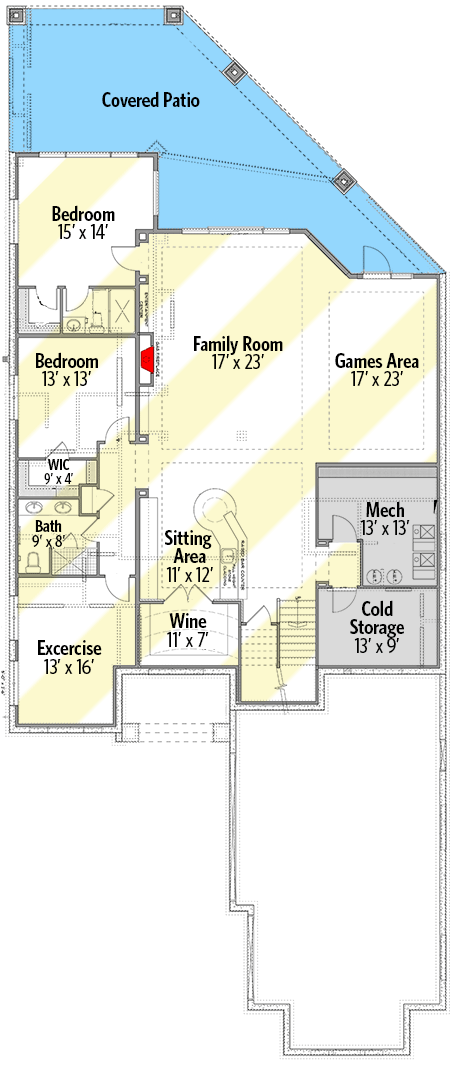

European House Plan with Second Floor In-Law Apartment - 81701AB floor plan - Optional Finish Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,219 sq. ft.
  • 1st Floor: 2,594 sq. ft.
  • 2nd Floor: 625 sq. ft.
  • Deck: 680 sq. ft.
  • Optional Lower Level: 2,060 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 117' 0"
  • Max ridge height: 34' 3"

Garage

  • Type: Attached
  • Area: 902 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

European House Plan with Second Floor In-Law Apartment

  • 3,219

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,900
  • CAD + PDF - Single Build $2,600
  • CAD Unlimited + PDF $3,100
  • View all purchase option online

About This Plan

  • This multi-generational European house plan comes with a self-contained second floor apartment complete with kitchen, living area and separate bedroom.
  • The main floor of the home boasts a huge open floor plan with sweeping views from the formal dining room to the enormous kitchen with its unusual island to the great room that has a lovely and impressive coffered ceiling.
  • There are two outdoor fireplaces on the expansive covered deck, one with storage closets on either side.
  • A spacious master suite opens to the rear deck and a second bedroom on this floor faces the front.
  • Expand this home by finishing the optional lower level with a large wine cellar, exercise room and two more bedrooms plus a kitchenette for hosting parties.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Finish Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,219 sq. ft.
  • 1st Floor: 2,594 sq. ft.
  • 2nd Floor: 625 sq. ft.
  • Deck: 680 sq. ft.
  • Optional Lower Level: 2,060 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 117' 0"
  • Max ridge height: 34' 3"

Garage

  • Type: Attached
  • Area: 902 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Framing Type: Truss
Plan 81701AB
