European-inspired House Plan with a Gentle, Curved Roofline

Plan 42698DB

  • 1,540

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • A gentle, curved roofline draws your attention to this 3-bed European-inspired house plan.
  • The kitchen, eating area, and family room are wonderfully open and get great natural light.
  •  For a compact design, this home’s kitchen offers surprising storage and workspace, plus an eating bar for quick meals.
  • All the bedrooms are located upstairs, as is the laundry for your convenience. A loft/flex space can be tailored for how you want to live
  • Related Plan: Get an alternate exterior with house plan 41874DB.

This house plan set has the following details:

  • General Notes

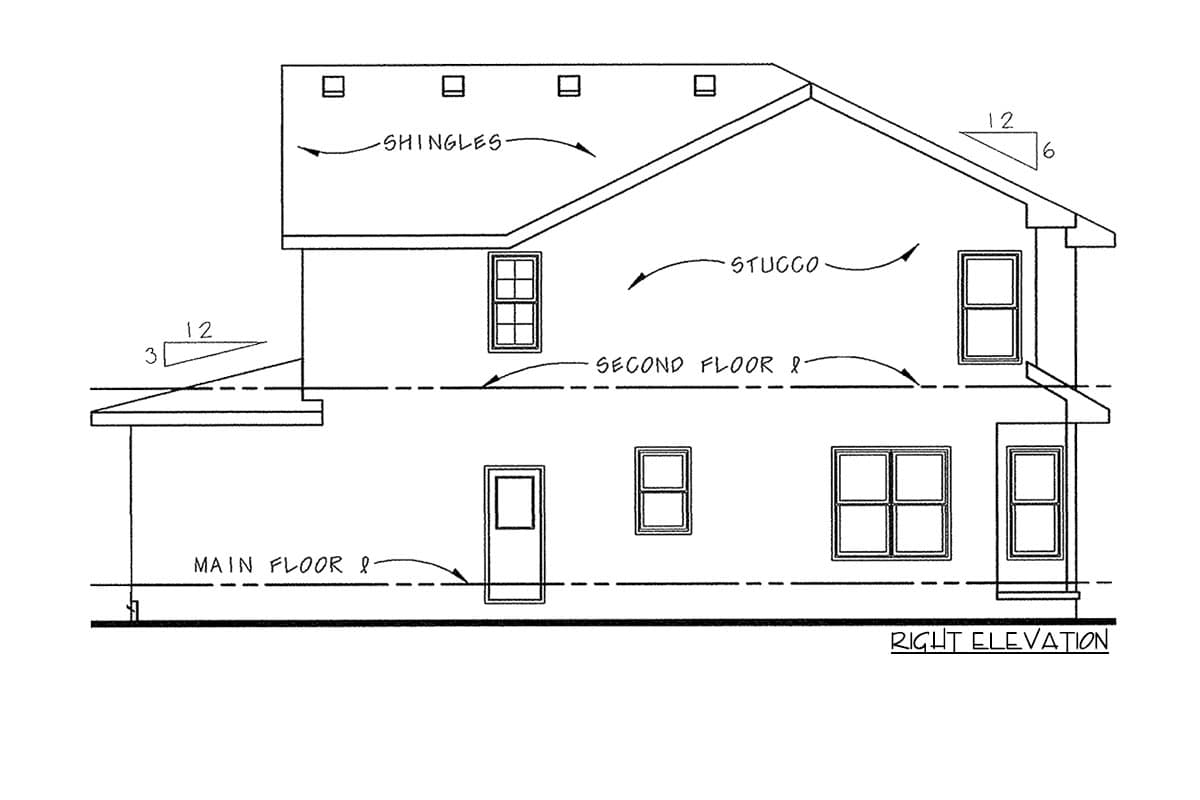

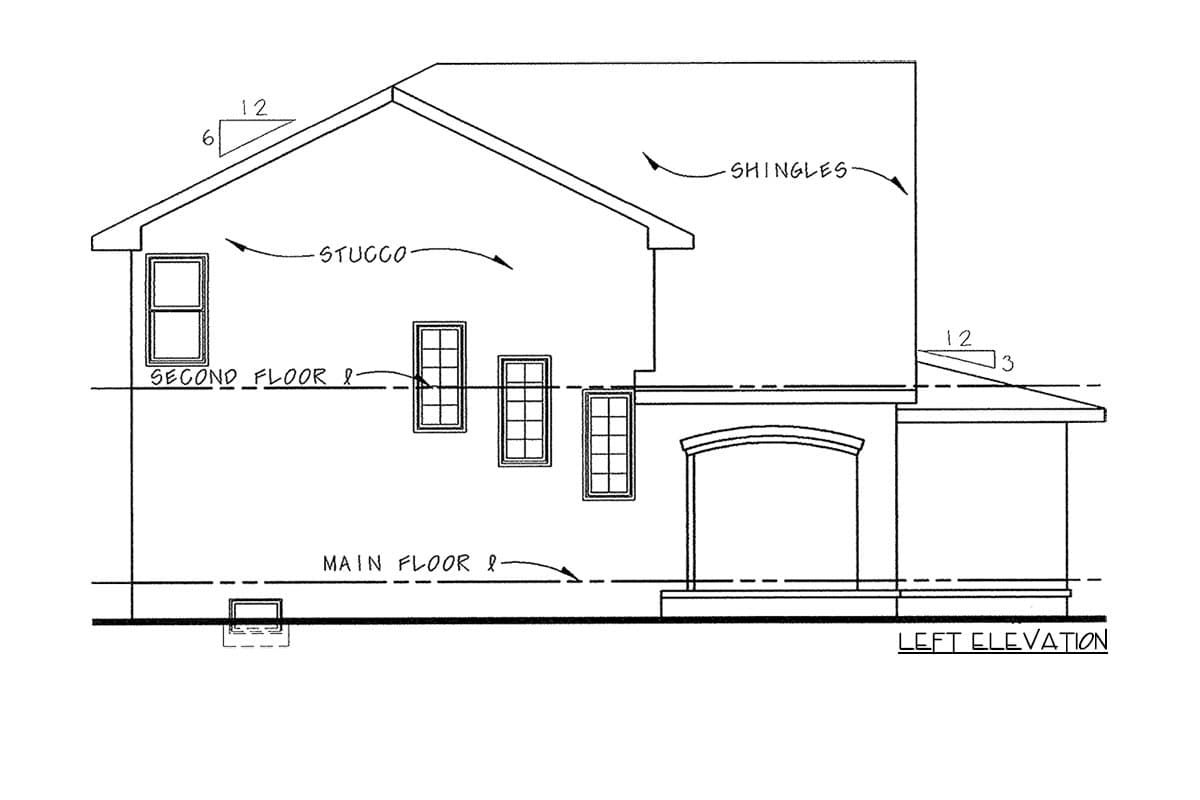

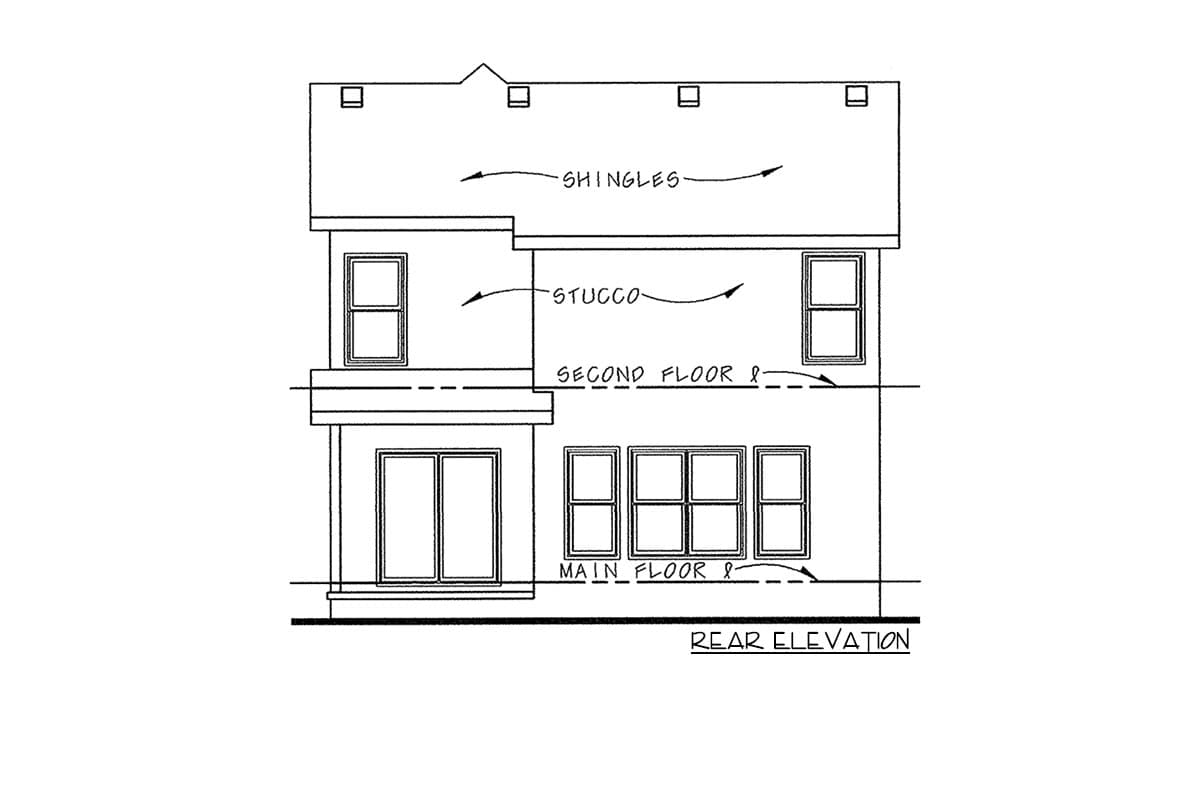

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

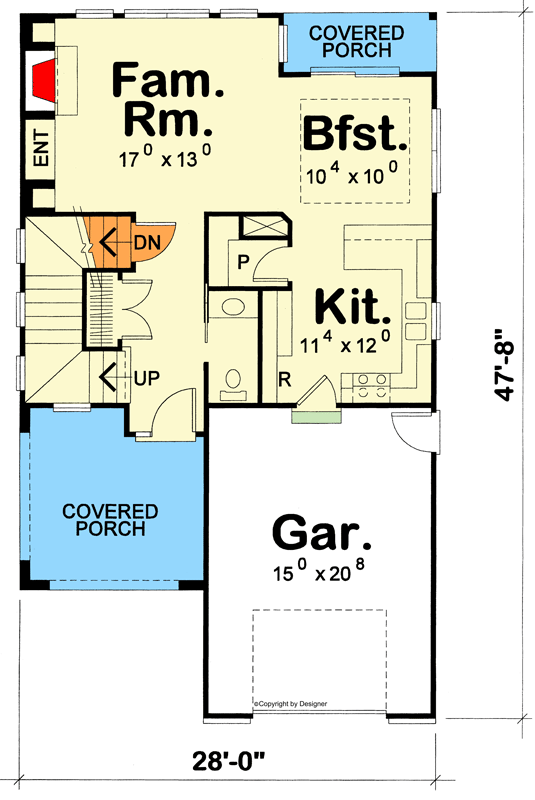

European-inspired House Plan with a Gentle, Curved Roofline - 42698DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

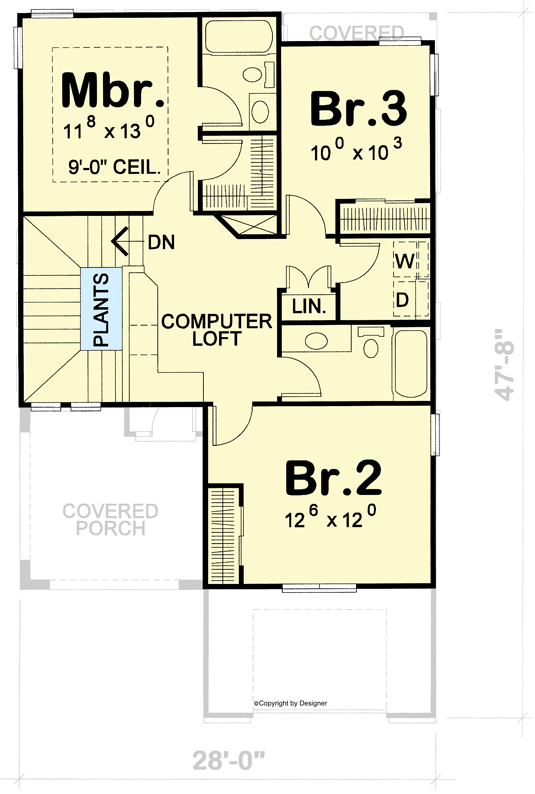

European-inspired House Plan with a Gentle, Curved Roofline - 42698DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,540 sq. ft.
  • 1st Floor: 717 sq. ft.
  • 2nd Floor: 823 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 47' 8"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 328 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12

Architectural Style

Special features

European-inspired House Plan with a Gentle, Curved Roofline

  • 1,540

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • Study Set - Digital $650
  • PDF - Single-Build $1,055
  • PDF - Unlimited Build $1,555
  • CAD + PDF - Single-Build $1,740
  • CAD - Unlimited Build $2,240
  • View all purchase option online

About This Plan

  • A gentle, curved roofline draws your attention to this 3-bed European-inspired house plan.
  • The kitchen, eating area, and family room are wonderfully open and get great natural light.
  •  For a compact design, this home’s kitchen offers surprising storage and workspace, plus an eating bar for quick meals.
  • All the bedrooms are located upstairs, as is the laundry for your convenience. A loft/flex space can be tailored for how you want to live
  • Related Plan: Get an alternate exterior with house plan 41874DB.
