Plan 41874DB Craftsman Home Plan with Upstairs Flex Loft

1,540 3 2.5 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Home Plan with Upstairs Flex Loft

Plan 41874DB

  • 1,540

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • Attractive features adorn the exterior of this Craftsman house plan including its its masonry skirt, wide porch column bases, shed dormer windows and shake shingle siding with brackets.
  • The kitchen, eating area, and family room are wonderfully open and get great natural light. For a compact design, this home’s kitchen offers surprising storage and workspace, plus an eating bar for quick meals.
  • All the bedrooms are located upstairs, as is the laundry for your convenience. A loft/flex space can be tailored for how you want to live.
  • Related Plan: Get an alternate exterior with house plan 52698DB.

This house plan set has the following details:

  • General Notes

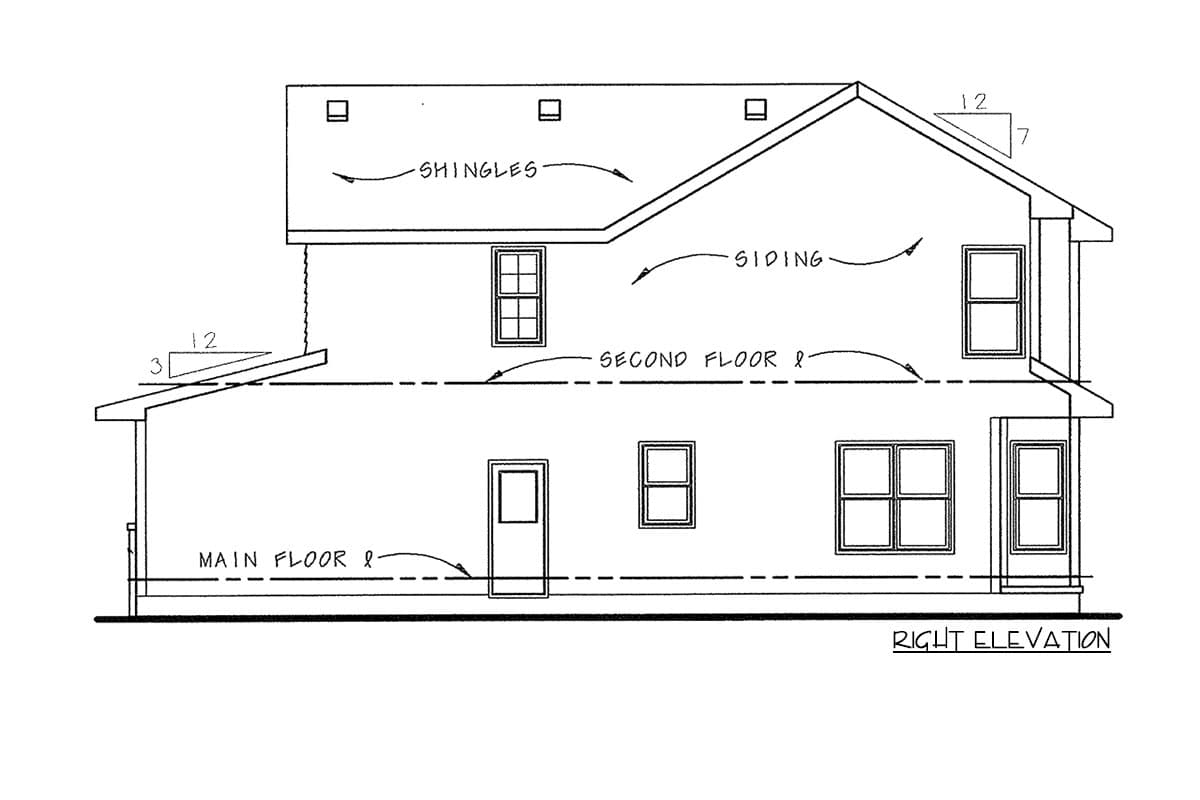

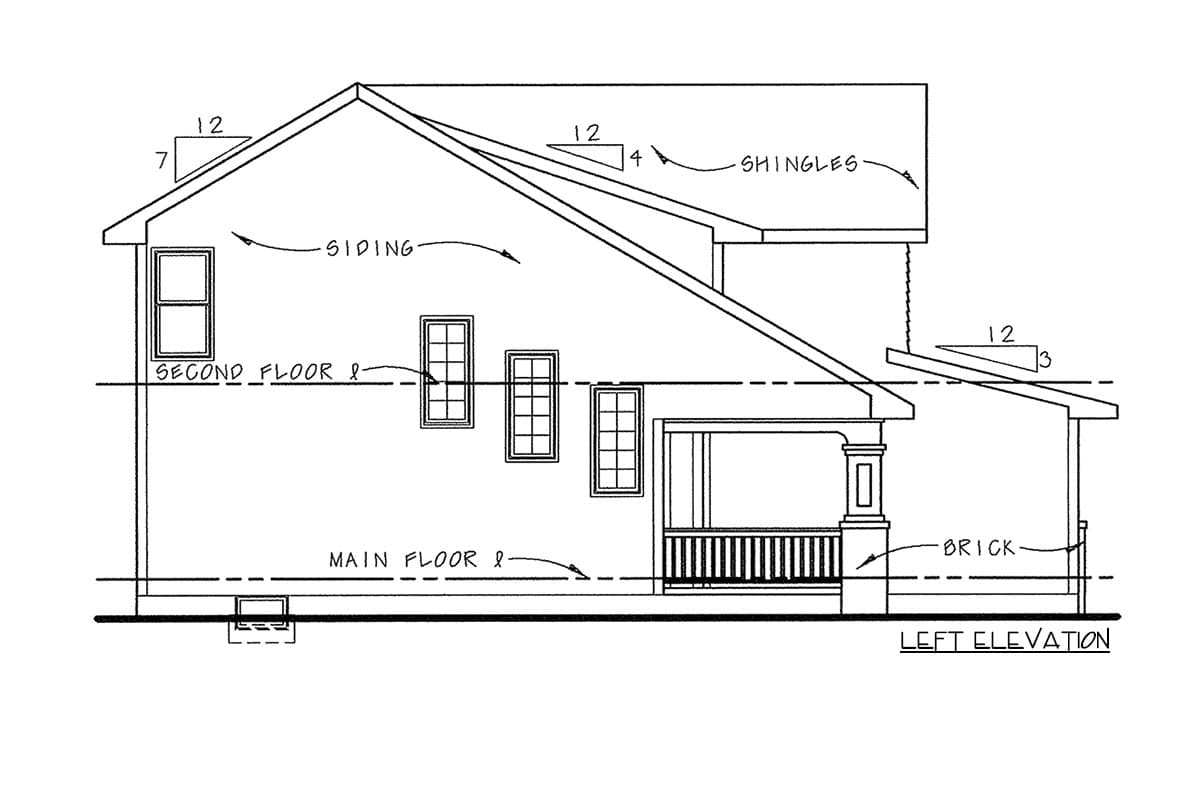

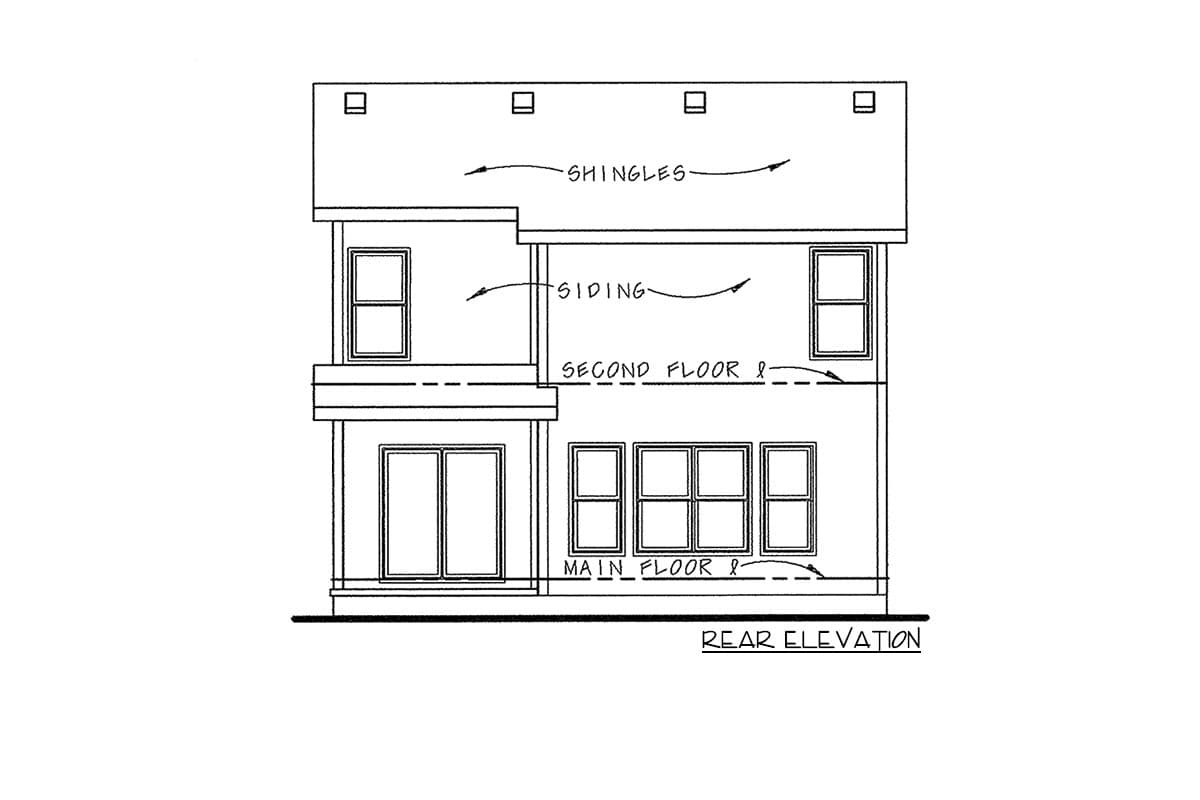

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

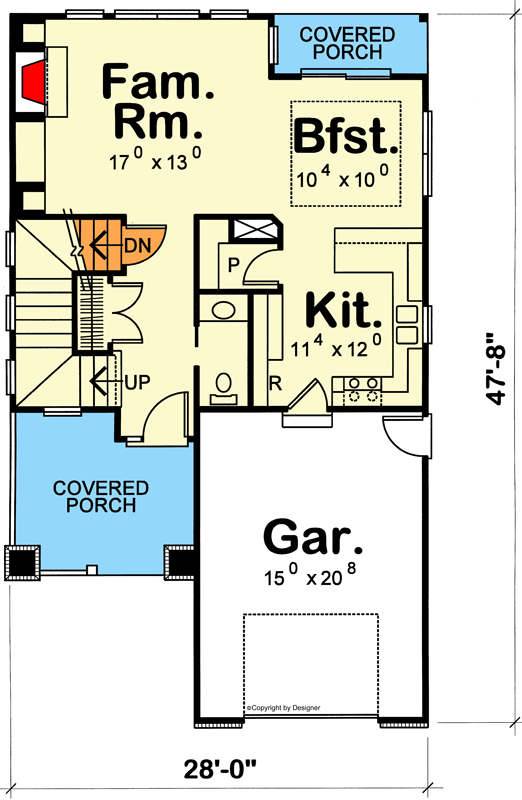

Craftsman Home Plan with Upstairs Flex Loft - 41874DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

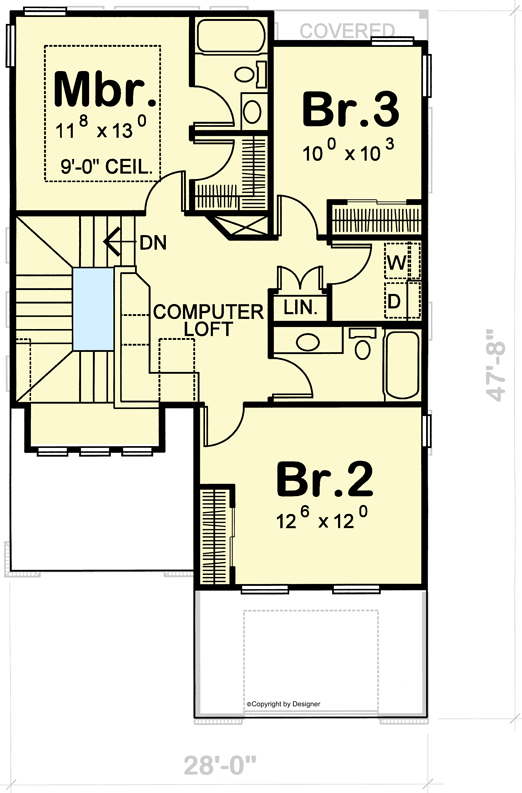

Craftsman Home Plan with Upstairs Flex Loft - 41874DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,540 sq. ft.
  • 1st Floor: 717 sq. ft.
  • 2nd Floor: 823 sq. ft.
  • Porch, Front: 125 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 47' 8"
  • Max ridge height: 27' 2"

Garage

  • Type: Attached
  • Area: 328 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Craftsman Home Plan with Upstairs Flex Loft

  • 1,540

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • Study Set - Digital $650
  • PDF - Single-Build $1,055
  • PDF - Unlimited Build $1,555
  • CAD + PDF - Single-Build $1,740
  • CAD - Unlimited Build $2,240
  • View all purchase option online

About This Plan

  • Attractive features adorn the exterior of this Craftsman house plan including its its masonry skirt, wide porch column bases, shed dormer windows and shake shingle siding with brackets.
  • The kitchen, eating area, and family room are wonderfully open and get great natural light. For a compact design, this home’s kitchen offers surprising storage and workspace, plus an eating bar for quick meals.
  • All the bedrooms are located upstairs, as is the laundry for your convenience. A loft/flex space can be tailored for how you want to live.
  • Related Plan: Get an alternate exterior with house plan 52698DB.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,540 sq. ft.
  • 1st Floor: 717 sq. ft.
  • 2nd Floor: 823 sq. ft.
  • Porch, Front: 125 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 47' 8"
  • Max ridge height: 27' 2"

Garage

  • Type: Attached
  • Area: 328 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
Plan 41874DB
View this and more for this plan by visiting www.architechtecturaldesigns.com/41874DB
|
Need Help? 800-854-7852
|
