European Ranch House Plan

2,405 3 3 1 3
Pageloader

European Ranch House Plan

Plan 64401SC

  • 2,405

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Live all on one level with no stairs to climb in this European ranch style house plan.
  • Views flow from room to room thanks to the open floor plan that gives you wonderful sightlines.
  • A huge island in the kitchen holds the sink and an eating bar that seats four.
  • Note the huge walk-in pantry that gives you tons of storage.
  • Back to back fireplaces warm the living room and the outdoor covered deck.
  • Or catch the sun on the huge open deck that runs almost the full width of the home.
  • Bedrooms are split, with two on the right side of the home and one across the house on the left side.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

1.       Cover Sheet- project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.

2.       Foundation/basement plan-showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.

3.       Main Level Plan-floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.

4.       Upper Level Plan-(if needed)-same information as Main Level.

5.       Roof Plan-layout with pitch markers, dimensions and notes.

6.       Main Level Electrical Plan- electrical outlets, switches and light locations shown.

7.       Upper Level Electrical Plan-(if needed) electrical outlets, switches and light locations shown.

8.       Exterior Elevations-Elevations of the Front and Right side with notes, dimensions and material designations.

9.       Exterior Elevations-Elevations of the Back and Left side with notes, dimensions and material designations.

10.   Sections and details-One or more building sections to show vertical relationships and construction plate heights, details as needed.

11.   Interior Elevations and Details-mostly millwork, fireplace and other items that need additional explanation, details as needed.

Floor Plan

Plan details



European Ranch House Plan

  • 2,405

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,350
  • PDF - multi-use $1,550
  • CAD $1,550
  • CAD - multi-use $1,850
  • View all purchase option online

About This Plan

  • Live all on one level with no stairs to climb in this European ranch style house plan.
  • Views flow from room to room thanks to the open floor plan that gives you wonderful sightlines.
  • A huge island in the kitchen holds the sink and an eating bar that seats four.
  • Note the huge walk-in pantry that gives you tons of storage.
  • Back to back fireplaces warm the living room and the outdoor covered deck.
  • Or catch the sun on the huge open deck that runs almost the full width of the home.
  • Bedrooms are split, with two on the right side of the home and one across the house on the left side.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

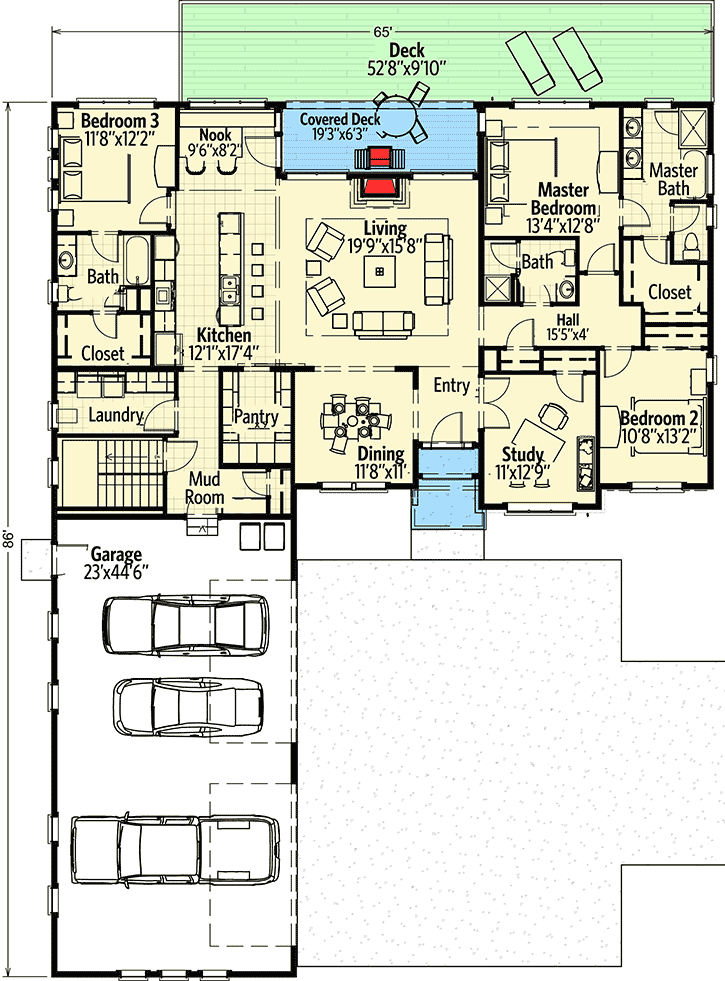

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,405 sq. ft.
  • Lower Level: 2,248 sq. ft.
  • 1st Floor: 2,405 sq. ft.
  • Deck: 618 sq. ft.
  • Porch, Front: 48 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 86' 0"
  • Max ridge height: 23' 1"

Garage

  • Type: Attached
  • Area: 1076 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
