Plan 48445FM European-Style House Plan with Secluded Master Suite

European-Style House Plan with Secluded Master Suite

Plan 48445FM

  • 2,838

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

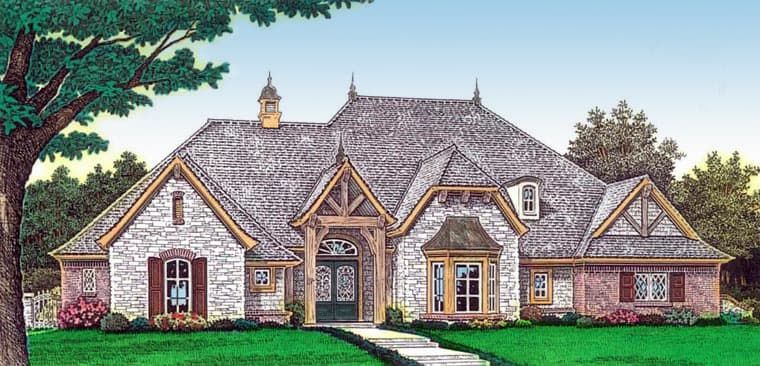

  • Decorative wood trim, a clipped roofline on the study gable and spires atop the hip roof add up to a stunning European exterior.
  • The wide entry foyer gives you immediate views of the spacious great room where you can also see the dining area and kitchen.
  • The corner fireplace can be seen all the way from the kitchen sink.
  • The master suite is a work of art, with its bayed sitting area, large private bathroom and an enormous walk-in closet complete with two built-in chests, one for her and one for him.
  • Note the very convenient door right into the laundry room.
  • The family bedrooms are grouped on the left side of the home, all a generous size.
  • An optional bonus room above the garage has a handy half bath close by.
  • The three car garage offers a reinforced safe room for your comfort during a storm.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

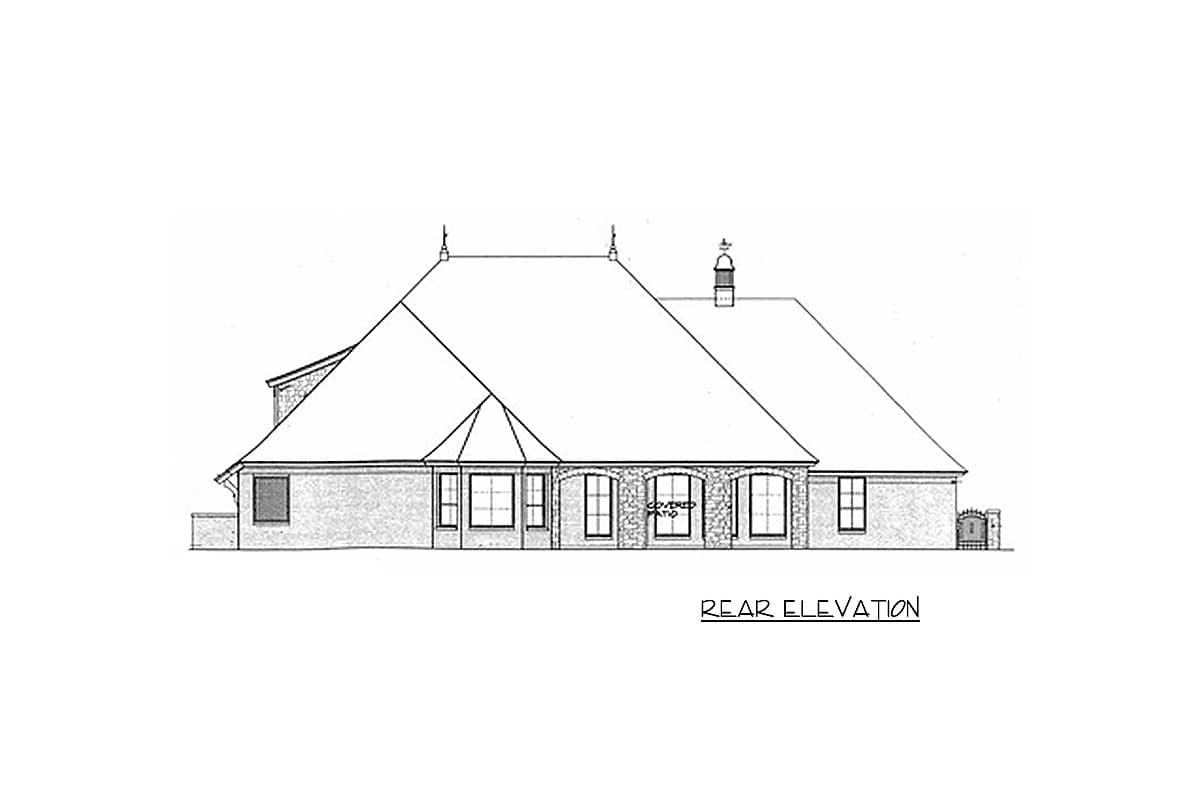

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

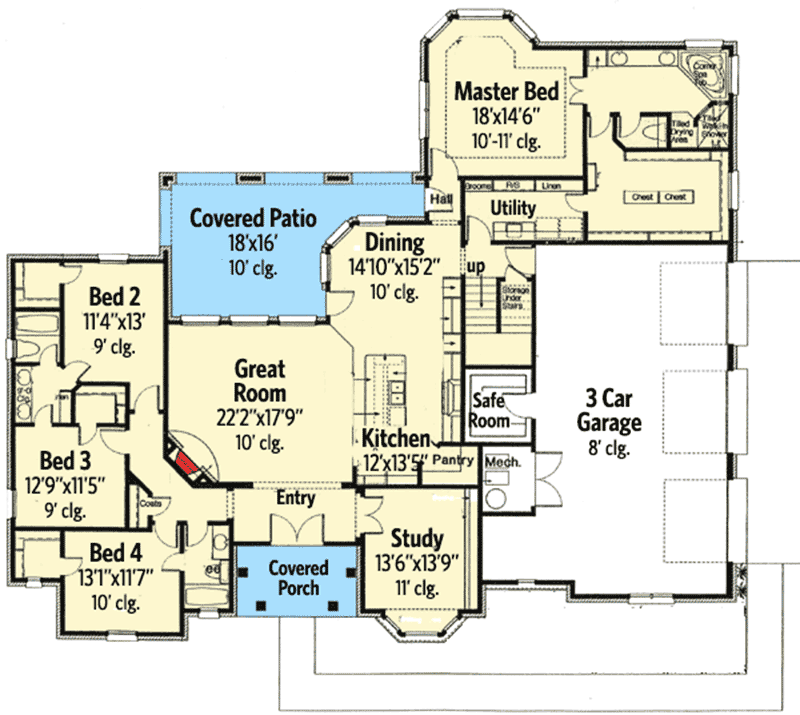

European-Style House Plan with Secluded Master Suite - 48445FM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

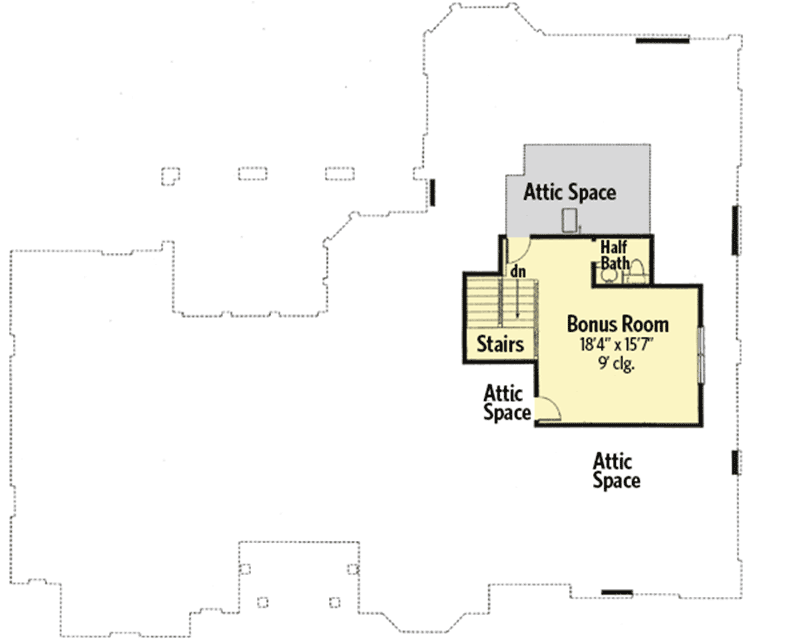

European-Style House Plan with Secluded Master Suite - 48445FM floor plan - Bonus

Plan details

European-Style House Plan with Secluded Master Suite

  • 2,838

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,195
  • 8 Sets $1,335
  • PDF - Single-Build $1,485
  • View all purchase option online

About This Plan

  • Decorative wood trim, a clipped roofline on the study gable and spires atop the hip roof add up to a stunning European exterior.
  • The wide entry foyer gives you immediate views of the spacious great room where you can also see the dining area and kitchen.
  • The corner fireplace can be seen all the way from the kitchen sink.
  • The master suite is a work of art, with its bayed sitting area, large private bathroom and an enormous walk-in closet complete with two built-in chests, one for her and one for him.
  • Note the very convenient door right into the laundry room.
  • The family bedrooms are grouped on the left side of the home, all a generous size.
  • An optional bonus room above the garage has a handy half bath close by.
  • The three car garage offers a reinforced safe room for your comfort during a storm.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,838 sq. ft.
  • 1st Floor: 2,838 sq. ft.
  • Bonus: 381 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 81' 0"
  • Depth: 69' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 1034 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
