Exceptional 3 Bedroom Craftsman with Bonus Room

Plan 54226HU

  • 3,959

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

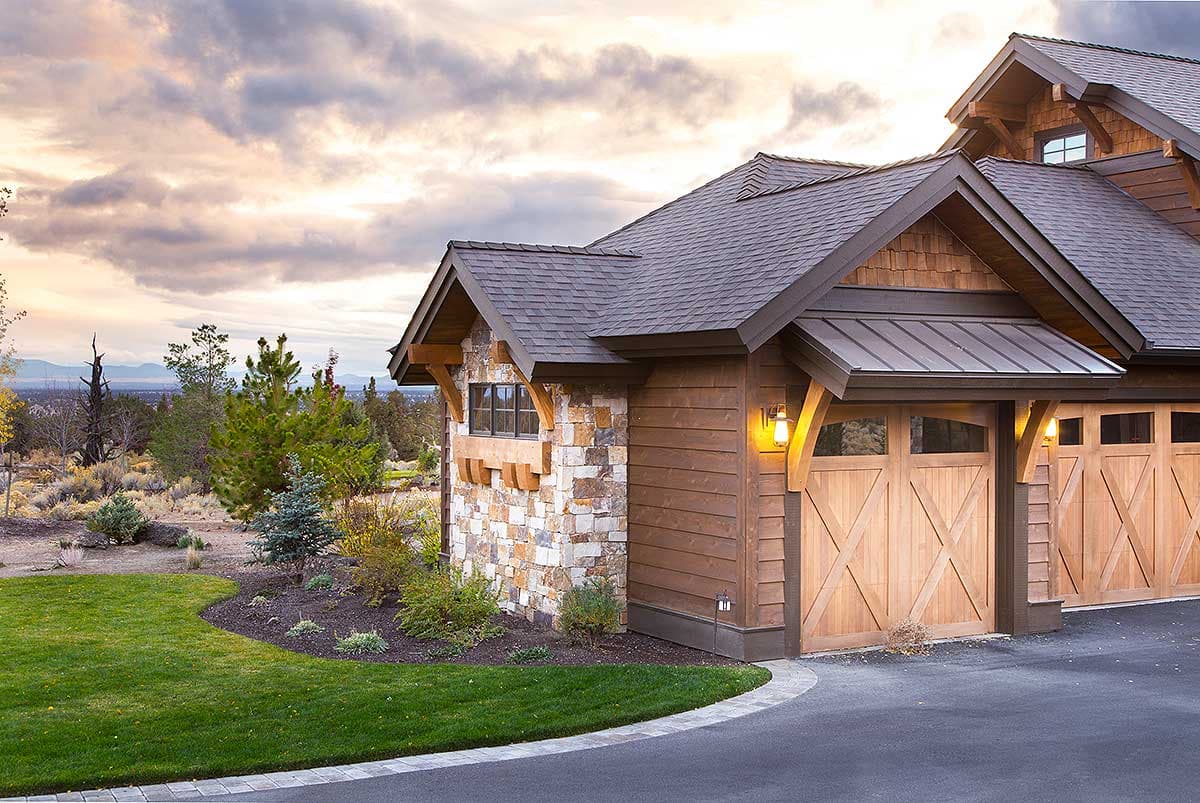

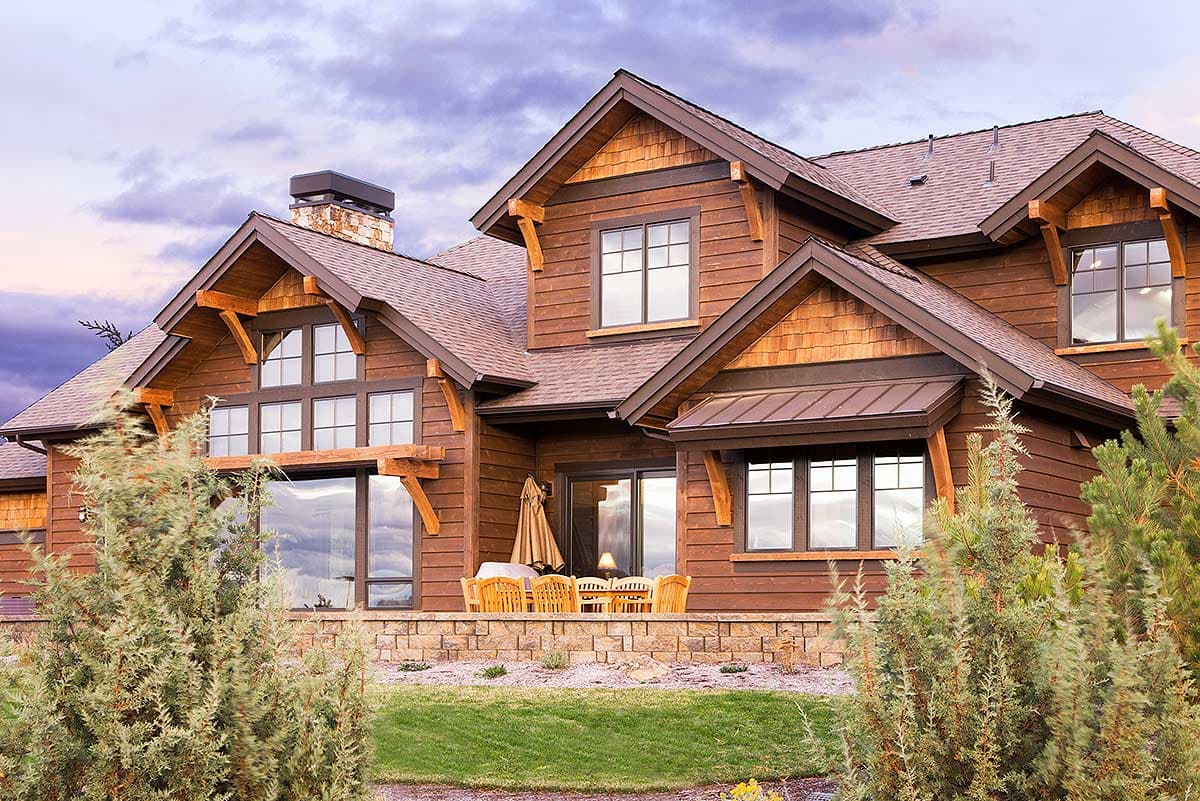

  • The visually stunning exterior of this exceptional Craftsman house plan is set off by elaborate roof lines and decorative wood trim.

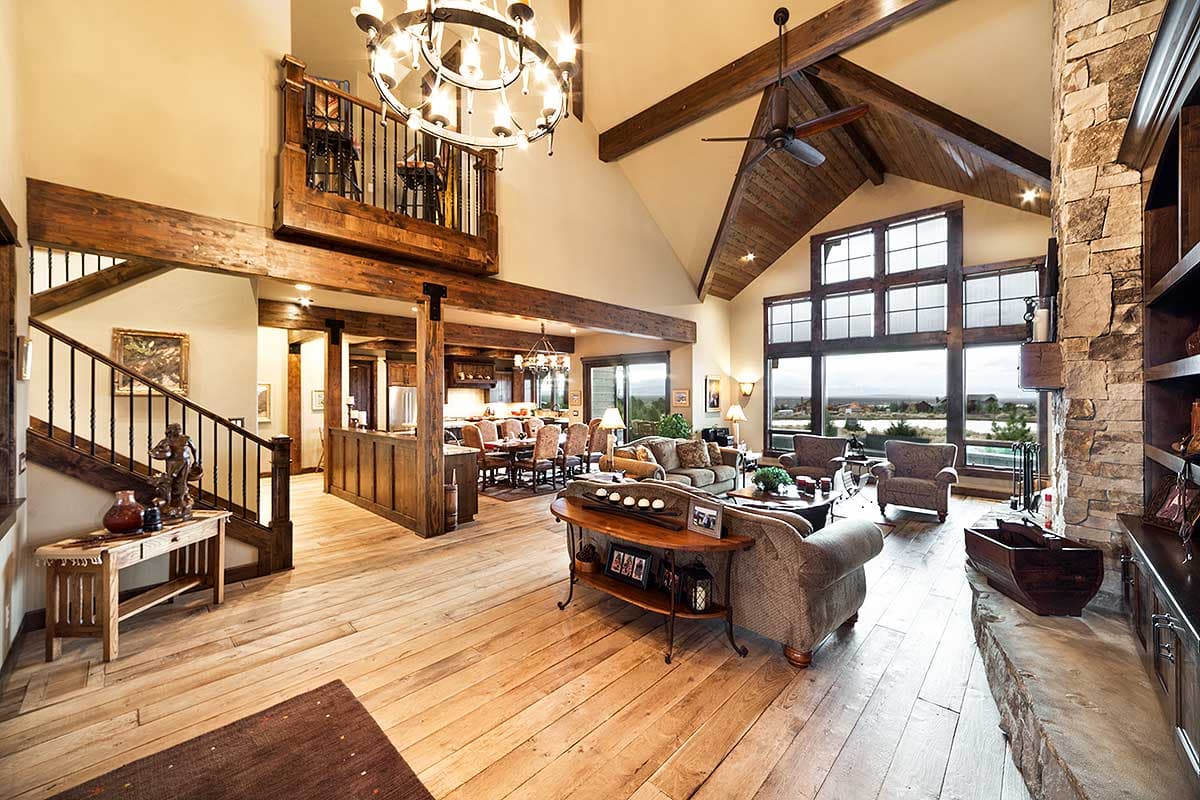

  • Views start right at the wide foyer as you gaze into the massive vaulted great room with no walls to obstruct the views.

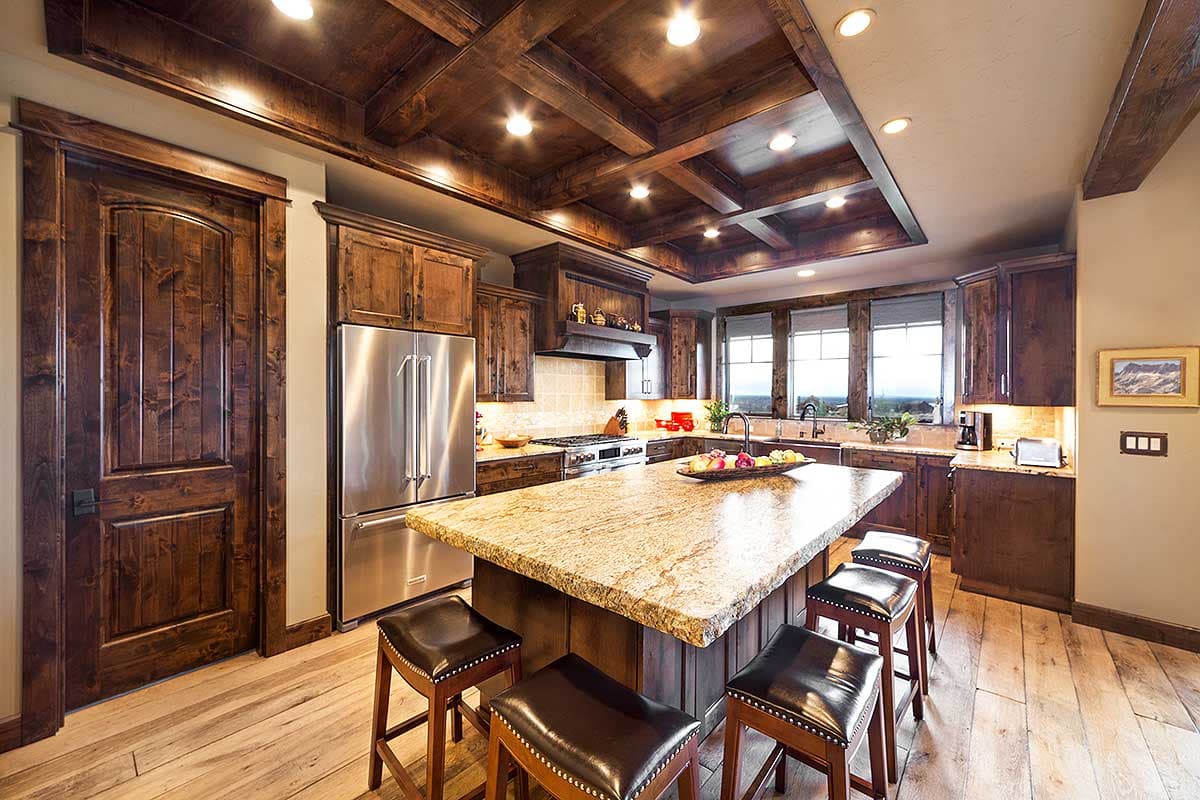

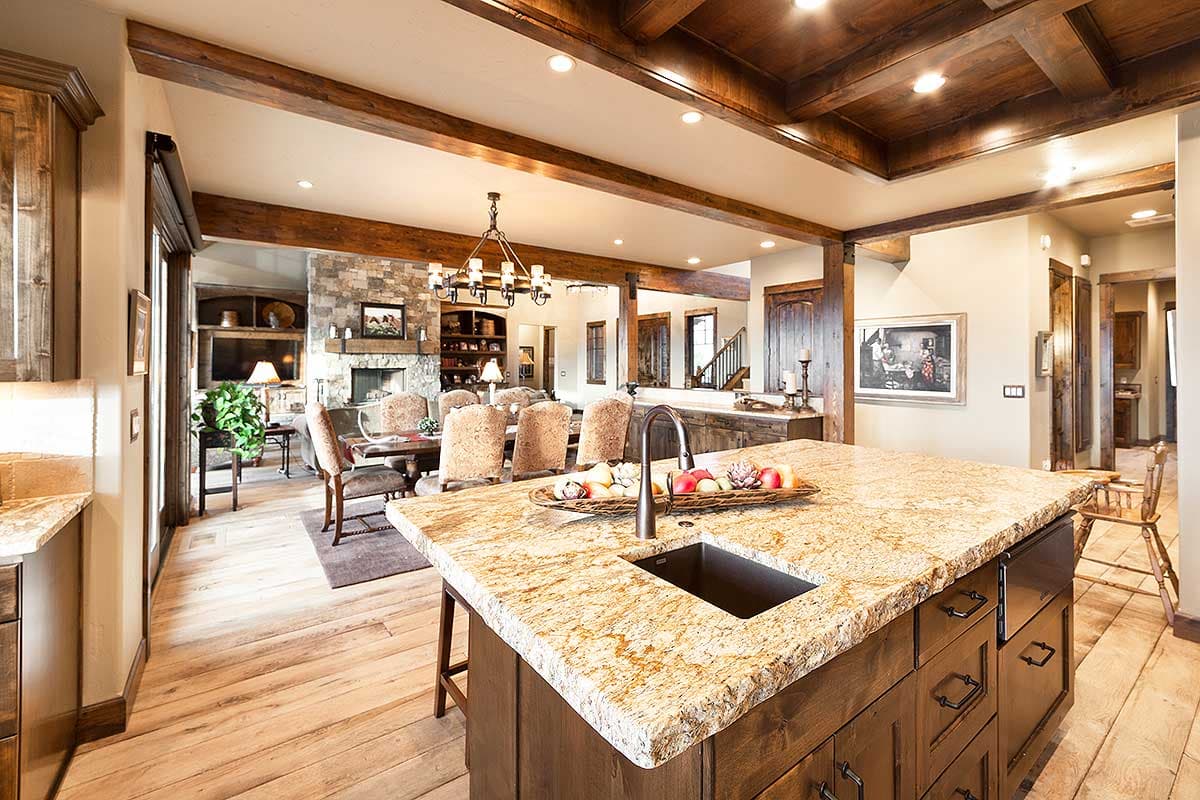

  • It's a delight to prepare meals in the upscale kitchen that has triple windows by the sink and a big island that overlooks the informal dining area and great room.
  • Bedroom 2 is separated from the master suite so each bedroom on this floor has privacy.

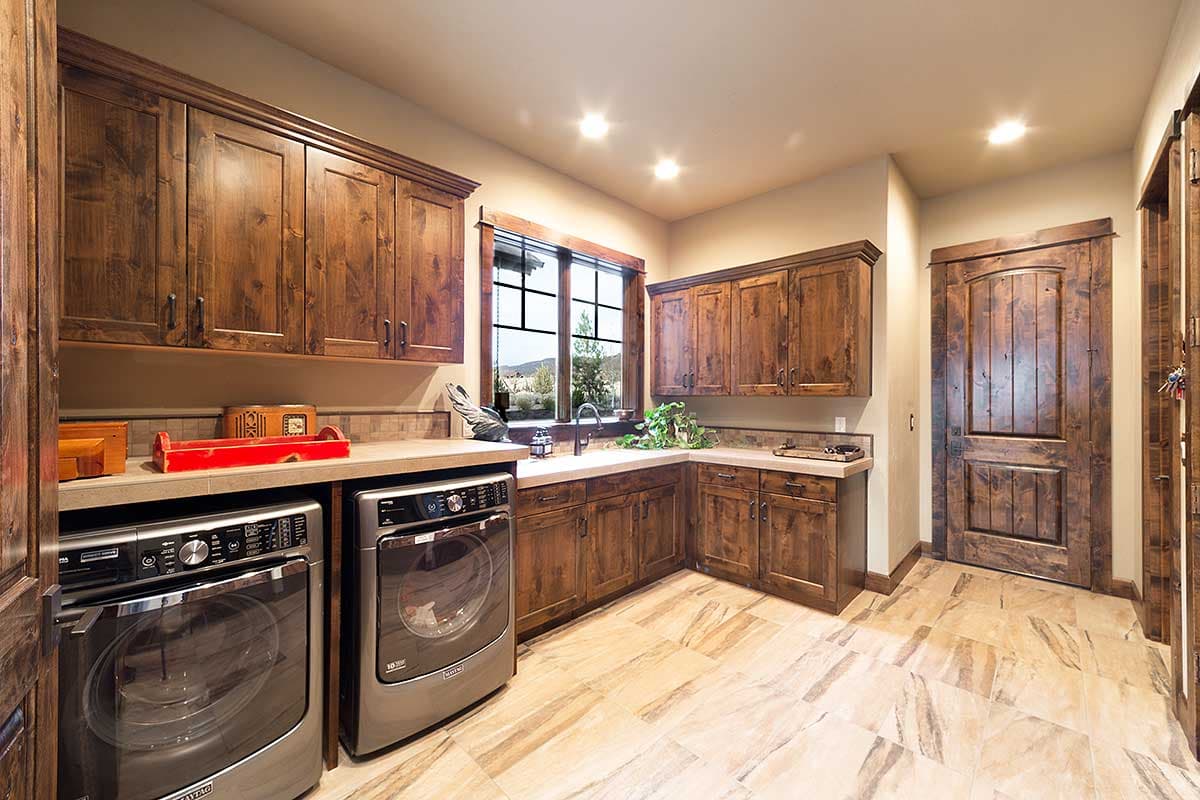

  • Even the mudroom is outstanding with a walk-in storage closet, bench seating and lots of counter space by the utility sink.
  • Bedroom 3 is also private with its second floor location and skylights in both the bedroom and bathroom.

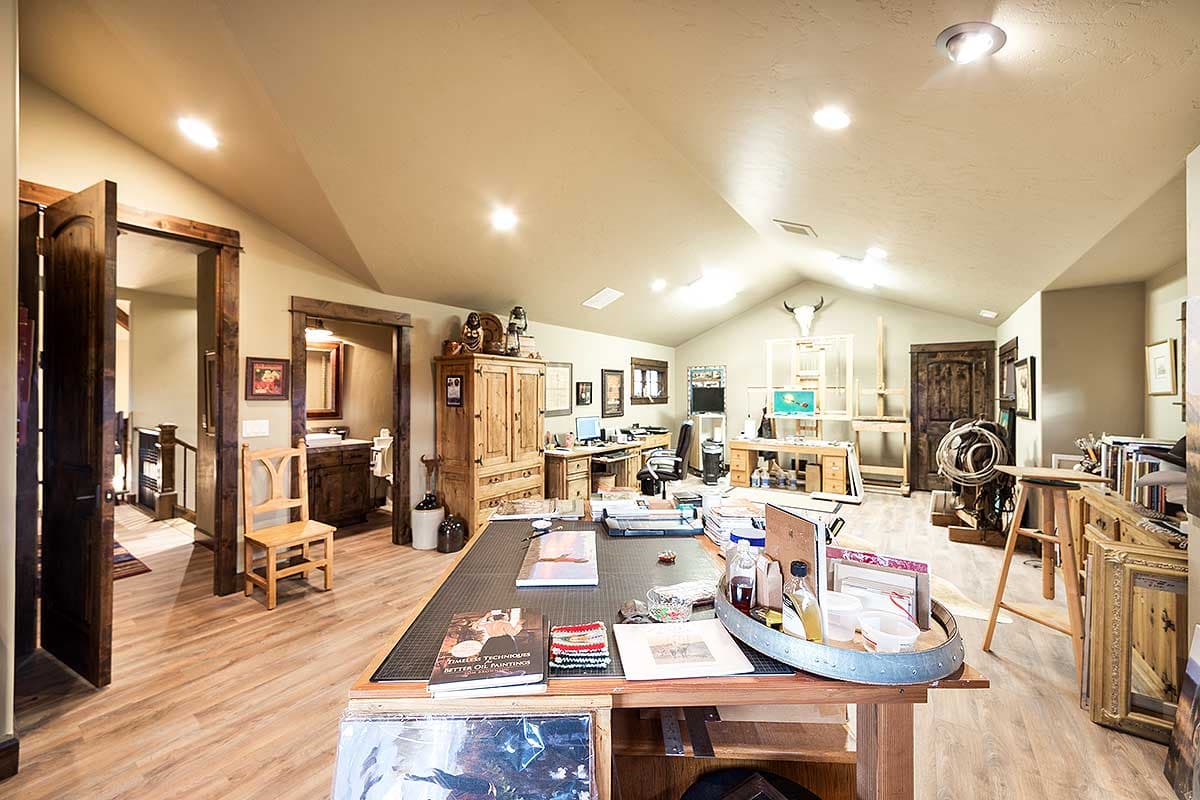

  • The huge bonus room is vaulted and is part of the overall finished square footage of 3,959.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exceptional 3 Bedroom Craftsman with Bonus Room  - 54226HU floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exceptional 3 Bedroom Craftsman with Bonus Room  - 54226HU floor plan - 2nd Floor

Exceptional 3 Bedroom Craftsman with Bonus Room

  • 3,959

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,959 sq. ft.
  • 1st Floor: 2,907 sq. ft.
  • 2nd Floor: 1,052 sq. ft.

Dimensions

  • Width: 81' 9"
  • Depth: 95' 6"
  • Max ridge height: 26' 8"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 900 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
