Plan 16902WG Exceptional Craftsman House Plan

2,504 3-4 3.5 - 4.5 1-2 2
2 Client
Albums watch
video Print
Compare
...

Exceptional Craftsman House Plan

Plan 16902WG

  • 2,504

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

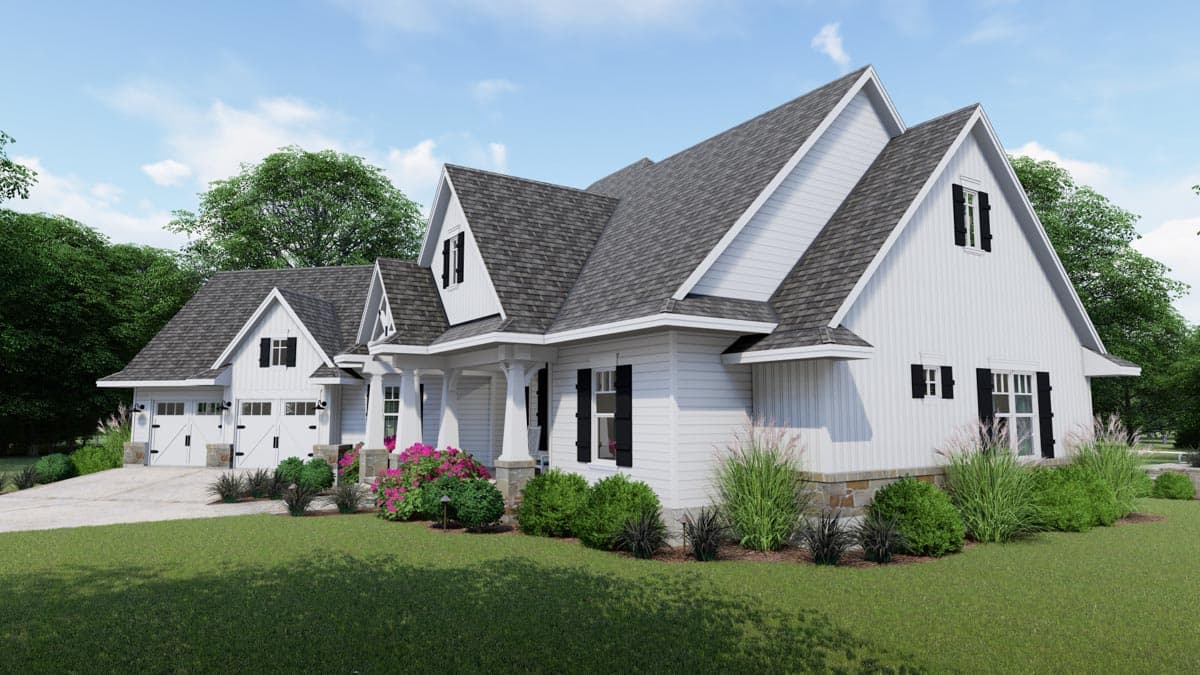

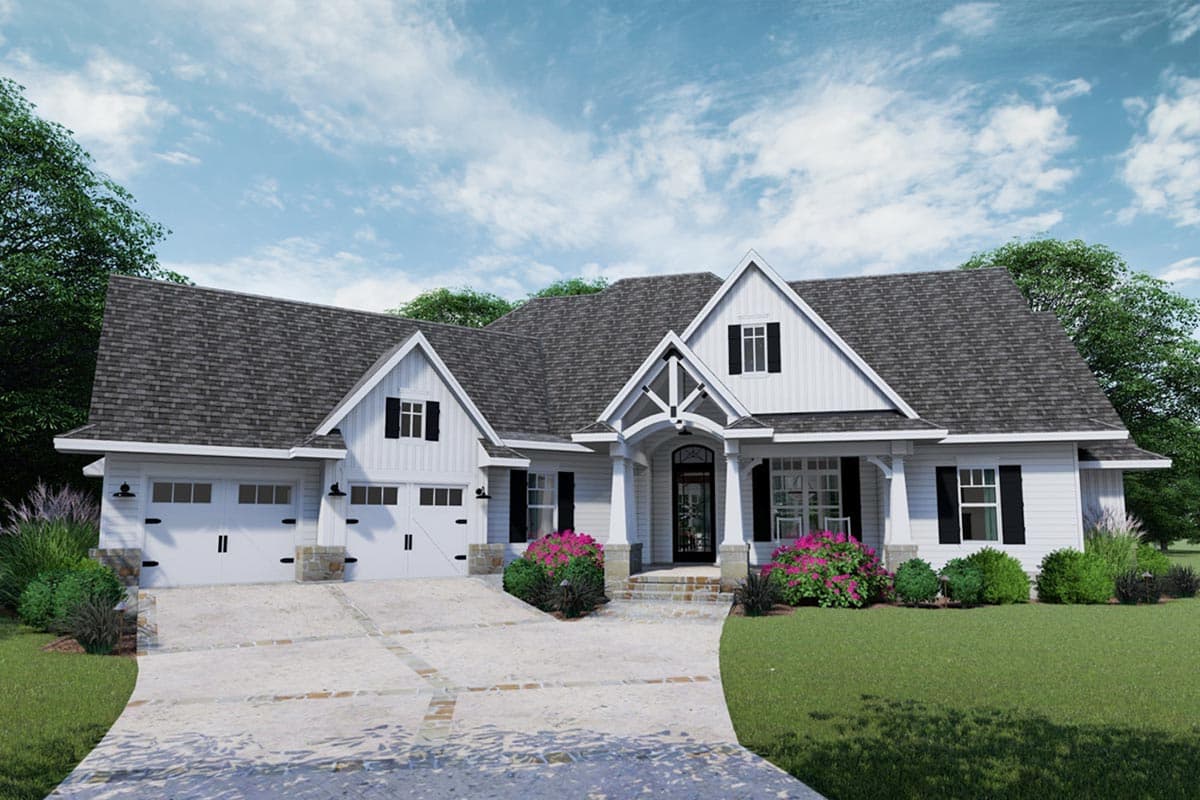

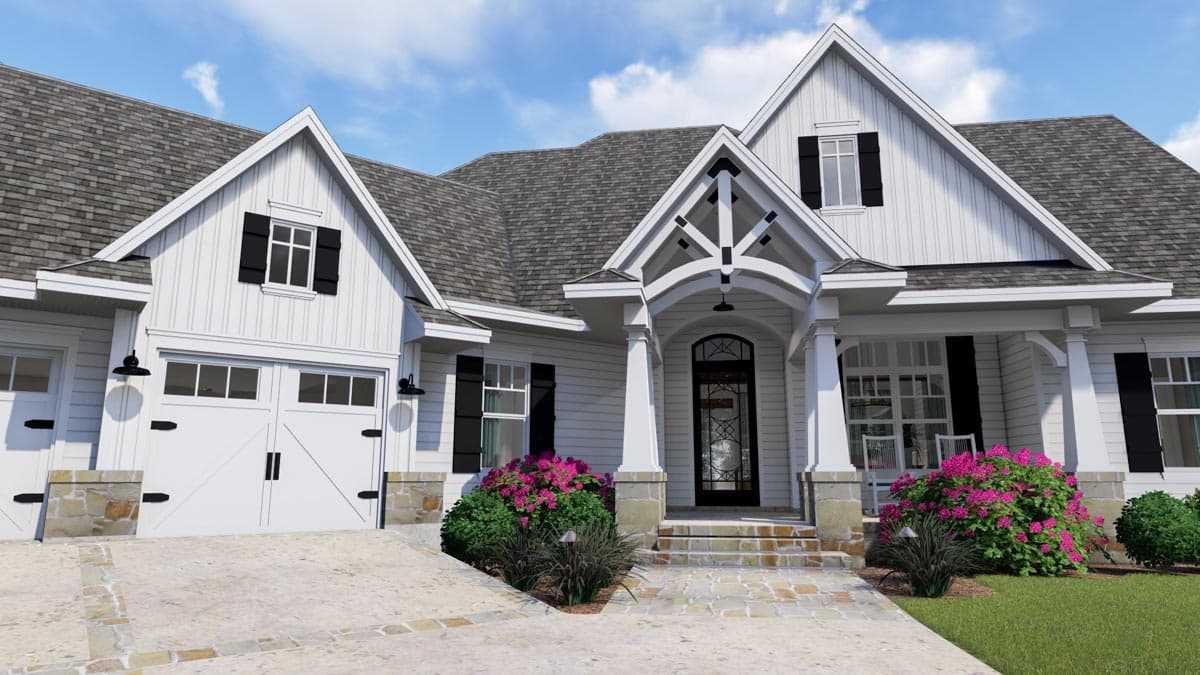

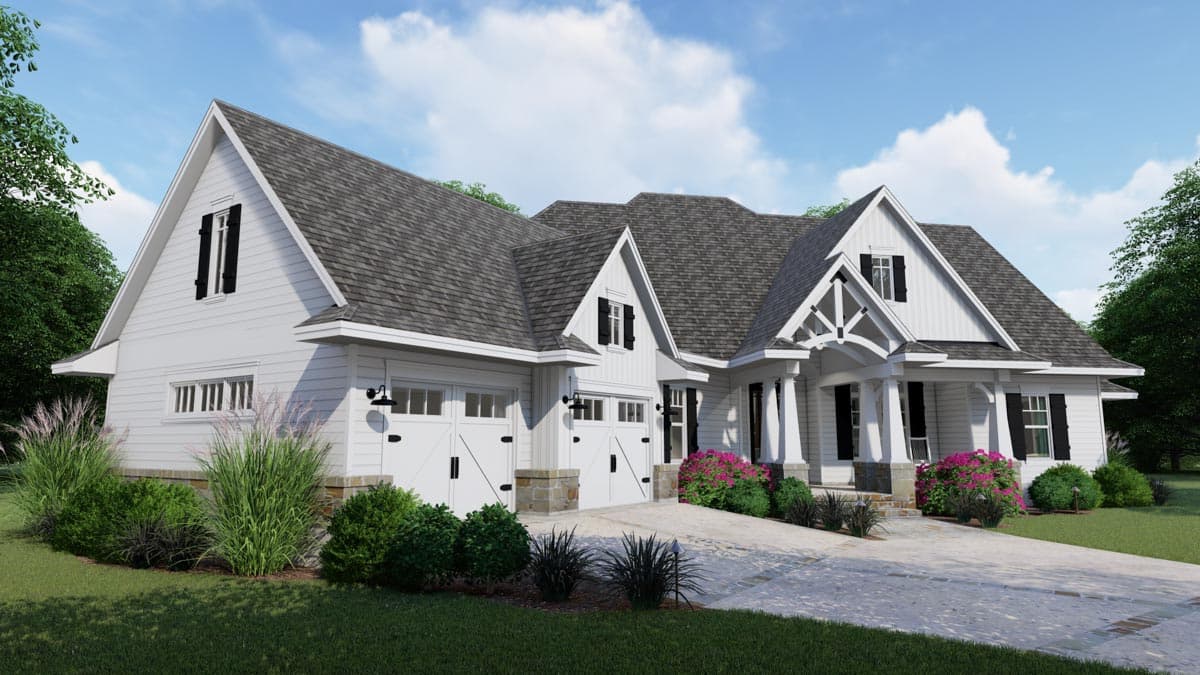

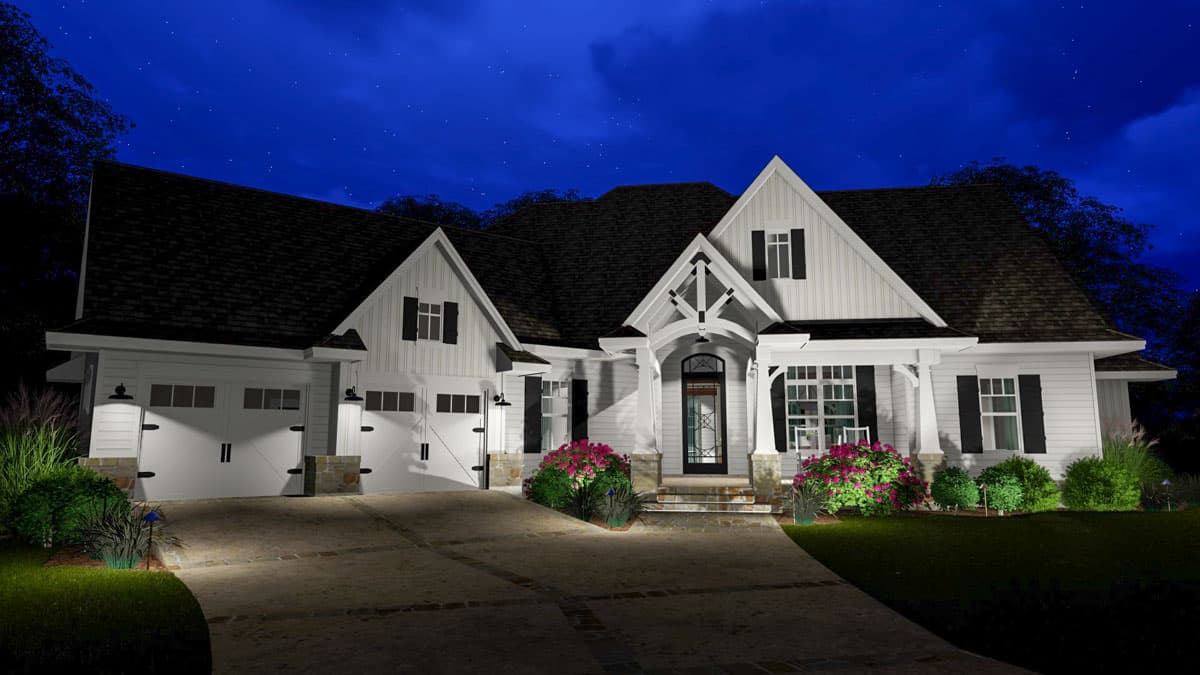

  • Decorative wood trim tops the arched entry porch of this exceptional Farmhouse home, giving it a Craftsmam look.

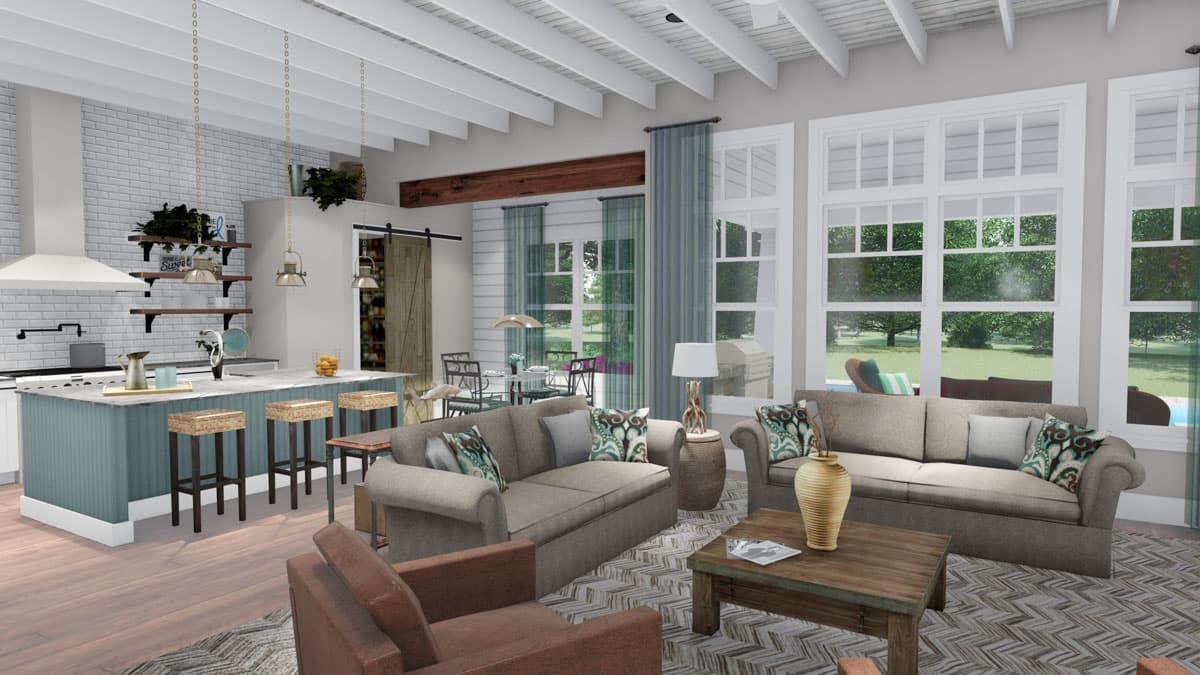

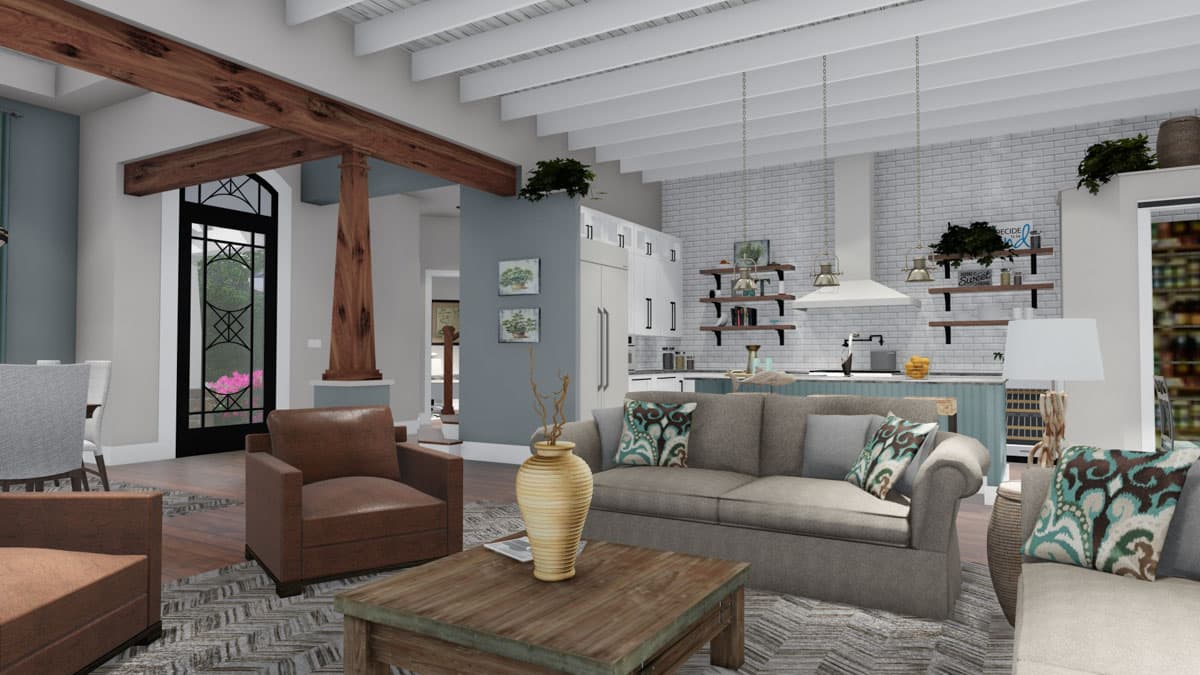

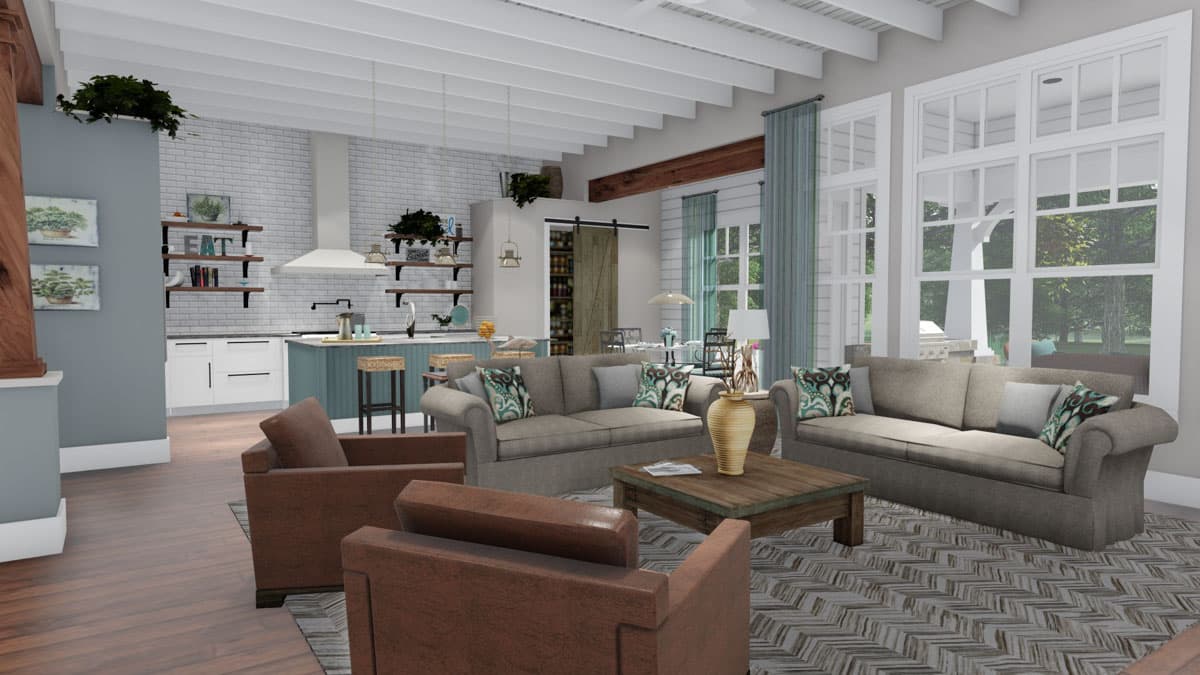

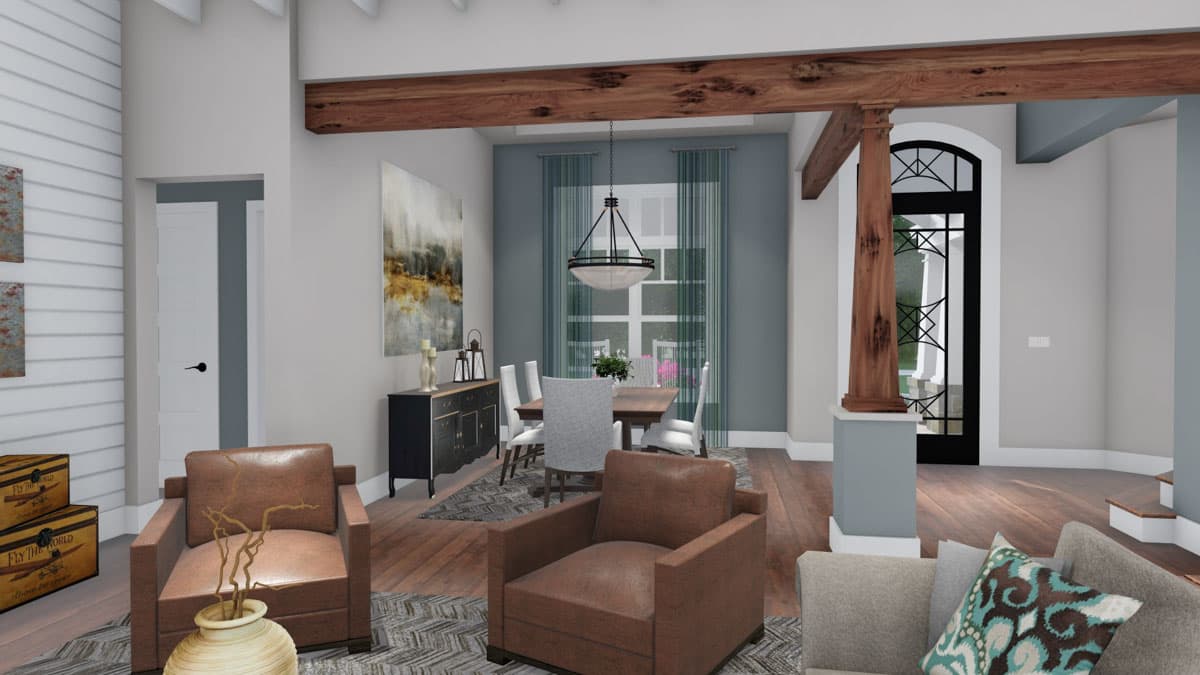

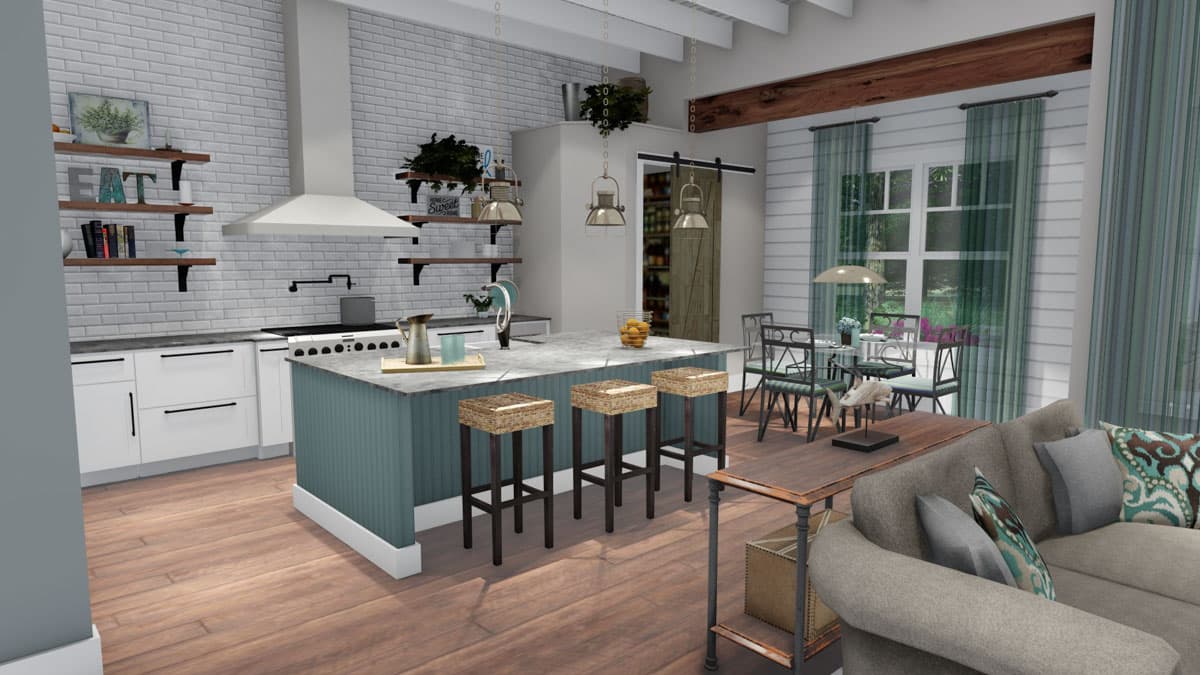

  • Inside, a wood beamed ceiling unites the main living area that is all open concept.

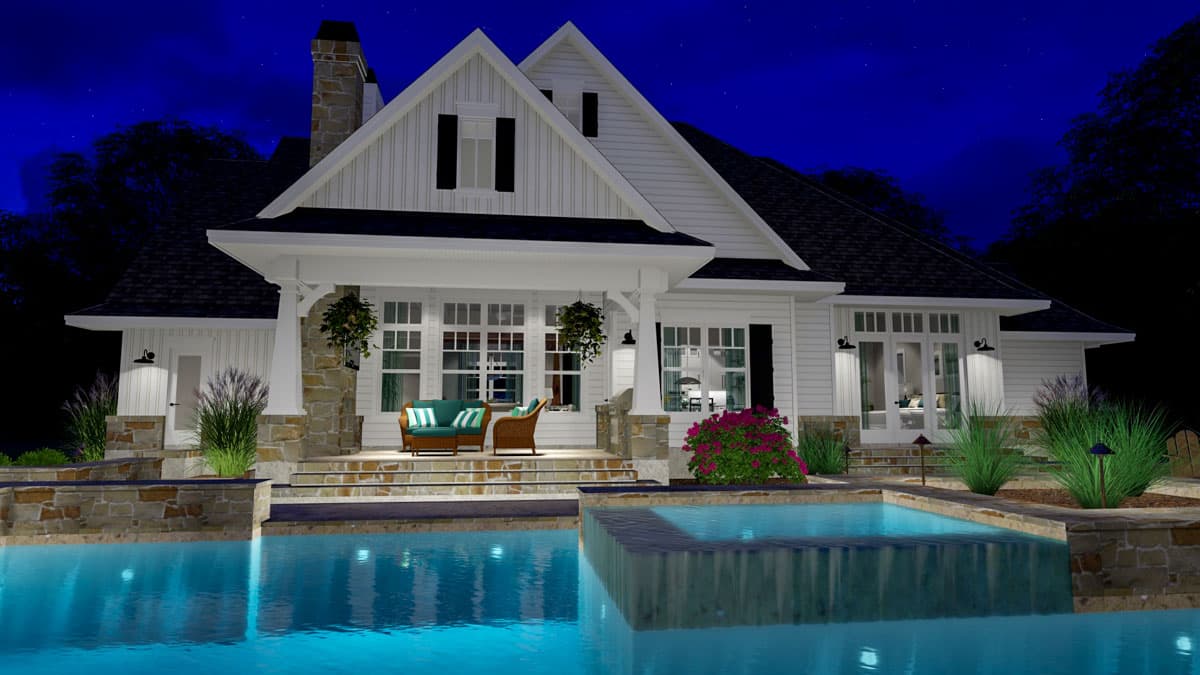

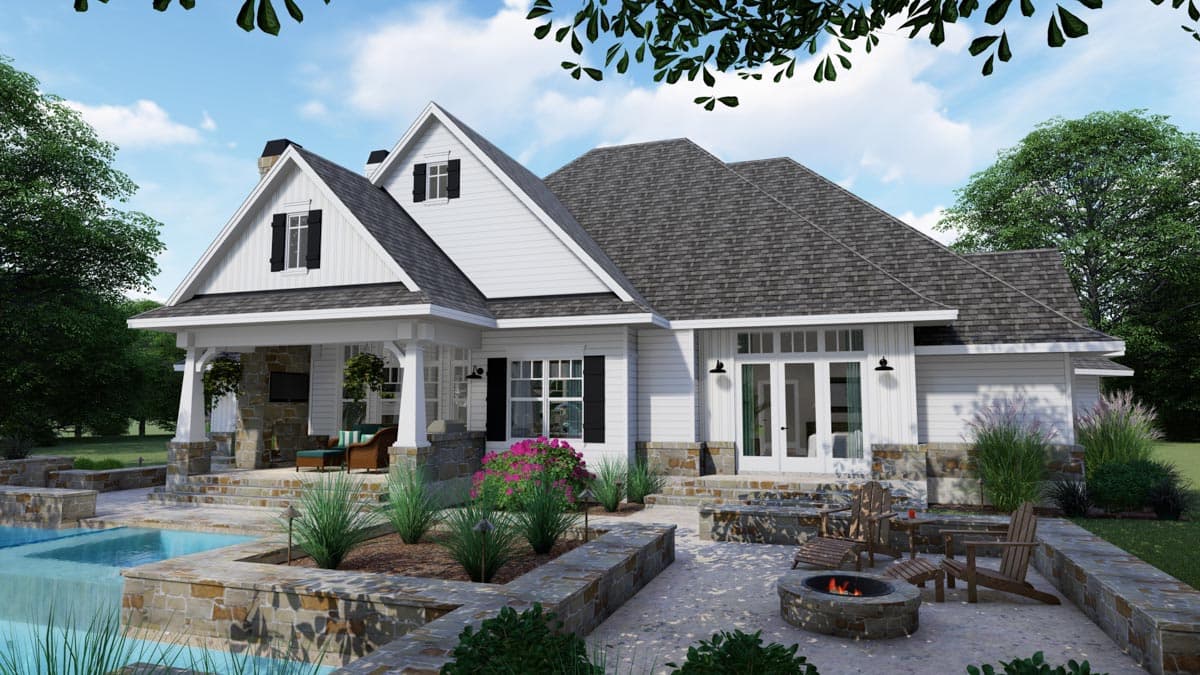

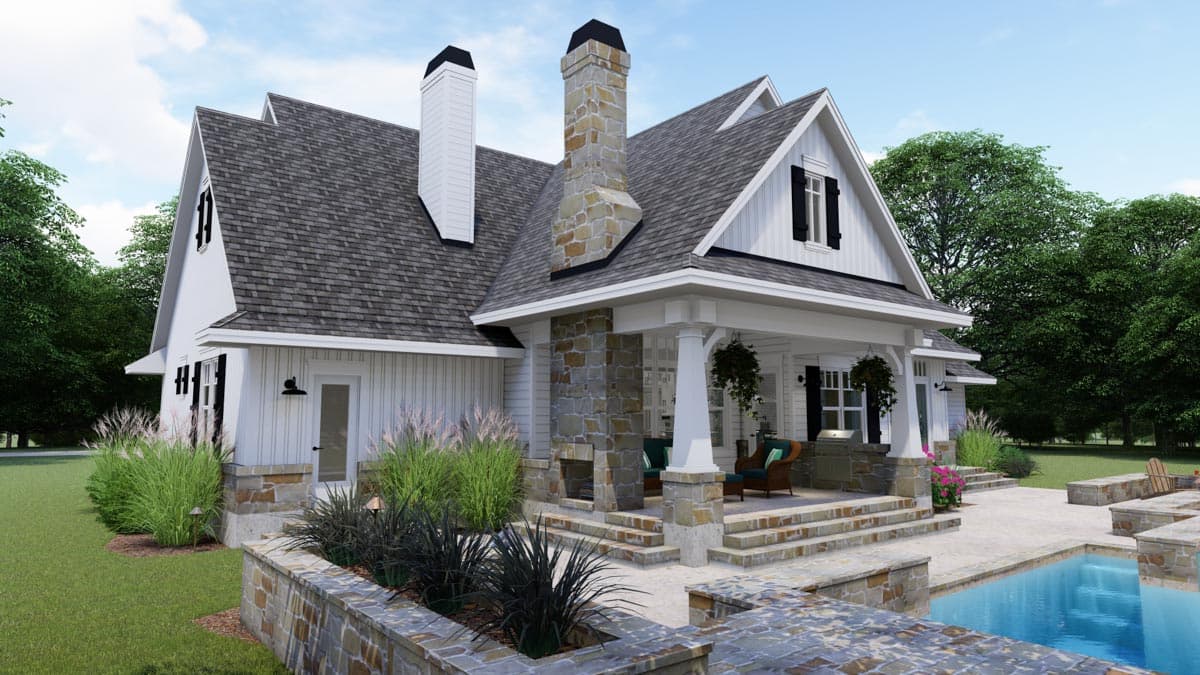

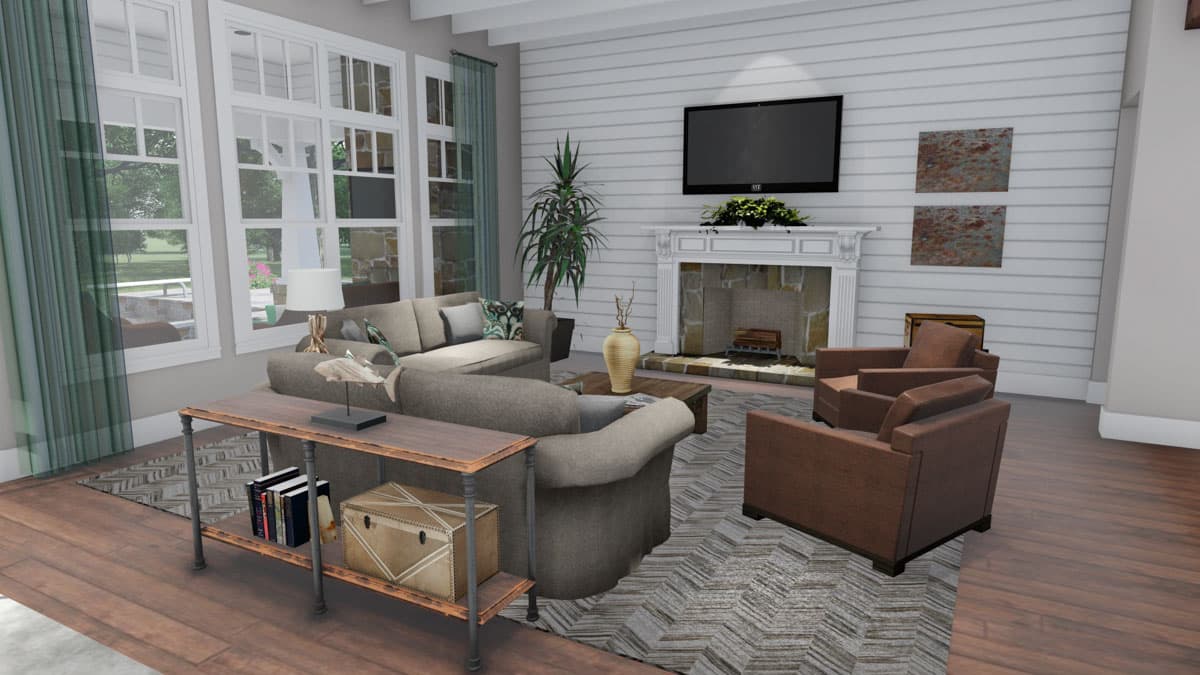

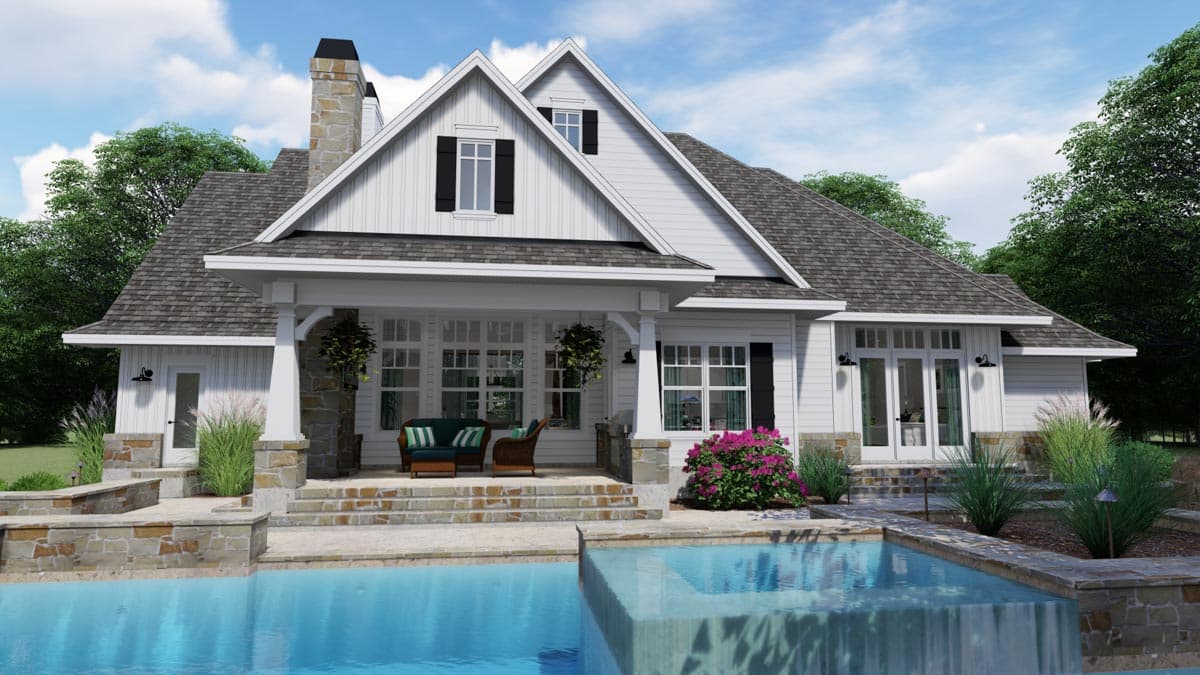

  • A wall of windows in the family room overlooks the covered lanai with its outdoor fireplace and grilling station.
  • Split bedrooms ensures a private master suite and this one comes with a stoop where you can sit and drink your morning coffee.

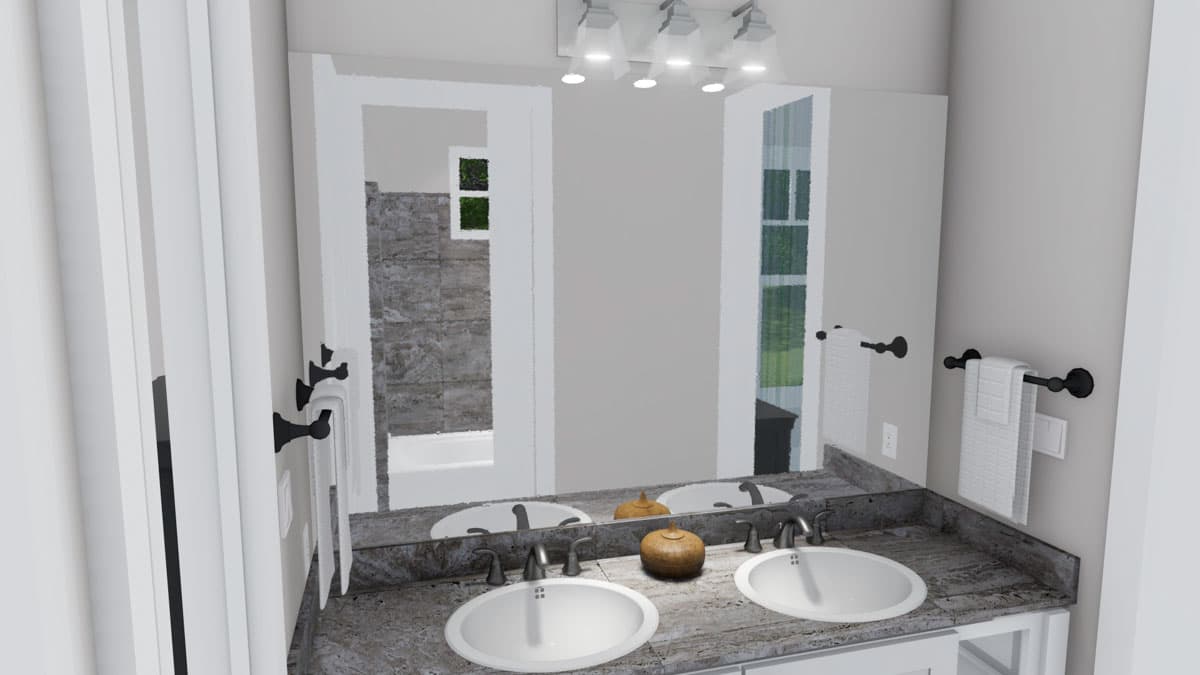

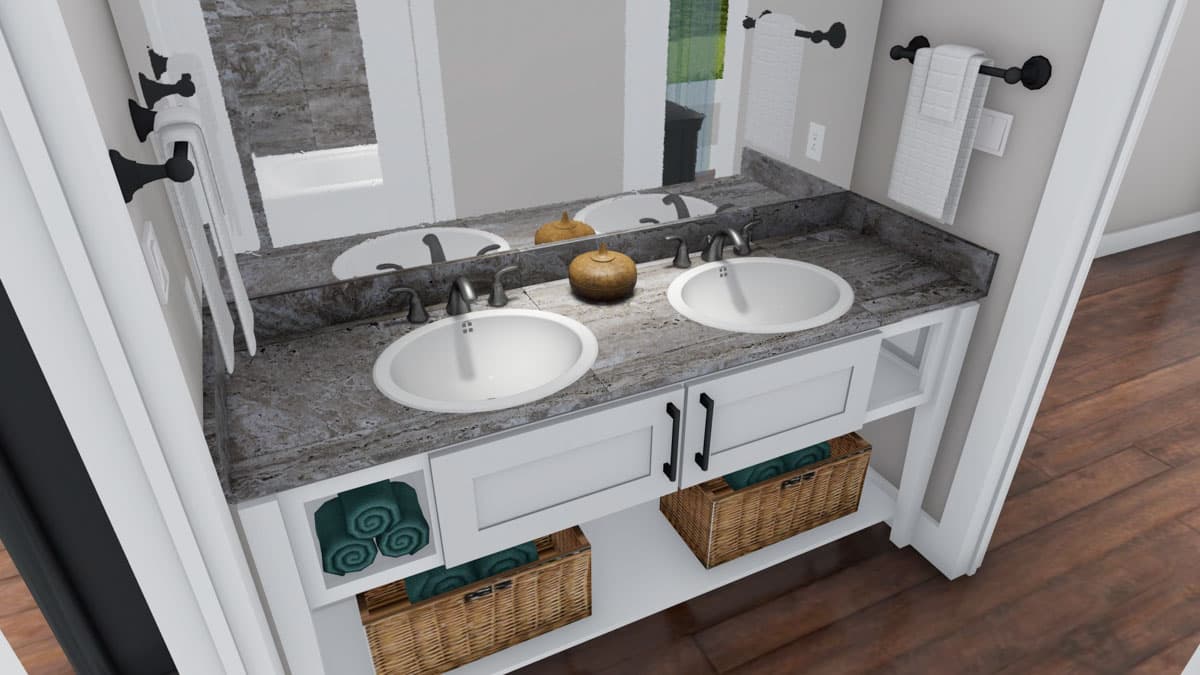

  • Both family bedrooms have walk-in closets and there's a bonus room over the garage awaiting your finishing touches.

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.


Floor Plan

Main Level

Reverse Floor Plan

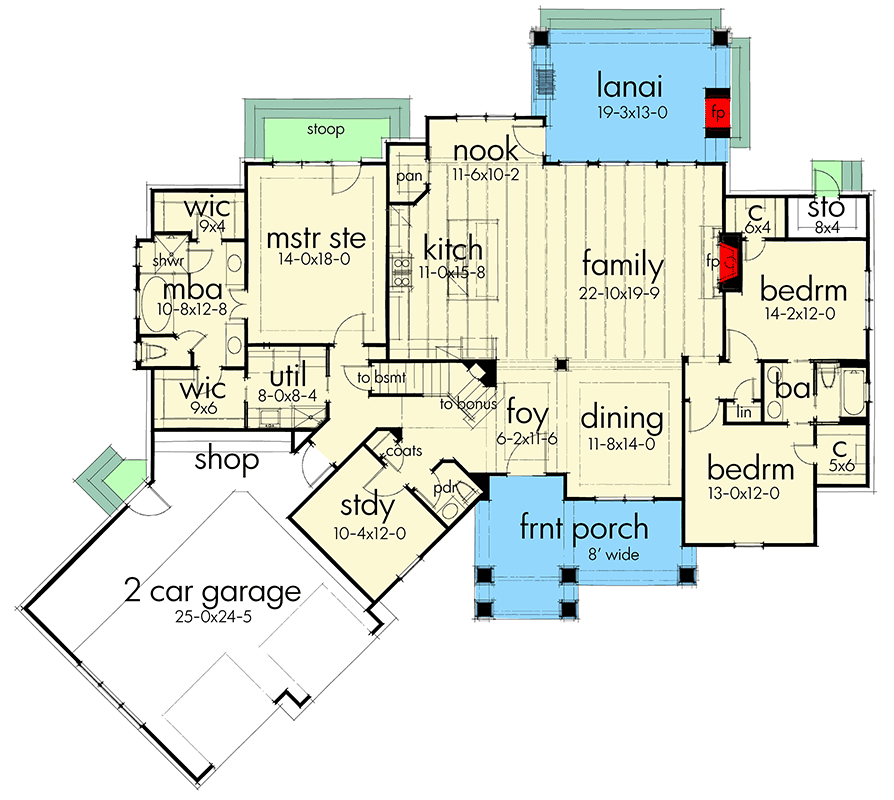

Exceptional Craftsman House Plan - 16902WG floor plan - Main Level

Bonus

Reverse Floor Plan

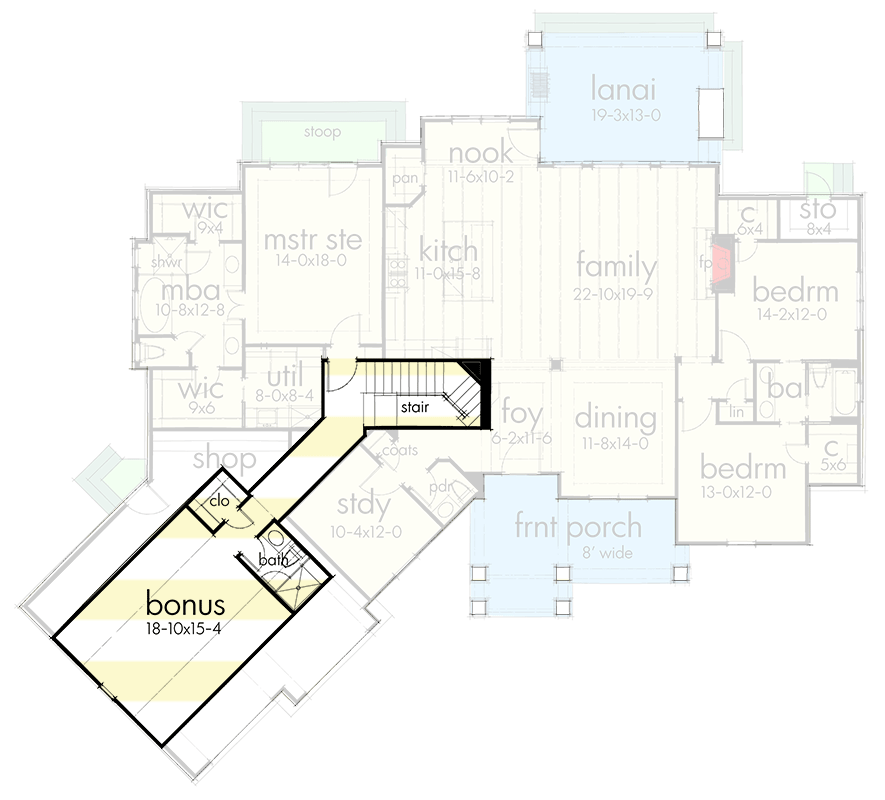

Exceptional Craftsman House Plan - 16902WG floor plan - Bonus

Unfinished Basement

Reverse Floor Plan

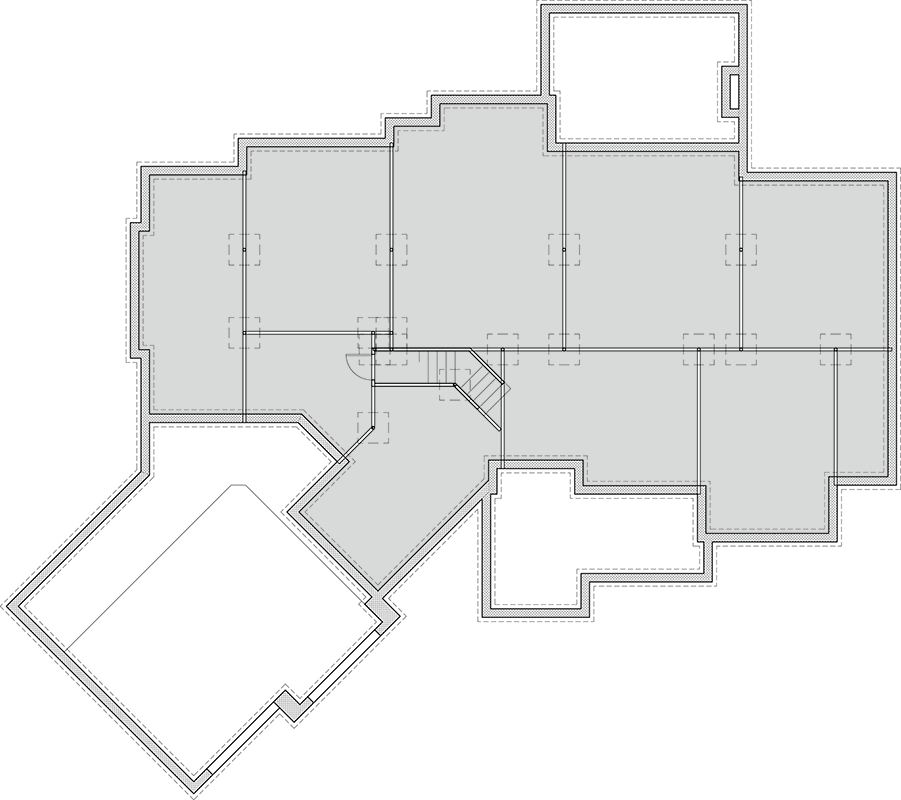

Exceptional Craftsman House Plan - 16902WG floor plan - Unfinished Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,504 sq. ft.
  • 1st Floor: 2,504 sq. ft.
  • Lanai: 247 sq. ft.
  • Porch, Front: 223 sq. ft.
  • Bonus: 480 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab

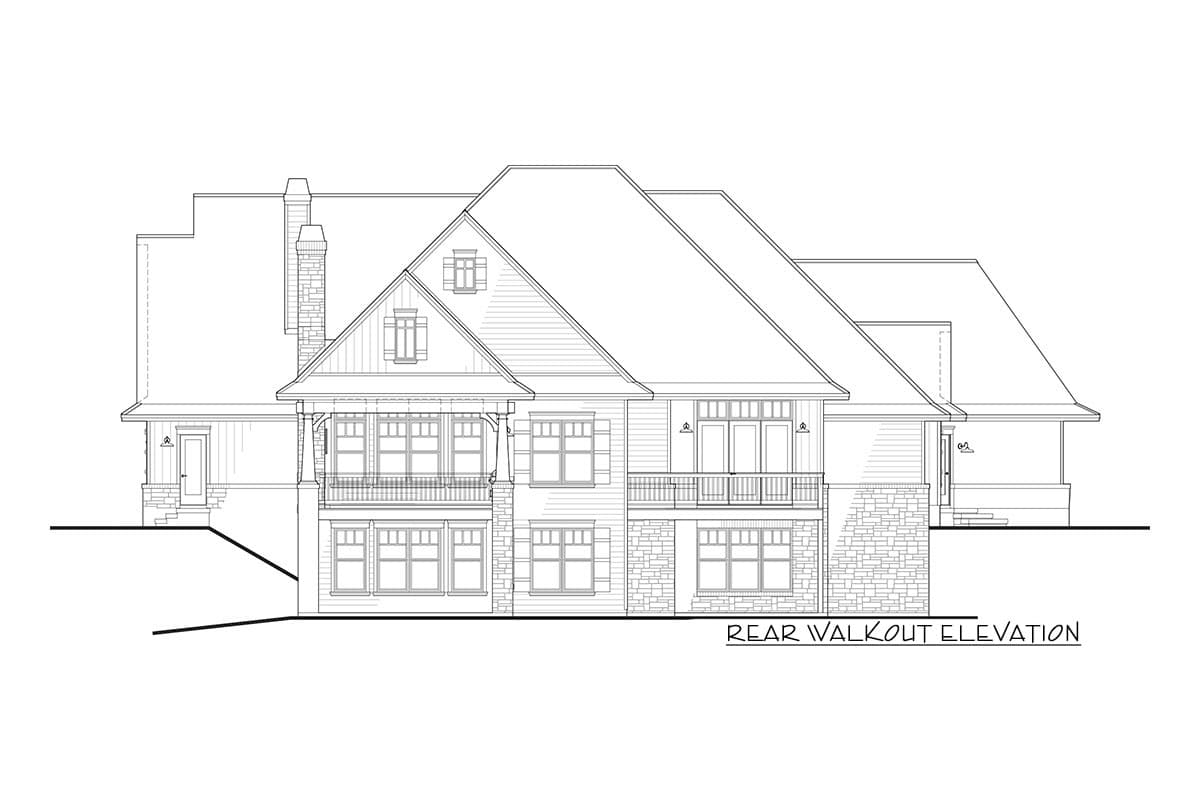

  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 87' 0"
  • Depth: 77' 2"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 735 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Room Type Height
Family Room 12' 0"
Dining Room 12' 0"
Kitchen 12' 0"
Master Bedroom 12' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 14
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Exceptional Craftsman House Plan

  • 2,504

    Heated s.f.

  • 3 - 4

    Beds

  • 4 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,345
  • 5 Sets $1,495
  • 5 Sets + PDF $1,595
  • PDF - Unlimited Build $1,740
  • CAD - Single-Build $2,145
  • CAD - Unlimited Build $2,540
  • View all purchase option online

About This Plan

  • Decorative wood trim tops the arched entry porch of this exceptional Farmhouse home, giving it a Craftsmam look.
  • Inside, a wood beamed ceiling unites the main living area that is all open concept.
  • A wall of windows in the family room overlooks the covered lanai with its outdoor fireplace and grilling station.
  • Split bedrooms ensures a private master suite and this one comes with a stoop where you can sit and drink your morning coffee.
  • Both family bedrooms have walk-in closets and there's a bonus room over the garage awaiting your finishing touches.

Floor Plans

  • Main Level

  • Bonus

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,504 sq. ft.
  • 1st Floor: 2,504 sq. ft.
  • Lanai: 247 sq. ft.
  • Porch, Front: 223 sq. ft.
  • Bonus: 480 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 87' 0"
  • Depth: 77' 2"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 735 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 14
  • Framing Type: Stick

Plan 16902WG
View this and more for this plan by visiting www.architechtecturaldesigns.com/16902WG
|
