Exceptional French Country Manor

Plan 40444DB

4,629
Heated s.f.
4
Beds
4.5
Baths
2
Stories
4
Cars

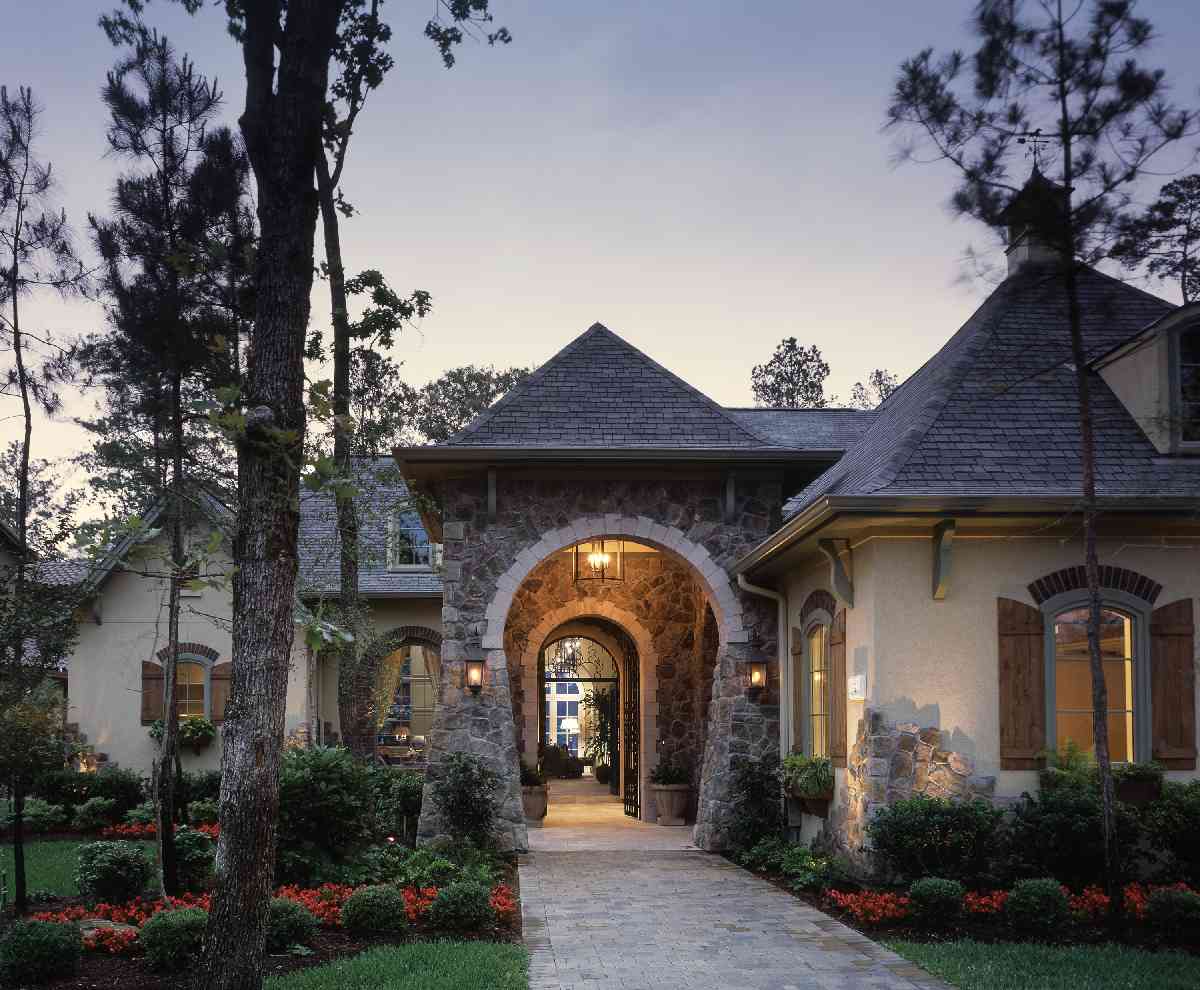

With spectacular features designed into each room, this luxury home plan is meant to impress, starting with its elaborate curved staircase in the two-story entry. The entry foyer measures 8'4" by 19' to the family room and the stair hall is 14'4" square.

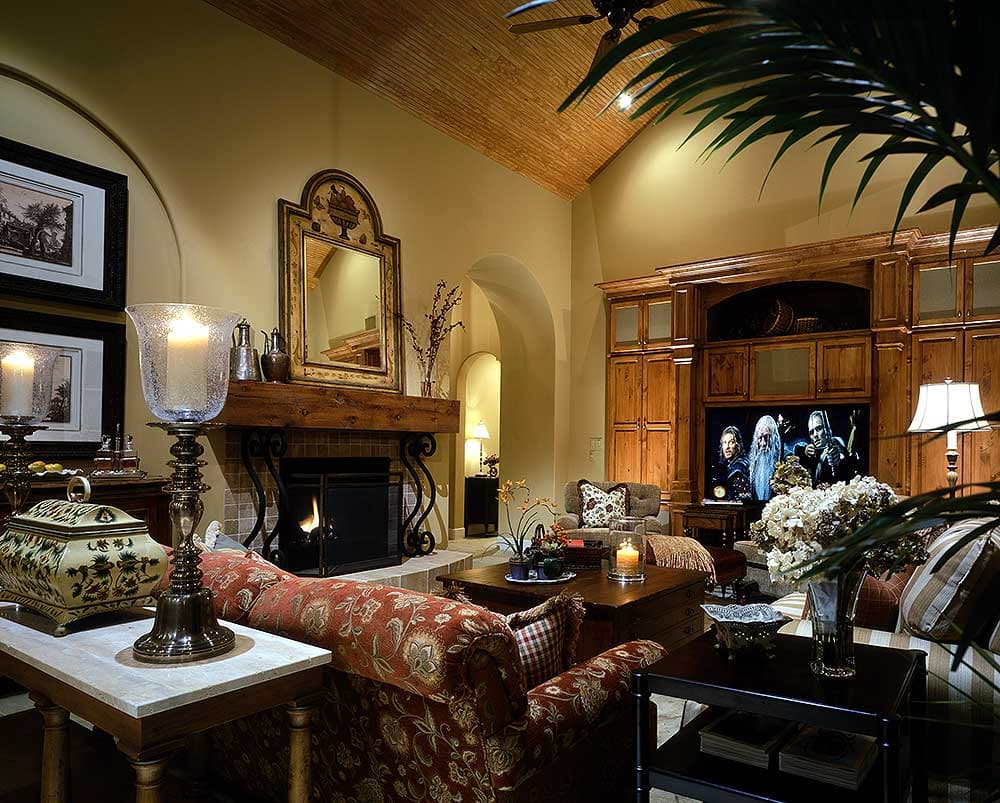

Beams in the huge family room highlight the 20' high cathedral ceiling, with three sets of double French doors, built-in entertainment center and fireplace.

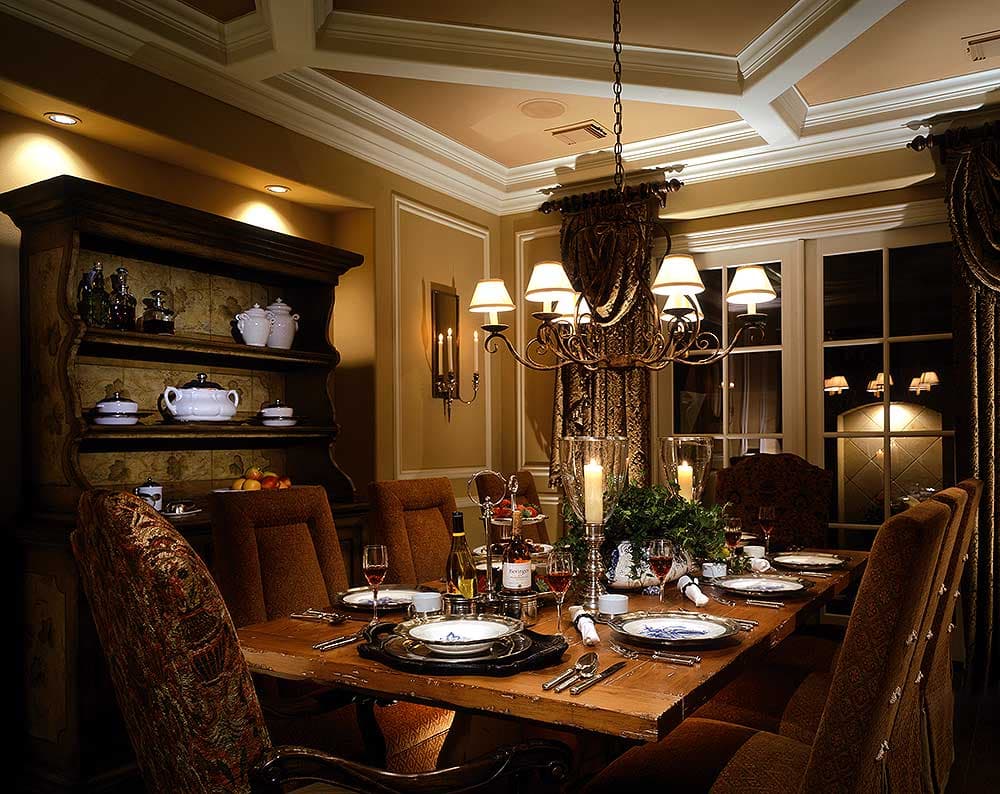

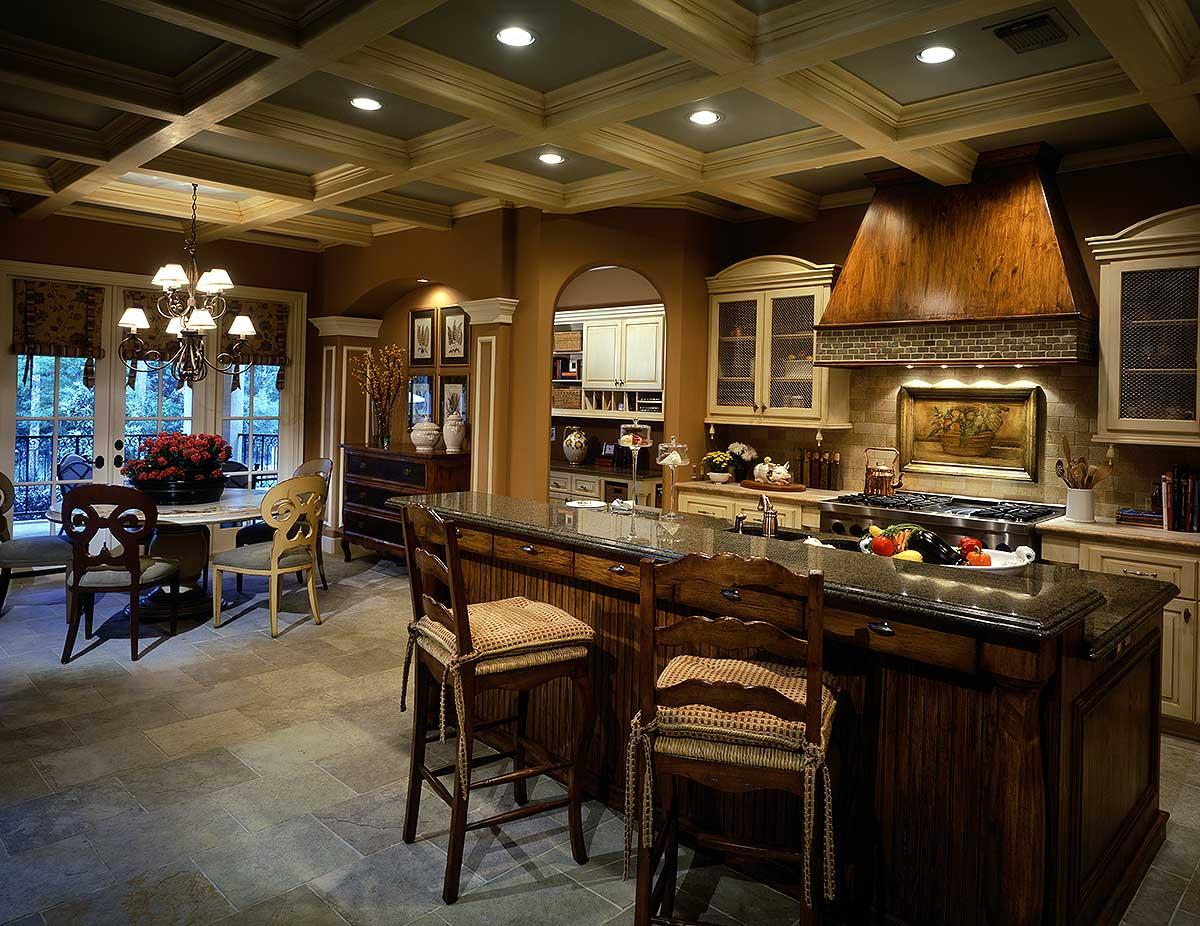

The family room opens to the gourmet kitchen and breakfast room. A formal dining room with tray ceiling has double doors leading to a private courtyard with fireplace.

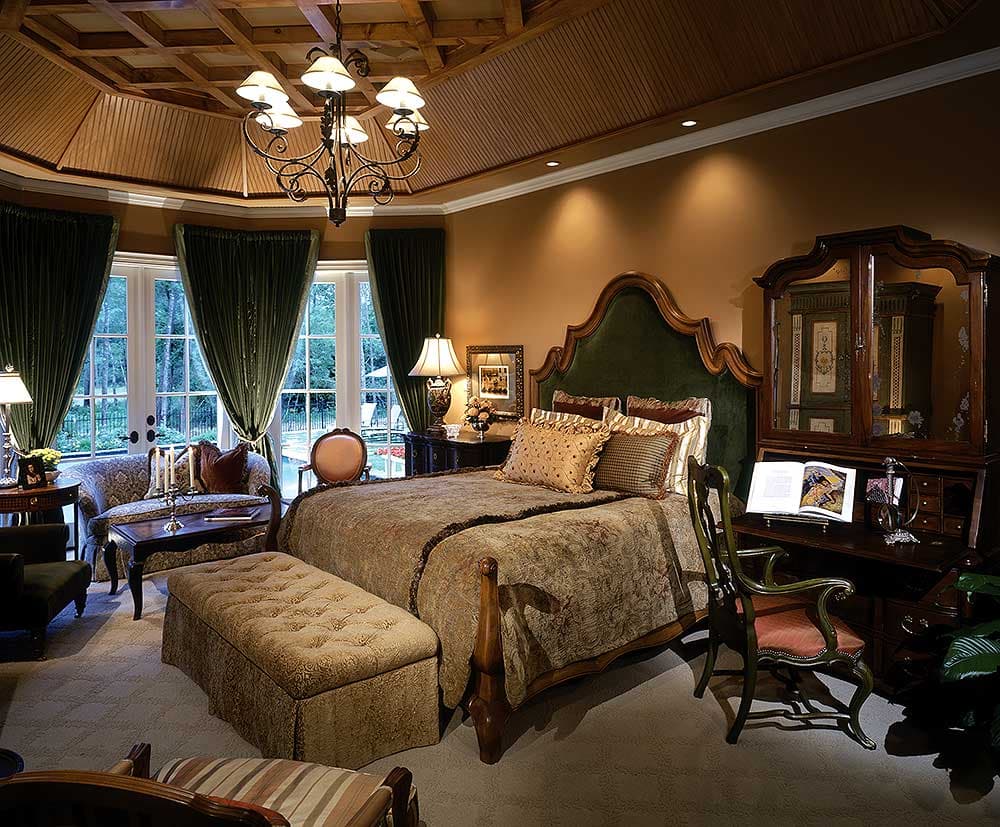

The extraordinary master suite also enjoys a 17'6" high cathedral ceiling with beams plus two huge walk-in closets and a luxurious spa bath with all the amenities.

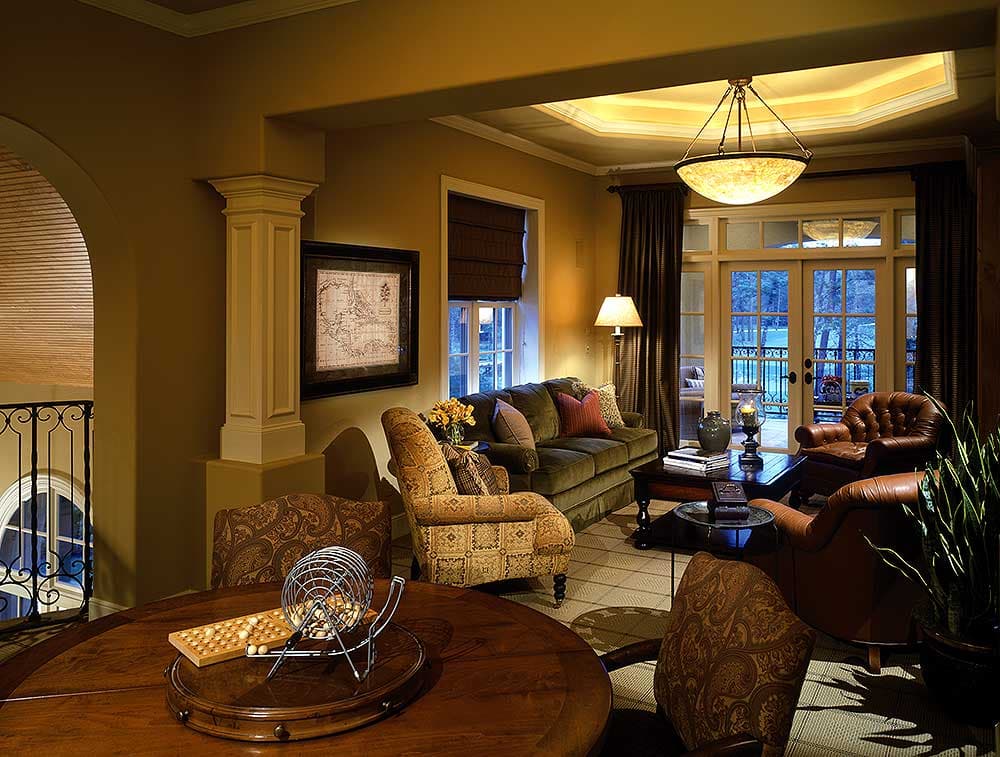

Two bedrooms, each with private bath, share the second floor with a game room that has a balcony overlook to the family room below. A large covered porch off the game room has a raised ceiling (11') and creates a great retreat.
In the basement version, the stairs going down replace the powder room in the foyer. The result is the preservation of the semi-circular form that makes a dramatic statement to this luxury home plan.
Related Plan: Downsize with house plan 42294DB (4,005 square feet).

This plan has 18 sheets that break down as follows:

General notes and design criteria
First floor plan
Second floor plan

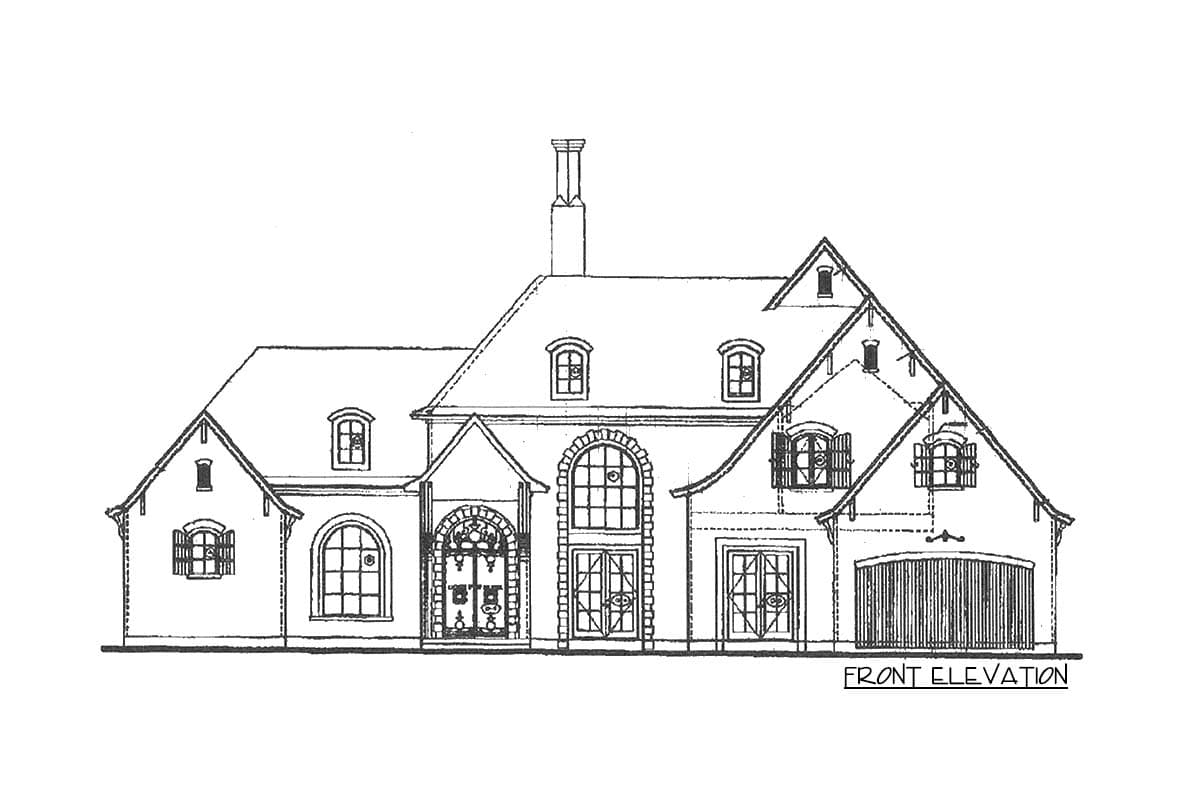

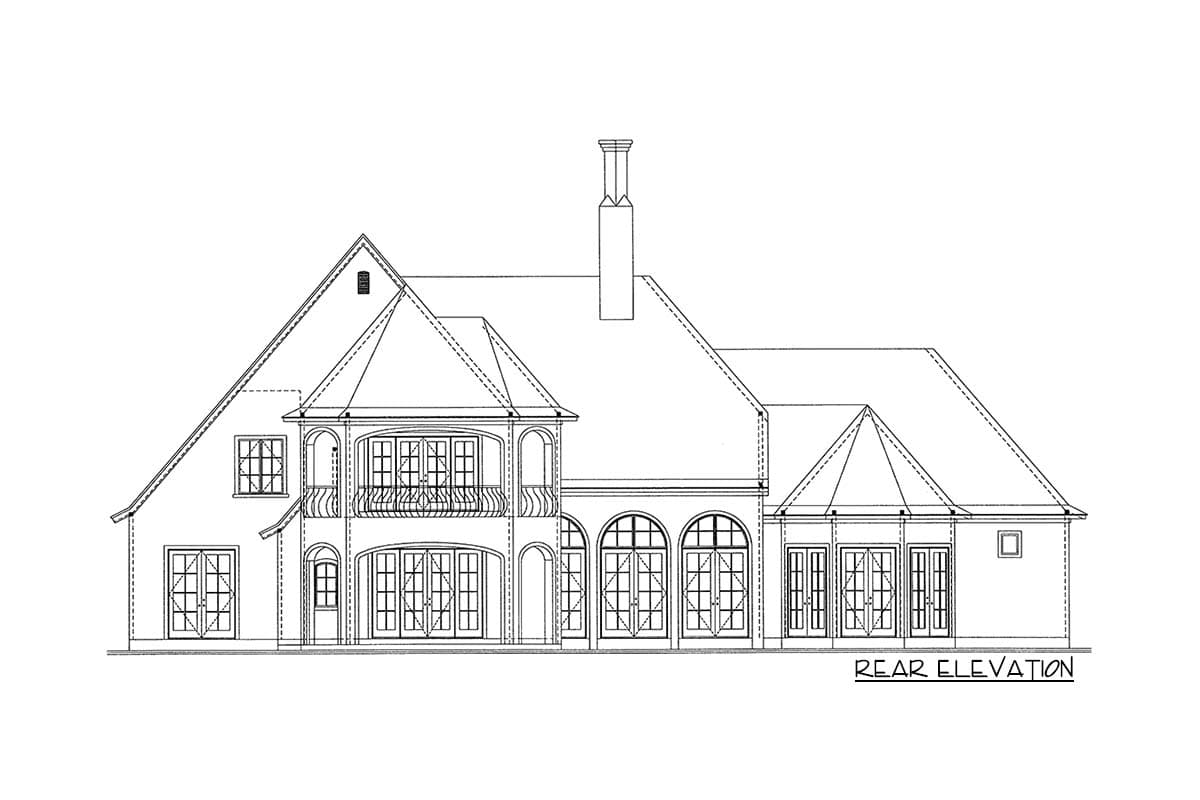

Front and rear elevations

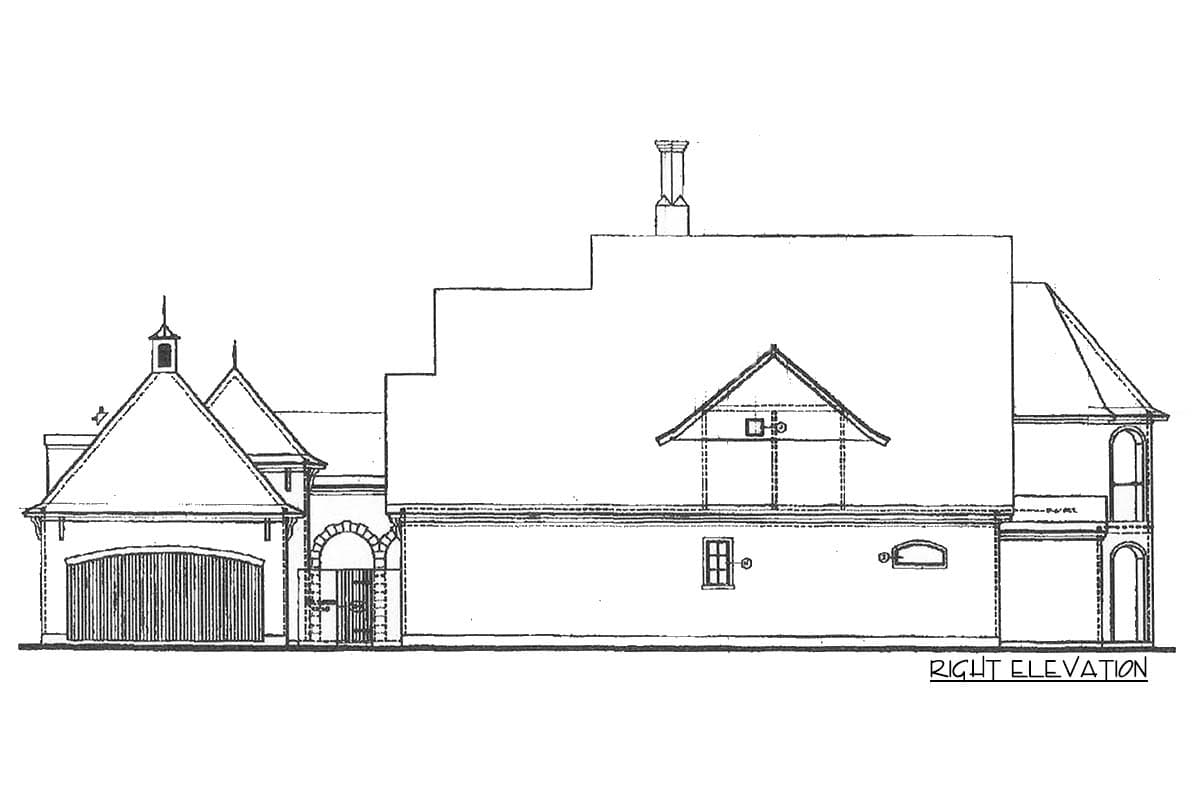

Side elevations
Courtyard elevations (2); 2-story wall section; cornice detail
Sections (3)
Interior elevations
Interior elevations
Interior elevations
Interior elevations
First floor electrical plan
Second floor electrical plan
Trim and room finish schedule
Foundation plan
Framing plans
Ceiling framing plans
Roof plan

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

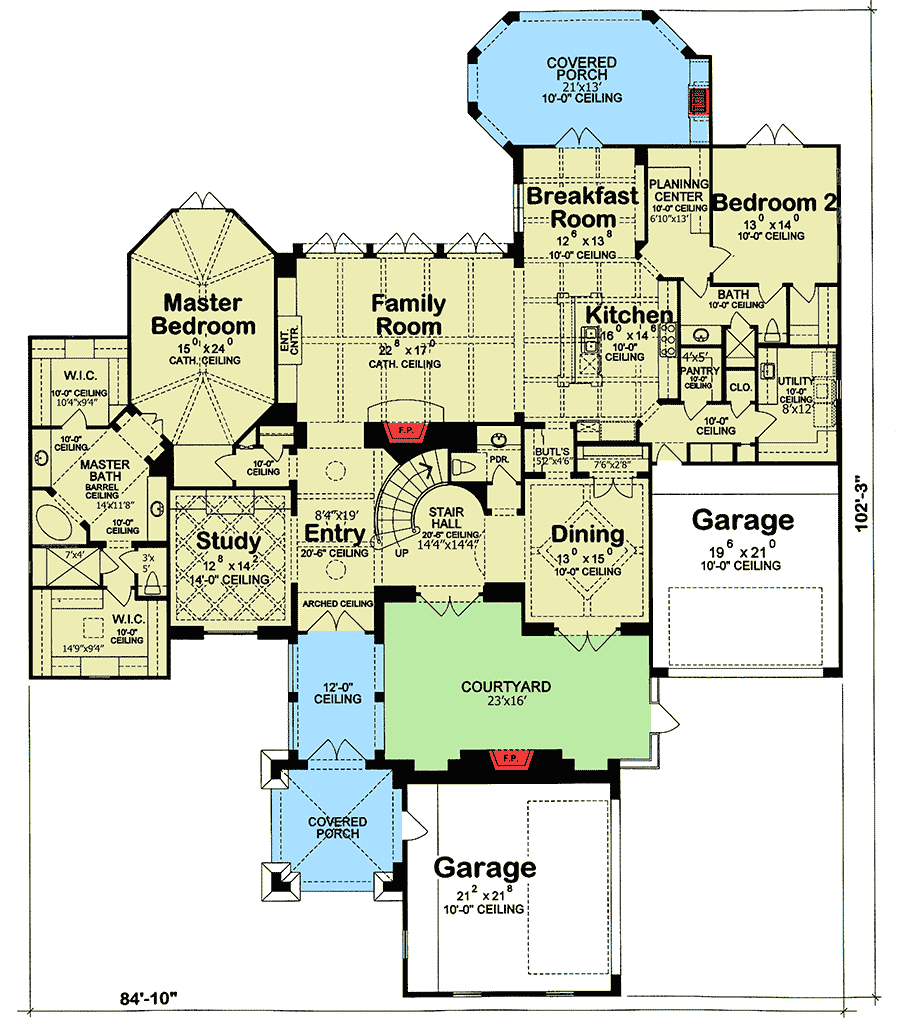

Exceptional French Country Manor - 40444DB floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

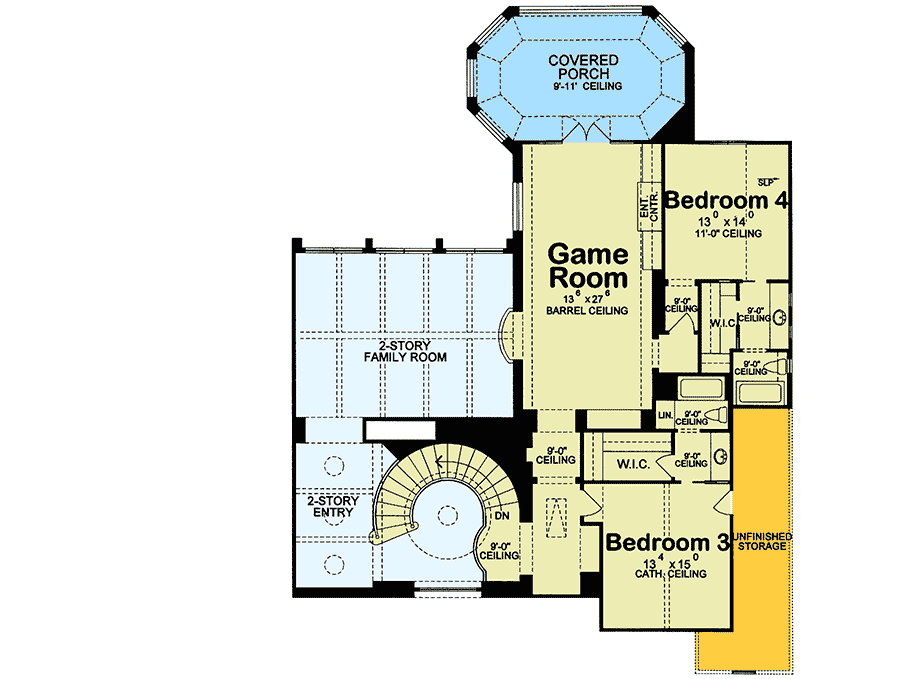

Exceptional French Country Manor - 40444DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,629 sq. ft.
1st Floor: 3,337 sq. ft.
2nd Floor: 1,292 sq. ft.

Storage: 191 sq. ft.
Porch, Combined: 942 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 84' 1"
Depth: 102' 3"
Max ridge height: 37' 4"

Garage

Type: Attached
Area: 925 sq. ft.
Count: 4 Cars
Entry Location: Side, Front

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 14 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections
