Plan 42294DB

Gracious French Country Manor

Gracious French Country Manor

Plan 42294DB

  • 4,005

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • In response to numerous requests to downsize plan 40444DB we introduced this simplified French Country house plan. It retains all the elegance of the original while eliminating square footage to suit a broader budget range.
  • The open main floor socializing is unified under beamed ceilings, a visual treat carried through the dining, study and master bedroom.
  • Upstairs, the game room is a wonderful entertaining area for the kids and the stacking rear covered porches extend entertaining outside.
  • Related Plan: Get more room with house plan 40444DB (4,629 square feet).

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Gracious French Country Manor

  • 4,005

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Digital Study Set $1,110
  • PDF - single-use $1,610
  • 5 Sets $1,760
  • 5 Sets PLUS $1,805
  • 8 Sets $1,885
  • PDF - multi-use $2,110
  • CAD $2,415
  • CAD - multi-use $2,915
  • View all purchase option online

About This Plan

  • In response to numerous requests to downsize plan 40444DB we introduced this simplified French Country house plan. It retains all the elegance of the original while eliminating square footage to suit a broader budget range.
  • The open main floor socializing is unified under beamed ceilings, a visual treat carried through the dining, study and master bedroom.
  • Upstairs, the game room is a wonderful entertaining area for the kids and the stacking rear covered porches extend entertaining outside.
  • Related Plan: Get more room with house plan 40444DB (4,629 square feet).

Floor Plans

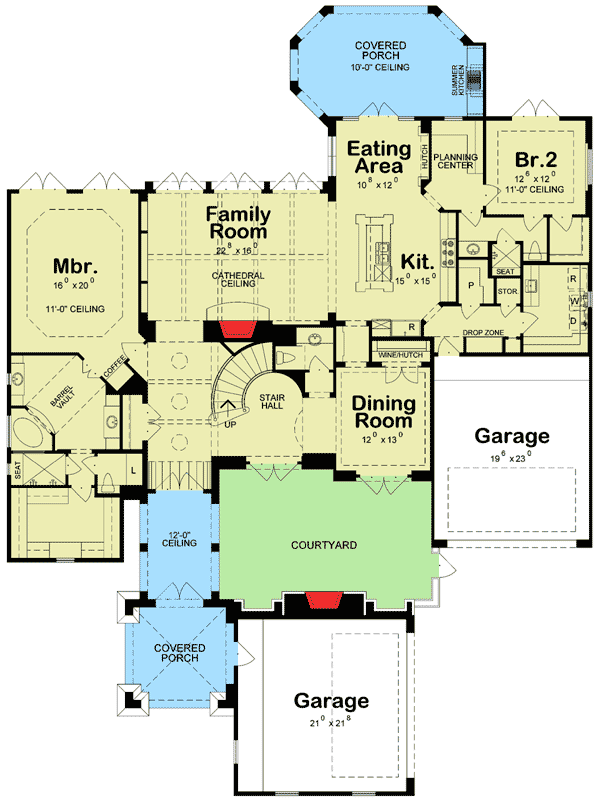

  • Main Level

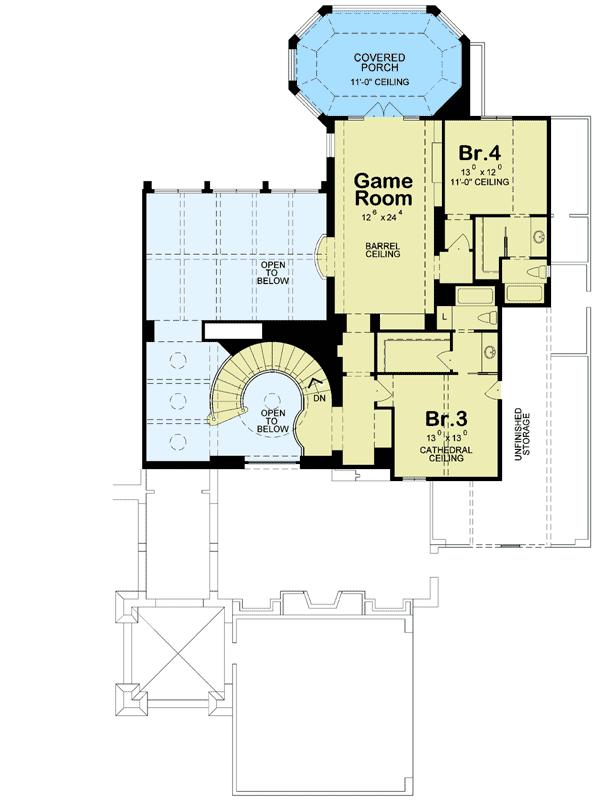

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,005 sq. ft.
  • 1st Floor: 2,836 sq. ft.
  • 2nd Floor: 1,169 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2, 3, & 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 6"
  • Depth: 99' 3"
  • Max ridge height: 37' 4"

Garage

  • Type: Attached
  • Area: 993 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Truss
