Plan 890075AH
Exciting 3-Bed Modern House Plan with Upstairs Beds and Laundry
Heated S.F.
1,601
Beds
3
Baths
2.5
Stories
2
Cars
2
Videos
What's Included
Plan Details
  • This 3-bed modern house plan was designed to give you maximum living area on a small lot.
  • The open-concept floor plan combines the kitchen, dining and great room that creates a feeling of volume.
  • The kitchen island has a curved seating area and gives the cook great prep space.
  • Sliding doors by the dining room take you to your patio out back.
  • All bedrooms are located upstairs as is the laundry for your convenience. The master bedroom includes a large walk-in closet with an attached bathroom as well.
  • A 2-stall attached garage completes this design.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exciting 3-Bed Modern House Plan with Upstairs Beds and Laundry

  • 1,601

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

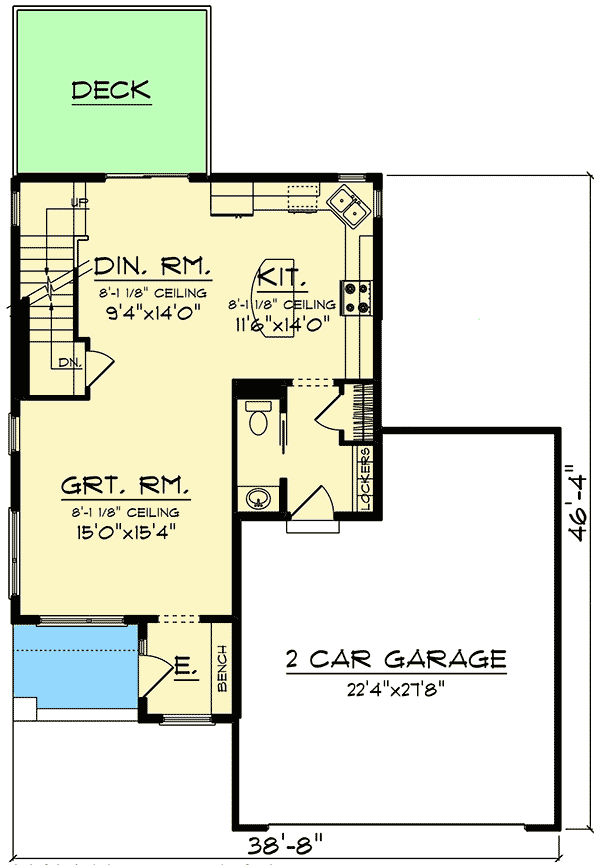

  • Main Level

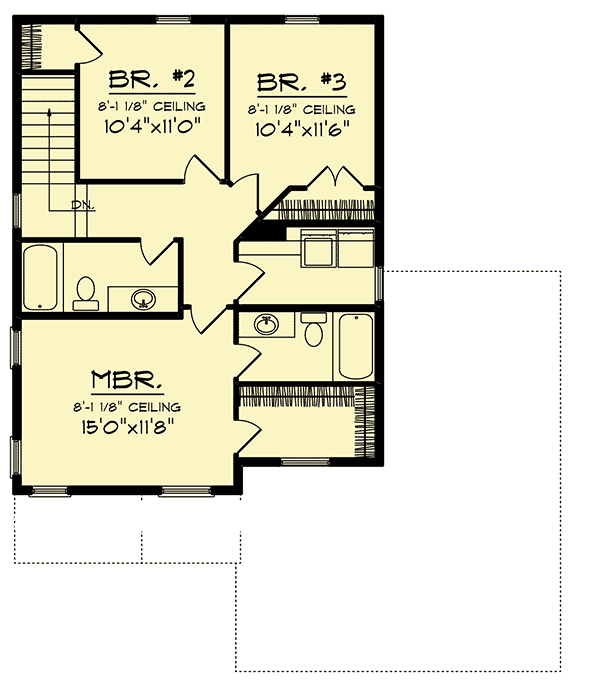

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,601 sq. ft.
  • 1st Floor: 799 sq. ft.
  • 2nd Floor: 802 sq. ft.

Dimensions

  • Width: 38' 8"
  • Depth: 46' 4"
  • Max ridge height: 21' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 580 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
