Exciting Beach House Plan with Rooftop Garden

Heated S.F.
2,928
Beds
3
Baths
3.5
Stories
3
Cars
3

Floor Plan

Plan 765004TWN

Main Level
Main Level
Upper Level
Upper Level
Rooftop
Rooftop
Ground Level
Ground Level

Plan 765004TWN

M-F 9am-5pm EST |

1-203-761-8500

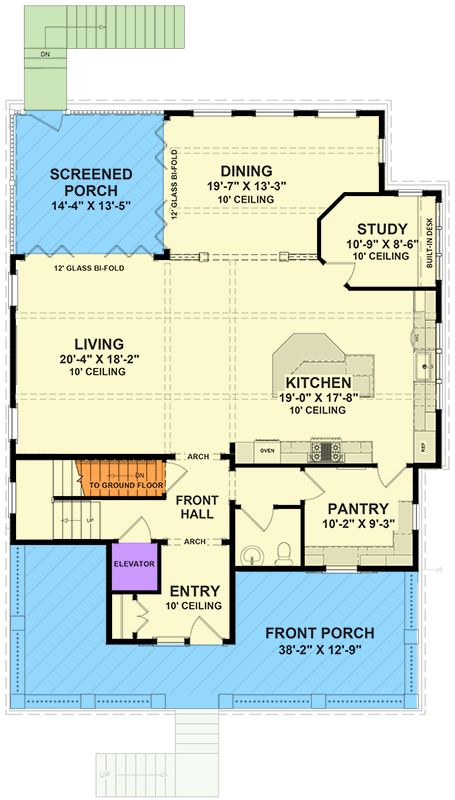

Main Level

Plan 765004TWN: Exciting Beach House Plan with Rooftop Garden - Floor Plan - Main Level - Beach, Coastal, Low Country, Northwest, Vacation

Upper Level

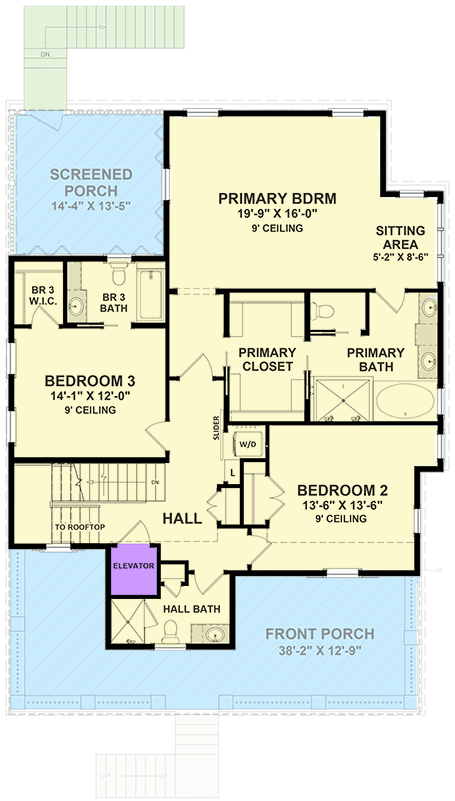

Plan 765004TWN: Exciting Beach House Plan with Rooftop Garden - Floor Plan - Upper Level - Beach, Coastal, Low Country, Northwest, Vacation

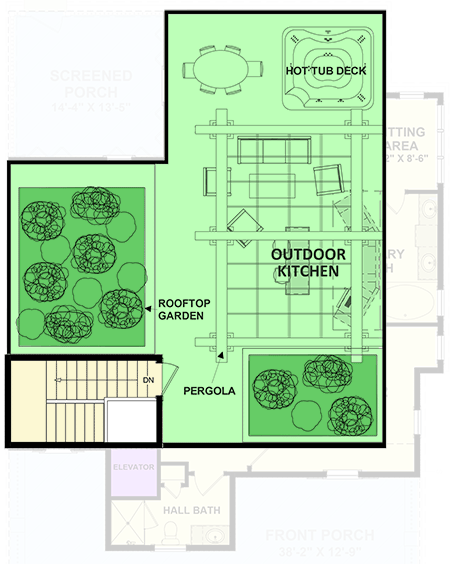

Rooftop

Plan 765004TWN: Exciting Beach House Plan with Rooftop Garden - Floor Plan - Rooftop - Beach, Coastal, Low Country, Northwest, Vacation

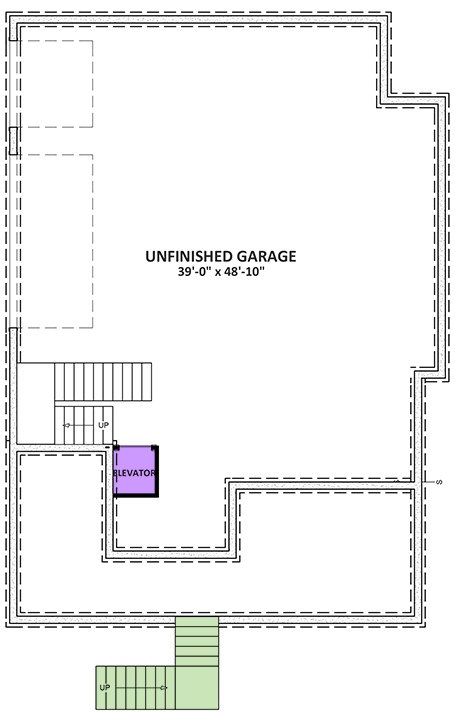

Ground Level

Plan 765004TWN: Exciting Beach House Plan with Rooftop Garden - Floor Plan - Ground Level - Beach, Coastal, Low Country, Northwest, Vacation

Plan Details

  • This exciting Beach house plan has lots of distinctive features such as the exterior crown molding, round window and best of all, a rooftop garden with hot tub and outdoor kitchen.
  • Beams crisscross the huge, open living room and kitchen and there are beams in the spacious dining room as well.
  • You'll find lots of doors to the screened porch on this floor too.
  • On the upper floor, the master suite boasts a sitting area and large walk-in closet.
  • A residential elevator will whisk you from floor to floor or use the beautiful staircase.
  • DELIVERY NOTE: Please allow 10 to 15 days for delivery if it includes readable reverse or if it includes Piling Foundation.

What's Included

  • Cover sheet with general notes
  • Foundation Plan
  • Floor Plans with Dimensions
  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan
