Exciting Northwest House Plan with Balcony Bridge

Plan 72868DA

  • 3,316

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Two-story ceilings rise up dramatically in the foyer and great room of this exciting Northwest house plan.
  • On the left side, a quiet den and first floor guest suite enhance the home.
  • The corner fireplace in the great room can be seen from the foyer and the dining area.
  • A big, U-shaped kitchen is efficiently organized with a large island to add extra counter and storage space.
  • There's a walk-in pantry and a walk-in coat closet plus a large utility room.
  • The gorgeous balcony bridge on the second floor separates the master bedroom suite from the two family bedrooms.
  • Kids can do their homework in the study nook with three windows to brighten the whole area.
  • Finish the bonus room to add an extra 494 square feet of living space above the garage.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

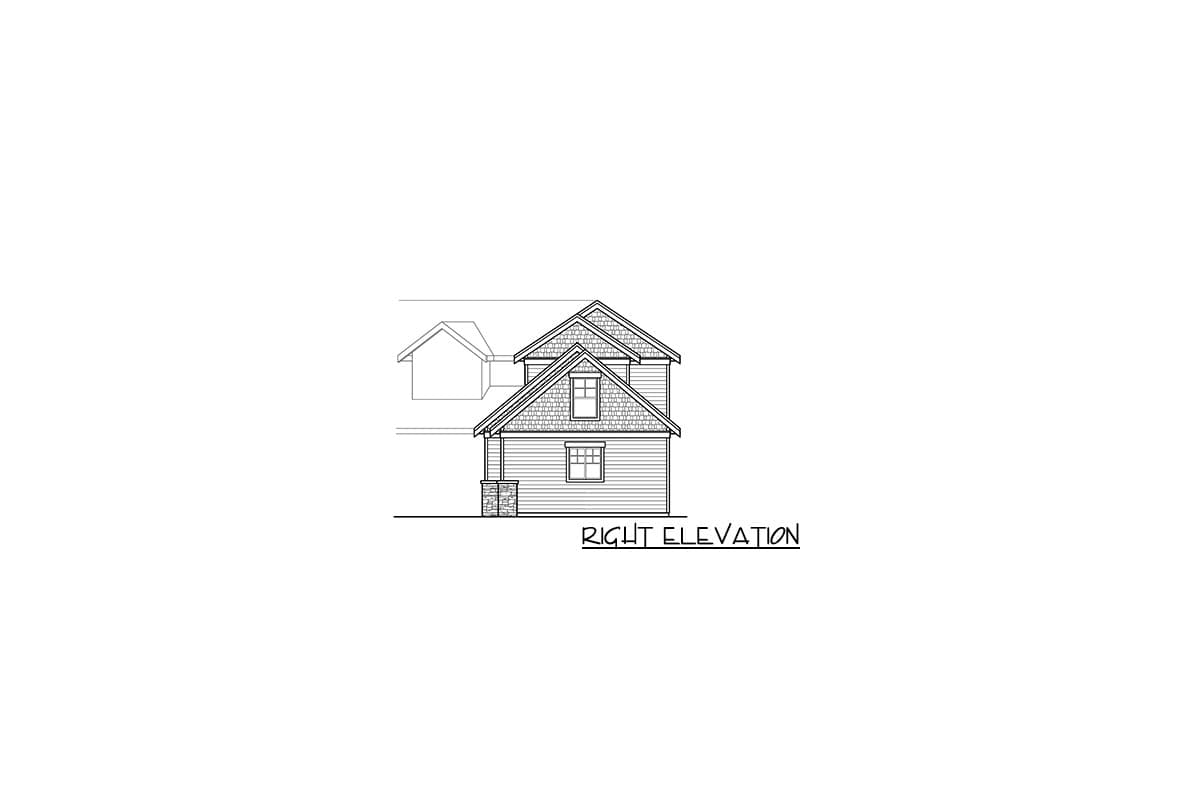

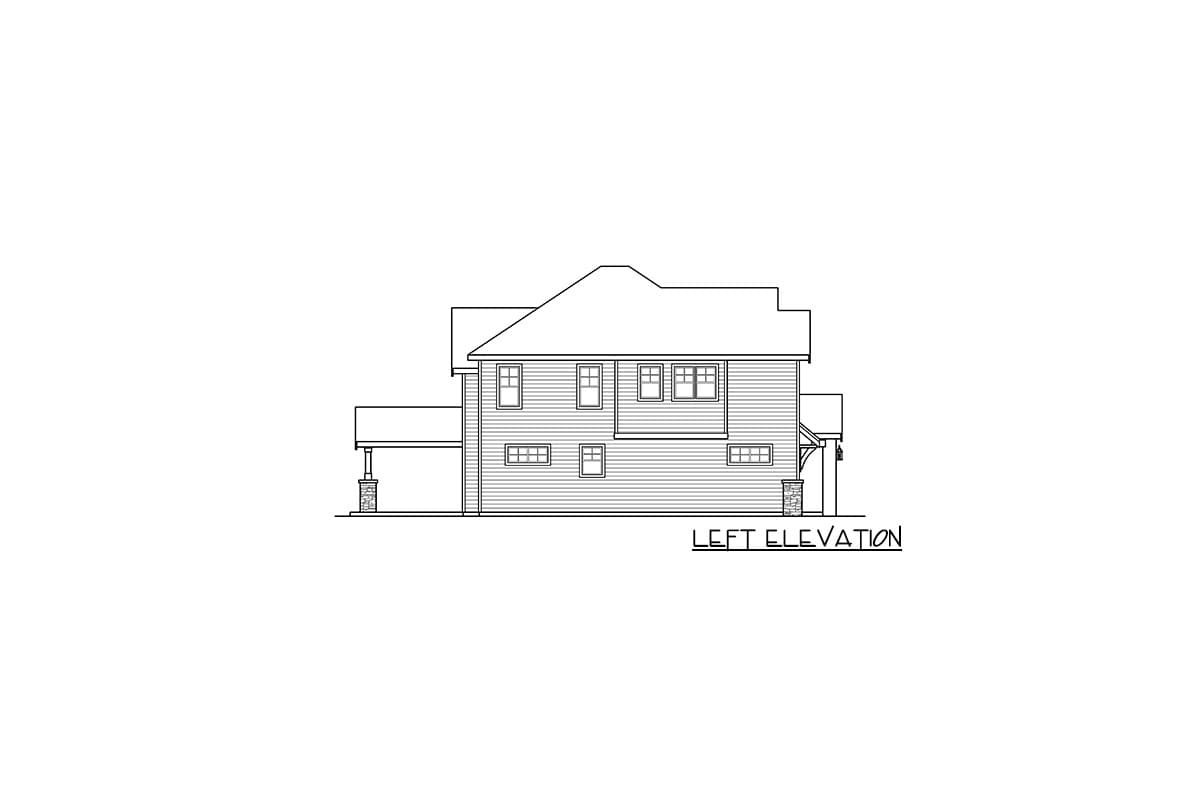

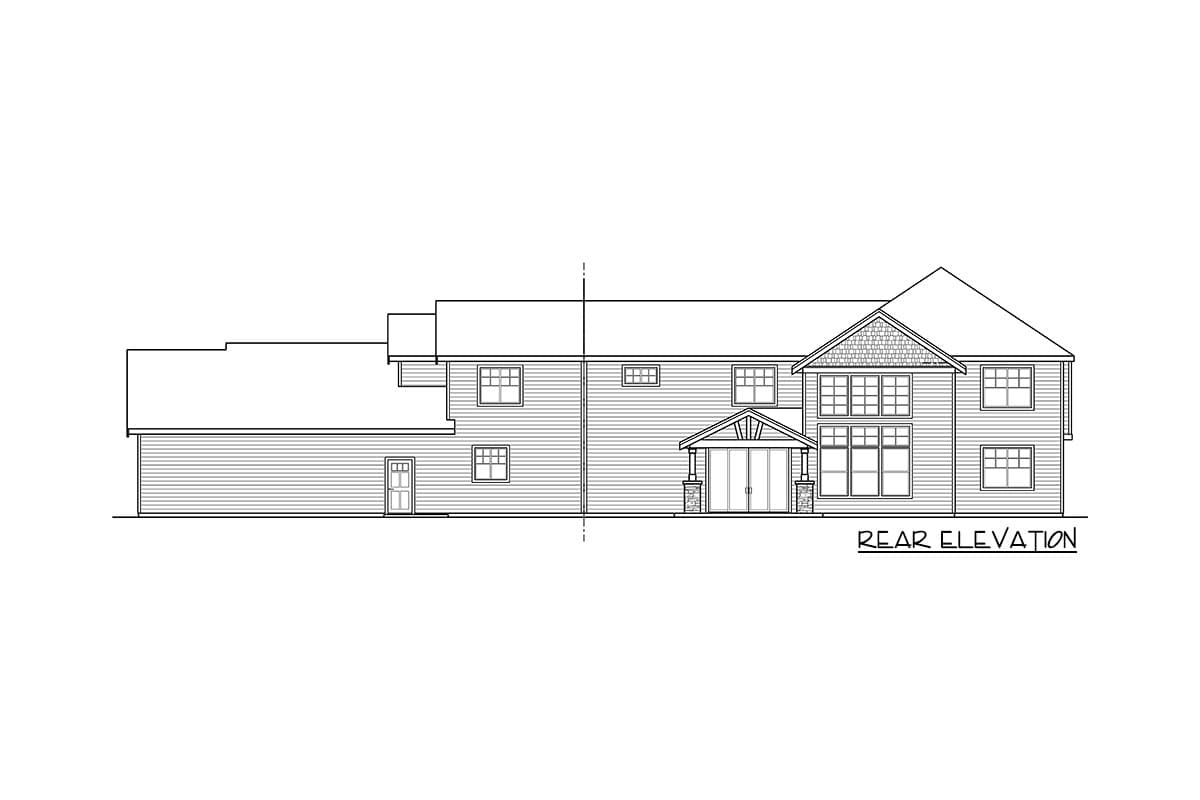

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Exciting Northwest House Plan with Balcony Bridge

  • 3,316

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $995
  • PDF Light $1,245
  • 5 Sets $1,245
  • 8 Sets $1,440
  • PDF Plus $2,375
  • CAD $2,595
  • CAD - multi-use $2,855
  • View all purchase option online

About This Plan

  • Two-story ceilings rise up dramatically in the foyer and great room of this exciting Northwest house plan.
  • On the left side, a quiet den and first floor guest suite enhance the home.
  • The corner fireplace in the great room can be seen from the foyer and the dining area.
  • A big, U-shaped kitchen is efficiently organized with a large island to add extra counter and storage space.
  • There's a walk-in pantry and a walk-in coat closet plus a large utility room.
  • The gorgeous balcony bridge on the second floor separates the master bedroom suite from the two family bedrooms.
  • Kids can do their homework in the study nook with three windows to brighten the whole area.
  • Finish the bonus room to add an extra 494 square feet of living space above the garage.

Floor Plans

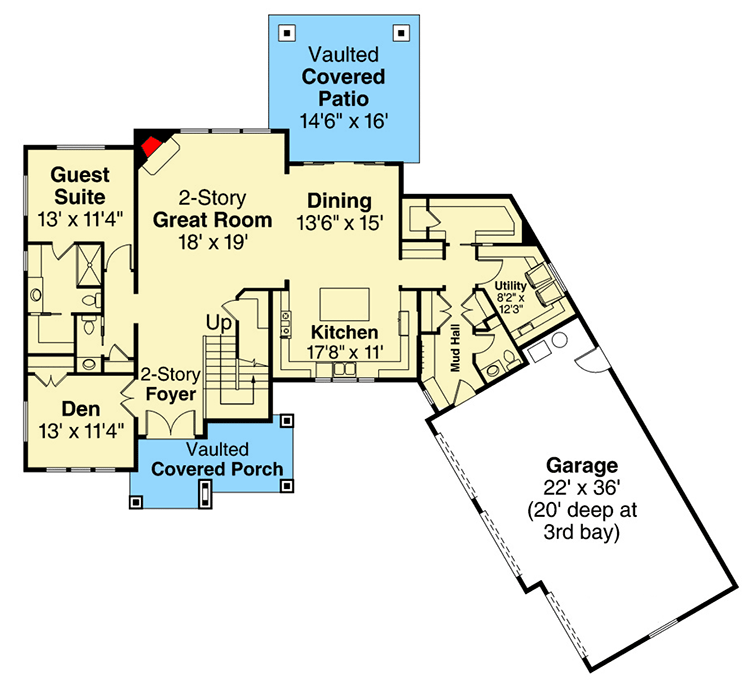

  • Main Level

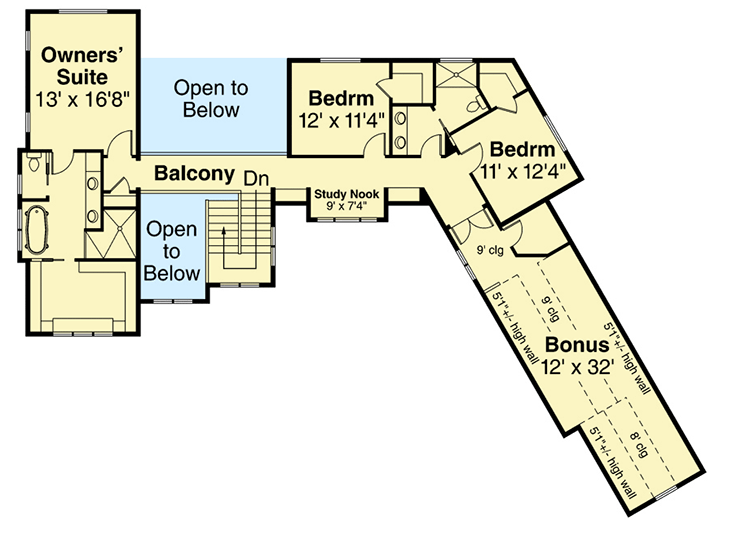

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,316 sq. ft.
  • 1st Floor: 2,026 sq. ft.
  • 2nd Floor: 1,290 sq. ft.
  • Bonus: 494 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 87' 7"
  • Depth: 78' 8"
  • Max ridge height: 31' 3"

Garage

  • Type: Attached
  • Area: 833 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
