Plan: 290016IY

Exciting Traditional House Plan with Optional Sports Court

4,482 4-6 4 + 2 4
Pageloader

Exciting Traditional House Plan with Optional Sports Court

Plan 290016IY

  • 4,482

    Heated s.f.

  • 4-6

    Beds

  • 4 +

    Baths

  • 2

    Stories

  • 4

    Cars

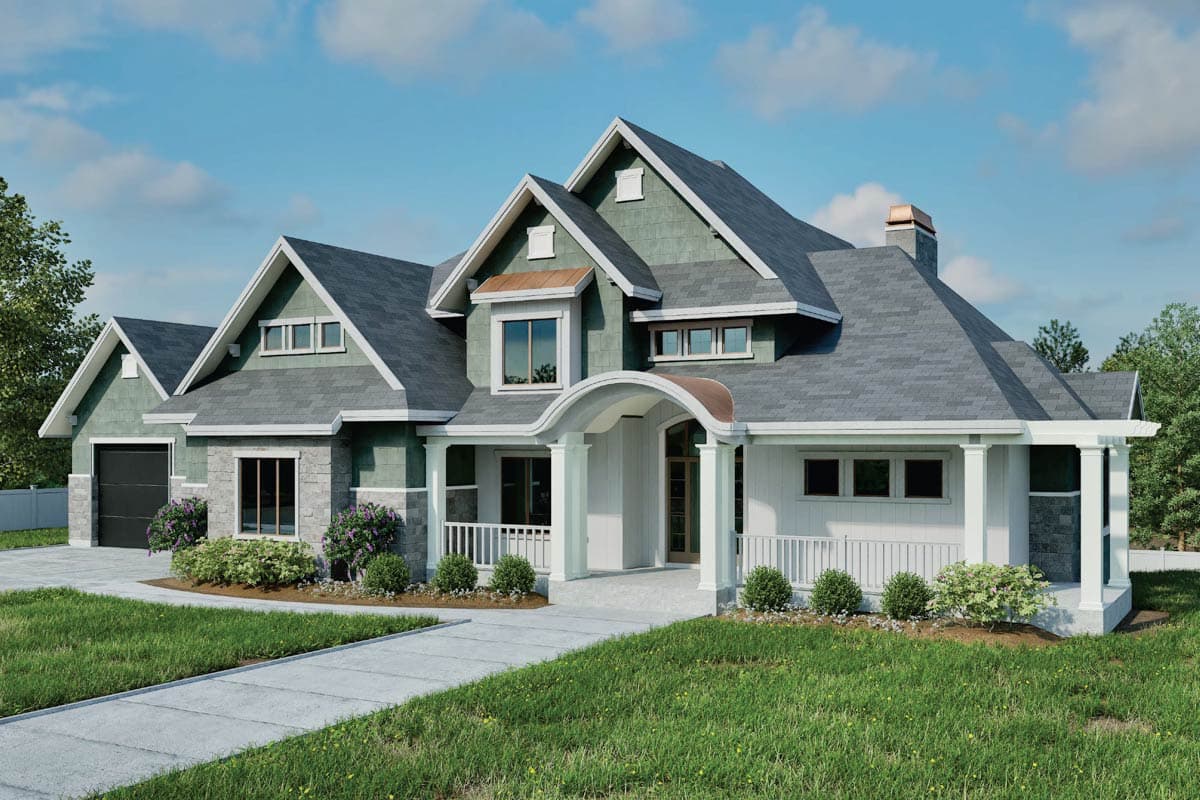

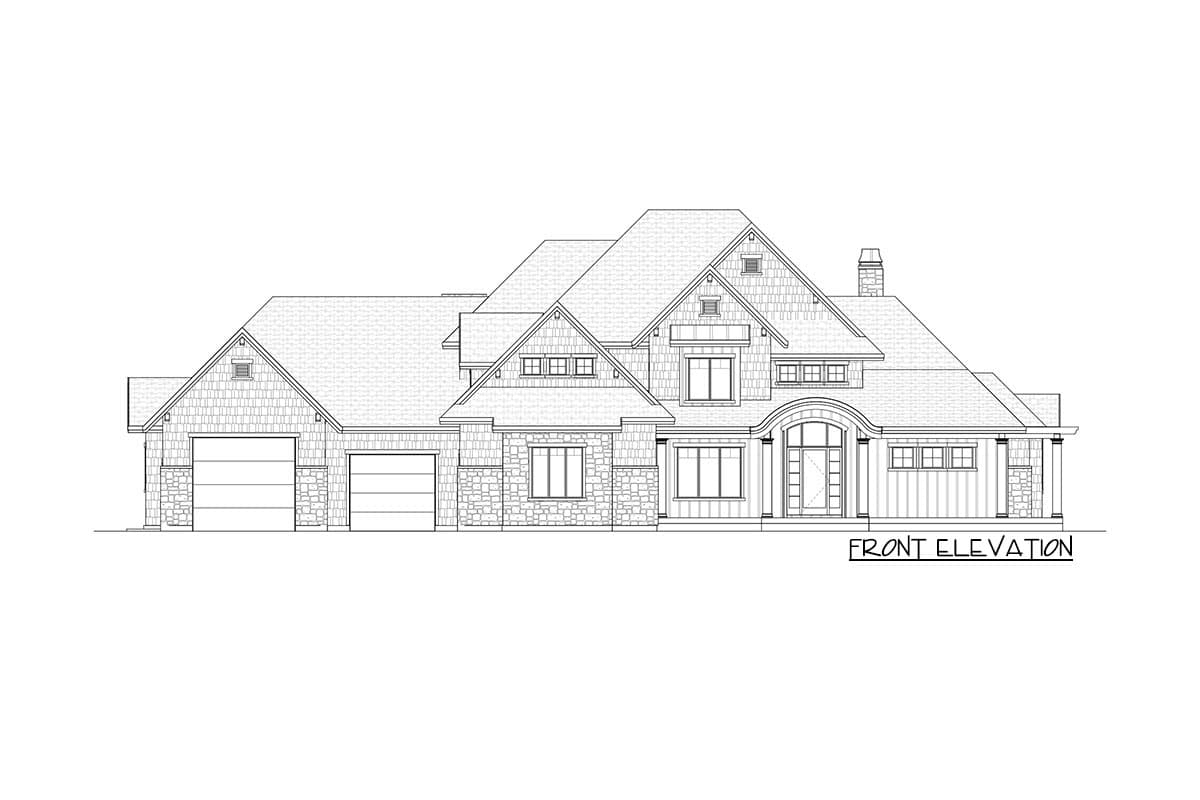

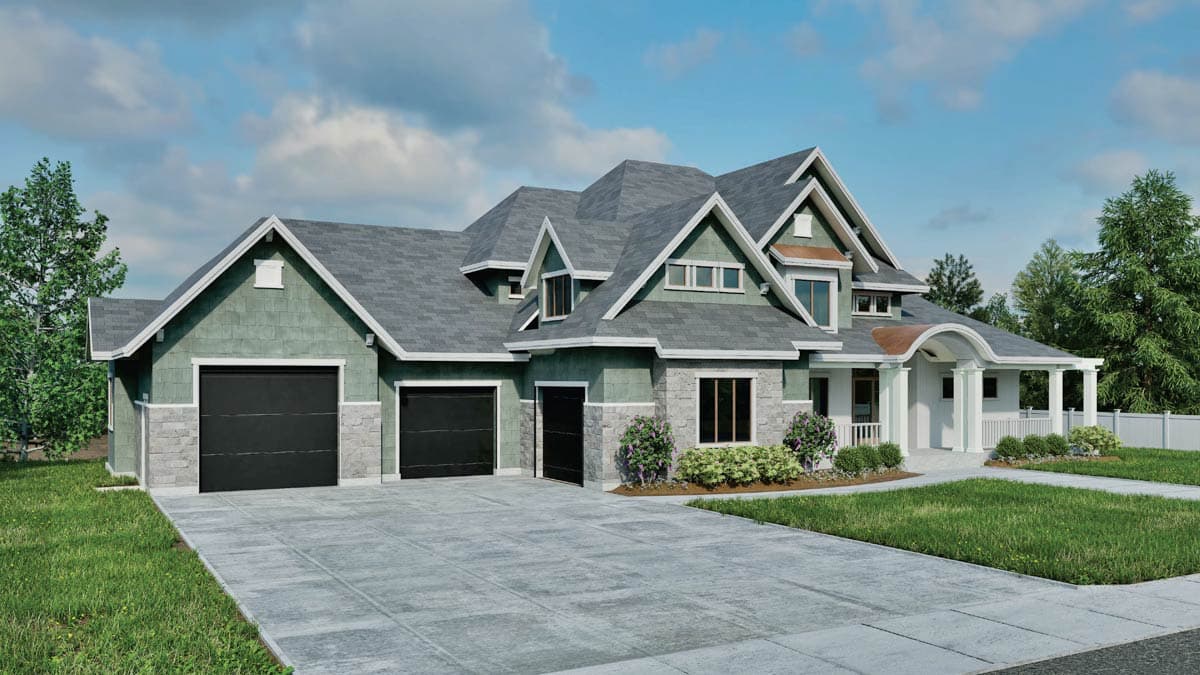

  • A gently curved roof showcases the front door of this exciting Traditional house plan.
  • With six bedrooms spread out over three levels, this home is ideal for a large family.

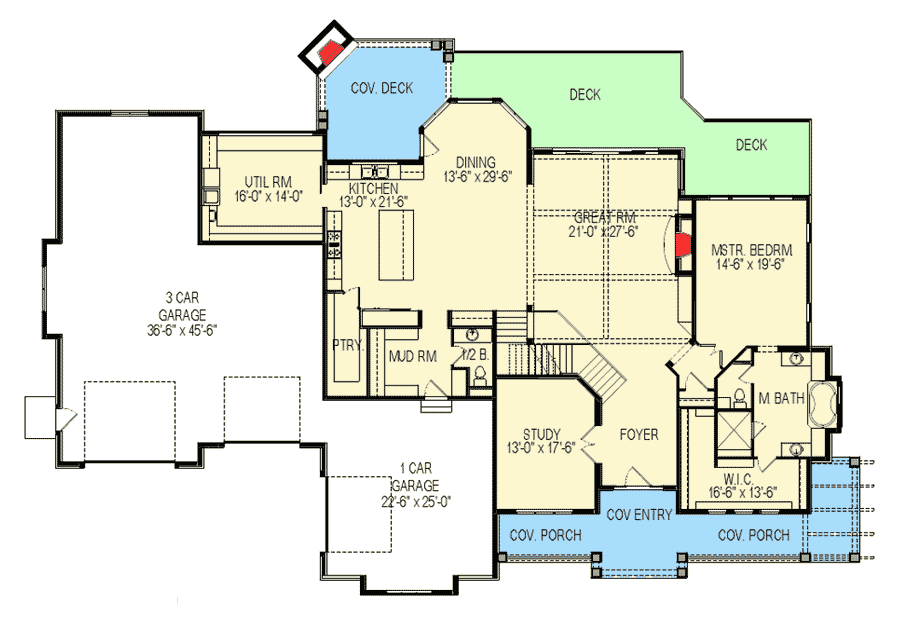

  • The vaulted and beamed great room can be seen from the kitchen and dining room, thank to the lovely open floor plan.
  • Homeowners get a first floor master suite with lots of windows and a huge L-shaped walk-in closet.
  • Even the utility room is large with plenty of counter space.

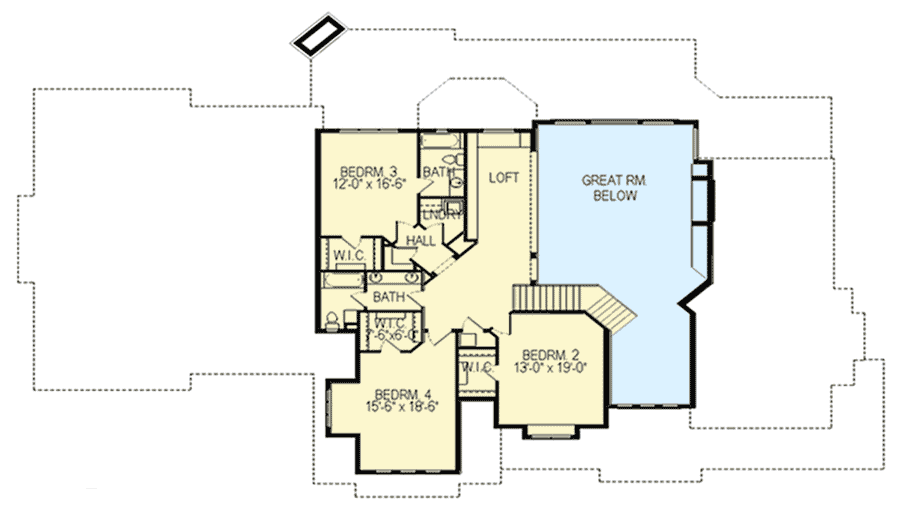

  • Head upstairs for three bedrooms and a loft that overlooks the great room.
  • On the fully finished lower level, you can entertain with ease in the family room or game room with snack bar.
  • There's even a dedicated exercise room with interior windows that look down onto the massive sports court below.
  • The sports court adds 1,466 square feet to the total living area of the home.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

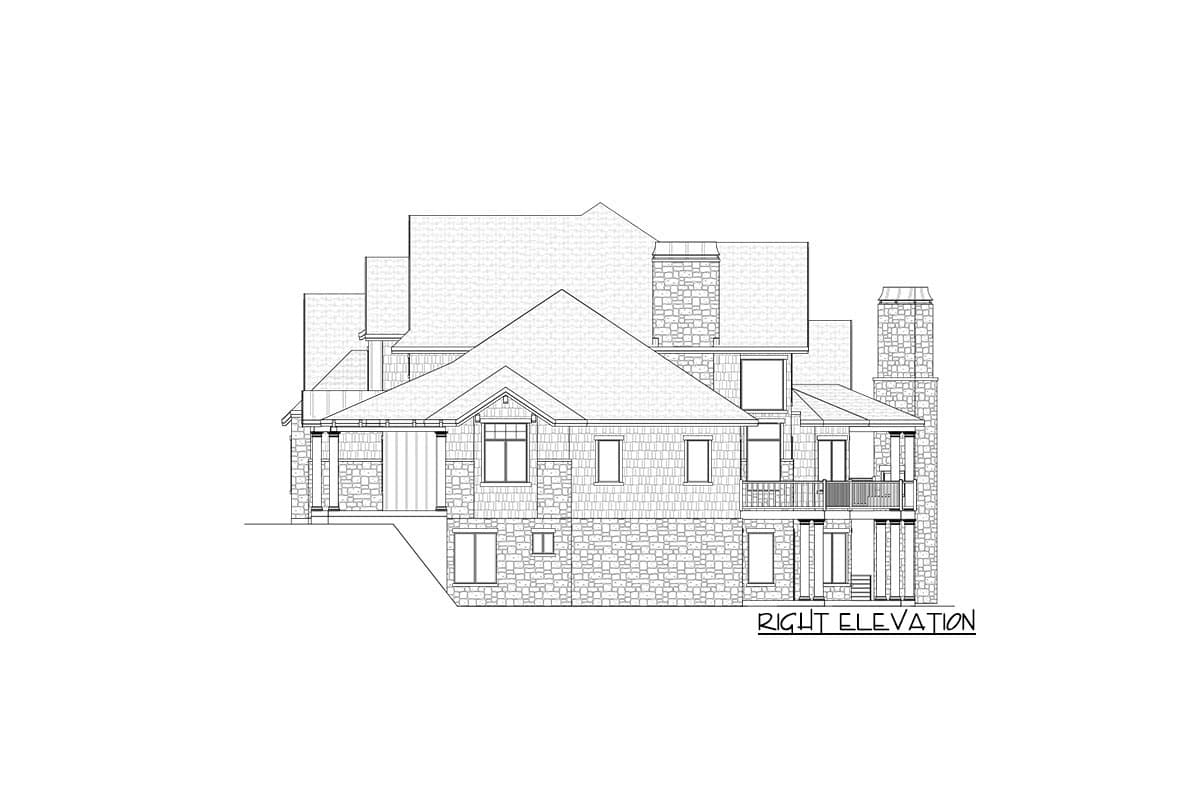

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations (when available)

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

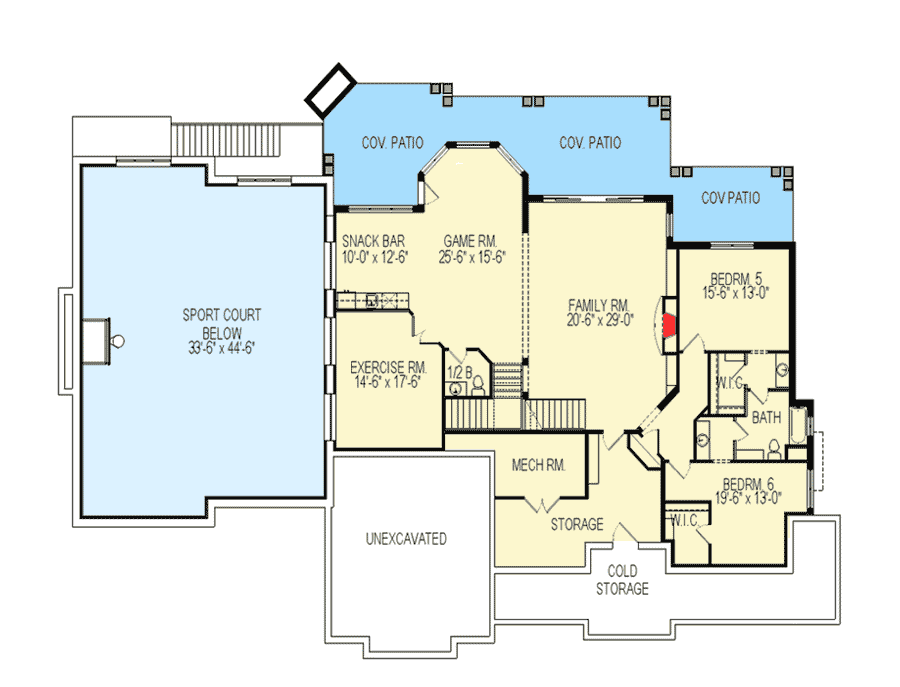

Finished Lower Level

Pinit white
Exciting Traditional House Plan with Optional Sports Court - 290016IY floor plan - Finished Lower Level

Plan details



Exciting Traditional House Plan with Optional Sports Court

  • 4,482

    Heated s.f.

  • 4 - 6

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 1 Set $1,974
  • Digital Study Set $1,974
  • PDF - single-use $2,194
  • 5 Sets $2,469
  • 8 Sets $2,607
  • CAD $4,389
  • View all purchase option online

About This Plan

  • A gently curved roof showcases the front door of this exciting Traditional house plan.
  • With six bedrooms spread out over three levels, this home is ideal for a large family.
  • The vaulted and beamed great room can be seen from the kitchen and dining room, thank to the lovely open floor plan.
  • Homeowners get a first floor master suite with lots of windows and a huge L-shaped walk-in closet.
  • Even the utility room is large with plenty of counter space.
  • Head upstairs for three bedrooms and a loft that overlooks the great room.
  • On the fully finished lower level, you can entertain with ease in the family room or game room with snack bar.
  • There's even a dedicated exercise room with interior windows that look down onto the massive sports court below.
  • The sports court adds 1,466 square feet to the total living area of the home.

Floor Plans

  • Main Level

  • 2nd Floor

  • Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,482 sq. ft.
  • 1st Floor: 2,990 sq. ft.
  • 2nd Floor: 1,492 sq. ft.
  • Storage: 747 sq. ft.
  • Sports Court: 1,466 sq. ft.
  • Covered Patio: 714 sq. ft.
  • Deck: 729 sq. ft.
  • Porch, Front: 385 sq. ft.
  • Optional Lower Level: 2,274 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, & 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 105' 6"
  • Depth: 65' 4"
  • Max ridge height: 37' 11"

Garage

  • Type: Attached
  • Area: 1889 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12

Architectural Style

  • Traditional

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • Loft
  • Media-Game-Home Theater
  • PDF
  • Sport Court

Plan Collections

  • Luxury
