Exclusive 2-Story, 3-Bed House Plan with Laundry On Both Floors

Plan 430810SNG

  • 750

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • This 2-story, 3-bed house plan has a board and batten siding and a shed roof providing shade and character to the front porch. At just 750 square feet, this makes a great ADU (i.e. accessory dwelling unit) or a primary residence for someone looking to simplify.
  • The living room greets you upon entering and is open to the kitchen. A powder room is nestled into the space created by the stairs.
  • The largest of the 3 bedrooms is on the main floor and has its own bathroom. An optional doorway gives access to the outside.
  • Upstairs, two bedrooms share a bath. Attic space is tucked into the eaves on either side of Bed 3.full bath.
  • Related Plan: Add a dormer and get 2 bedrooms with exclusive house plan 430802SNG.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

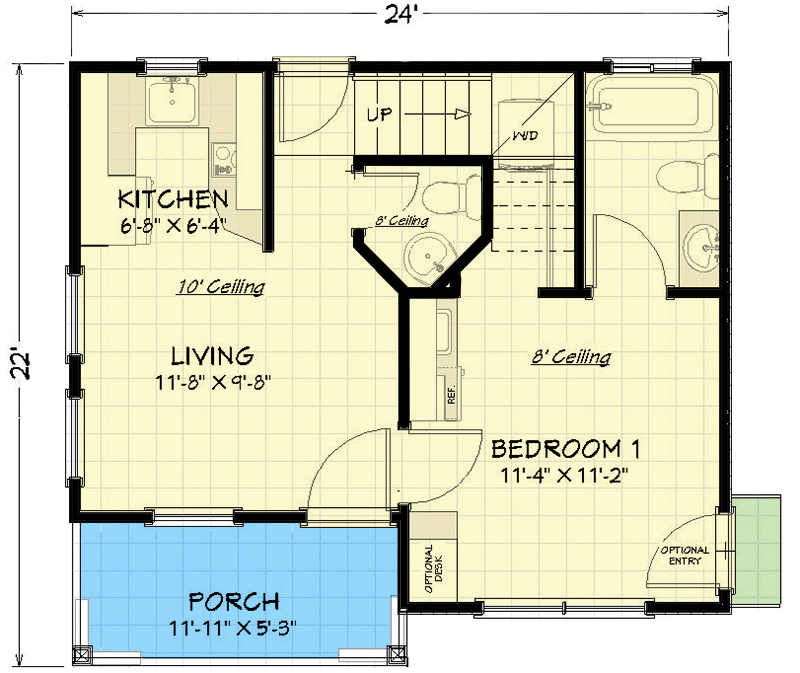

Exclusive 2-Story, 3-Bed House Plan with Laundry On Both Floors - 430810SNG floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

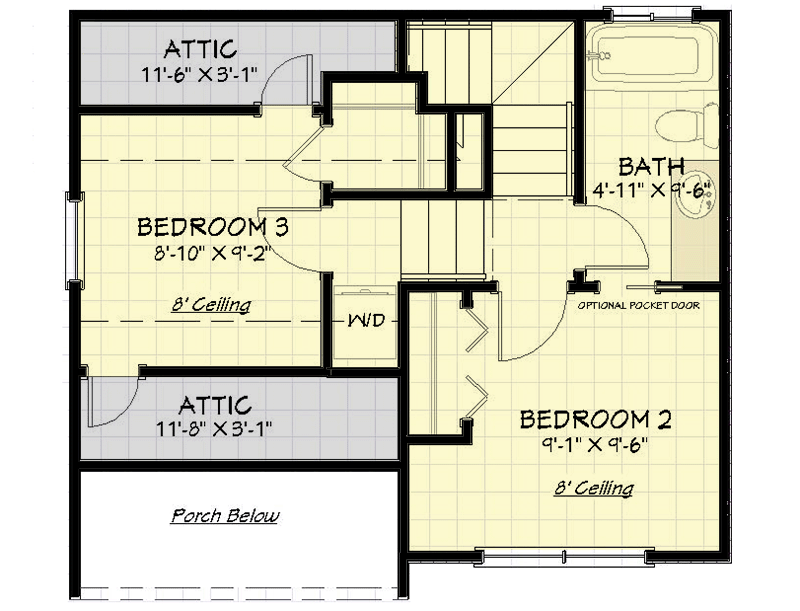

Exclusive 2-Story, 3-Bed House Plan with Laundry On Both Floors - 430810SNG floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 750 sq. ft.
  • 1st Floor: 440 sq. ft.
  • 2nd Floor: 310 sq. ft.
  • Storage: 67 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 22' 0"
  • Max ridge height: 23' 6"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"
