Plan 510143WDY
EXCLUSIVE
Exclusive 2-Story Acadian House Plan with 2-Sided Fireplace
Heated S.F.
4,326
Beds
5-6
Baths
5.5
Stories
2
Cars
3
Flyer
What's Included
Plan Details
  • The stately exterior of this two-story, Acadian house plan, which is exclusive to Architectural Designs, contributes to the grand curb appeal.
  • Inside, a two-sided direct vent gas fireplace warms both the living and keeping rooms, while the adjacent sunroom offers a light and airy living space to enjoy, complete with an outdoor kitchen.
  • U-shaped cabinets in the kitchen surround a prep island, and a nearby pantry lends plenty of storage space for larger kitchen appliances.
  • The master bedroom is located on the main level and boasts a corner fireplace, 5-fixture bath with a freestanding tub, and a walk-in closet. A second bedroom and study, each room with its own full bath, can also be found on the first floor.
  • Upstairs, discover three additional bedrooms; two share a Jack-and-Jill bath, and one includes a full bath. A computer nook at the top of the stairs provides a communal space for electronics.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

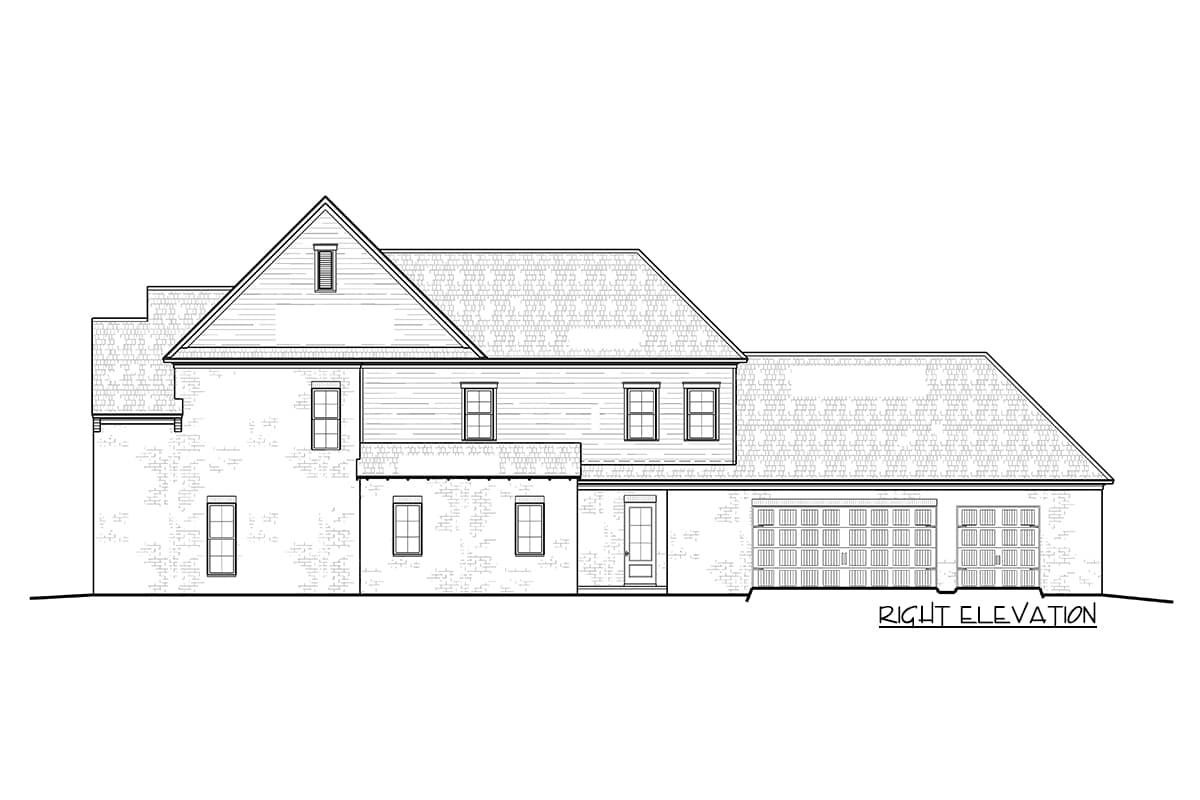

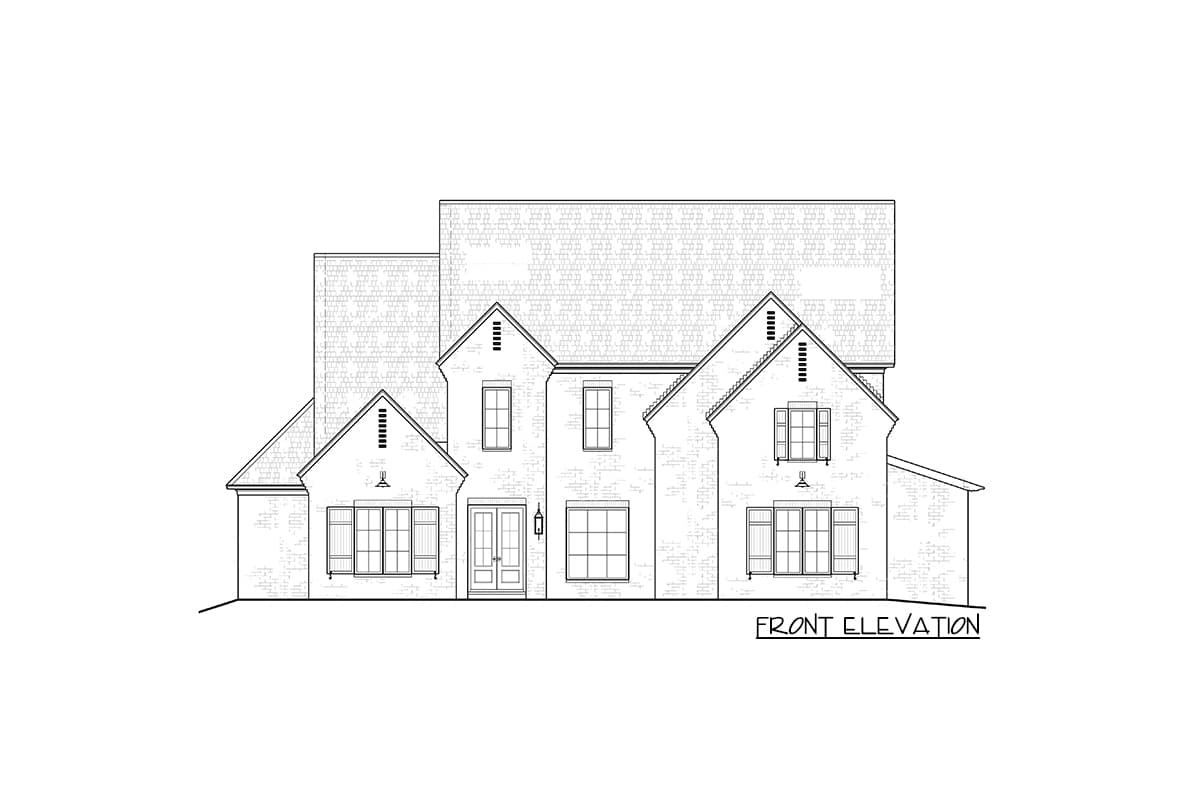

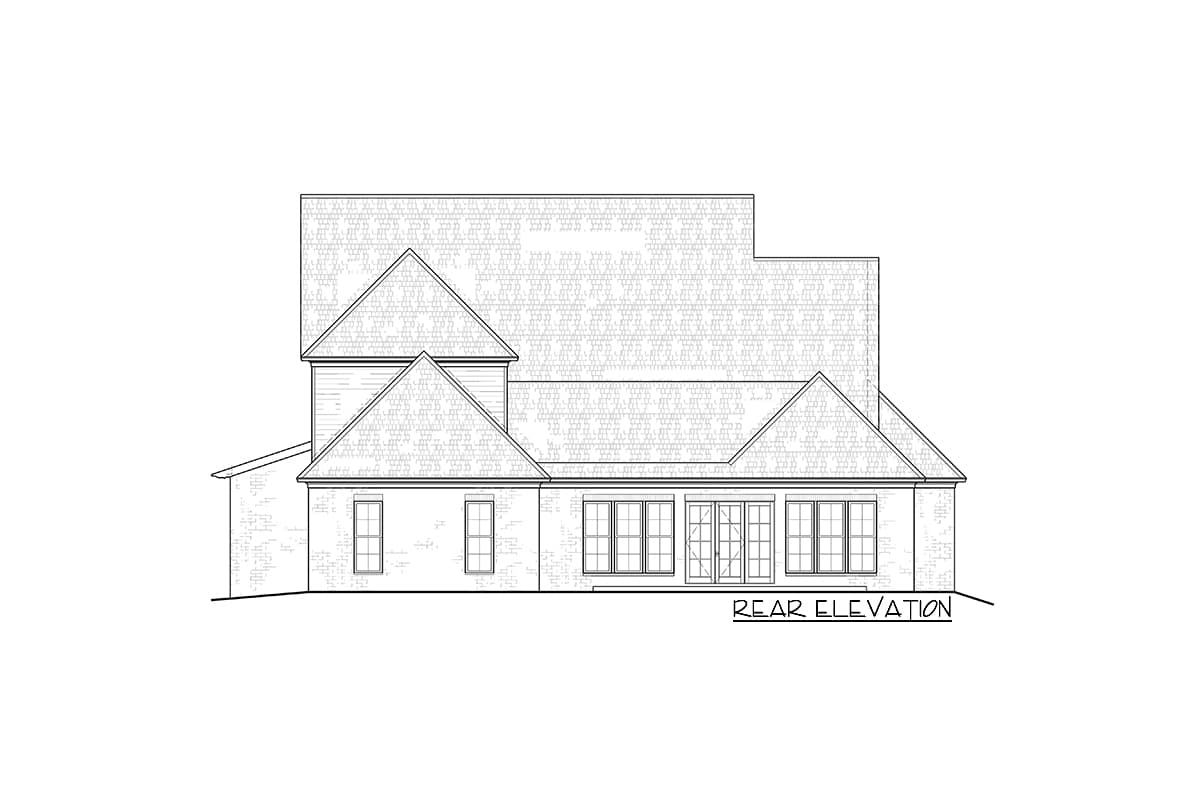

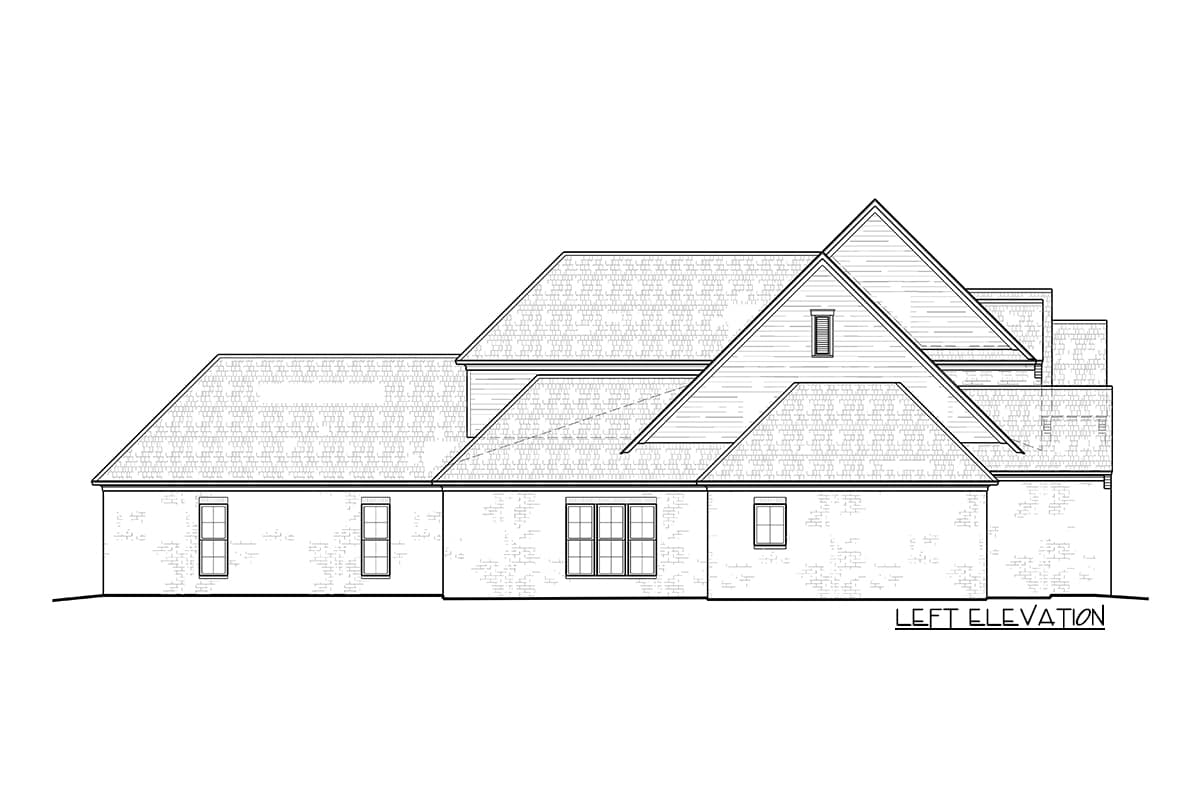

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive 2-Story Acadian House Plan with 2-Sided Fireplace

  • 4,326

    Heated s.f.

  • 5-6

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

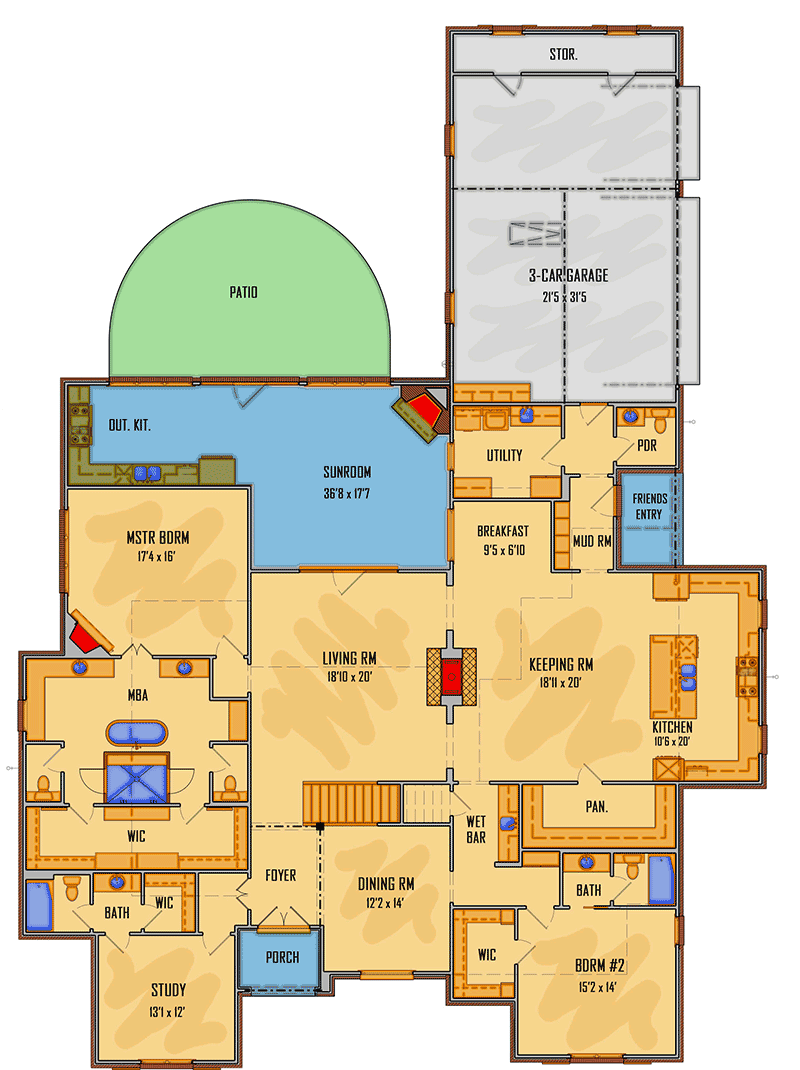

  • Main Level

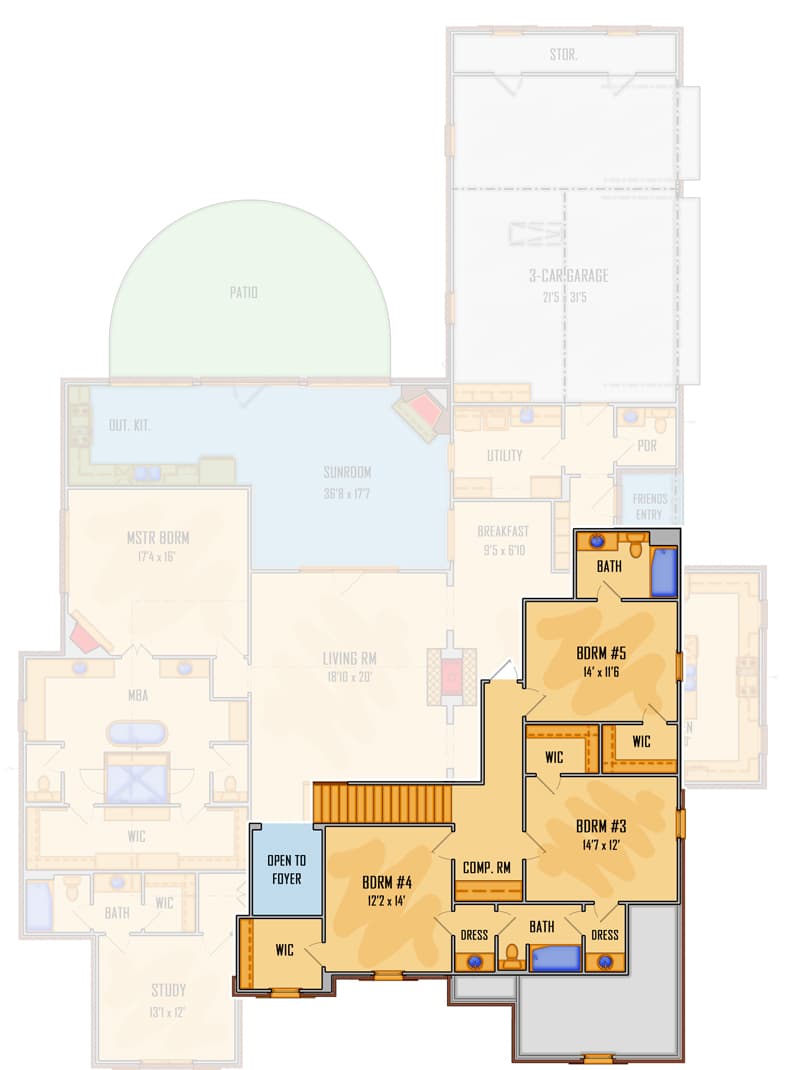

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,326 sq. ft.
  • 1st Floor: 3,226 sq. ft.
  • 2nd Floor: 1,007 sq. ft.

Dimensions

  • Width: 72' 2"
  • Depth: 100' 4"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 786 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
