Exclusive 2-Story Transitional House Plan with Porte Cochere and Study

Plan 510185WDY

  • 5,304

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This exclusive, 2-story transitional house plan, clad in brick, boasts a porte cochere that guides you into a parking courtyard framed by 3 garage bays, each with dedicated storage space.
  • The front entry welcomes you inside, where a formal dining room and quiet study border the foyer. Straight ahead, a spacious living room features 3 sets of french doors that connect with the rear porch.
  • A double-sided fireplace warms the living room and keeping room, while the well-appointed kitchen lends a comfortable space to accomplish your culinary goals.
  • The master bedroom provides a peaceful space for the homeowners to unwind, and includes a luxury ensuite with a freestanding tub, dual toilet rooms, and a massive walk-in closet with a dresser island and storm room.
  • A second bedroom on the main level is perfect for guests, while upstairs, you will find three additional bedroom suites, along with a generous media room.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

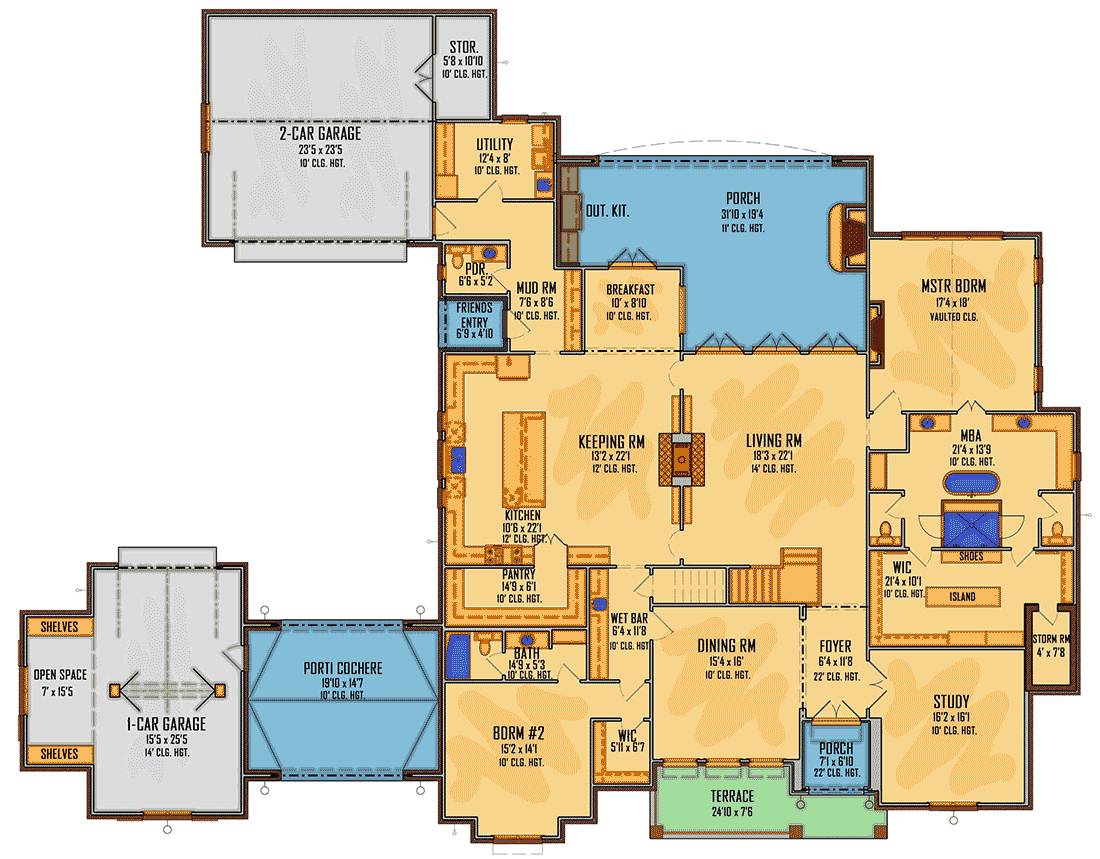

Exclusive 2-Story Transitional House Plan with Porte Cochere and Study - 510185WDY floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

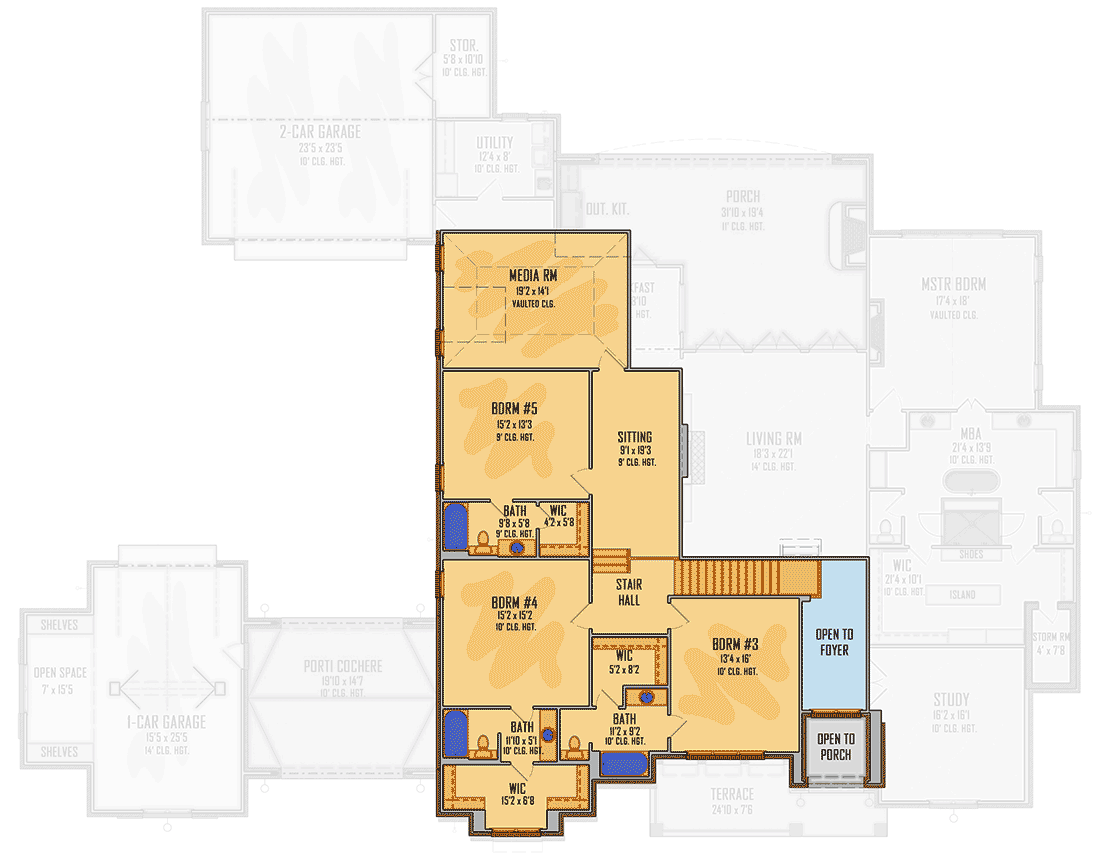

Exclusive 2-Story Transitional House Plan with Porte Cochere and Study - 510185WDY floor plan - 2nd Floor
