Exclusive 3-Bed Craftsman Ranch Home Plan with Master Bath Option
Heated S.F.
1,873
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

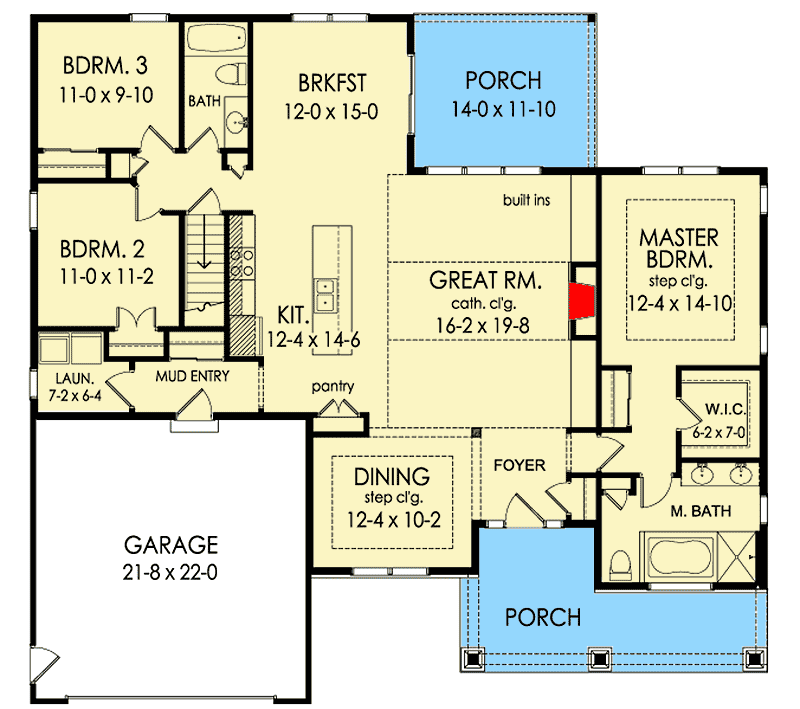

Exclusive 3-Bed Craftsman Ranch Home Plan with Master Bath Option - 790022GLV floor plan - Main Level
Optional Master Bath
Reverse Floor Plan

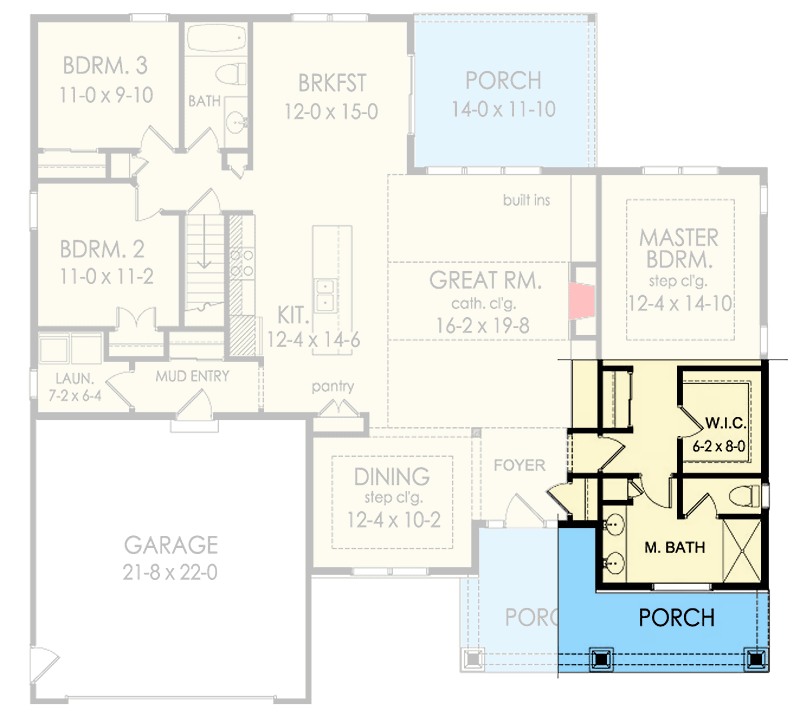

Exclusive 3-Bed Craftsman Ranch Home Plan with Master Bath Option - 790022GLV floor plan - Optional Master Bath
Plan Details
  • A single decorative dormer adds to the overall curb appeal of this 3-bed Craftsman Ranch home plan. A covered entry welcomes you to the front door with side lights.
  • The great room has a cathedral ceiling and a fireplace flanked by built ins. It is open to the kitchen and the dining room giving the home an open feel.
  • The bedrooms are in a split layout maximizing your privacy. The master bedroom has a try ceiling and the bathroom comes with two options. The kids' rooms share a bath.
  • Off the garage you'll find a mud room with storage and a laundry room tucked away with side-by-side washer and dryer.
  • Expand downstairs with the unfinished basement.
What's Included
This plan set has 7 pages as follows:
  1. Cover sheet with general notes

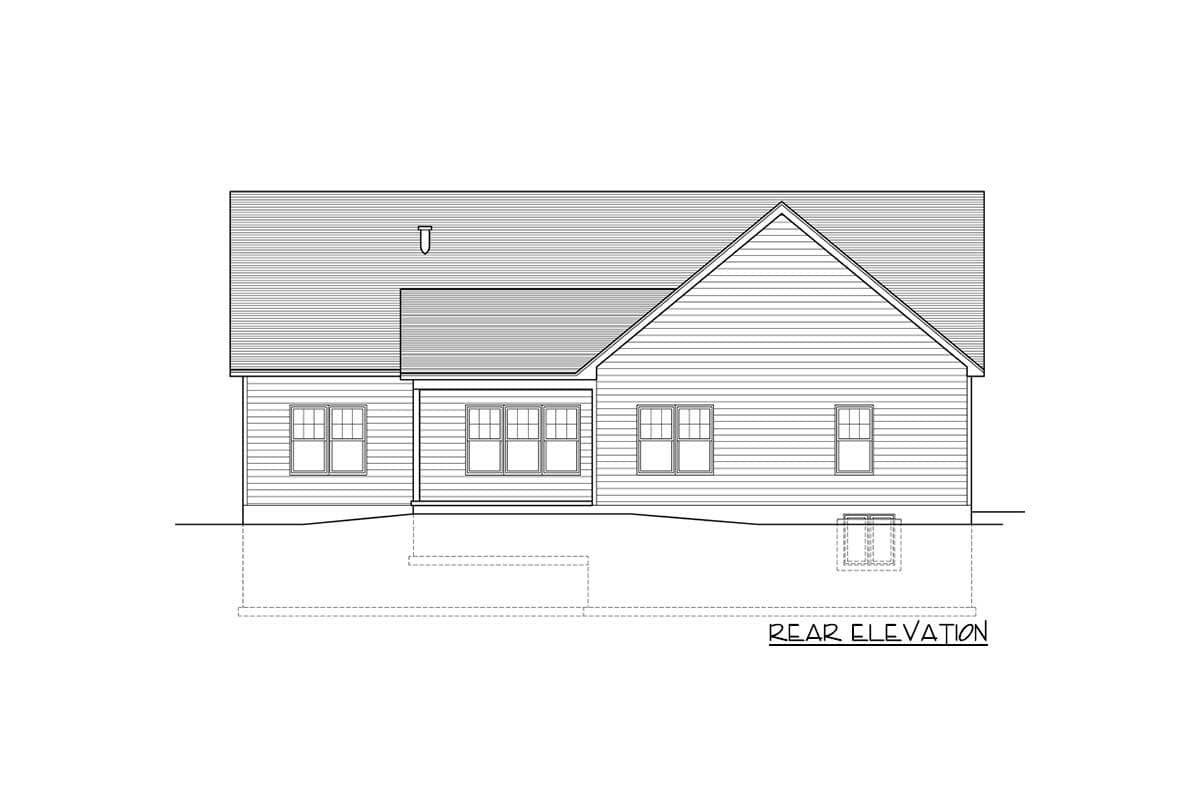

  2. Elevations
  3. Basement and foundation plan and typical wall section
  4. First floor plan, roof plan, dormer detail and alternate master bath layout
  5. Sections
  6. Details
  7. Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
