Plan 521019TTL Exclusive 3-Bed Home Plan with Great Symmetry and a Rear 2-Car Garage

Exclusive 3-Bed Home Plan with Great Symmetry and a Rear 2-Car Garage

Plan 521019TTL

  • 2,098

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

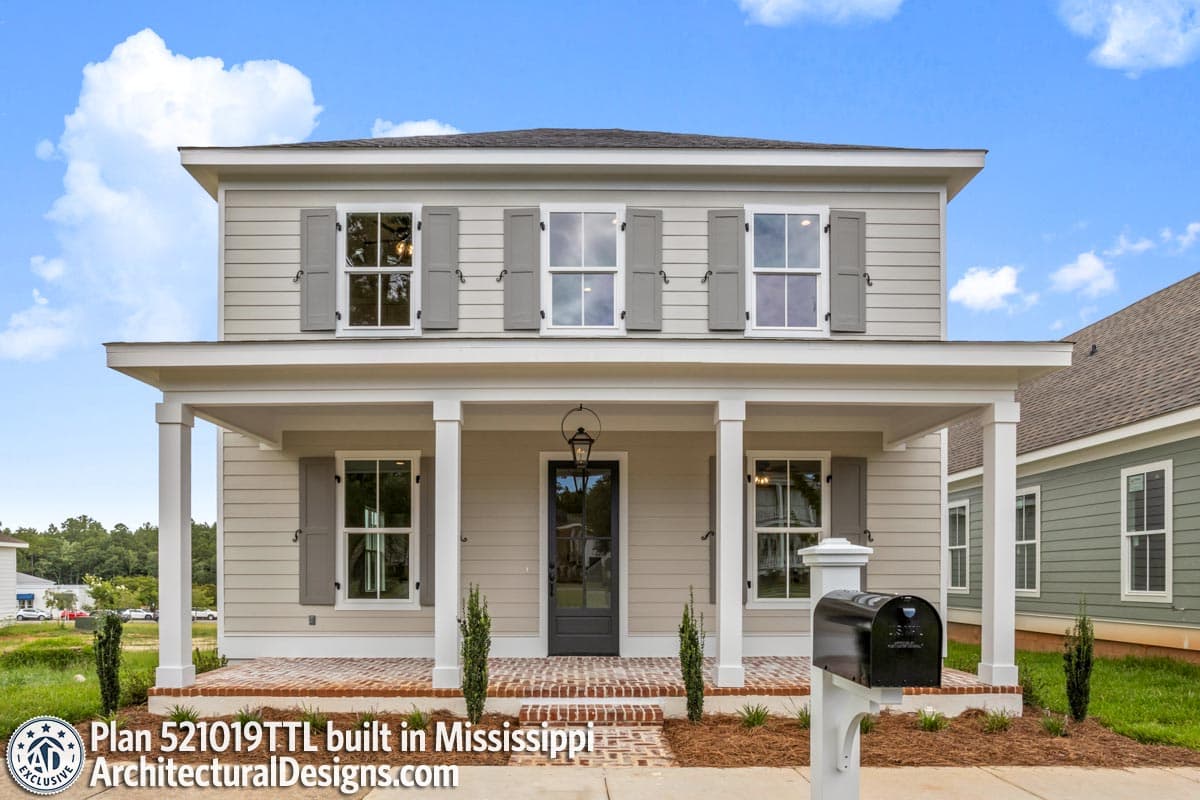

  • This 3-bedroom house plan has a symmetrical facade with a 26' wide and 8' deep front porch inviting you inside. This design is exclusive to Architectural Designs.
  • From the foyer, the open design allows you to see into the living room, dining area, and kitchen. The central island in the kitchen hosts a double-bowl sink and a pantry cabinet is situated nearby.
  • The main-floor master bedroom includes a 5-fixture bathroom with a walk-in closet and is next door to the laundry room and a storage closet.
  • A flex on this level could make a nice home office or a quiet den.
  • Two identical bedrooms upstairs are separated by a full bathroom and, along with a lounge-like entertainment area, complete the design.

  • Cover sheet
  • Foundation plan
  • Floor plan

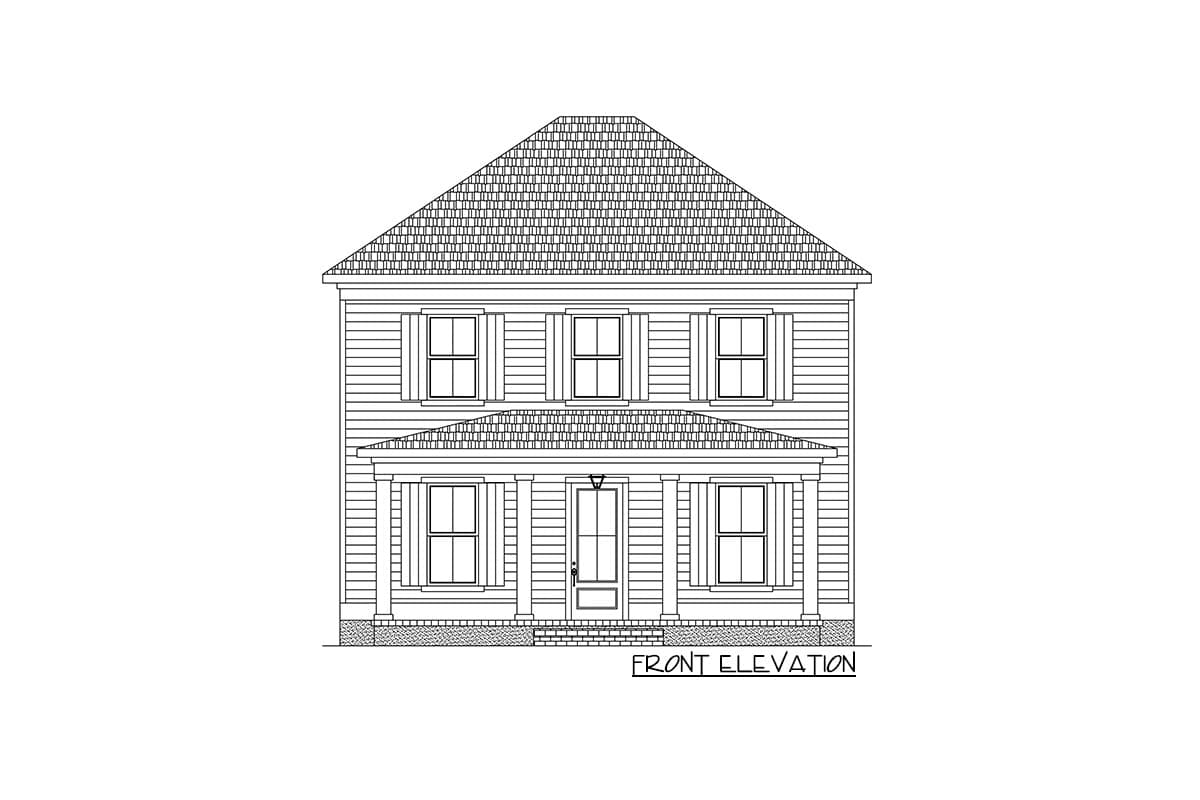

  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

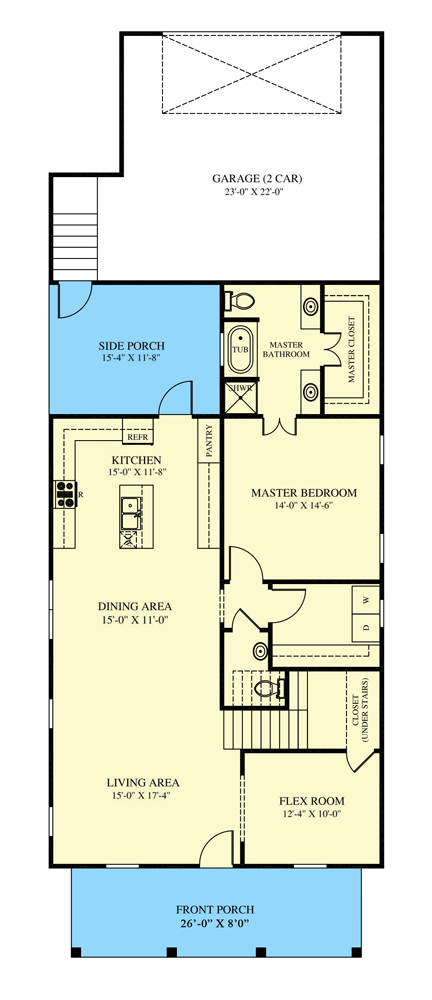

Exclusive 3-Bed Home Plan with Great Symmetry and a Rear 2-Car Garage - 521019TTL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

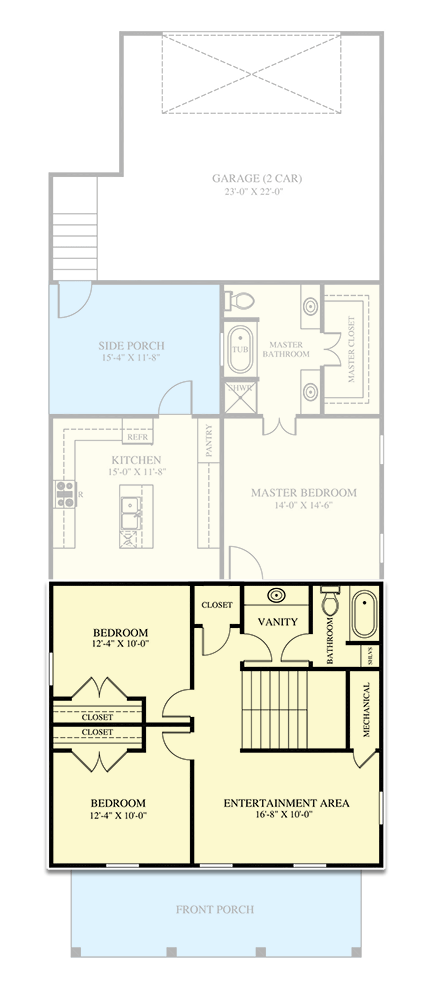

Exclusive 3-Bed Home Plan with Great Symmetry and a Rear 2-Car Garage - 521019TTL floor plan - 2nd Floor

Plan details

Exclusive 3-Bed Home Plan with Great Symmetry and a Rear 2-Car Garage

  • 2,098

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,650
  • 5 Sets + PDF $1,900
  • PDF - Unlimited Build $2,305
  • CAD + PDF - Unlimited Build $2,650
  • View all purchase option online

About This Plan

  • This 3-bedroom house plan has a symmetrical facade with a 26' wide and 8' deep front porch inviting you inside. This design is exclusive to Architectural Designs.
  • From the foyer, the open design allows you to see into the living room, dining area, and kitchen. The central island in the kitchen hosts a double-bowl sink and a pantry cabinet is situated nearby.
  • The main-floor master bedroom includes a 5-fixture bathroom with a walk-in closet and is next door to the laundry room and a storage closet.
  • A flex on this level could make a nice home office or a quiet den.
  • Two identical bedrooms upstairs are separated by a full bathroom and, along with a lounge-like entertainment area, complete the design.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,098 sq. ft.
  • 1st Floor: 1,396 sq. ft.
  • 2nd Floor: 702 sq. ft.
  • Porch, Combined: 387 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 30' 0"
  • Depth: 82' 8"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 595 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick And Truss
