Exclusive 3-Bed Home Plan with Loft and Sun Room

Plan 77645FB

  • 1,952

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Enjoy rural living in this exclusive, 3-bedroom home plan that features a barn-style exterior, and a 575 sq ft bonus room above the 2-car garage.
  • Double doors guide you inside to find a spacious entry that opens to the living room. Tall ceilings rise above the living room, warmed by a fireplace, and connected to a rear sun room.
  • The adjoining kitchen hosts a prep island and plenty of workspace, and easy access to the back patio offers a great space to grill.
  • The master bedroom is located to the left of the entry, and includes a 5-fixture bath and walk-in closet. Two additional bedroom suites line the right side of the home, while a second-level loft provides a flexible space for all to enjoy.
  • A carport is attached to the double garage, which provides access to the above bonus room that includes a wet bar and full bath.

The plan includes:

  • cover page
  • foundation plan
  • main floor plan
  • second floor plan
  • all four elevation views
  • one section view
  • enlarged construction details
  • electrical layout
  • and roof plan if needed

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally whe

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

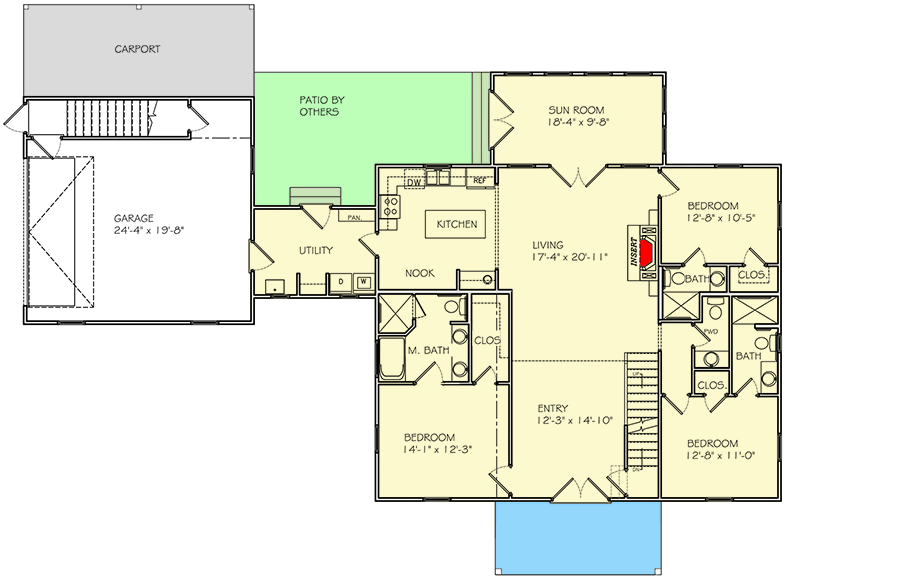

Exclusive 3-Bed Home Plan with Loft and Sun Room - 77645FB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

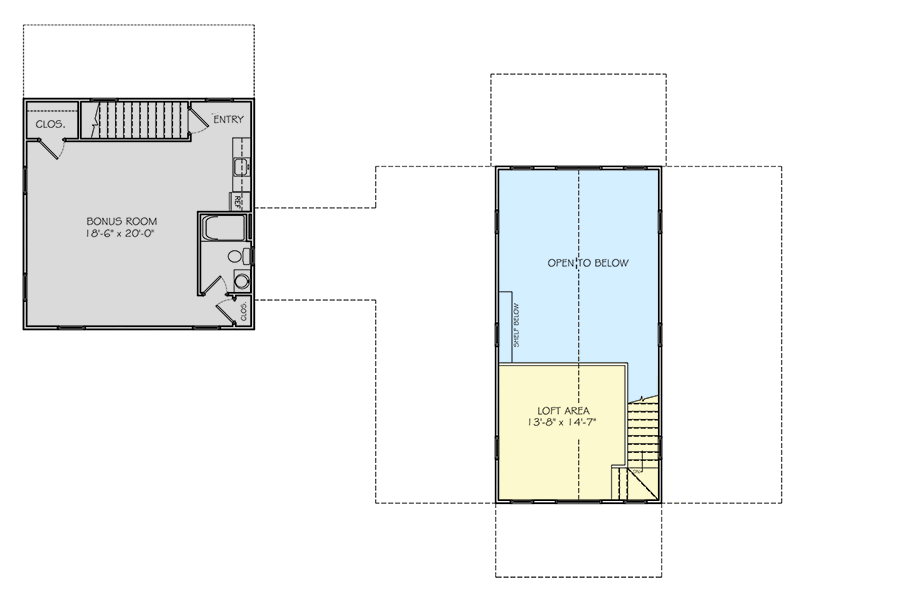

Exclusive 3-Bed Home Plan with Loft and Sun Room - 77645FB floor plan - 2nd Floor

Basement Unfinished

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

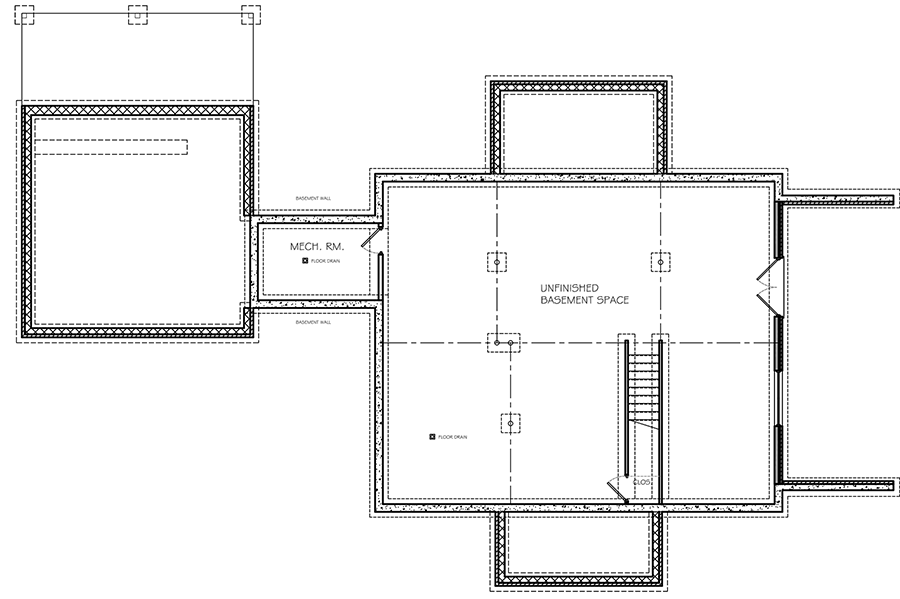

Exclusive 3-Bed Home Plan with Loft and Sun Room - 77645FB floor plan - Basement Unfinished
