Plan 790000GLV Exclusive 3-Bed Ranch House Plan

Exclusive 3-Bed Ranch House Plan

Plan 790000GLV

  • 1,786

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Neat and tidy, this traditional Ranch house plan (exclusive to Architectural Designs!) has a simple gable roof that makes the home economical to build.
  • Casual living is a key design element, with no formal dining room that rarely gets used.
  • Instead you have a big, open layout with all the eating, cooking and living areas combined into one big space.
  • A corner fireplace warms the whole area and glass on three sides of the dining area brightens the kitchen too.
  • The split bedroom configuration separates the master suite from the family bedrooms, giving homeowners a quiet retreat.
  • The study faces your front yard so you can watch what's going on outside.

Plans include the following details:

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes

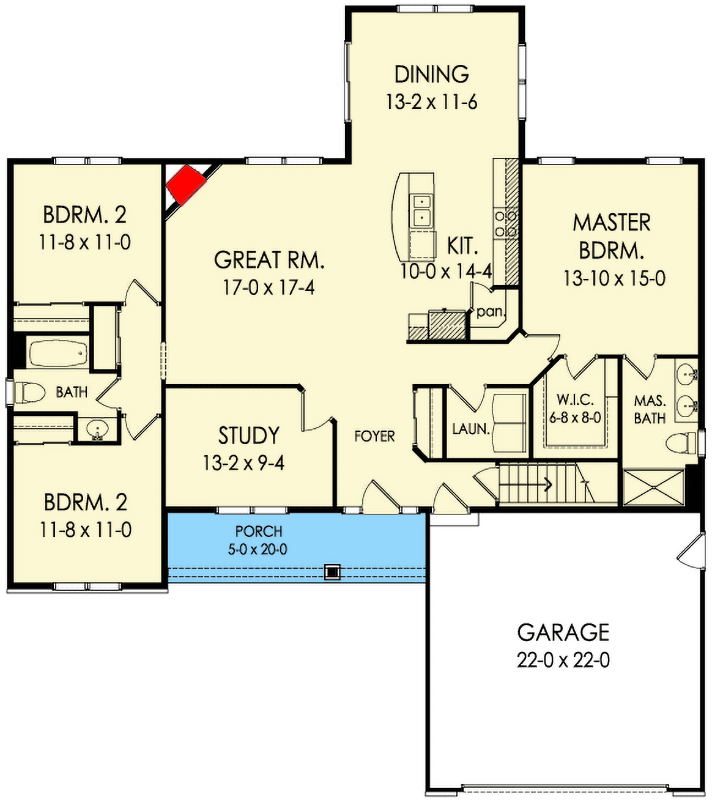

Floor Plan

Plan details



Exclusive 3-Bed Ranch House Plan

  • 1,786

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $800
  • PDF - Single-Build $1,250
  • 5 Sets $1,250
  • CAD - Single-Build $2,500
  • CAD - Unlimited Build $3,500
  • View all purchase option online

About This Plan

  • Neat and tidy, this traditional Ranch house plan (exclusive to Architectural Designs!) has a simple gable roof that makes the home economical to build.
  • Casual living is a key design element, with no formal dining room that rarely gets used.
  • Instead you have a big, open layout with all the eating, cooking and living areas combined into one big space.
  • A corner fireplace warms the whole area and glass on three sides of the dining area brightens the kitchen too.
  • The split bedroom configuration separates the master suite from the family bedrooms, giving homeowners a quiet retreat.
  • The study faces your front yard so you can watch what's going on outside.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,786 sq. ft.
  • 1st Floor: 1,786 sq. ft.
  • Porch, Front: 100 sq. ft.
  • Basement Unfinished: 1,660 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 62' 0"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
