Plan 510202WDY Exclusive 4-Bed Acadian Home Plan with Study and Formal Dining

2,004 4 3 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive 4-Bed Acadian Home Plan with Study and Formal Dining

Plan 510202WDY

  • 2,004

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

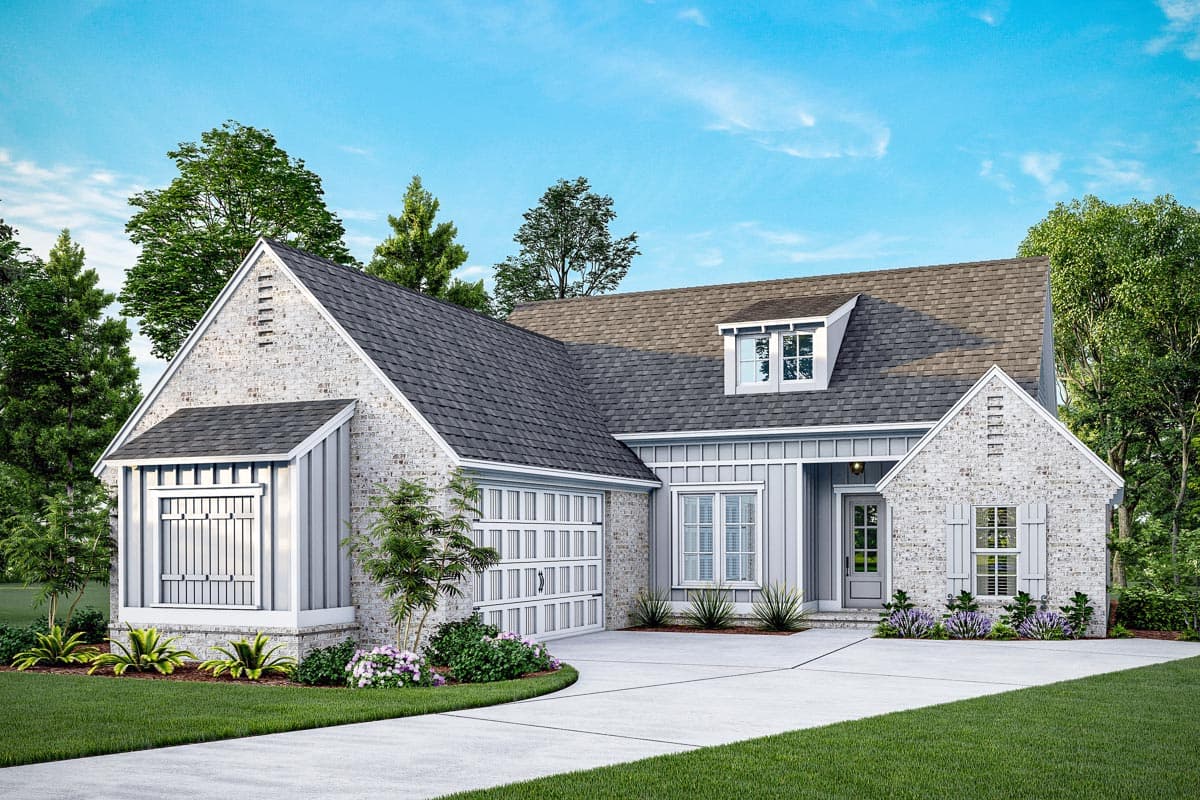

  • This 4-bedroom Acadian home plan, exclusive to Architectural Designs, features a central living space surrounded by bedrooms privately located in each corner of the home.
  • Dedicated storage space in the 2-car garage is a must have, while just inside, you will find a utility room and full bathroom.
  • A vaulted ceiling rests above the living room, warmed by a fireplace that can also be enjoyed from the kitchen. A large kitchen island is surrounded by cabinets and counters, and a nearby pantry sits across from a cozy study.
  • Jutting out from the rear of the home, discover the master bedroom, paired with a 5-fixture bathroom and spacious walk-in closet.
  • Three additional bedrooms are dotted throughout the floor plan, each located next to a full bathroom.
  • Related Plan: Get an alternate exterior with plan 510117WDY.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

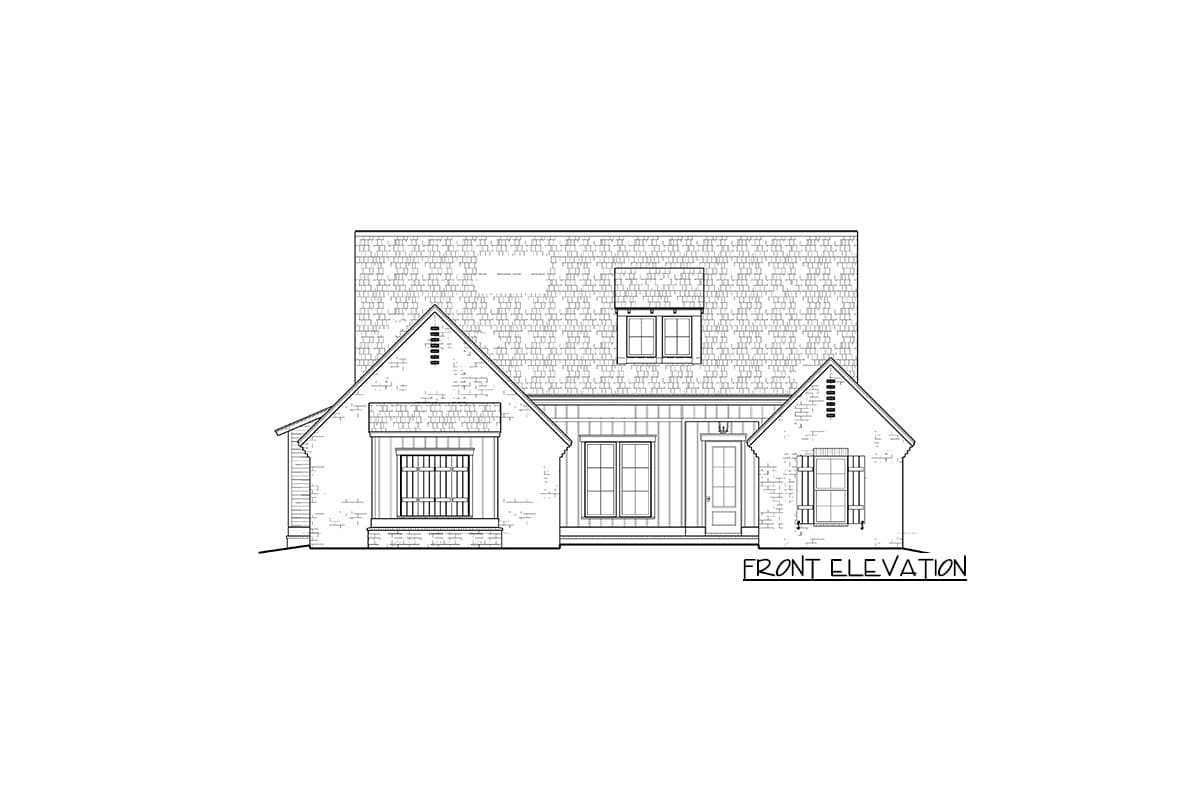

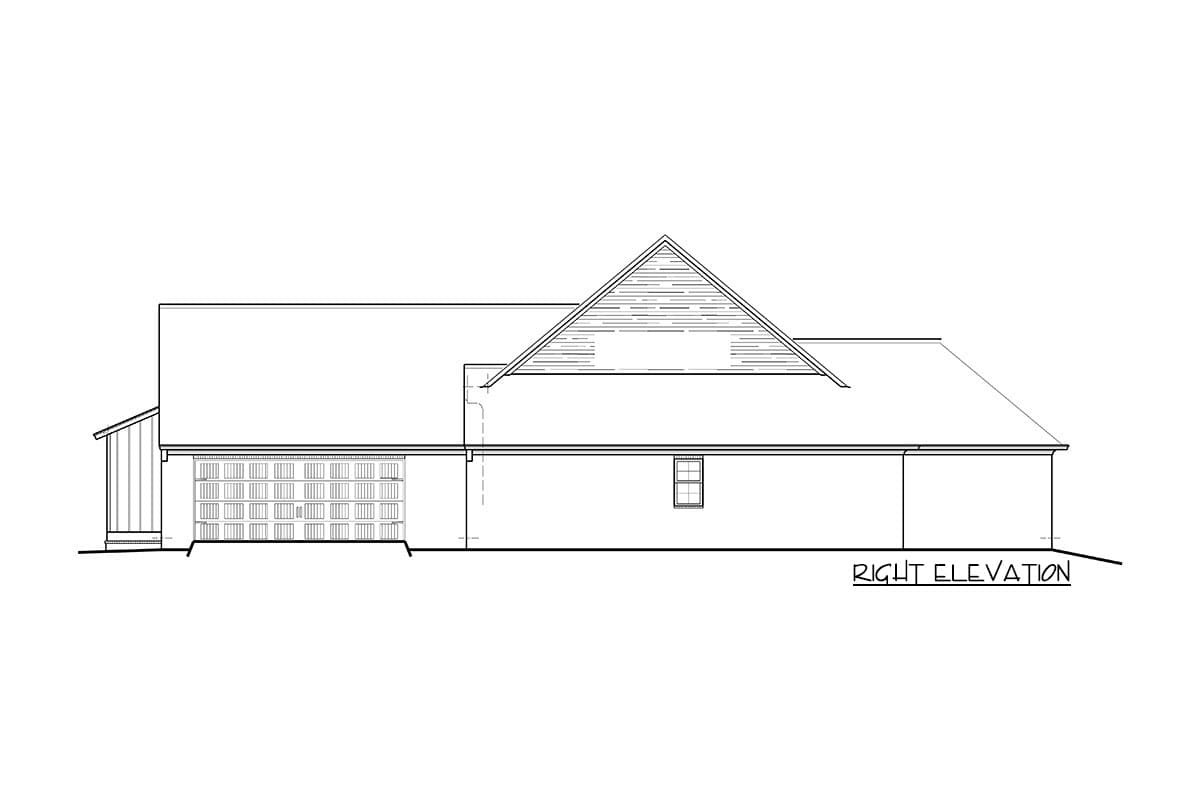

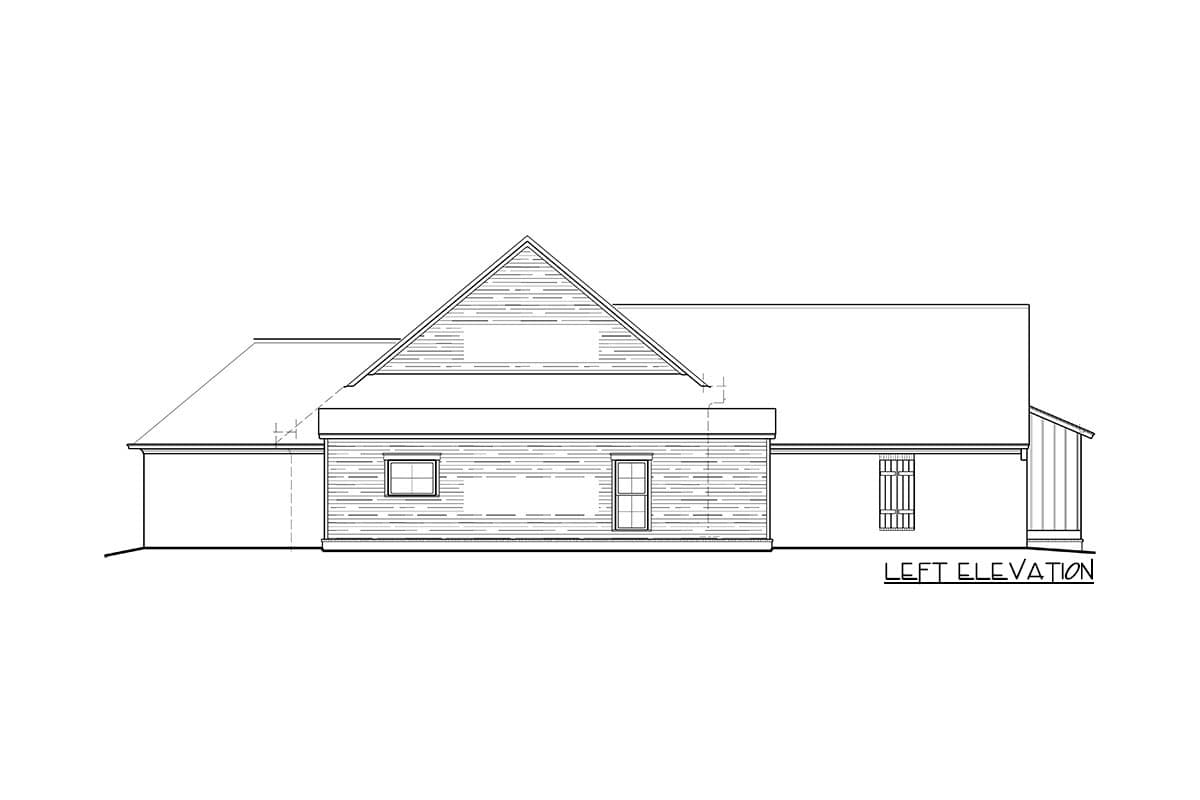

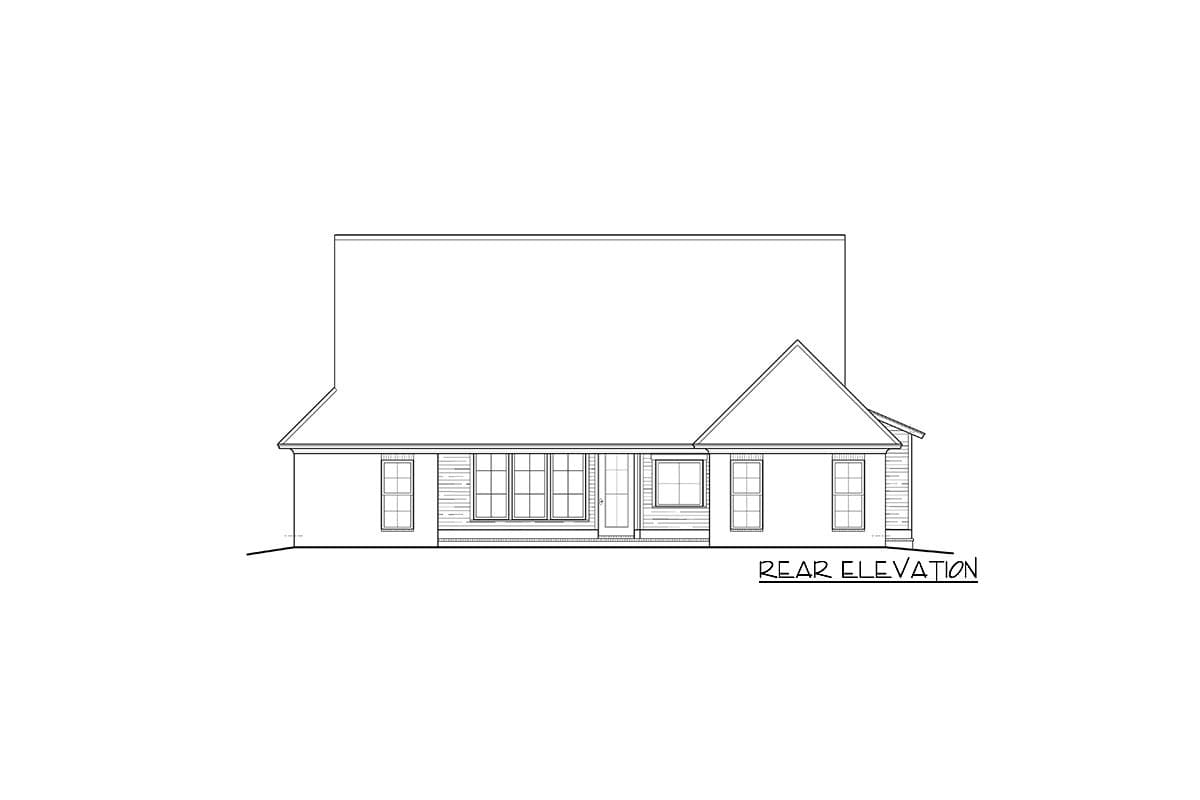

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

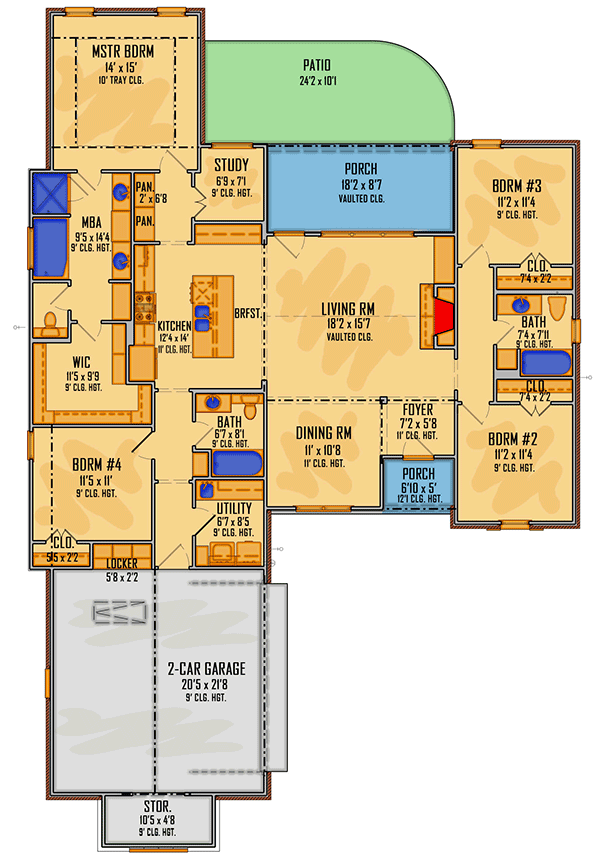

Exclusive 4-Bed Acadian Home Plan with Study and Formal Dining - 510202WDY floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,004 sq. ft.
  • 1st Floor: 2,004 sq. ft.
  • Storage: 25 sq. ft.
  • Porch, Combined: 190 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 53' 0"
  • Depth: 81' 0"
  • Max ridge height: 26' 5"

Garage

  • Type: Attached
  • Area: 530 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 10 on 12

Architectural Style

Special features

Plan Collections

Exclusive 4-Bed Acadian Home Plan with Study and Formal Dining

  • 2,004

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $700
  • 8 Sets $800
  • PDF - Single-Build $1,000
  • 5 Sets + PDF $1,250
  • CAD + PDF - Unlimited Build $2,000
  • View all purchase option online

About This Plan

  • This 4-bedroom Acadian home plan, exclusive to Architectural Designs, features a central living space surrounded by bedrooms privately located in each corner of the home.
  • Dedicated storage space in the 2-car garage is a must have, while just inside, you will find a utility room and full bathroom.
  • A vaulted ceiling rests above the living room, warmed by a fireplace that can also be enjoyed from the kitchen. A large kitchen island is surrounded by cabinets and counters, and a nearby pantry sits across from a cozy study.
  • Jutting out from the rear of the home, discover the master bedroom, paired with a 5-fixture bathroom and spacious walk-in closet.
  • Three additional bedrooms are dotted throughout the floor plan, each located next to a full bathroom.
  • Related Plan: Get an alternate exterior with plan 510117WDY.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,004 sq. ft.
  • 1st Floor: 2,004 sq. ft.
  • Storage: 25 sq. ft.
  • Porch, Combined: 190 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 53' 0"
  • Depth: 81' 0"
  • Max ridge height: 26' 5"

Garage

  • Type: Attached
  • Area: 530 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 10 on 12
