Plan 510169WDY Exclusive 4-Bed Home Plan with Keeping Room

2,789 4-5 3 - 4 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive 4-Bed Home Plan with Keeping Room

Plan 510169WDY

  • 2,789

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 1

    Stories

  • 3

    Cars

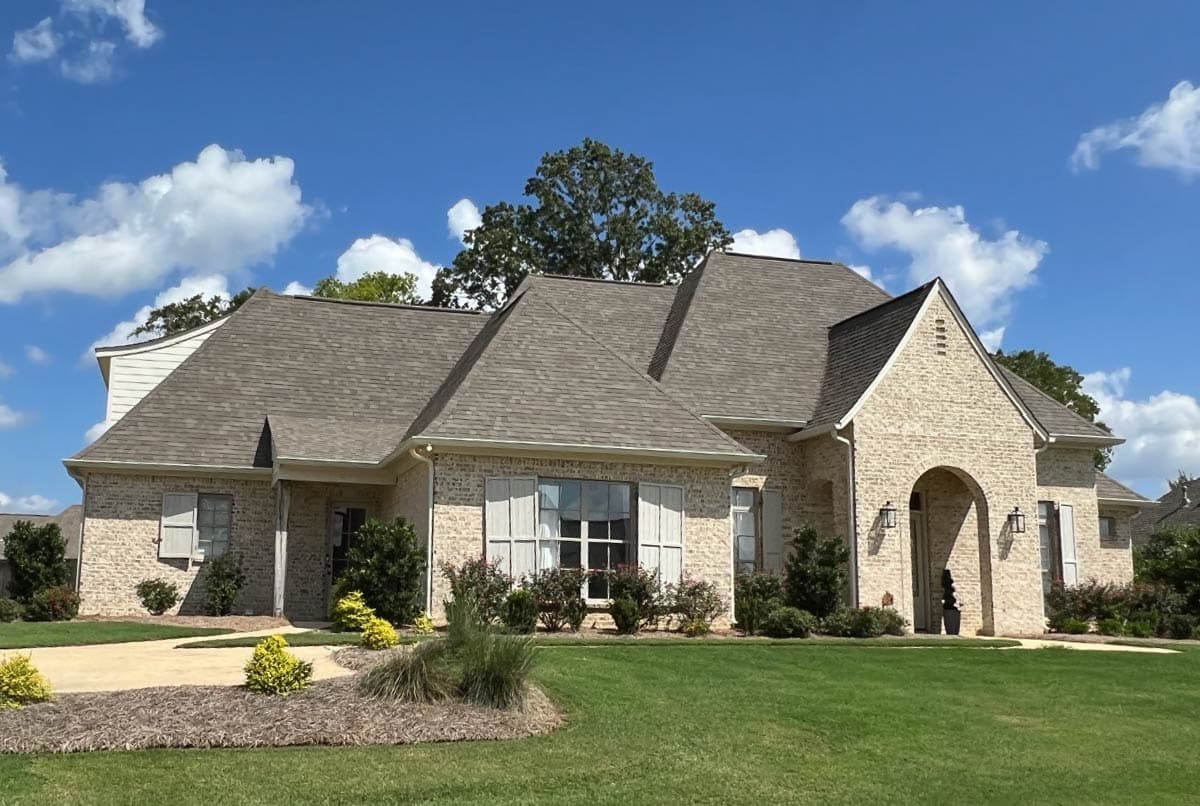

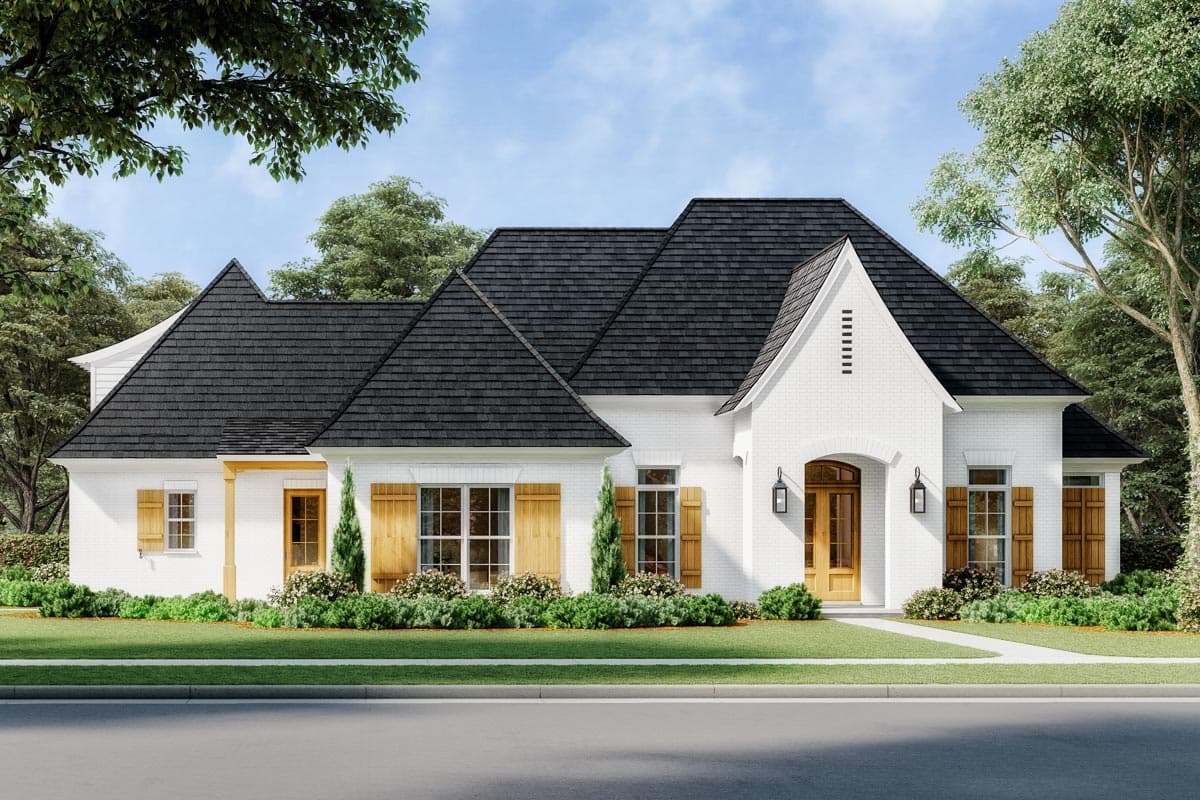

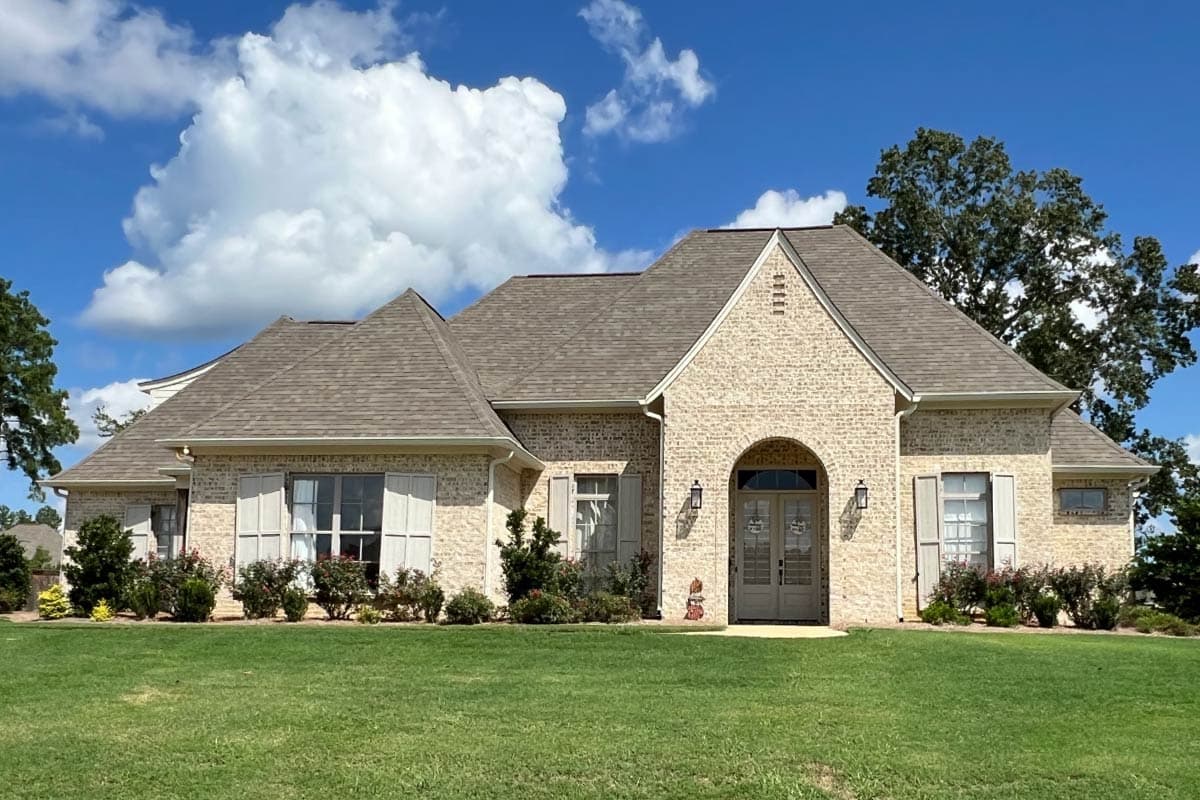

  • Sloped eaves add a softness to the exterior of this exclusive, 4-bed home plan, clad in brick and decorated by charming shutters.
  • From the foyer, a single column helps to define the formal dining room to the left, while the great room can be found straight ahead. A fireplace anchors the right wall and a second fireplace warms the adjacent back porch.
  • An oversized opening leads to the keeping room, breakfast area, and kitchen. The large flush island increases workspace and a pantry conveniently sits within arm's reach.
  • The master bedroom is tucked away for the utmost privacy, and includes a 5-fixture bathroom and walk-in closet. Two additional family bedrooms share a Jack-and-Jill bath, and a fourth bedroom provides access to a full bath and is located next to the kitchen.
  • Enter the 3-car garage from the left side of the home and enjoy a storage room to help you remain organized. Discover built-in lockers in the mudroom, and a side porch that offers a friend's and family entrance.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

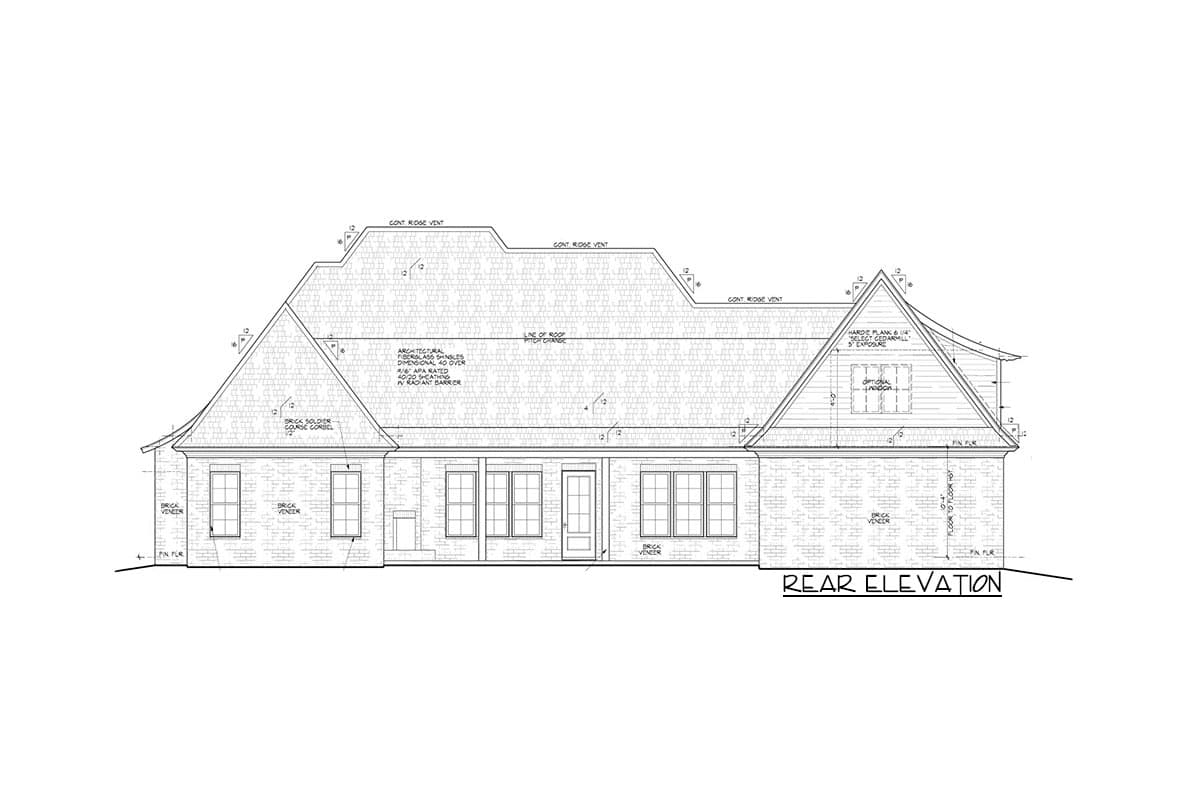

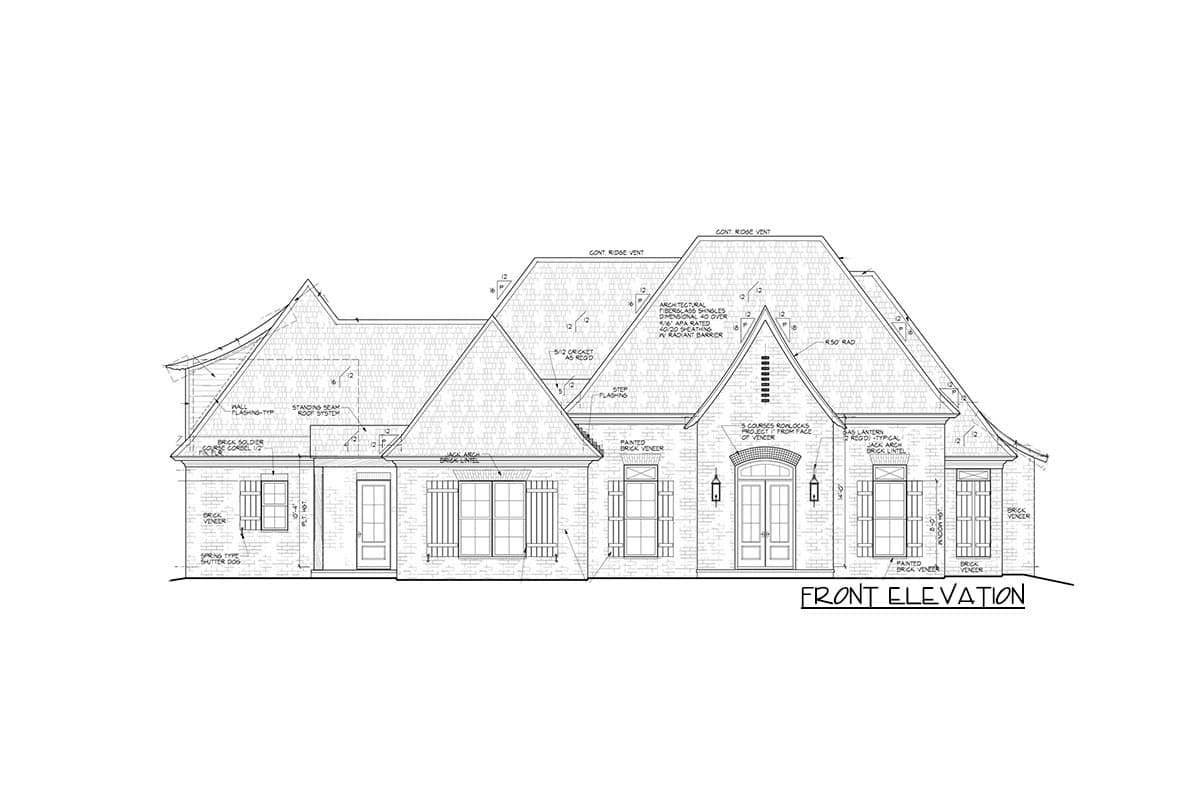

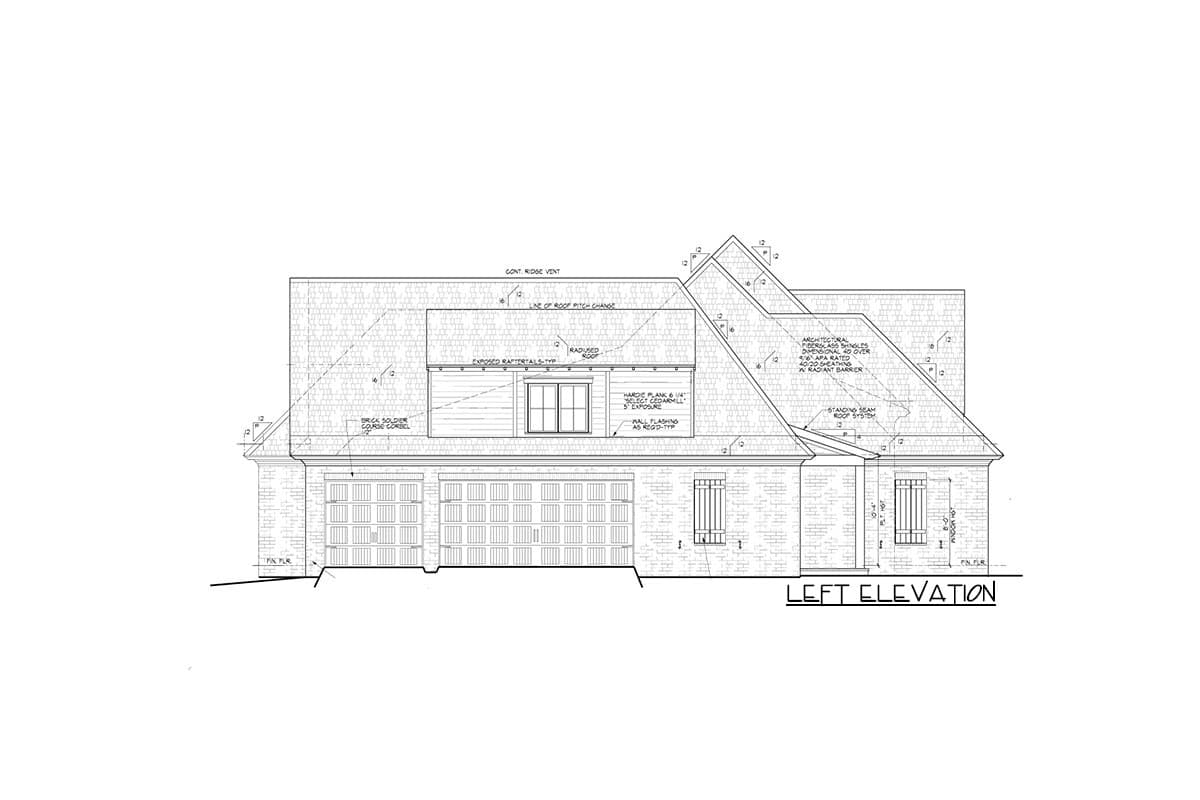

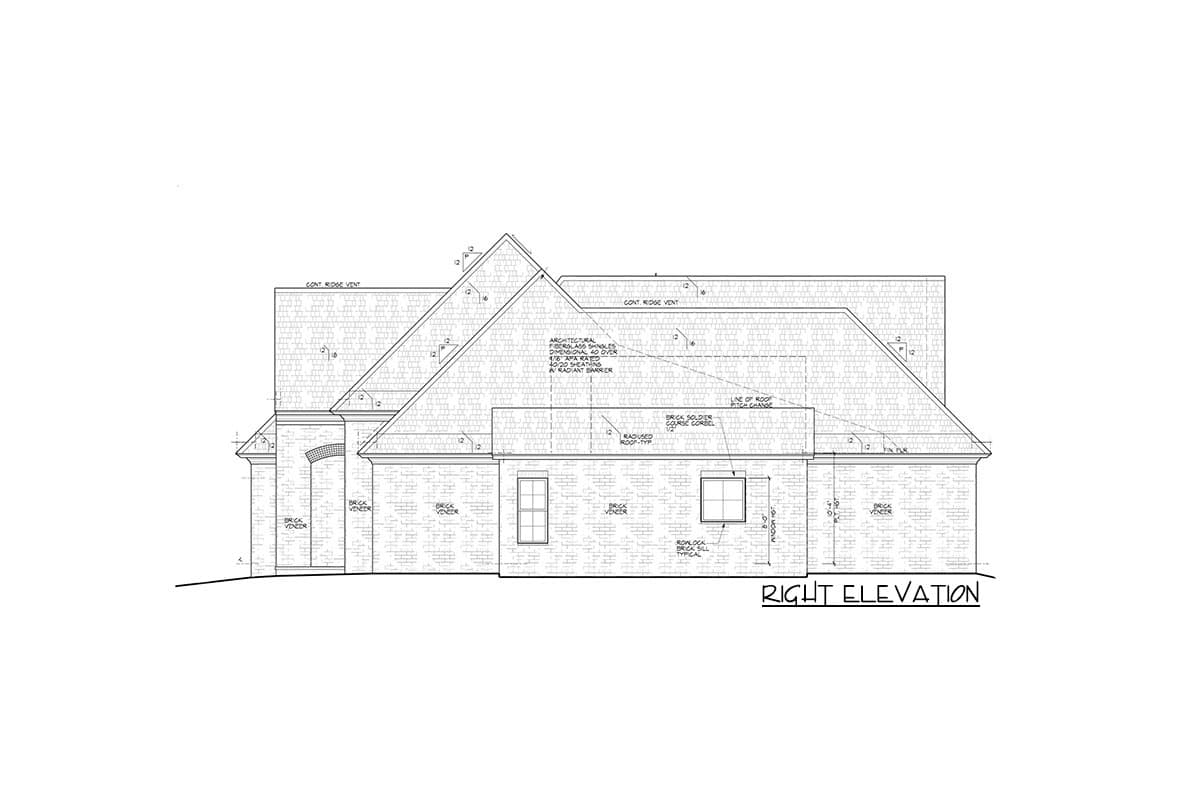

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

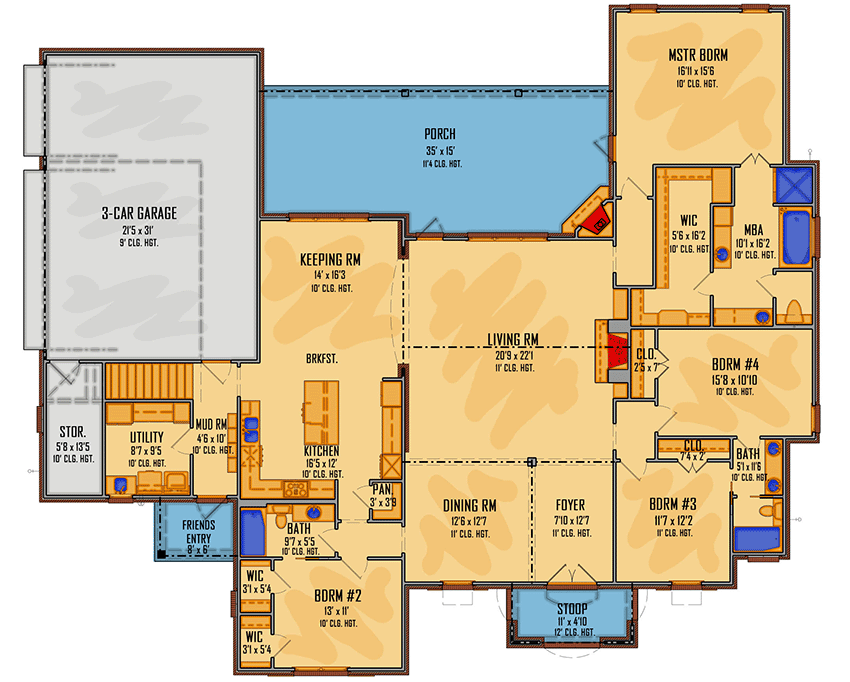

Exclusive 4-Bed Home Plan with Keeping Room - 510169WDY floor plan - Main Level

Bonus (Adds 350 Sq. Ft.)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

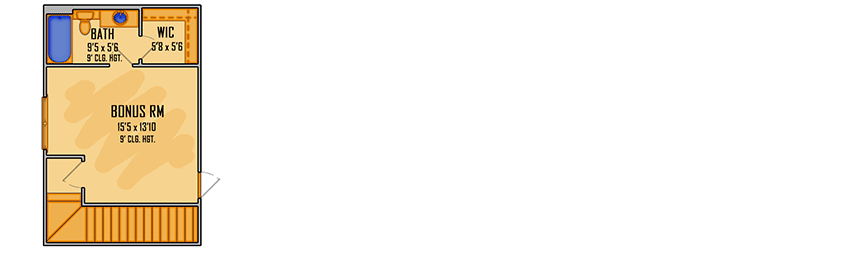

Exclusive 4-Bed Home Plan with Keeping Room - 510169WDY floor plan - Bonus (Adds 350 Sq. Ft.)

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,789 sq. ft.
  • 1st Floor: 2,789 sq. ft.
  • Porch, Combined: 624 sq. ft.
  • Bonus: 350 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 5"
  • Depth: 67' 4"

Garage

  • Type: Attached
  • Area: 769 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Architectural Style

Special features

Plan Collections

Exclusive 4-Bed Home Plan with Keeping Room

  • 2,789

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Bonus (Adds 350 Sq. Ft.)

Plan Details

Square Footage Breakdown

  • Total: 2,789 sq. ft.
  • 1st Floor: 2,789 sq. ft.

Dimensions

  • Width: 78' 5"
  • Depth: 67' 4"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4

Garage

  • Type: Attached
  • Area: 769 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site
