Exclusive 4-Bed Simple Living House Plan

Heated S.F.
1,516
Beds
4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51769HZ

Main Level
Main Level

Plan 51769HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

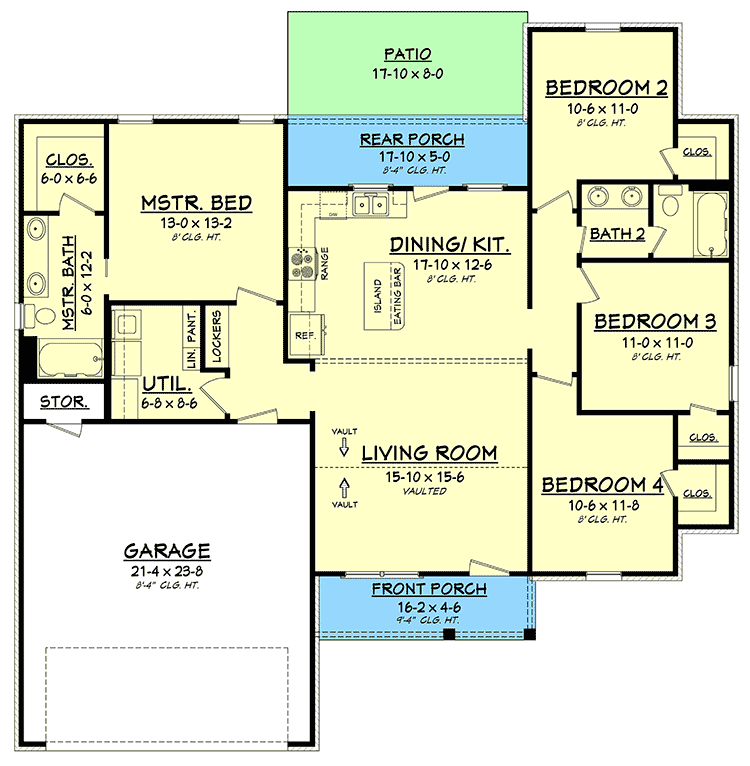

Plan 51769HZ: Exclusive 4-Bed Simple Living House Plan - Floor Plan - Main Level - Country, Ranch, Southern, Traditional

Plan Details

  • This Exclusive 4-bed house plan offers an open layout, volume ceilings, walk-in-closets and huge utility room.
  • The kitchen has a large island for seating and the garage entry offers locker space for storage.
  • The design offers both a front and rear porch for entertaining and enjoying the outdoors.

What's Included

This plan has 8 pages as follow:
  1. Cover Sheet with abbreviations, rendering, sheet index
  2. Foundation Plan and Details
  3. Detailed floor plans (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

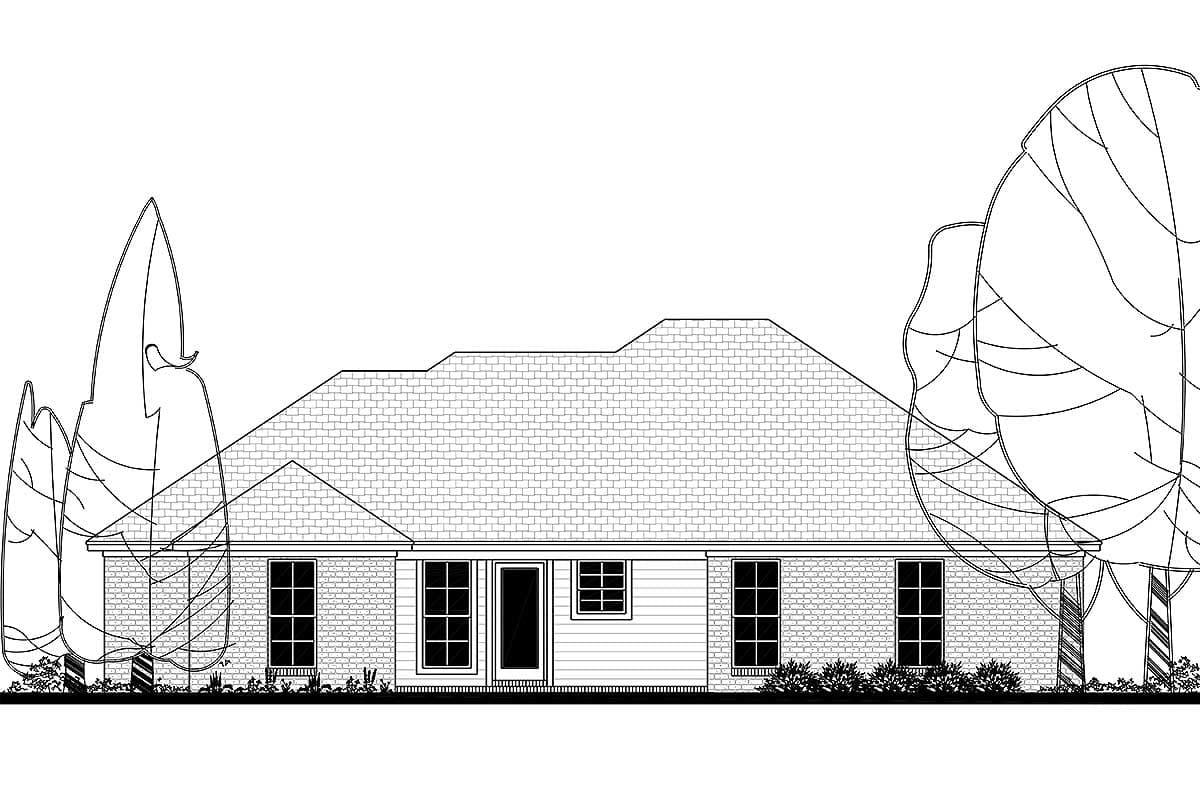

  4. Front and rear exterior views with notes and garage section
  5. Right and left exterior views with notes and wall sections
  6. Cross Section & kitchen cabinet views
  7. Roof plan & span charts
  8. Electrical plans & notes/ legend
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,516 sq. ft.

1st Floor

1,516 sq. ft.

Porch, Front

73 sq. ft.

Porch, Rear

89 sq. ft.

Storage

19 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 2"

Depth

53' 6"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

8'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,516 sq. ft.

1st Floor

1,516 sq. ft.

Porch, Front

73 sq. ft.

Porch, Rear

89 sq. ft.

Storage

19 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 2"

Depth

53' 6"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

8'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery

USDA Approved
