Exclusive 4-Bed Tudor House Plan with 3-Car Garage and Bonus Room

Plan 93110EL

  • 4,885

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • The sloping and cross-hipped, roof lines add character to this 4-bedroom, Tudor house plan. The open layout within, combined with over 18 foot ceilings, provides a feeling of spaciousness throughout the main level.
  • The arched, front entry leads to a 2-story foyer with a formal dining room to the right. A fireplace, with surrounding built-ins, serves as a focal point in the great room, which opens to the kitchen. An oversized, kitchen island simplifies meal preparation.
  • Adjacent the breakfast area resides a keeping room with a second fireplace. A large, covered terrace is accessible through sliding doors off the great room.
  • Your secluded, master suite resides on the main level and boasts a tray ceiling, door to the terrace, and a 5-fixture, master bathroom with dual closets.
  • Upstairs, discover three additional suites, each with a unique, decorative ceiling, full bathroom, and walk-in closet. French doors lead to a game room, with views towards the back of the property, and an expansive bonus room sits atop the 3-car garage. A wet bar and powder bath are located next to the bonus room.
  • A large, laundry room is located by the mudroom, just off the kitchen.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

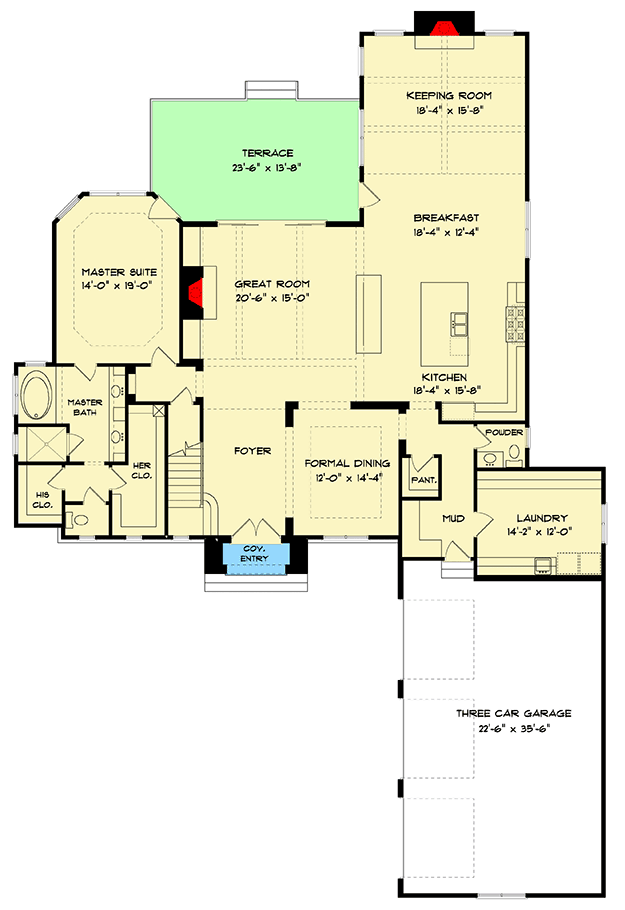

Exclusive 4-Bed Tudor House Plan with 3-Car Garage and Bonus Room - 93110EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

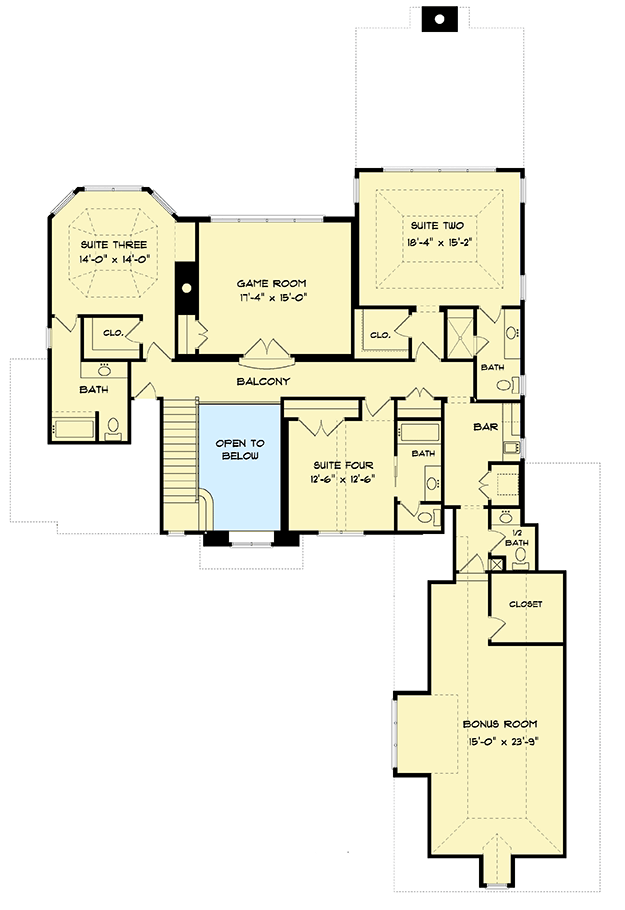

Exclusive 4-Bed Tudor House Plan with 3-Car Garage and Bonus Room - 93110EL floor plan - 2nd Floor
