Plan 144110UPR
EXCLUSIVE
Exclusive 6 Bed New American House Plan with Large Covered Patio - 5392 Sq Ft
Heated S.F.
5,392
Beds
6
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details

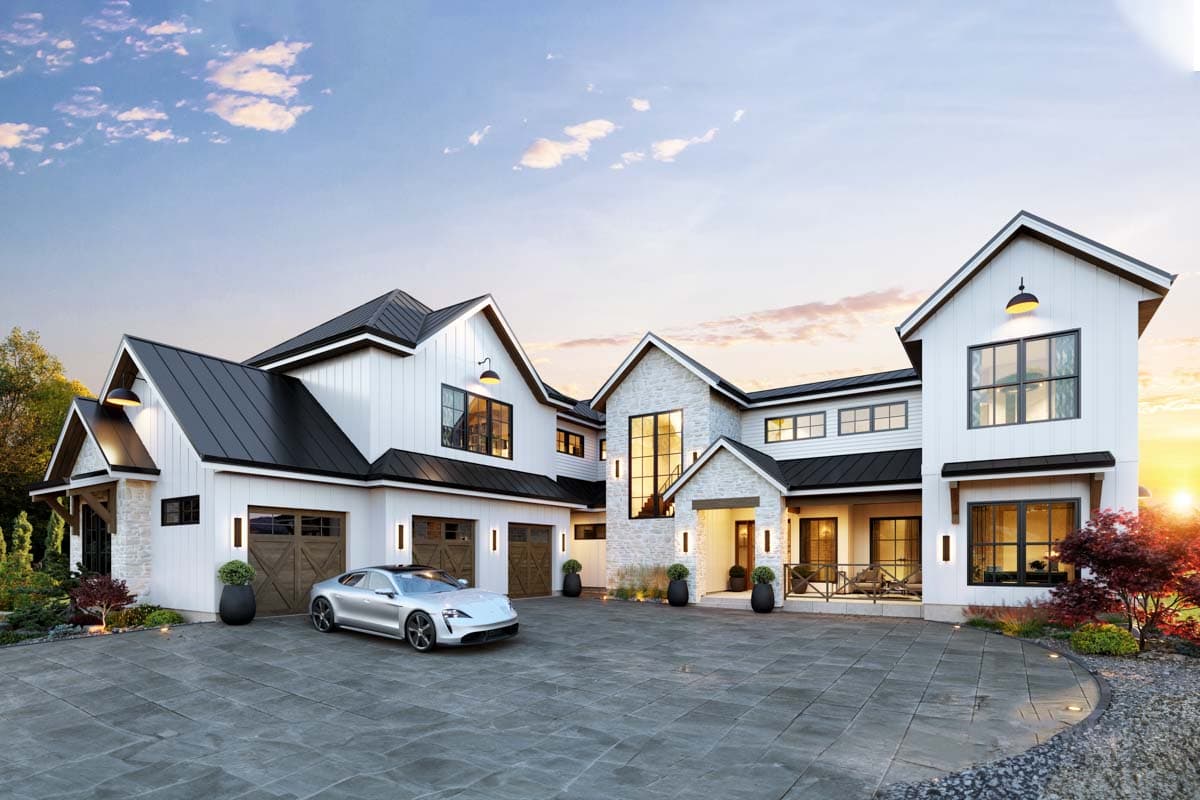

  • This Exclusive 2-story New American house plan gives you 6 beds, 4.5 baths and 5,392 square feet of heated living with a massive 998 square foot 3-car garage.

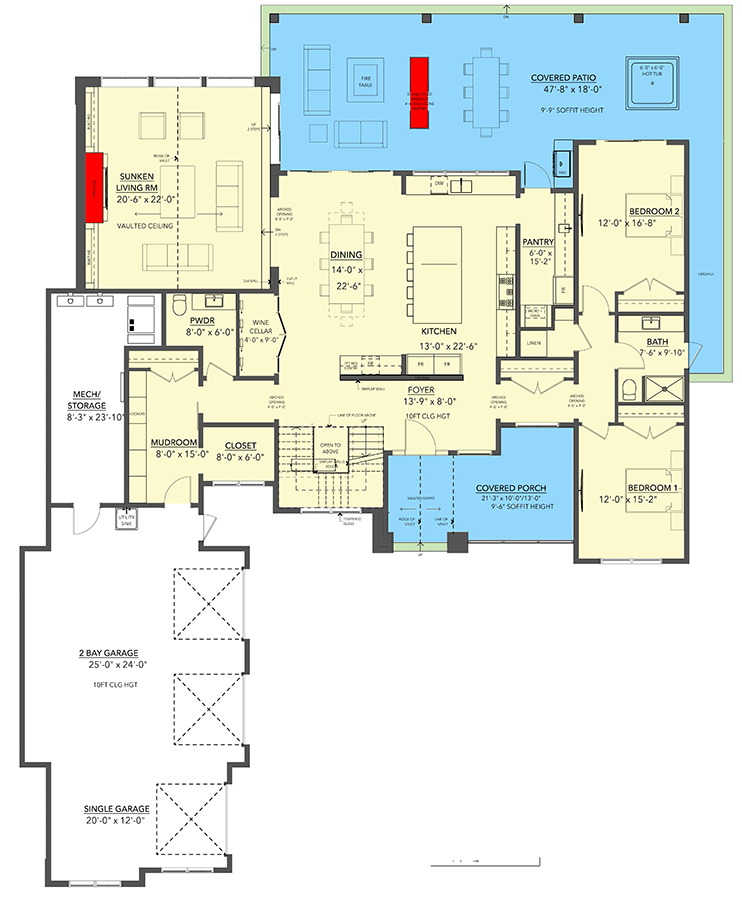

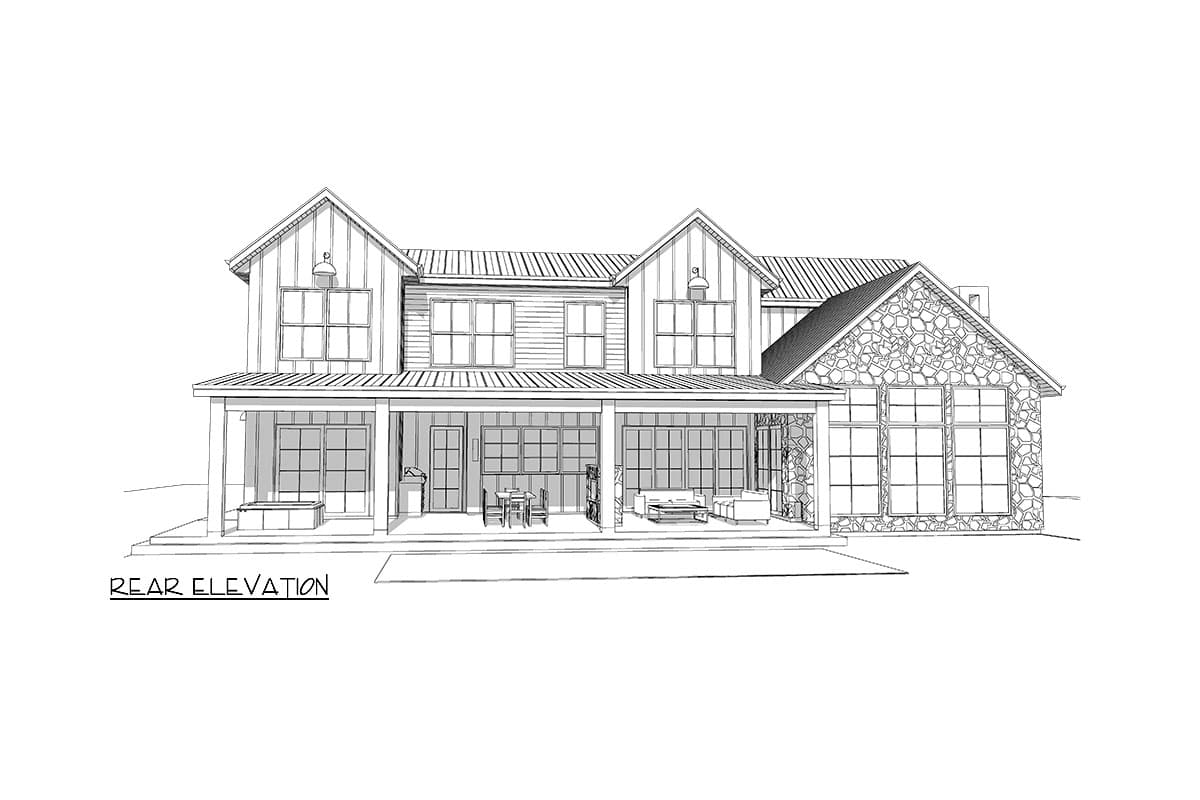

  • In back, an 805 square foot covered patio with fireplace is accessible from the dining room, the sunken living room, the hall by the pantry, Bed 2 and its bathroom.
  • The core of the main floor is open concept. The kitchen has a large island with seating for five and a roomy walk-in pantry.

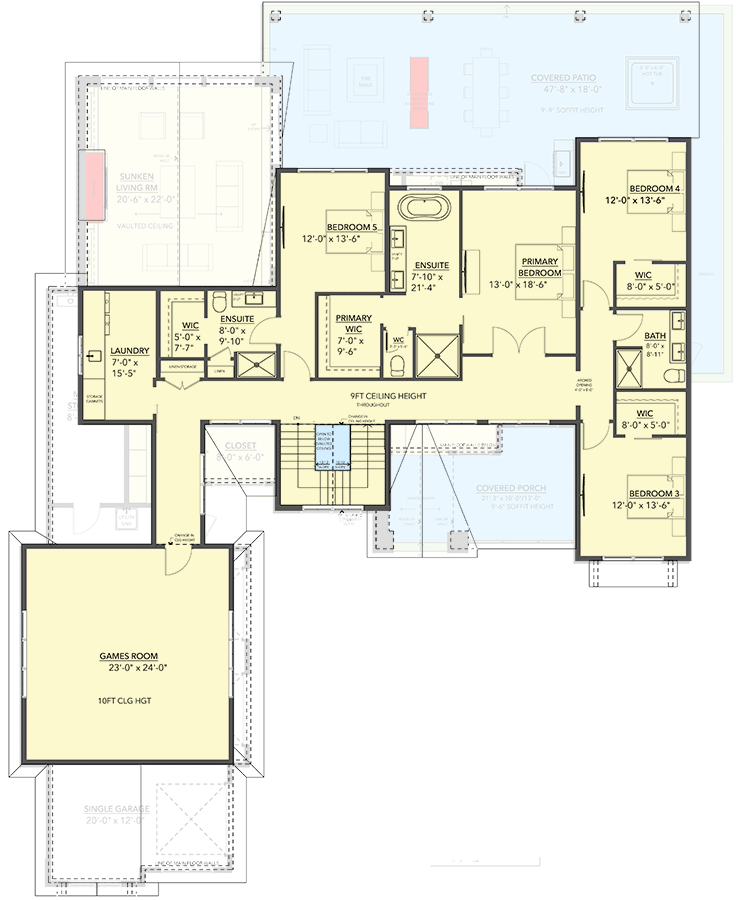

  • Upstairs, the master suite with walk-in closet is located between Beds 3 and 4 which share a bath and Bed 5 with access to a hall bath. All the bedrooms have walk-in closets.
  • Laundry is conveniently located upstairs at the end of the hall, as is a large game room above the garage.
What's Included
  • 2 Black and White 3D Exterior Perspectives
  • General Notes
  • Foundation Plan
  • All required floorplans
  • Roof Plan

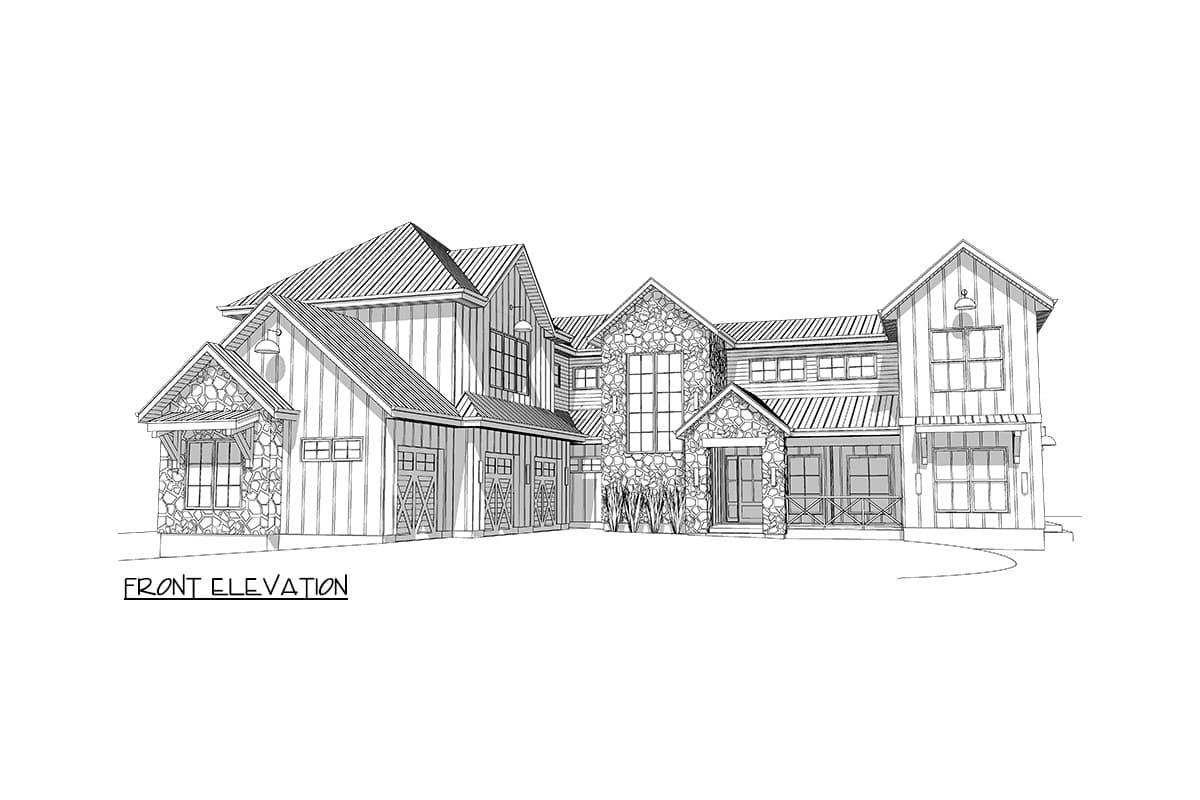

  • Elevations
  • 2-3 Building cross-sections
  • Typical Construction Details
  • Window and Door Schedule
  • Preliminary Cabinet Elevations
  • Lighting Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive 6 Bed New American House Plan with Large Covered Patio - 5392 Sq Ft

  • 5,392

    Heated s.f.

  • 6

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,392 sq. ft.
  • 1st Floor: 2,696 sq. ft.
  • 2nd Floor: 2,696 sq. ft.
  • Mech/Storage: 243 sq. ft.

Dimensions

  • Width: 76' 0"
  • Depth: 99' 2"
  • Max ridge height: 35' 5"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 998 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Exclusive 6 Bed New American House Plan with Large Covered Patio - 5392 Sq Ft

  • 5,392

    Heated s.f.

  • 6

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Exclusive 6 Bed New American House Plan with Large Covered Patio - 5392 Sq Ft

  • 5,392

    Heated s.f.

  • 6

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 5,392 sq. ft.
  • 1st Floor: 2,696 sq. ft.
  • 2nd Floor: 2,696 sq. ft.
  • Mech/Storage: 243 sq. ft.

Dimensions

  • Width: 76' 0"
  • Depth: 99' 2"
  • Max ridge height: 35' 5"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 998 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
