Exclusive ADU Home Plan with Multi-Use Loft

Plan 430803SNG

  • 750

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • Compact living inspired by the trend towards smaller homes and towards creating ADU's (accessory dwelling units) brings us homes like this 750 square foot home plan, exclusive to Architectural Designs.
  • Vertical siding guides your eye upward to the decorated gables and ribbed, metal roof, while a front porch welcomes you home.
  • Inside, the two-story living room makes the space feel larger, and the open kitchen includes a prep island with seating for casual meals and conversation.
  • The bedroom is located on the main level and neighbors a full bath.
  • Adjacent the kitchen, discover the laundry closet, and access to the second-level, multi-use loft.

The plan set includes the following:

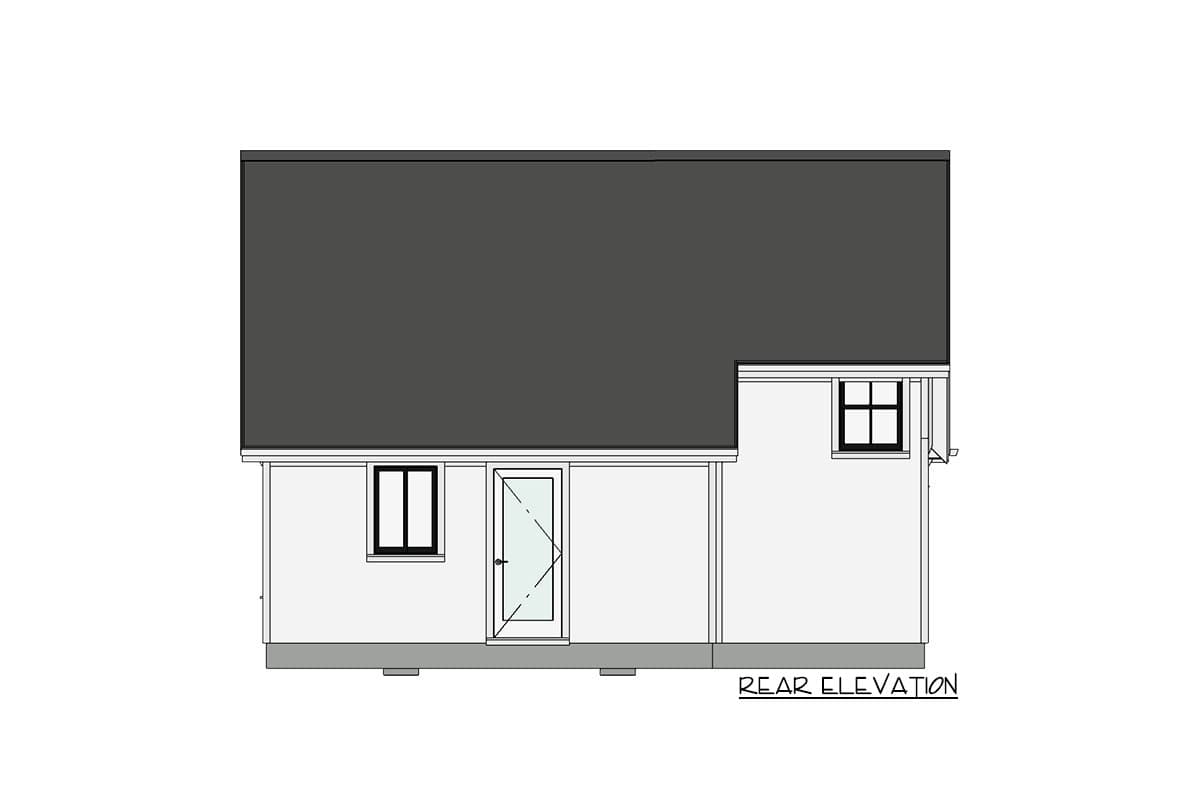

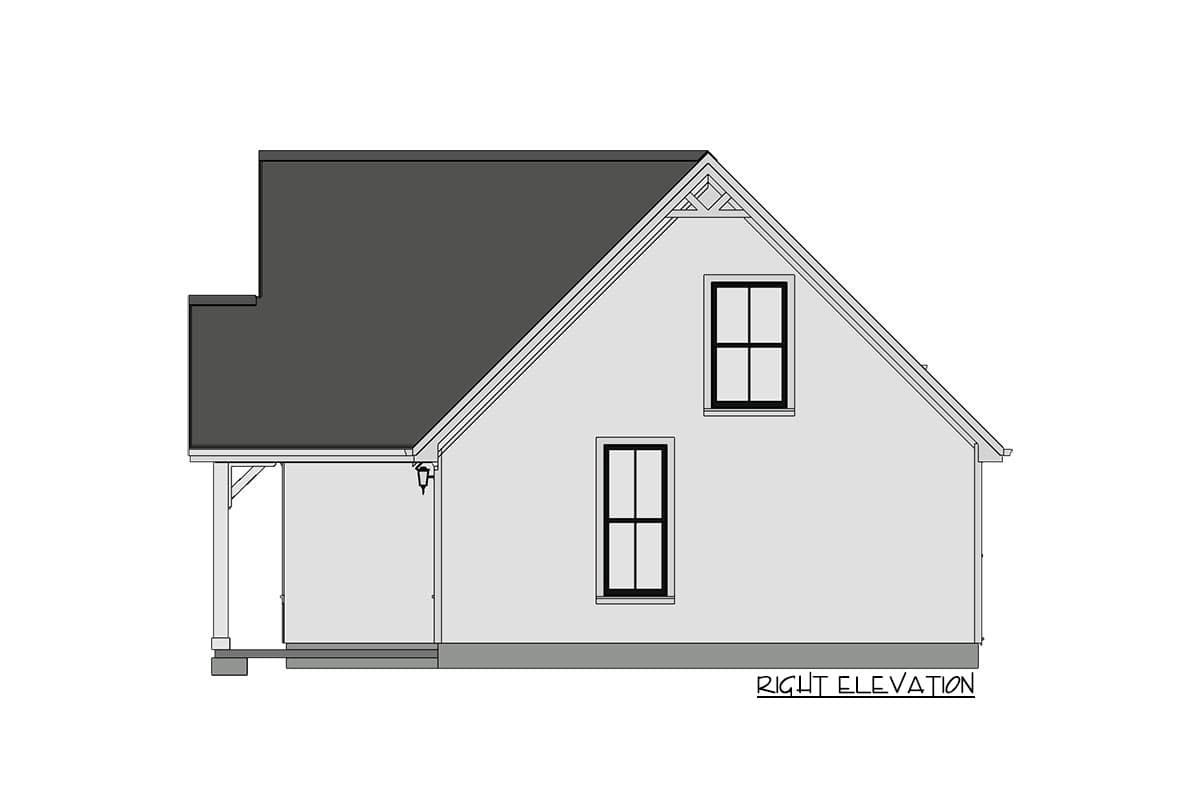

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive ADU Home Plan with Multi-Use Loft - 430803SNG floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive ADU Home Plan with Multi-Use Loft - 430803SNG floor plan - 2nd Floor

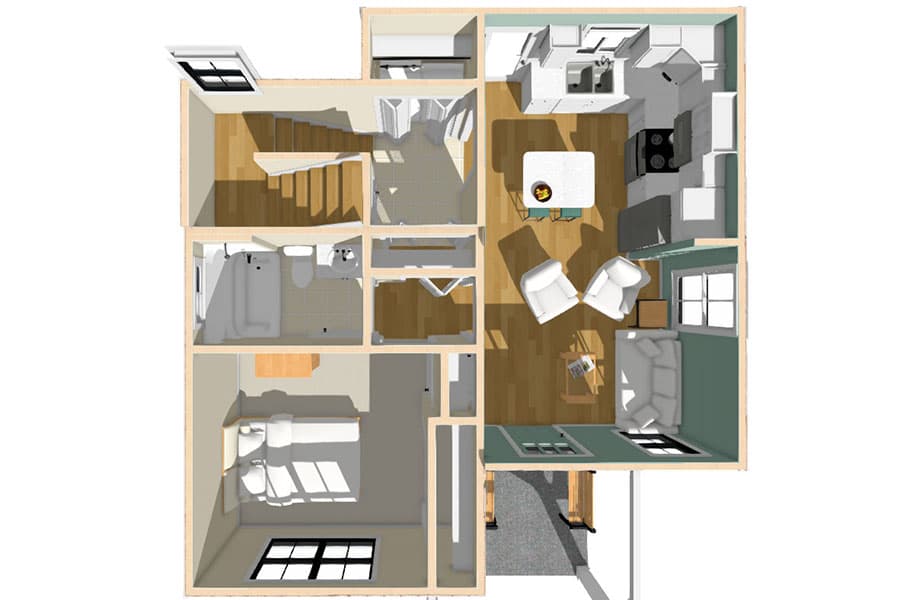

3D First Floor

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive ADU Home Plan with Multi-Use Loft - 430803SNG floor plan - 3D First Floor

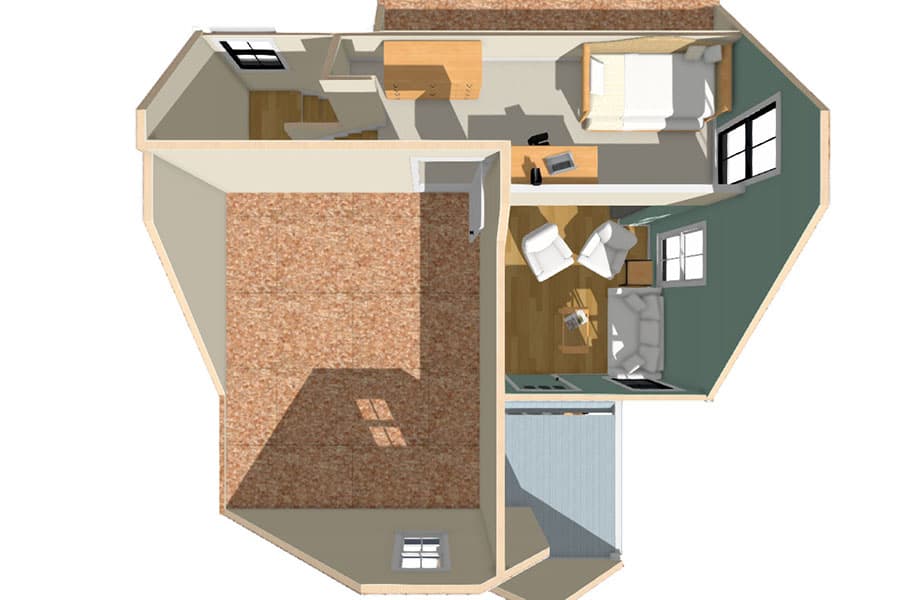

3D Second Floor

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive ADU Home Plan with Multi-Use Loft - 430803SNG floor plan - 3D Second Floor

Exclusive ADU Home Plan with Multi-Use Loft

  • 750

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

  • 3D First Floor

  • 3D Second Floor

Plan Details

Square Footage Breakdown

  • Total: 750 sq. ft.
  • 1st Floor: 611 sq. ft.
  • 2nd Floor: 139 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 30' 0"
  • Max ridge height: 19' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
