Plan 790003GLV

Exclusive

Exclusive and Flexible Traditional House Plan

Heated S.F.
2,305
Beds
3 - 4
Baths
3
Stories
2
Cars
3

Floor Plan

Plan 790003GLV

Main Level
Main Level
2nd Floor
2nd Floor

Plan 790003GLV

M-F 9am-5pm EST |

1-203-761-8500

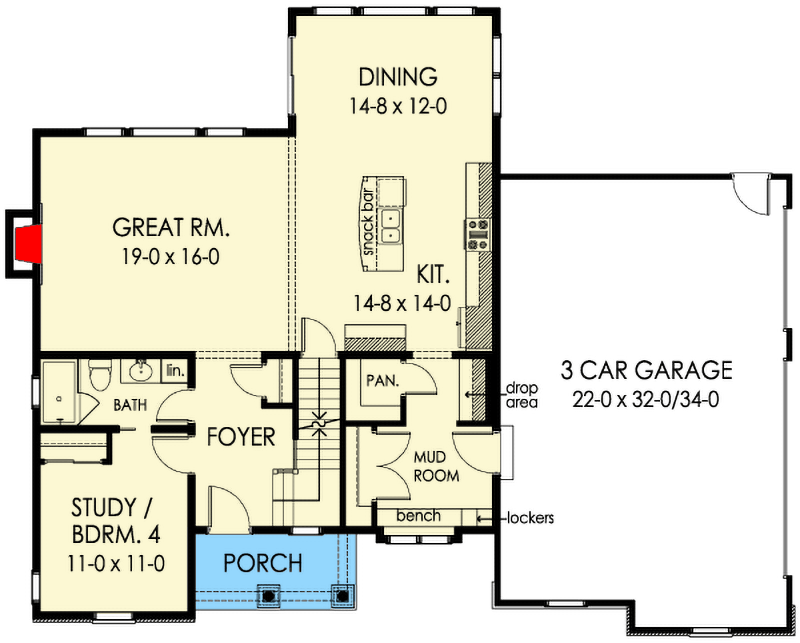

Main Level

Plan 790003GLV: Exclusive and Flexible Traditional House Plan - Floor Plan - Main Level - Craftsman, Traditional

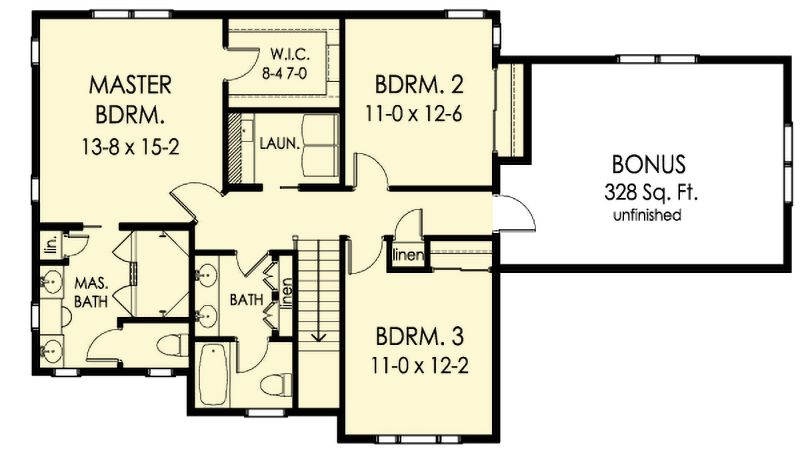

2nd Floor

Plan 790003GLV: Exclusive and Flexible Traditional House Plan - Floor Plan - 2nd Floor - Craftsman, Traditional

Plan Details

  • Richly detailed on the exterior, this Traditional house plan (exclusive to Architectural Designs!) has Craftsman trim under two of the main gables.
  • The open floor plan offers views from the kitchen island into the great room and dining area.
  • There's a walk-in pantry and a well-organized mud room area with a built-in bench and lockers.
  • Use the study as a fourth bedroom if desired since it has a closet and attached bathroom.
  • On the upper floor, three bedrooms lie close to the second floor laundry room and there are lots of linen closets.
  • Bonus space can be finished to suit your needs and adds an extra 328 square feet of living space, adding even more flexibility.

What's Included

Cover sheet with notes

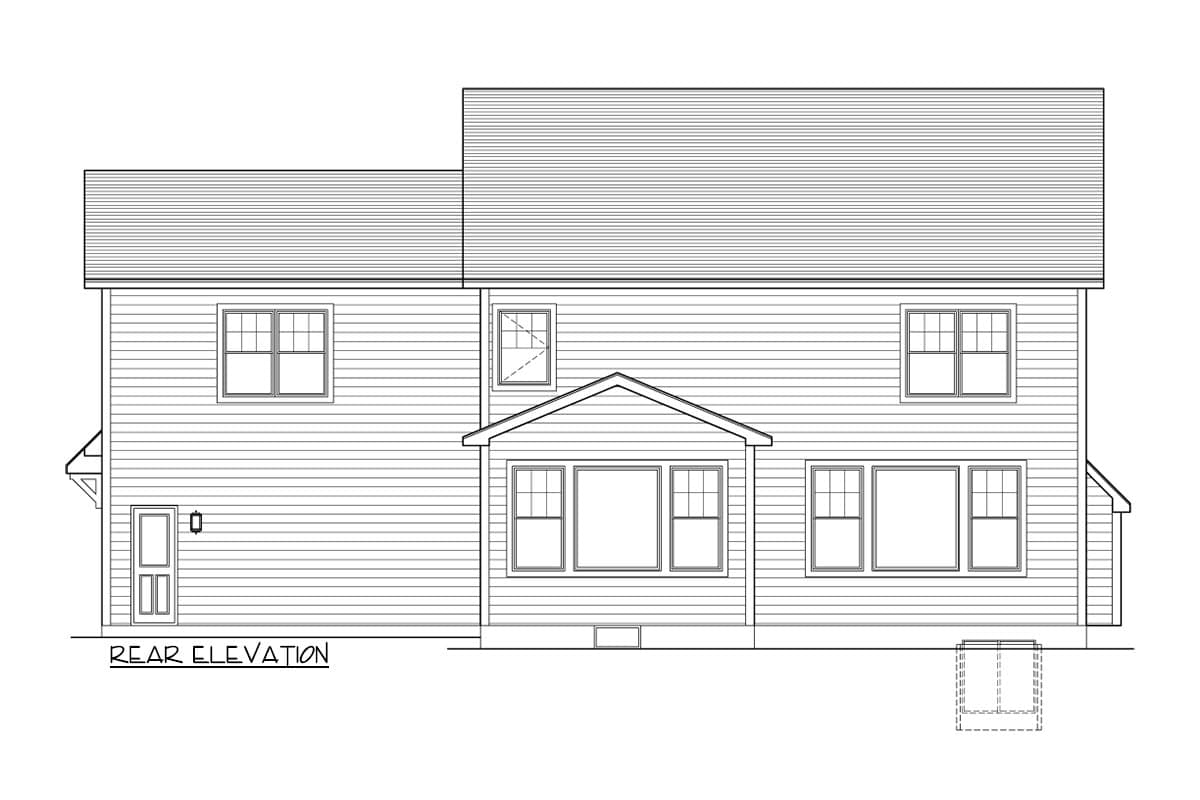

All exterior elevations
Basement foundation plan & typical wall section
First floor plan
Second level floor plan, roof plan
Building sections, truss profiles
Details
Building section, truss profile info

What's Not Included

  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,305 sq. ft.

1st Floor

1,257 sq. ft.

2nd Floor

1,048 sq. ft.

Bonus

328 sq. ft.

Porch, Front

68 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 4"

Depth

46' 4"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

719 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Exclusive
