Exclusive Compact Cottage Plan with Front and Rear Porches

Plan 420037WNT

  • 756

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • A friendly front porch spans the width of this Compact Cottage plan, topped by a classic gable roof.
  • The front door guides you into an open living space with the kitchen to the left and living room to the right.
  • The cabinetry is arranged to provide a rectangular kitchen and a window above the sink offers views of the side yard.
  • A barn door reveals the hallway that leads to the bedrooms, which are separated by a full bathroom. Each bedroom provides access to the rear covered porch.
  • A stacked washer / dryer unit is located at the the end of the hallway, across from a linen closet.

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

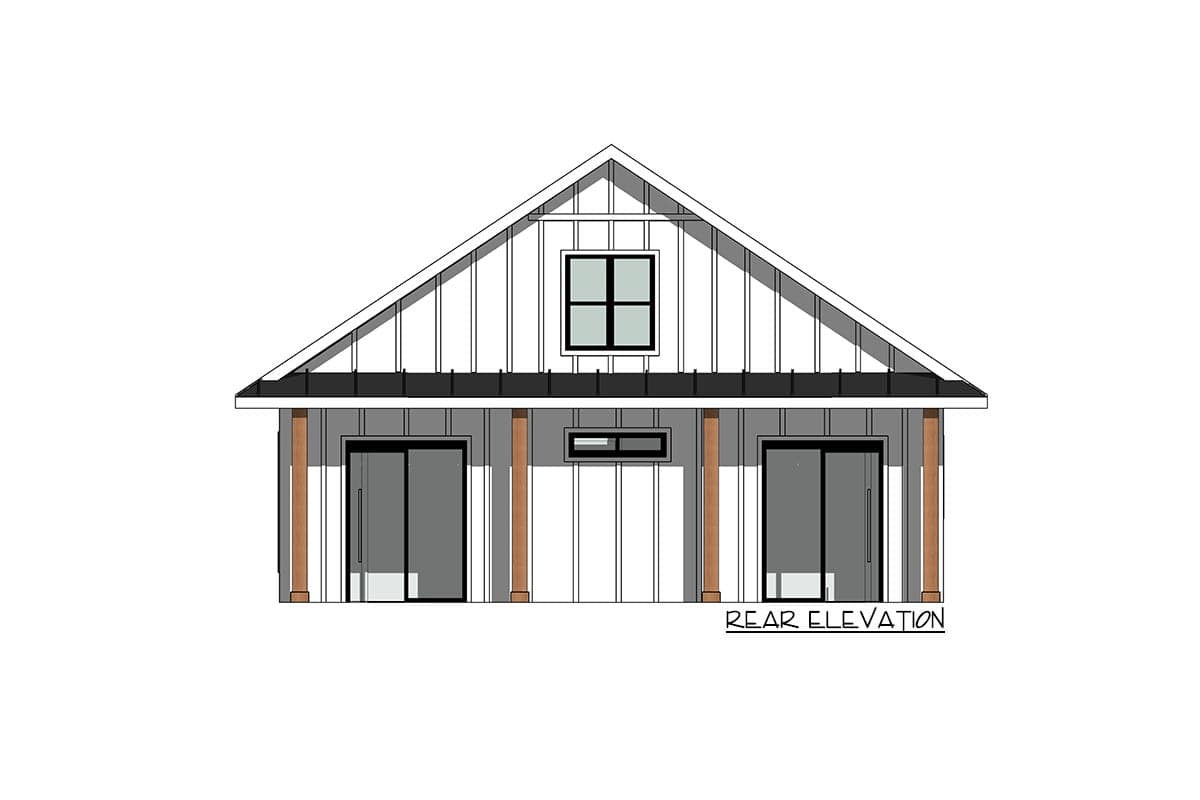

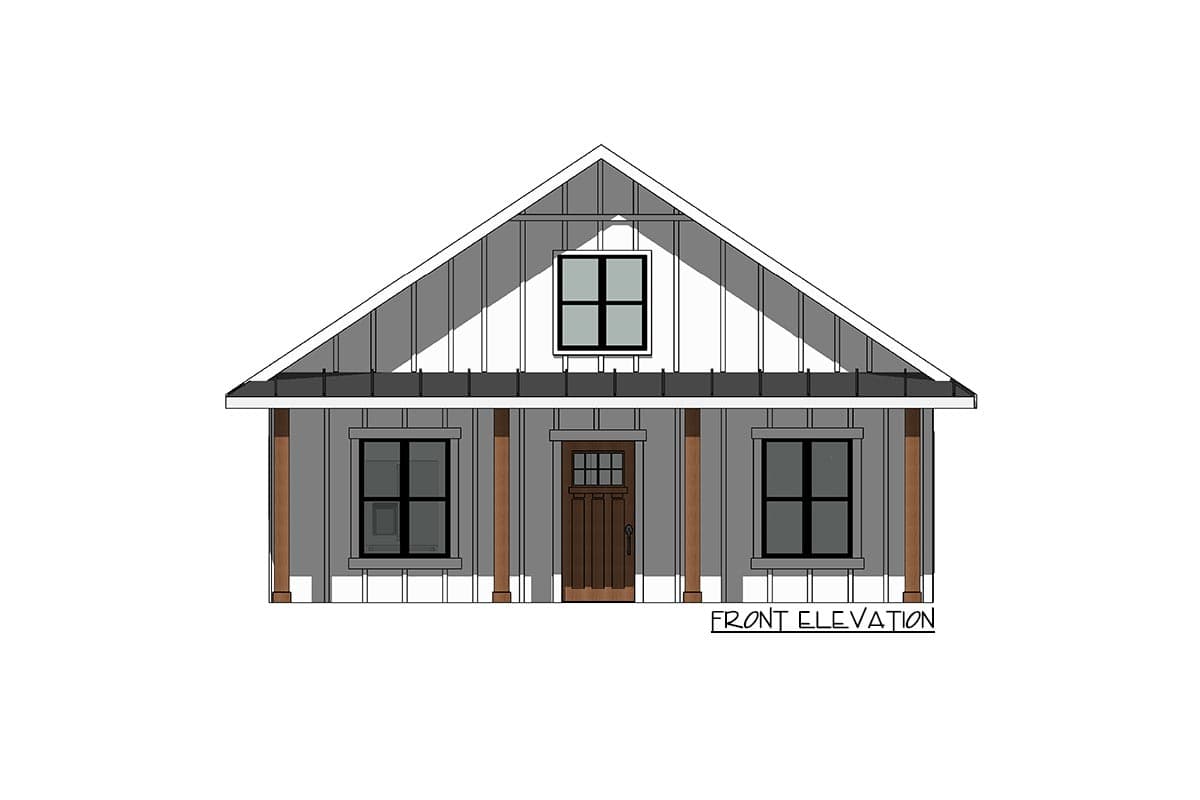

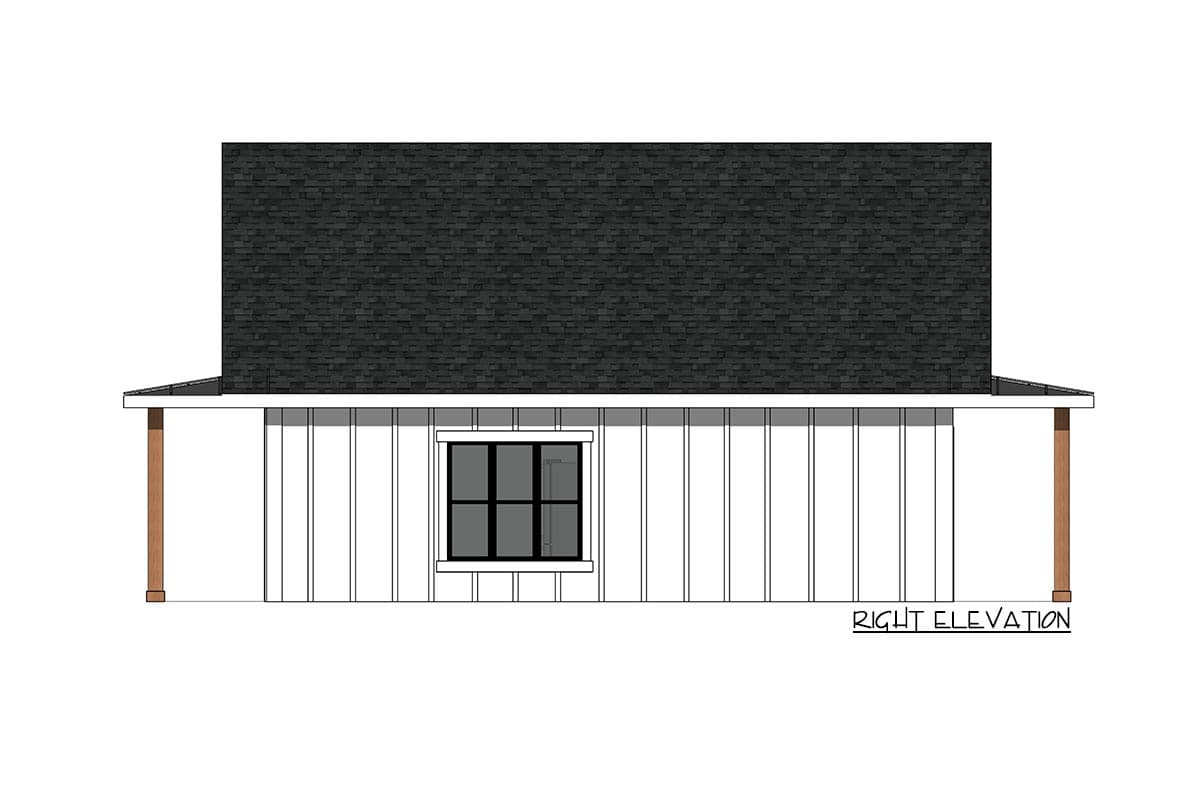

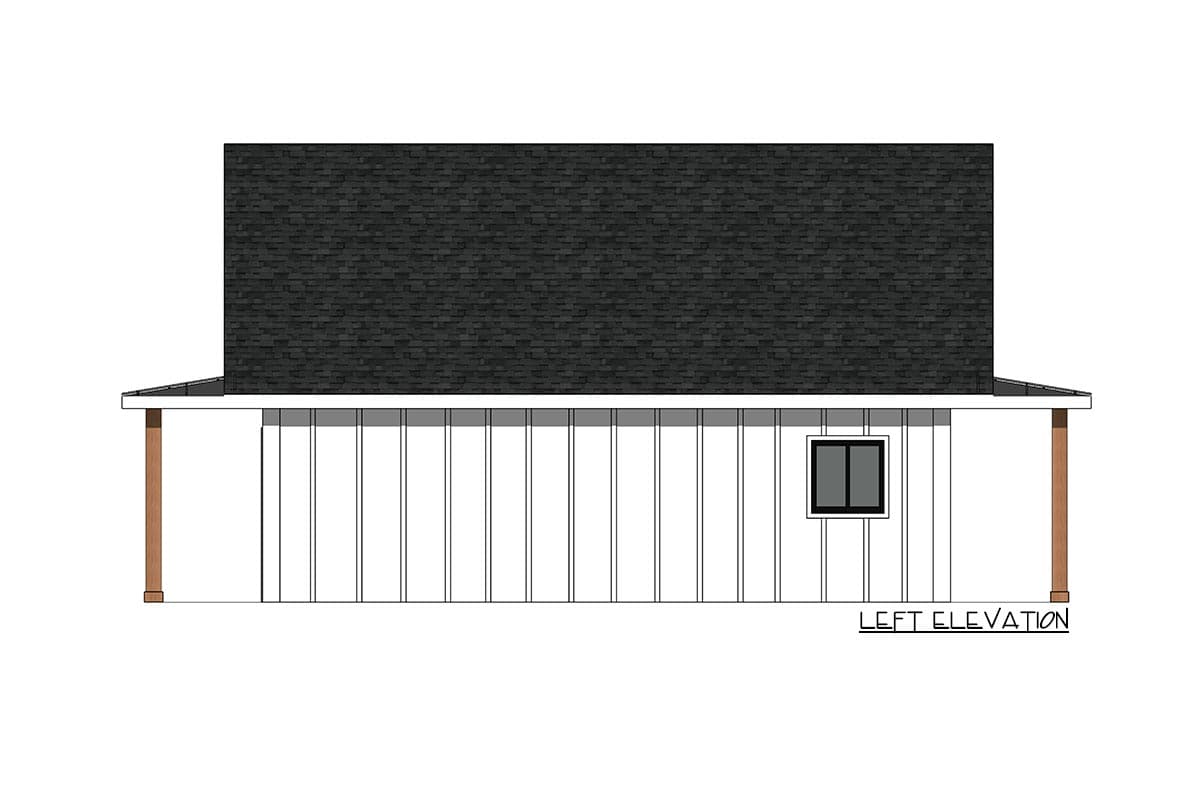

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
This plan set does NOT include;
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations)Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations)Typically provided by your Plumbing subcontractor
  • Energy Calculations (Property specific energy efficiency calculations)Typically provided by local Energy Consultant

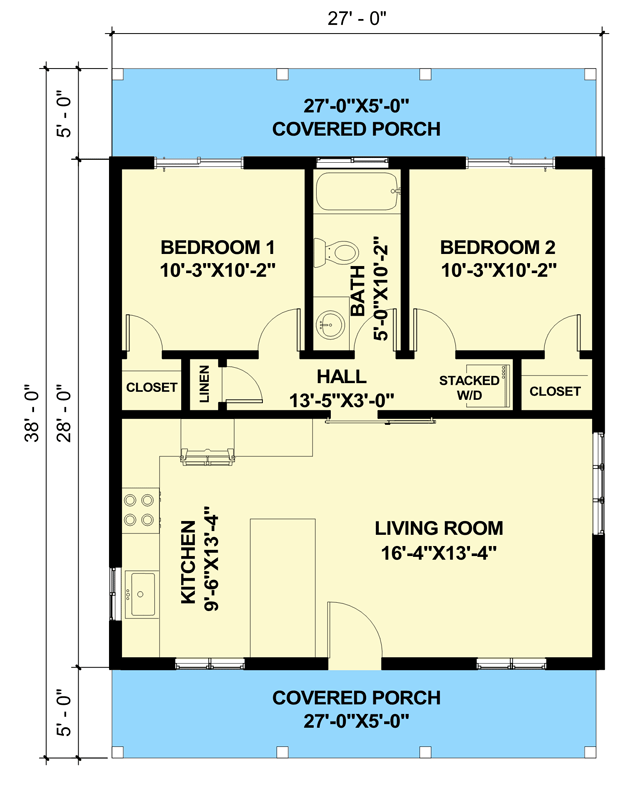

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Compact Cottage Plan with Front and Rear Porches - 420037WNT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 756 sq. ft.
  • 1st Floor: 756 sq. ft.
  • Porch, Combined: 270 sq. ft.
  • Porch, Rear: 135 sq. ft.
  • Porch, Front: 135 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab, Slab
  • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 27' 0"
  • Depth: 38' 0"
  • Max ridge height: 19' 4"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Exclusive Compact Cottage Plan with Front and Rear Porches

  • 756

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 756 sq. ft.
  • 1st Floor: 756 sq. ft.

Dimensions

  • Width: 27' 0"
  • Depth: 38' 0"
  • Max ridge height: 19' 4"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
