Plan 365012PED Exclusive Contemporary Garage Apartment for an Up-sloping Lot

Exclusive Contemporary Garage Apartment for an Up-sloping Lot

Plan 365012PED

  • 732

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This contemporary 1-bed garage apartment is designed for a lot that slopes up from the front. Two 8' by 8' roll-up garage doors and a standard person door on the front get you inside.
  • Stairs take you to the second floor where the ceiling rises from 8' at the stairs to over 15' on the view (i.e. front) side of the apartment.
  • A 16"-deep bench is located in the entry with hooks above giving you a convenient spot to control clutter. There is also a stackable washer/dryer tucked behind a bi-fold door.
  • Step through the 7'7" cased opening into the open living area with the kitchen flowing into the great room. The kitchen has a double sink and a dishwasher on the working side of the peninsula and casual seating on the great room side.
  • Sliding doors on the front wall of the great room get you onto the 12' by 6' deck. The bathroom has a 30" vanity and a 36" by 34" shower with a 12" seat.
  • The bedrooms has a walk-in closet as well as a smaller standard closet and open

Each plan set includes the following:

  • Cover sheet with general information
  • Detailed floor plans for each floor
  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

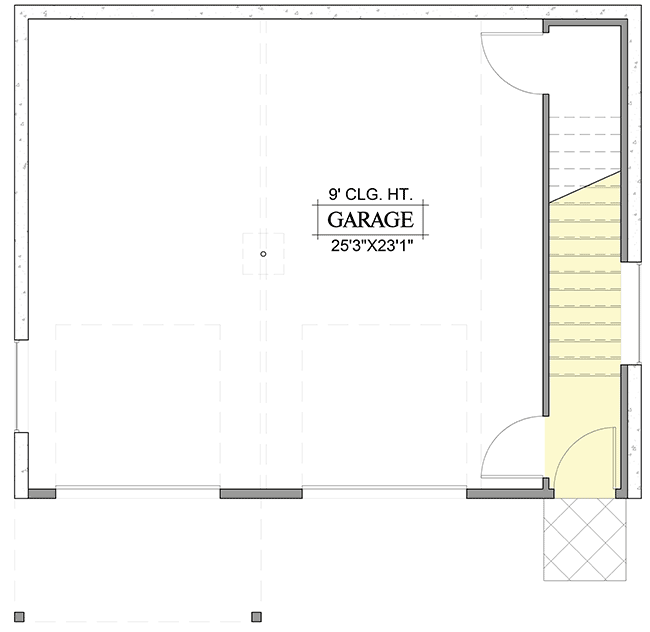

Exclusive Contemporary Garage Apartment for an Up-sloping Lot - 365012PED floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

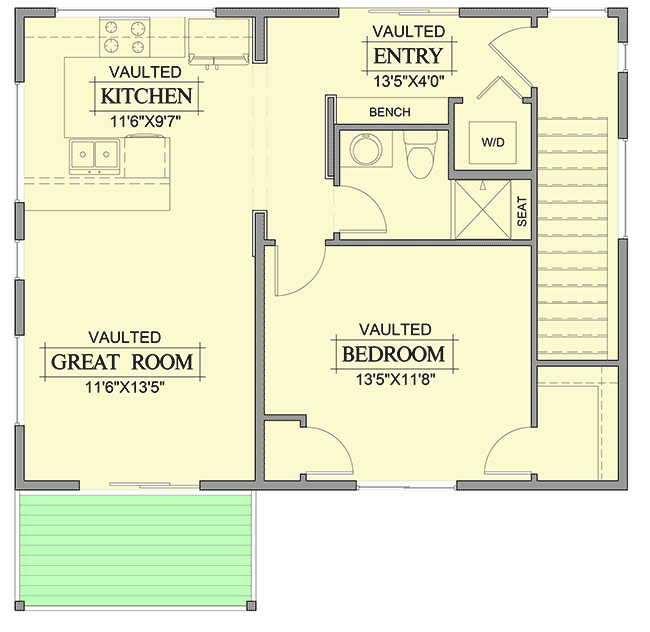

Exclusive Contemporary Garage Apartment for an Up-sloping Lot - 365012PED floor plan - 2nd Floor
