Plan 910013WHD

Exclusive

Exclusive Craftsman Home Plan with Two-Story Great Room

Heated S.F.
2,564
Beds
4 - 6
Baths
2.5 - 3.5
Stories
2
Cars
3

Floor Plan

Plan 910013WHD

Main Level
Main Level
Second Level
Second Level
Optional Lower Level
Optional Lower Level

Plan 910013WHD

M-F 9am-5pm EST |

1-203-761-8500

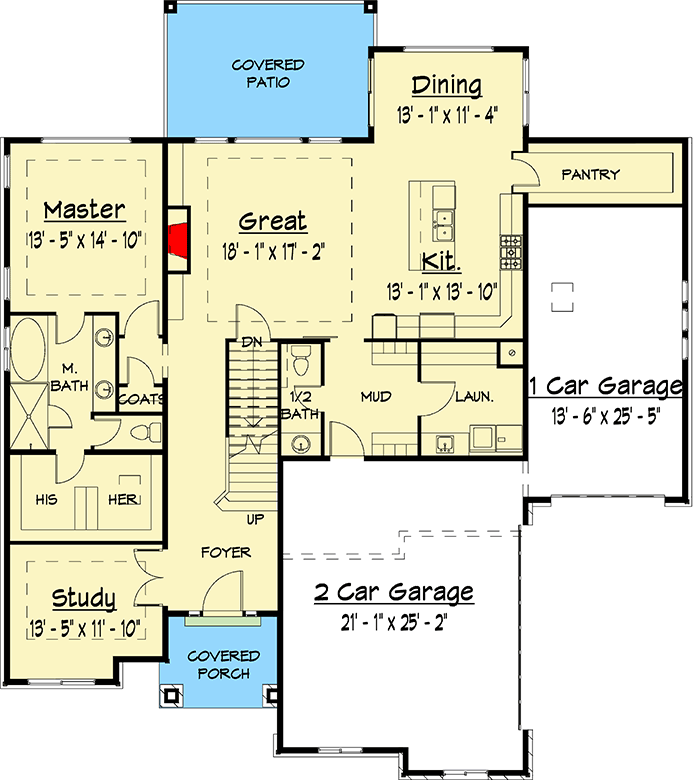

Main Level

Plan 910013WHD: Exclusive Craftsman Home Plan with Two-Story Great Room - Floor Plan - Main Level - Craftsman, Northwest

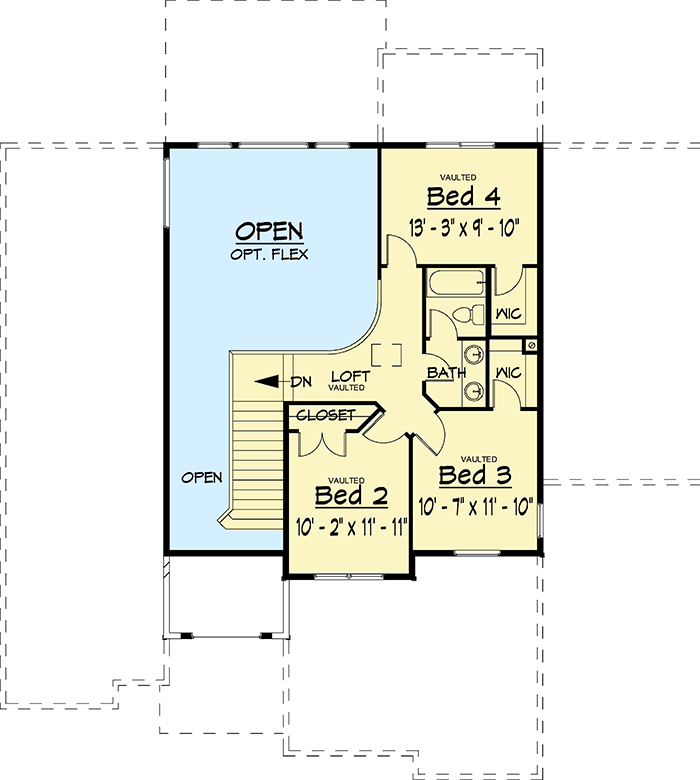

Second Level

Plan 910013WHD: Exclusive Craftsman Home Plan with Two-Story Great Room - Floor Plan - Second Level - Craftsman, Northwest

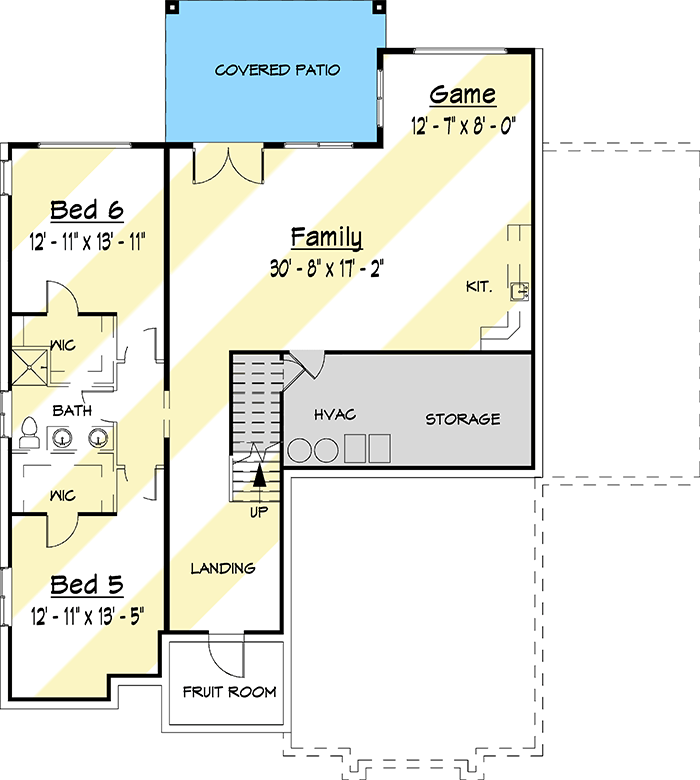

Optional Lower Level

Plan 910013WHD: Exclusive Craftsman Home Plan with Two-Story Great Room - Floor Plan - Optional Lower Level - Craftsman, Northwest

Plan Details

  • Layered gables, clad in a blend of exterior materials, come together to form this exclusive, Craftsman home plan. Stone accents complete the design.
  • Tall ceilings in the light and airy great room make the room feel larger, while the adjoining kitchen boasts an island with a double-bowl sink and a large, walk-in pantry. A private study near the foyer provides a more secluded space for peace and quiet.
  • The main-level master suite considers your future needs, and includes an elegant tray ceiling, 5-fixture bath, and dual closets.
  • Step inside from the 3-car garage and discover a sizable mudroom with built-in lockers, bordered by a powder bath and the laundry room.
  • A loft at the top of the stairs leads to three family bedrooms, each with a vaulted ceiling. The hall bath provides two sinks, and a separate room for the shower and toilet.
  • Should you choose to finish the lower level, you'll gain 1,735 sq. ft. of living space, which includes a spacious family room with french doors to a covered patio, a kitchenette, and two bedrooms that share a 4-fixture bath.

What's Included

  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,564 sq. ft.

1st Floor

1,913 sq. ft.

2nd Floor

651 sq. ft.

Optional Lower Level

1,735 sq. ft.

Bonus

316 sq. ft.

Porch, Combined

80 sq. ft.

Deck

219 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

68' 0"

Max Ridge Height

29' 2"

Garage

Type

Attached

Area

943 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Northwest

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Exclusive

Sloping Lot
