Plan 500023VV Exclusive Craftsman House Plan with Bonus Over Garage

4,219 4-5 4.5+ 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

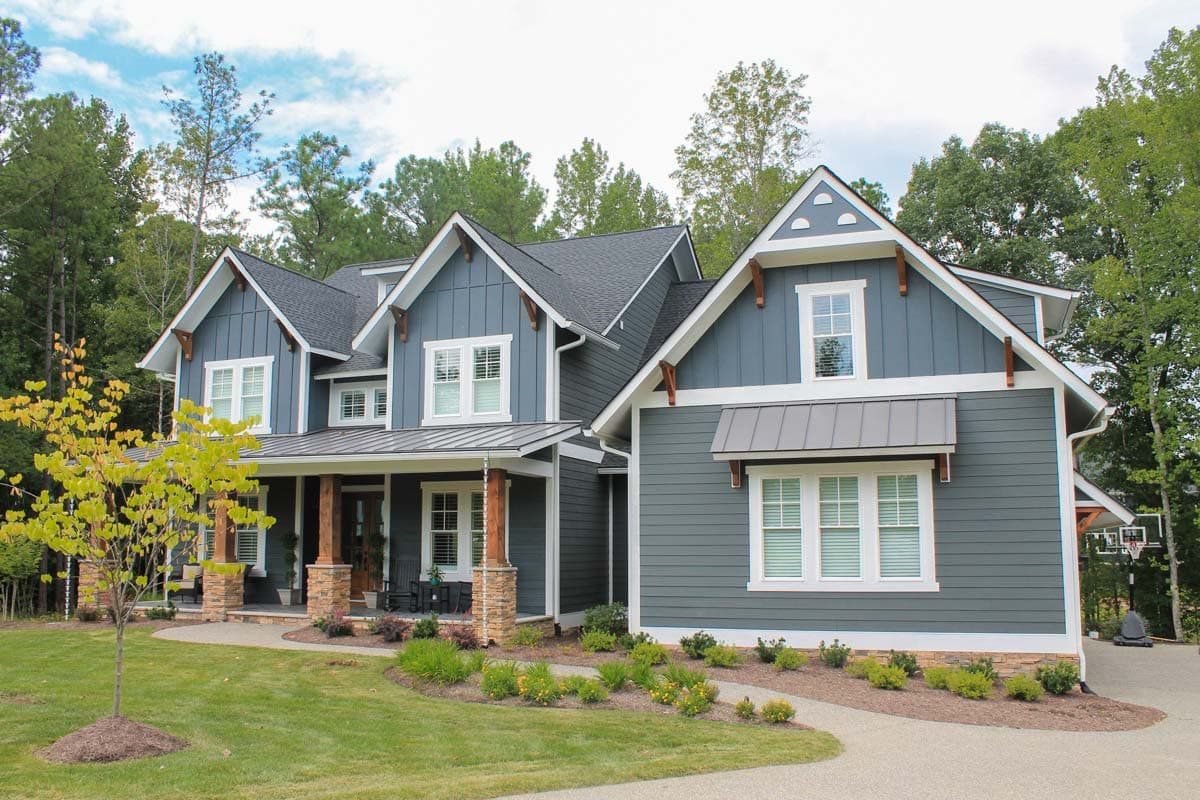

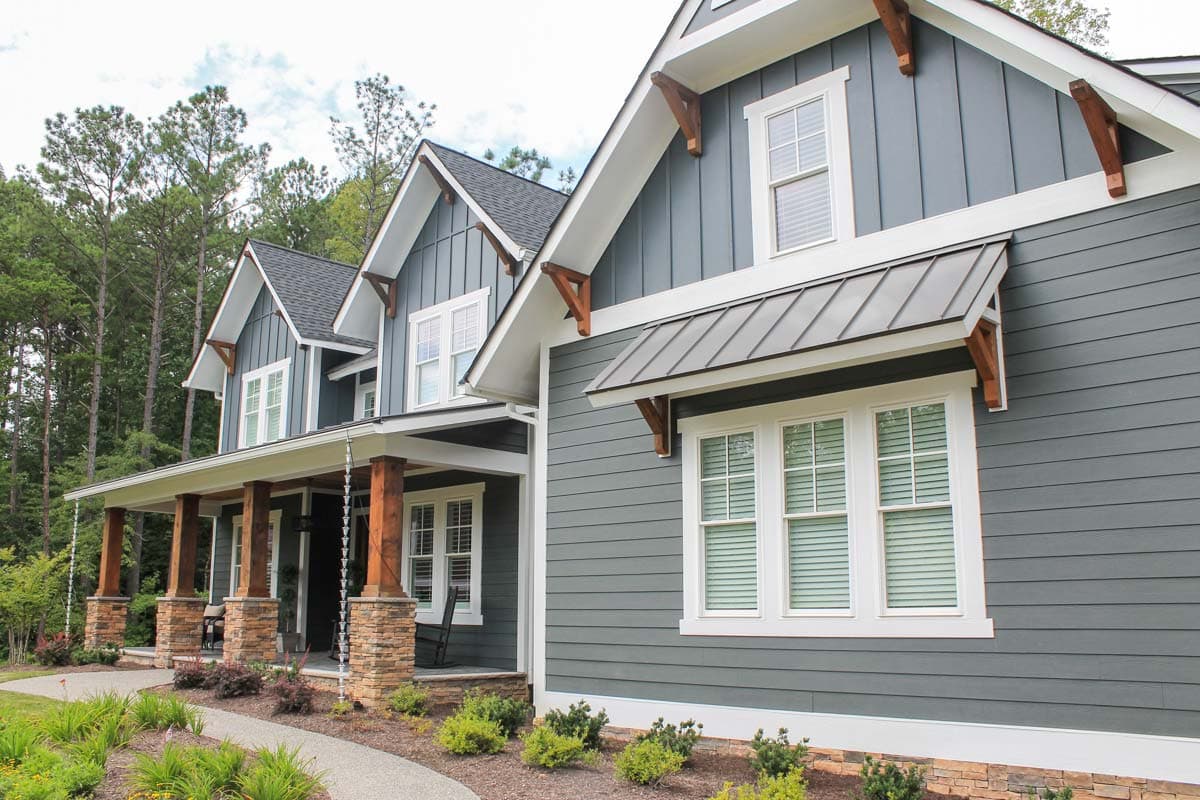

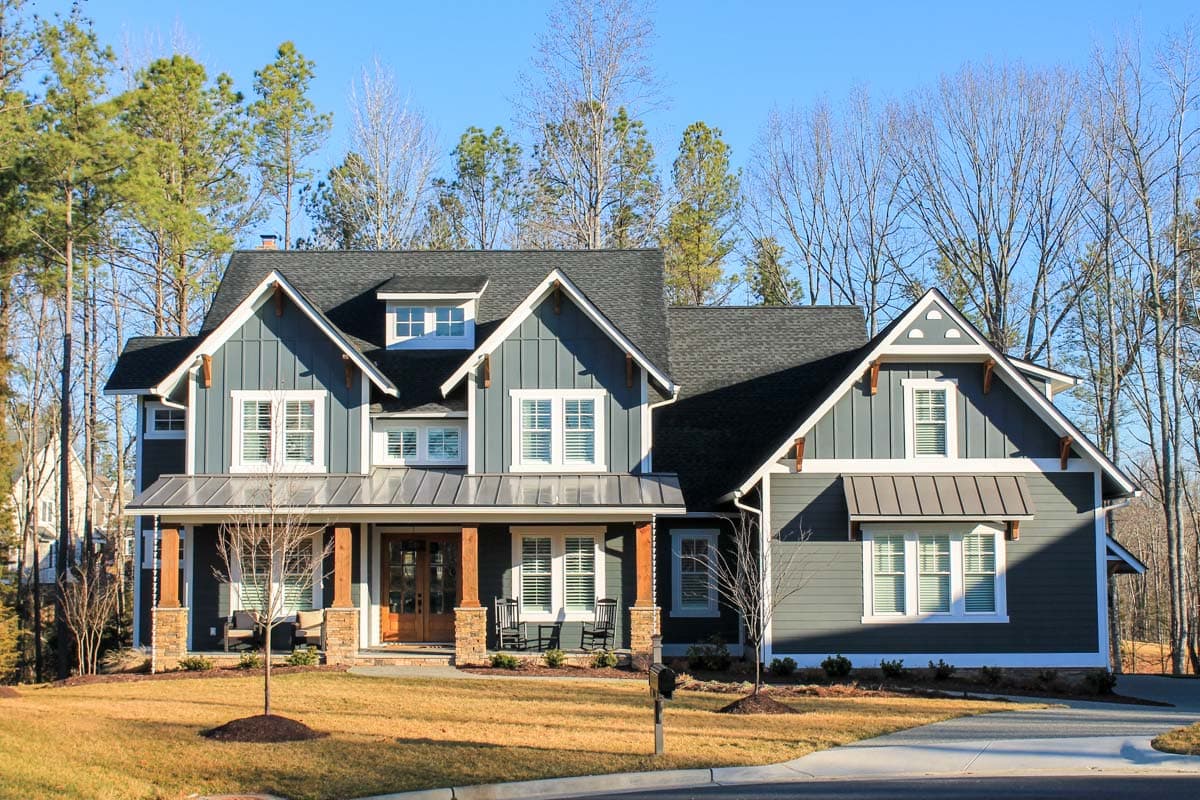

Exclusive Craftsman House Plan with Bonus Over Garage

Plan 500023VV

  • 4,219

    Heated s.f.

  • 4-5

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • It's the details that count and this Craftsman house plan (exclusive to Architectural Designs) is loaded with them, inside and out.
  • Get a walk-up attic, 10' high ceilings, optional bonus room expansion and five bedrooms - or four and a home gym.
  • Family members and guests alike will love having a first floor bedroom suite complete with a large walk-in closet.

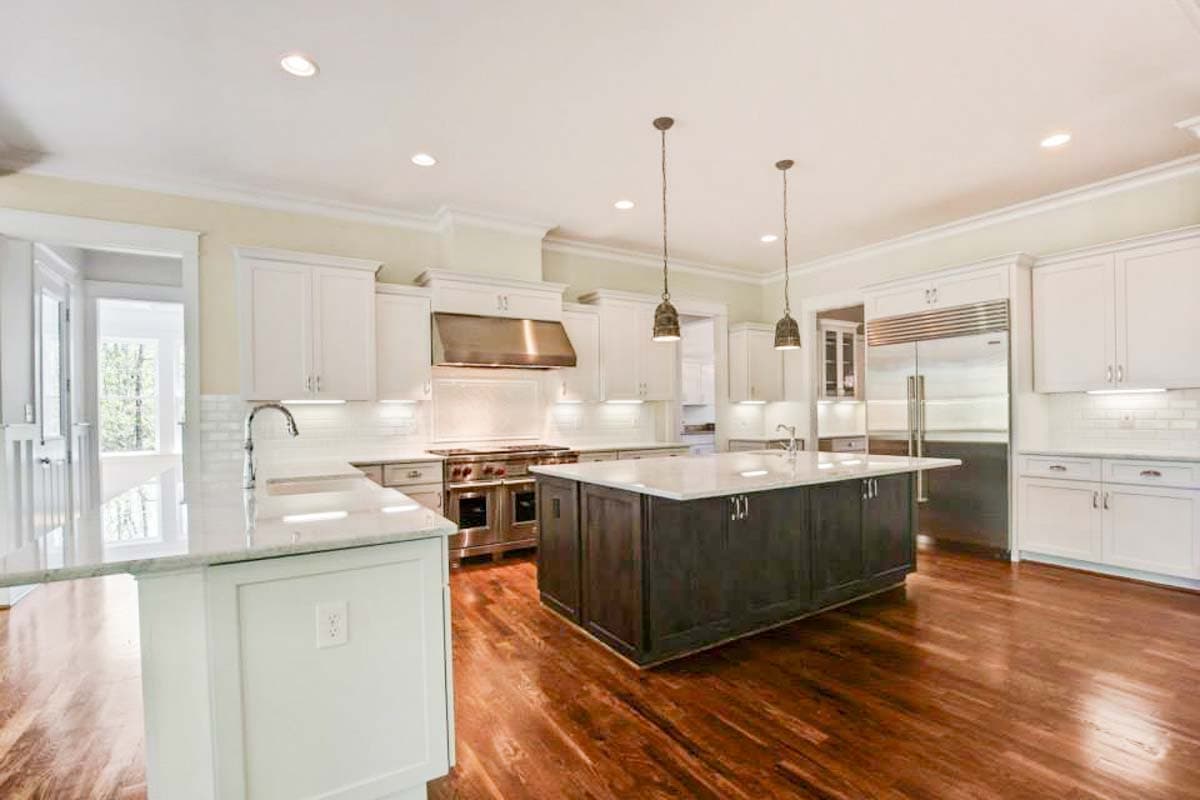

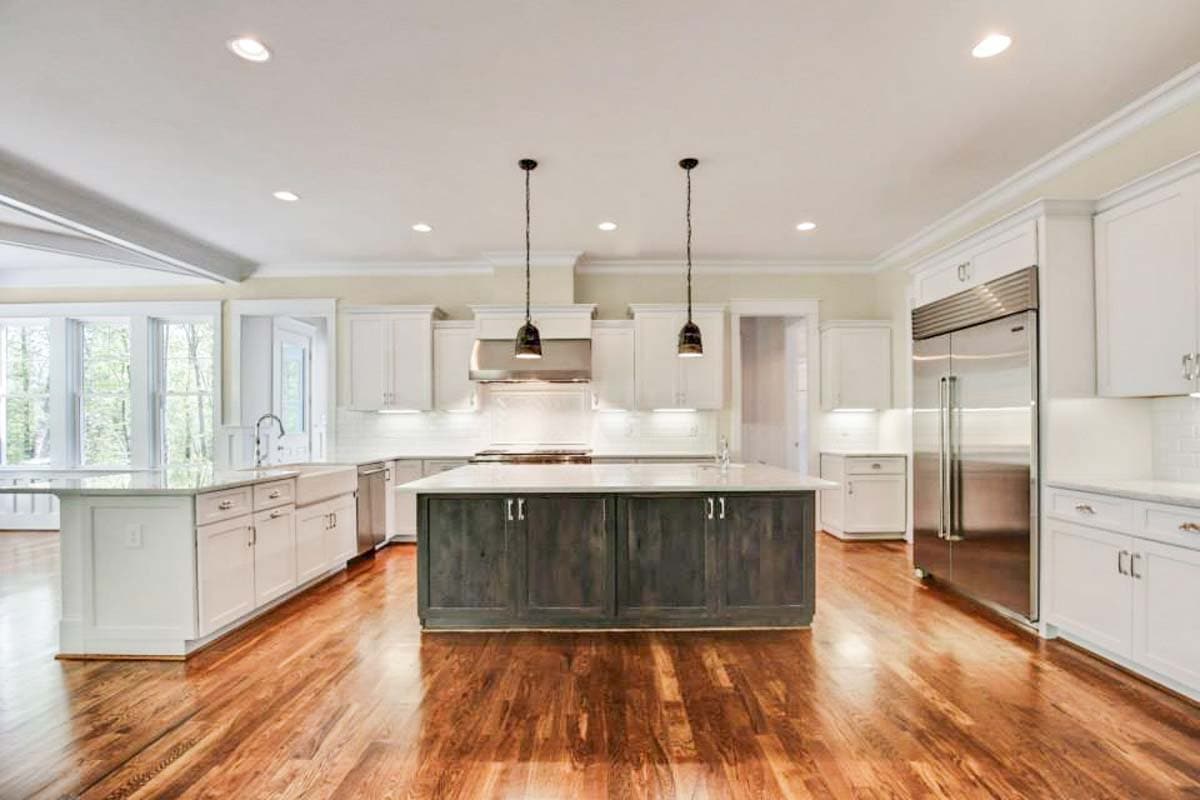

  • Designed to making entertaining easy, the home comes with a giant walk-in food pantry plus a butler's pantry.
  • The large screened-in porch is a delight for relaxing or dining outside.

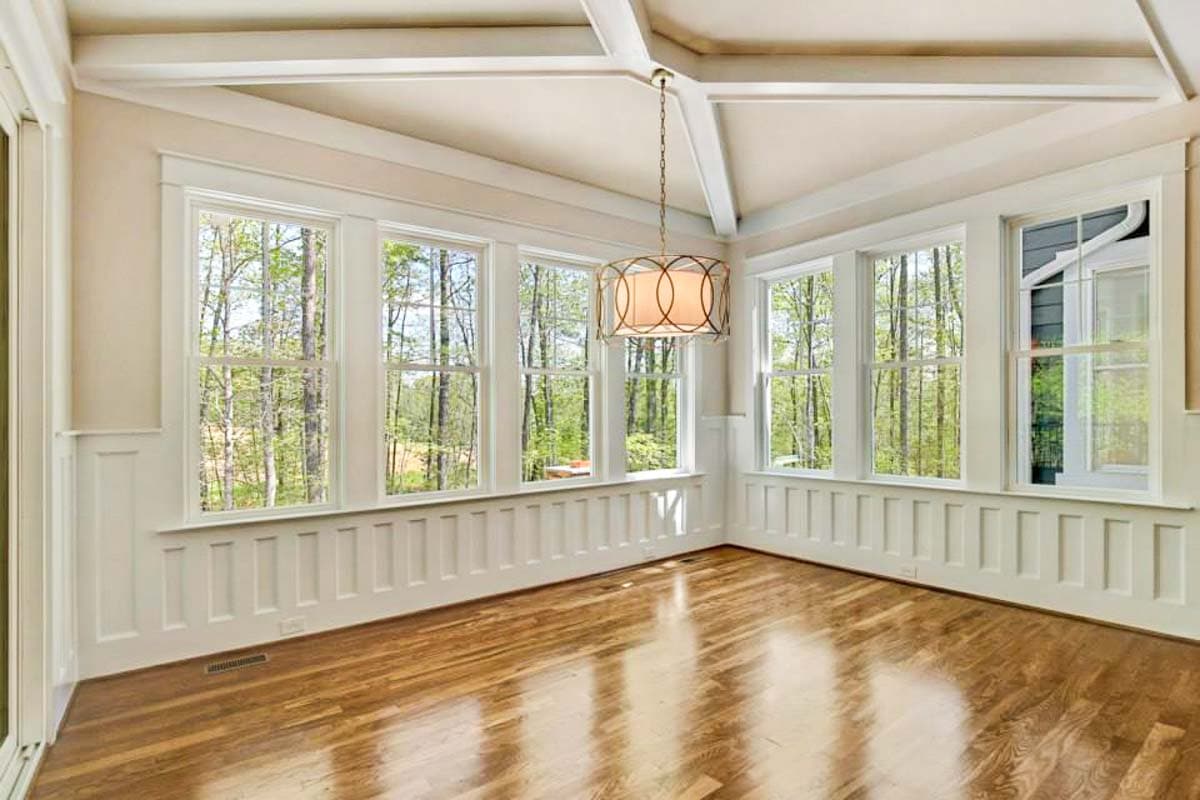

  • The home office gets an elegant coffered ceiling and lot of windows on two sides.

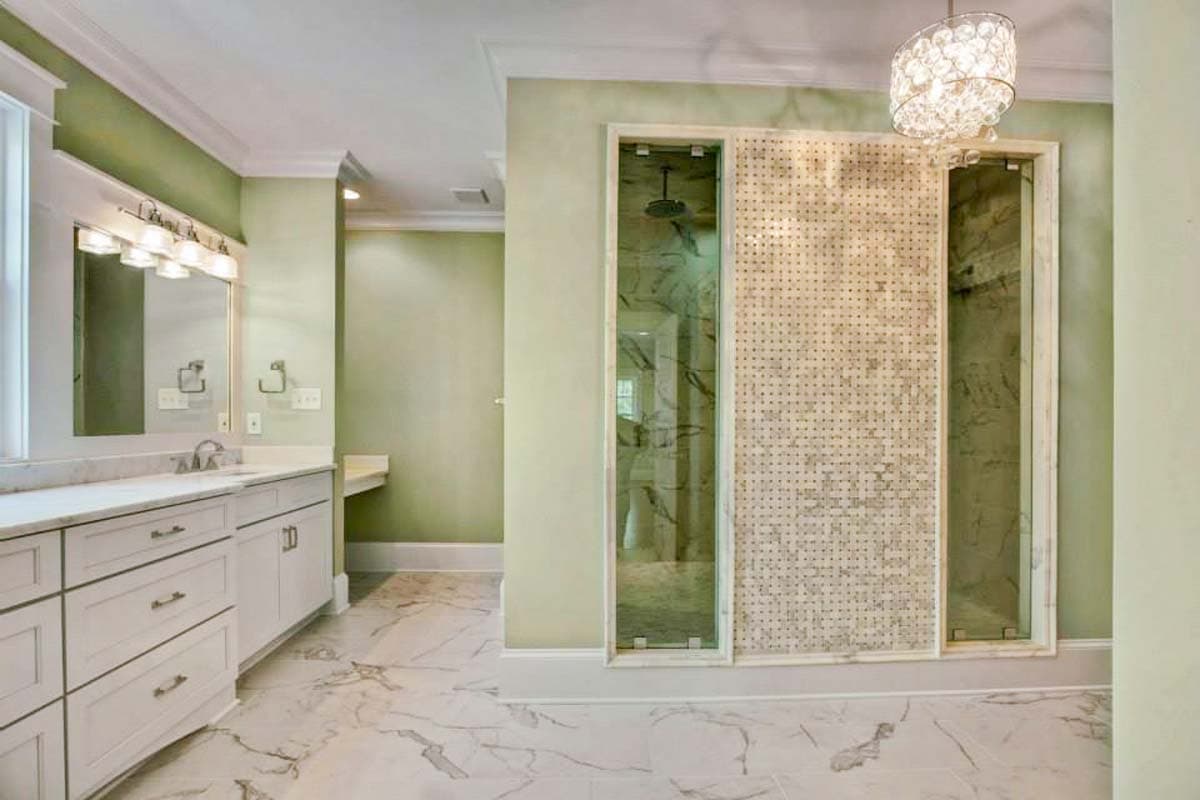

  • On the upper floor, double doors swing open to reveal the spacious master suite that comes with a huge walk-in shower and master walk-in closet.
  • Finish the optional bonus room to gain 564 square feet of additional living space.
  • Related Plan: Get more room with house plan 500078VV (4,752 sq. ft.).

This house plan includes the following:
  • Cover sheet with notes
  • Foundation
  • Floor plans

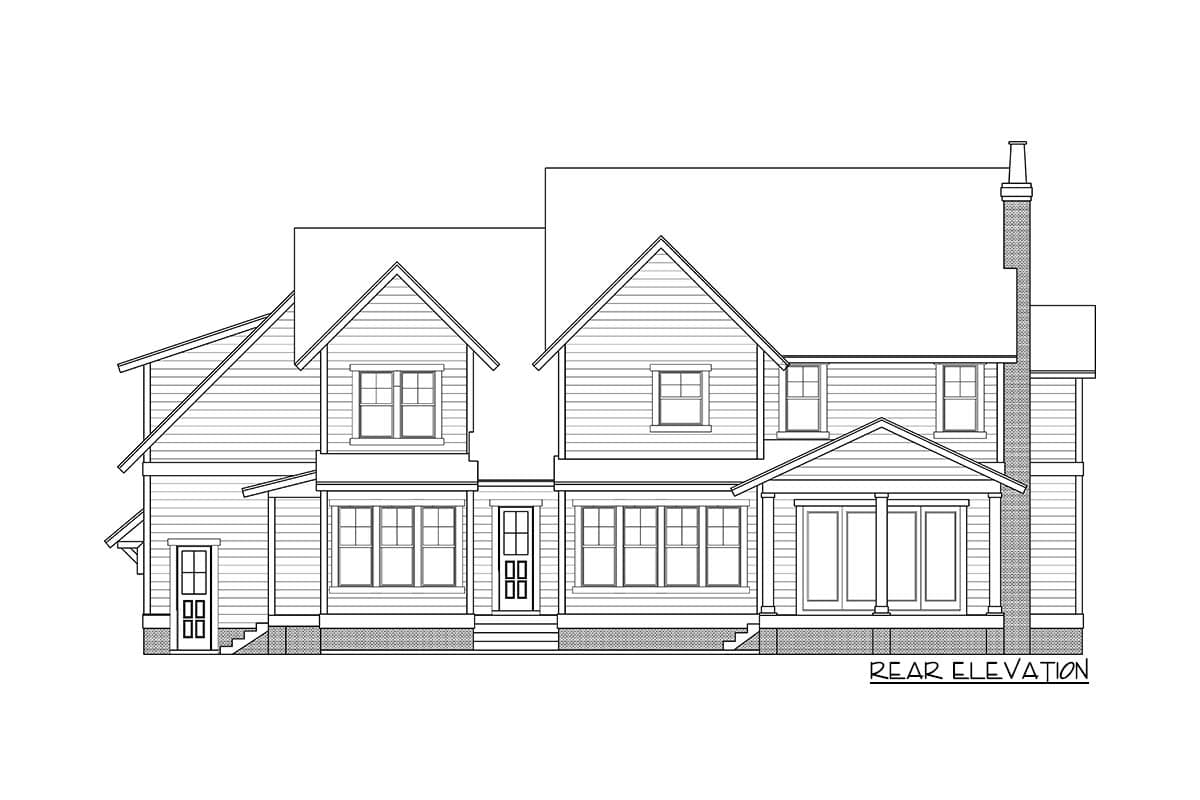

  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

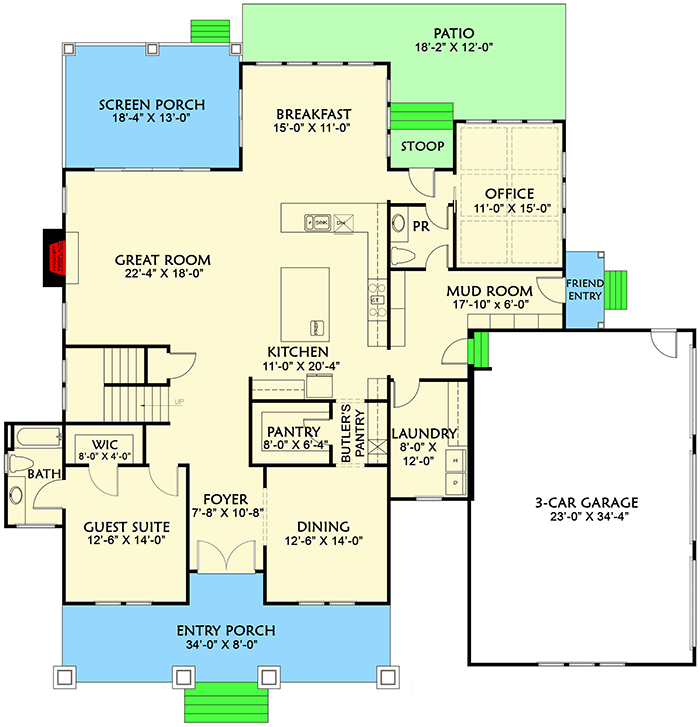

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Craftsman House Plan with Bonus Over Garage - 500023VV floor plan - Main Level

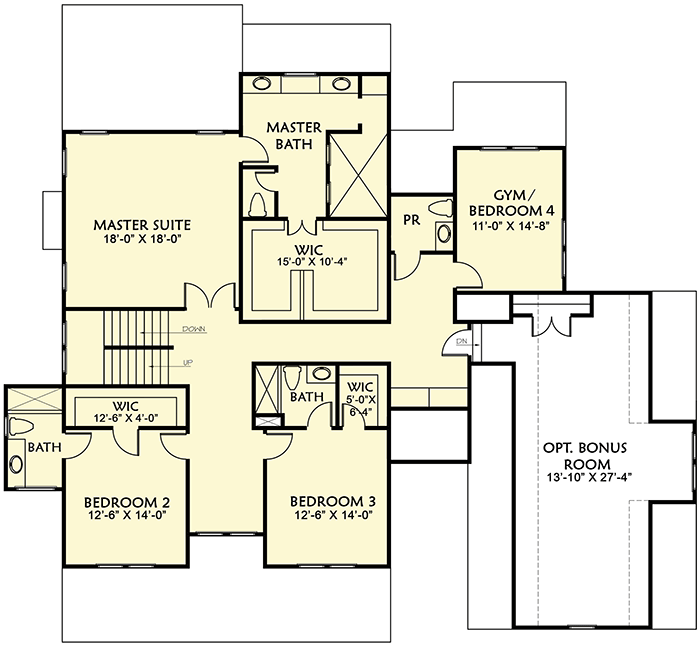

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Craftsman House Plan with Bonus Over Garage - 500023VV floor plan - 2nd Floor

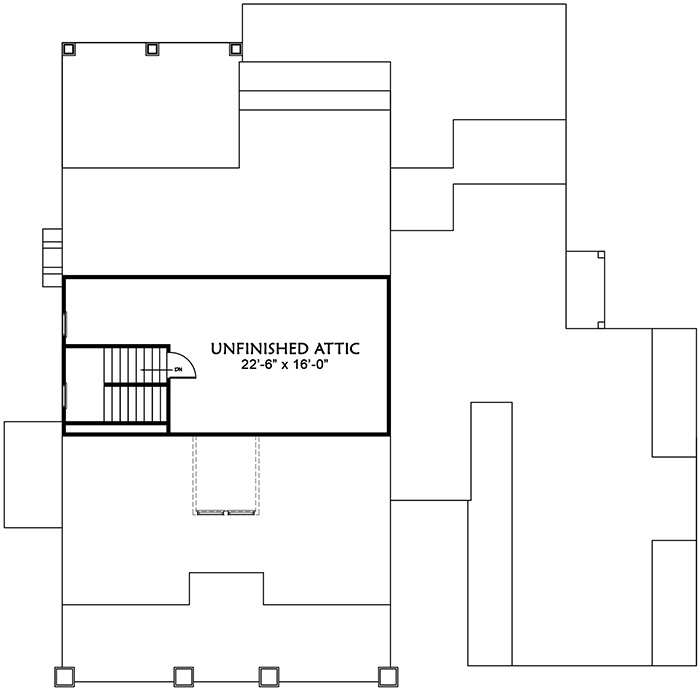

Attic

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Craftsman House Plan with Bonus Over Garage - 500023VV floor plan - Attic

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,219 sq. ft.
  • 1st Floor: 2,267 sq. ft.
  • 2nd Floor: 1,952 sq. ft.
  • Attic: 467 sq. ft.
  • Screened Porch: 240 sq. ft.
  • Porch, Front: 298 sq. ft.
  • Bonus: 564 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 71' 8"
  • Depth: 66' 8"
  • Max ridge height: 37' 2"

Garage

  • Type: Attached
  • Area: 819 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Attic 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Exclusive Craftsman House Plan with Bonus Over Garage

  • 4,219

    Heated s.f.

  • 4-5

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,195
  • CAD - Single-Build $2,895
  • CAD - Unlimited Build $3,395
  • View all purchase option online

About This Plan

  • It's the details that count and this Craftsman house plan (exclusive to Architectural Designs) is loaded with them, inside and out.
  • Get a walk-up attic, 10' high ceilings, optional bonus room expansion and five bedrooms - or four and a home gym.
  • Family members and guests alike will love having a first floor bedroom suite complete with a large walk-in closet.
  • Designed to making entertaining easy, the home comes with a giant walk-in food pantry plus a butler's pantry.
  • The large screened-in porch is a delight for relaxing or dining outside.
  • The home office gets an elegant coffered ceiling and lot of windows on two sides.
  • On the upper floor, double doors swing open to reveal the spacious master suite that comes with a huge walk-in shower and master walk-in closet.
  • Finish the optional bonus room to gain 564 square feet of additional living space.
  • Related Plan: Get more room with house plan 500078VV (4,752 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Attic

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,219 sq. ft.
  • 1st Floor: 2,267 sq. ft.
  • 2nd Floor: 1,952 sq. ft.
  • Attic: 467 sq. ft.
  • Screened Porch: 240 sq. ft.
  • Porch, Front: 298 sq. ft.
  • Bonus: 564 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 71' 8"
  • Depth: 66' 8"
  • Max ridge height: 37' 2"

Garage

  • Type: Attached
  • Area: 819 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Attic 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss
