Exclusive Craftsman Plan with Split Bedrooms and Home Office
Heated S.F.
2,581
Beds
3
Baths
2.5
Stories
1
Cars
3
Flyer
What's Included
Plan Details
  • Enjoy the comfort and convenience of one-level living with this exclusive Craftsman home plan, which features a private master suite, office, and large media / game room.
  • A coat closet in the entryway stores your outdoor gear, while straight ahead, a light and airy great room includes a vaulted ceiling and fireplace. Move easily between the shared living space and eat-in kitchen, or slip onto the covered patio for outdoor enjoyment.
  • The master suite shares the right wing of the home with a quiet study (or home office).
  • Bedrooms 2 and 3 are situated near the garage, and a large media / game room off the breakfast nook provides a secondary gathering space for family and friends.
  • The 3-car garage presents an above ground shelter for perilous weather situations, and a mud area just inside from the garage leads to a laundry room and full bath.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan

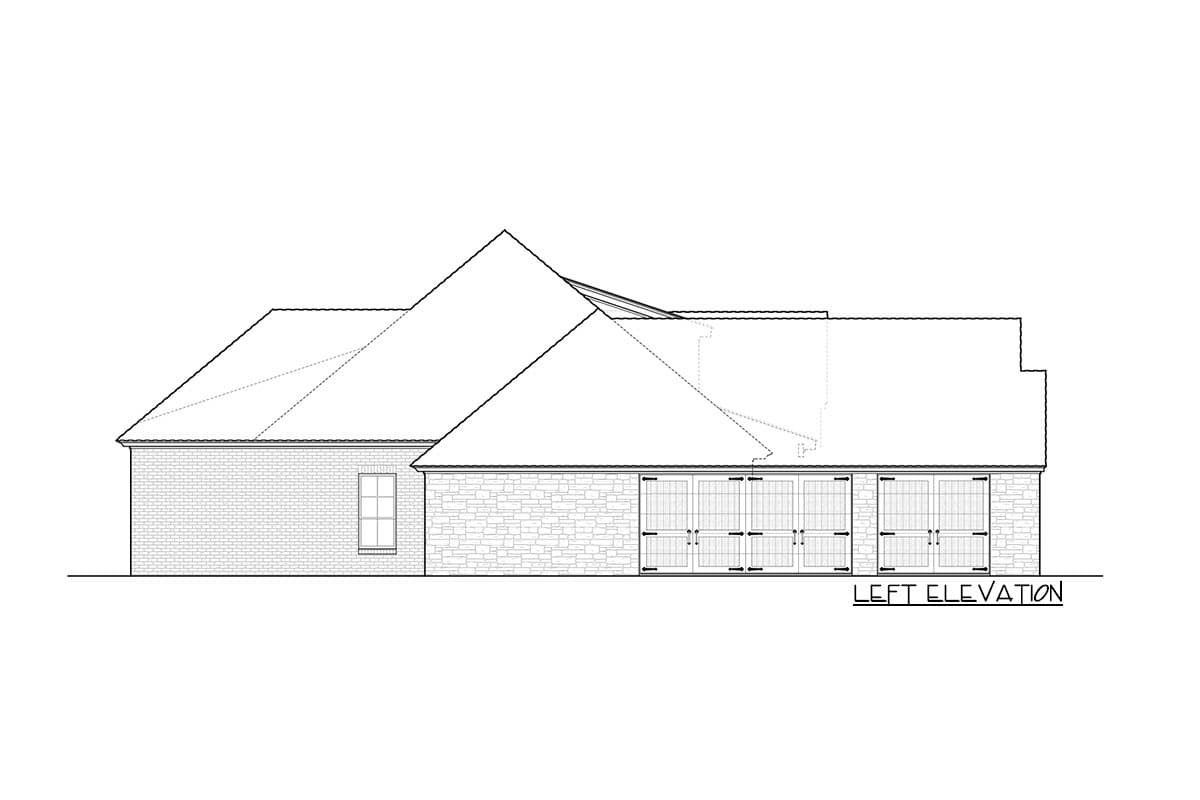

  • Front and Left Elevation

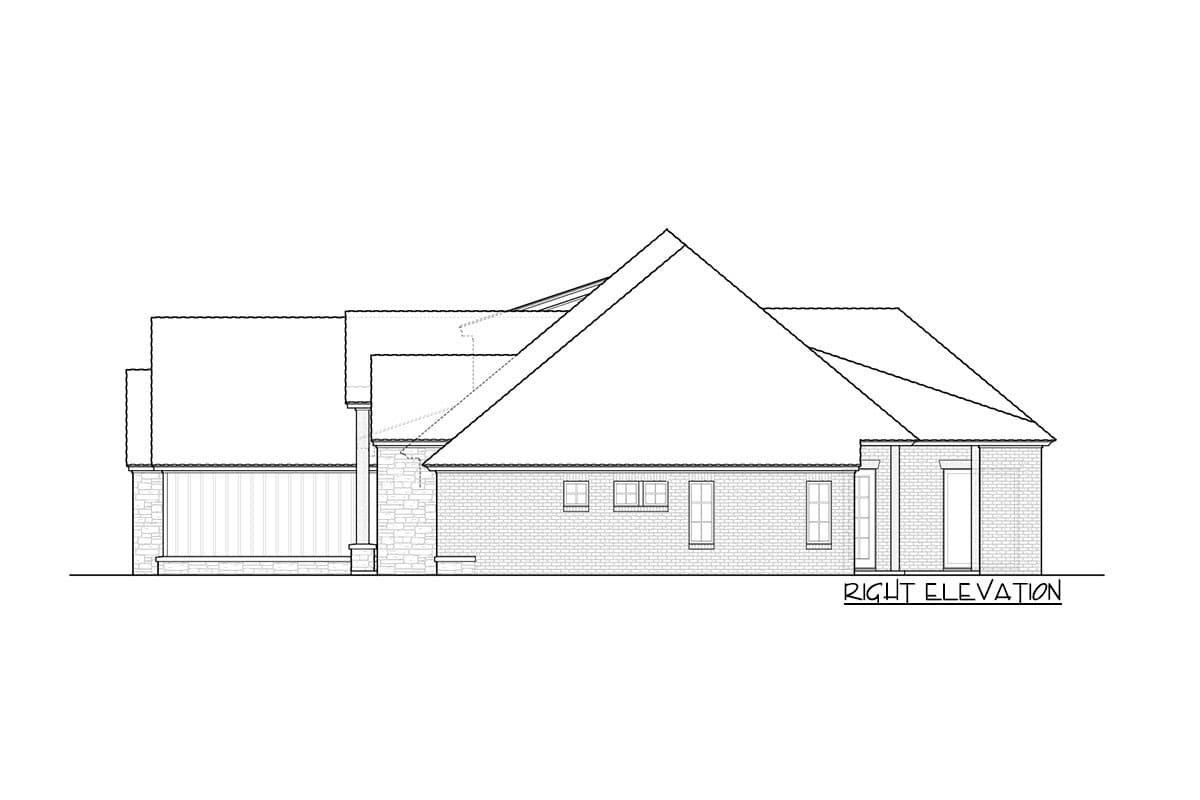

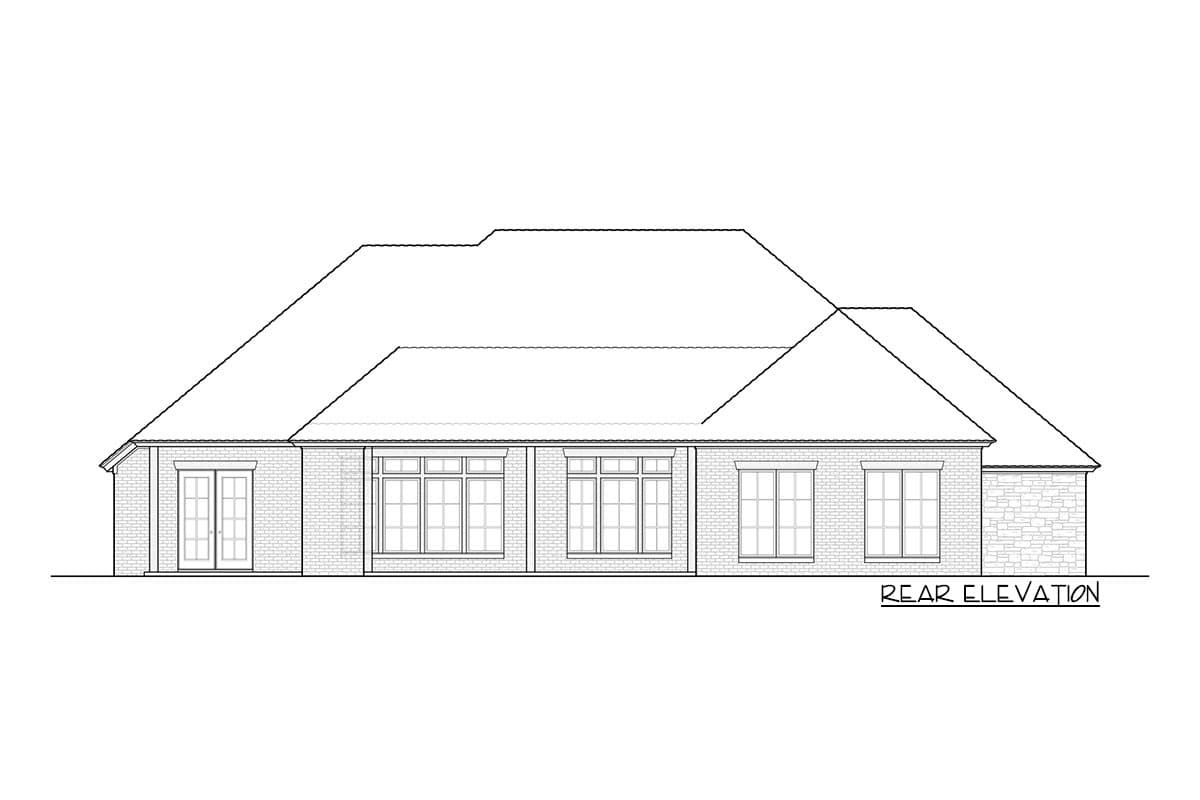

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive Craftsman Plan with Split Bedrooms and Home Office

  • 2,581

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

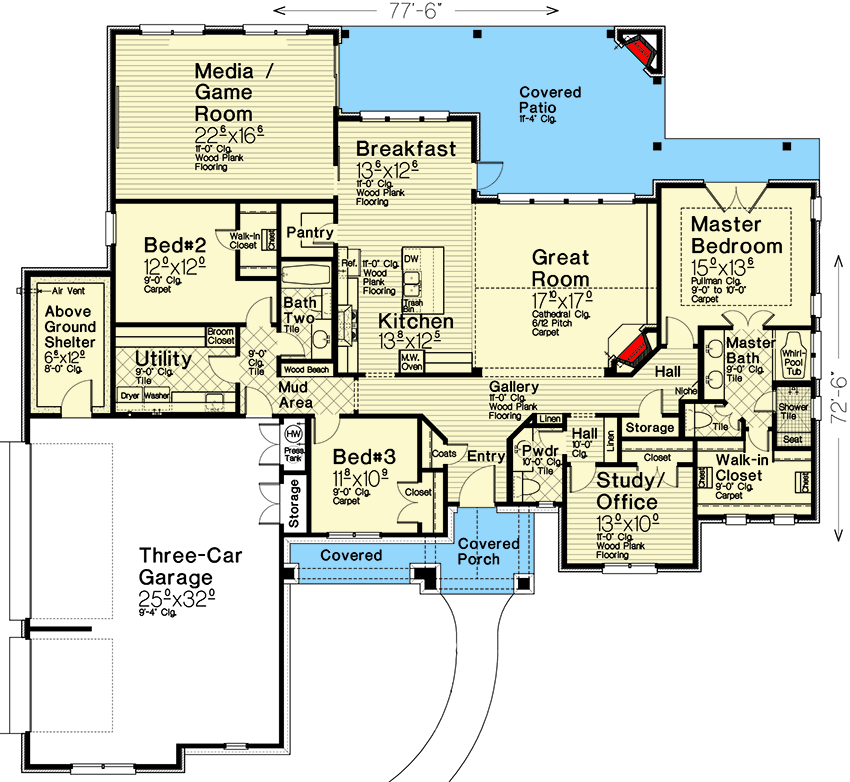

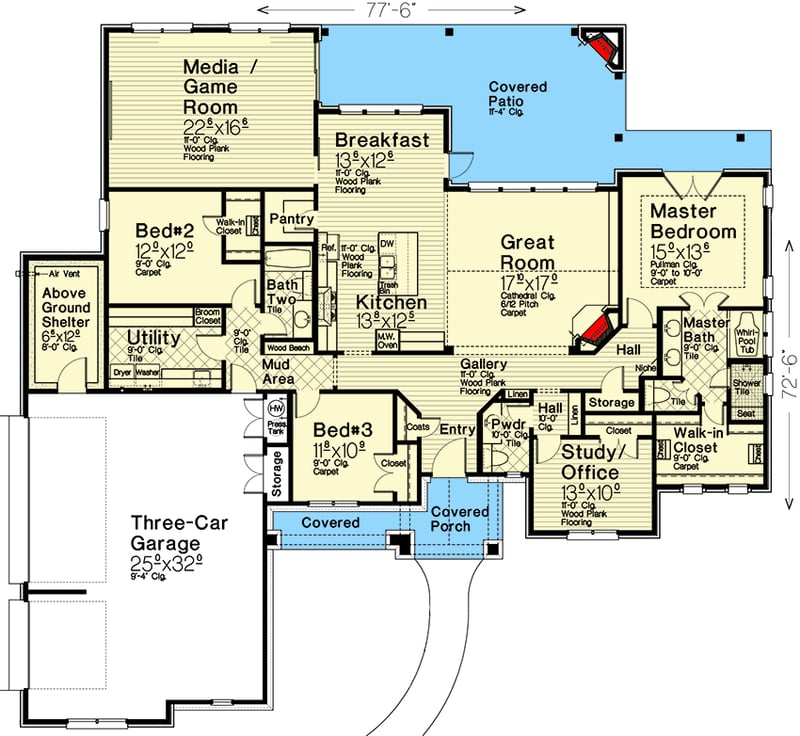

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,581 sq. ft.
  • 1st Floor: 2,581 sq. ft.

Dimensions

  • Width: 77' 6"
  • Depth: 72' 6"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 892 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
