Plan 24388TW Exclusive Craftsman Ranch Home Plan with Barndominium Car Studio

2,995 3-4 3 - 4 1-2 3-4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive Craftsman Ranch Home Plan with Barndominium Car Studio

Plan 24388TW

  • 2,995

    Heated s.f.

  • 3-4

    Beds

  • 3 - 4

    Baths

  • 1-2

    Stories

  • 3-4

    Cars

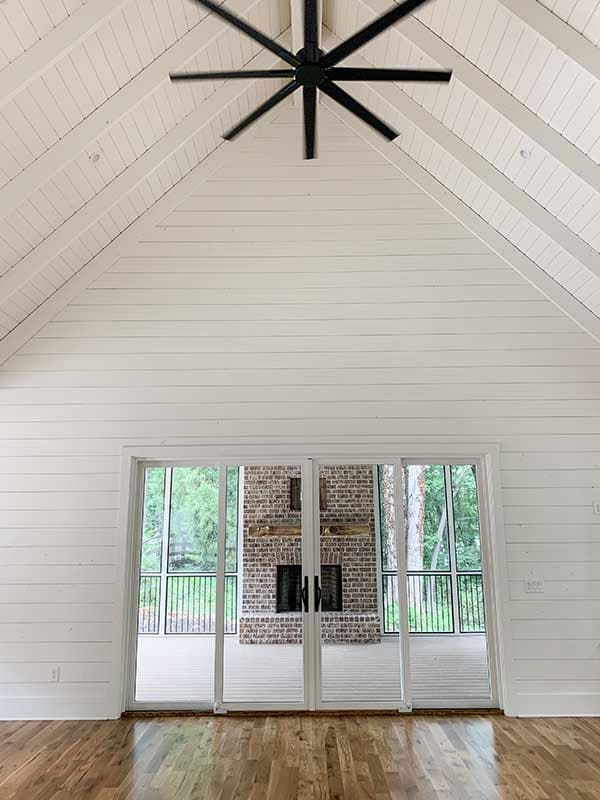

  • French doors open to reveal a vaulted interior in this 3-bed Exclusive Craftsman ranch home plan with an accompanying car barn with studio above.

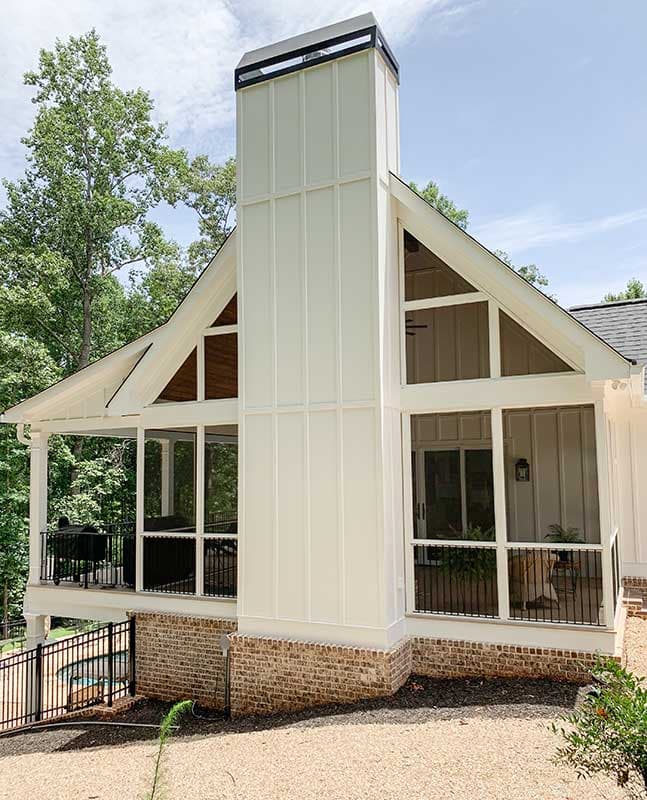

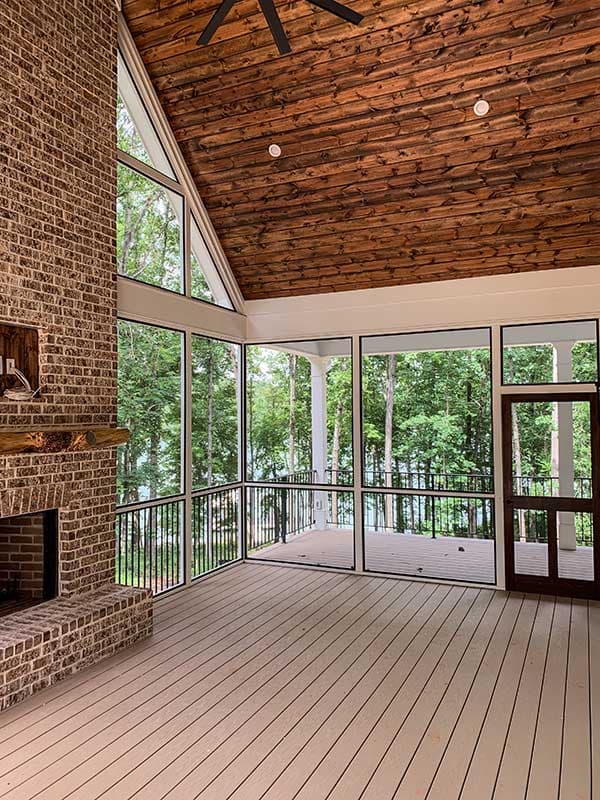

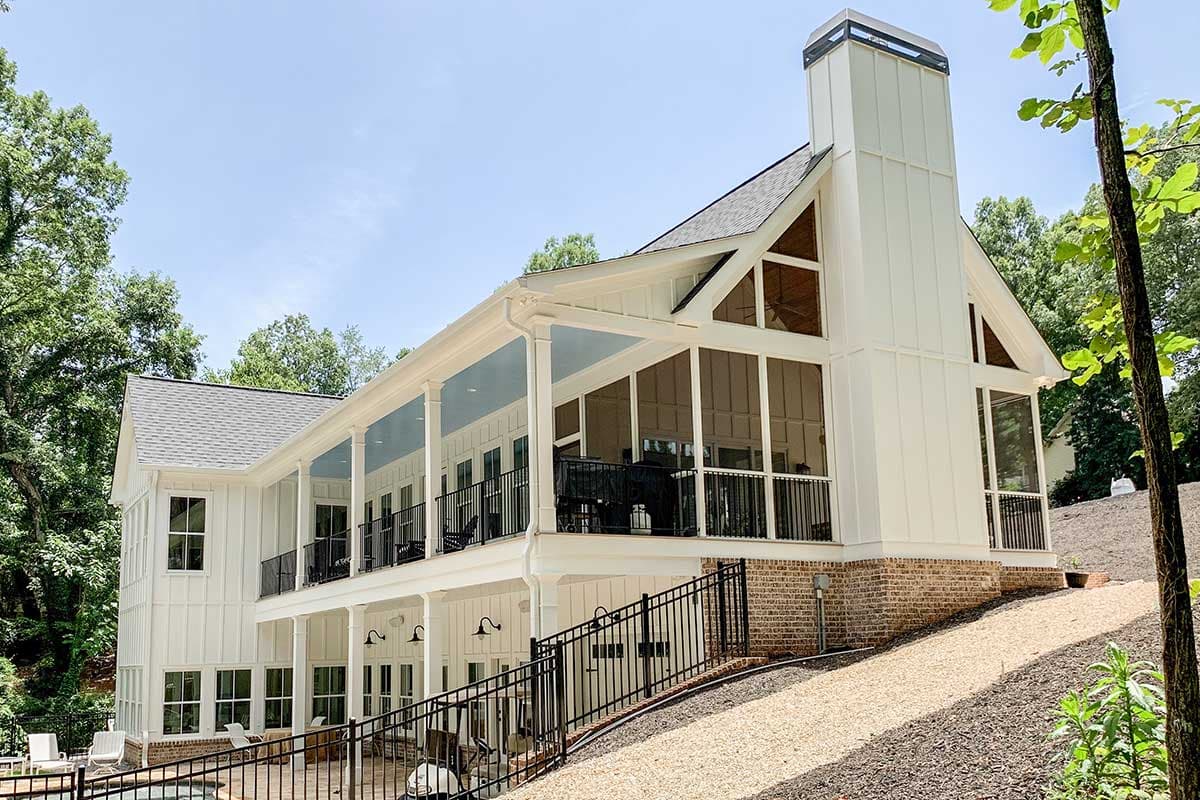

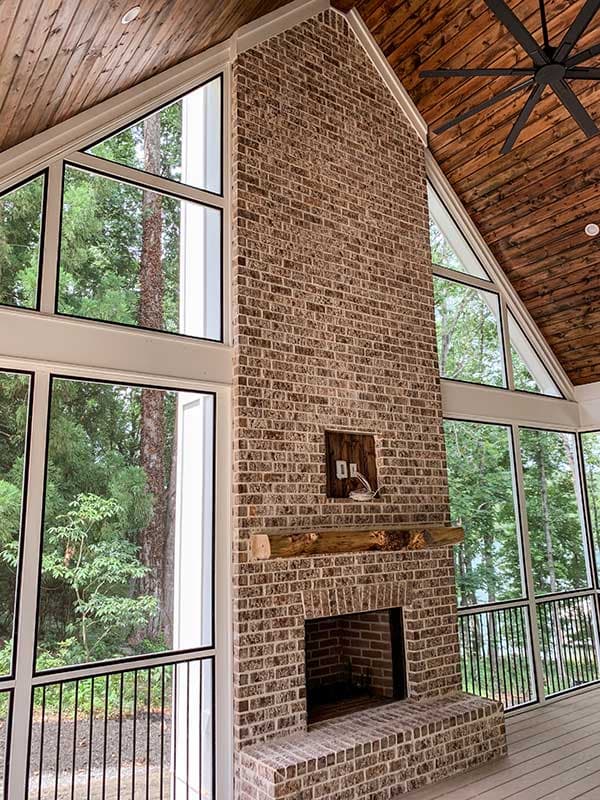

  • The vaulted space continues to the screened porch which has its own fireplace. A broad 8'-deep porch in back gives you another great space to enjoy the fresh air.

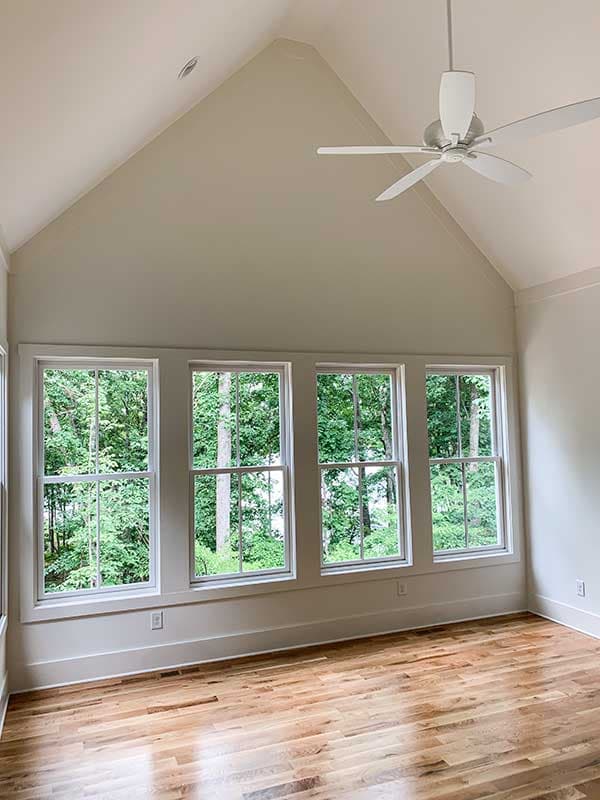

  • Your master suite is vaulted and has great views to the back.

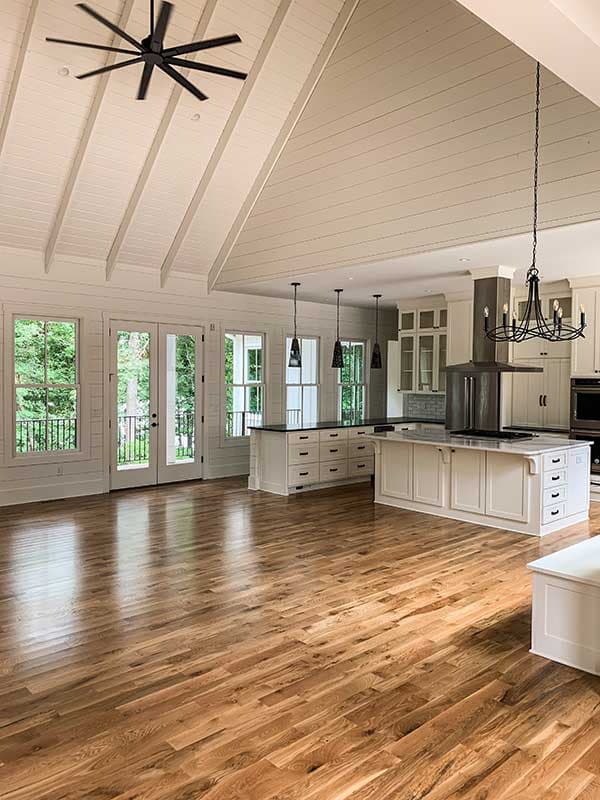

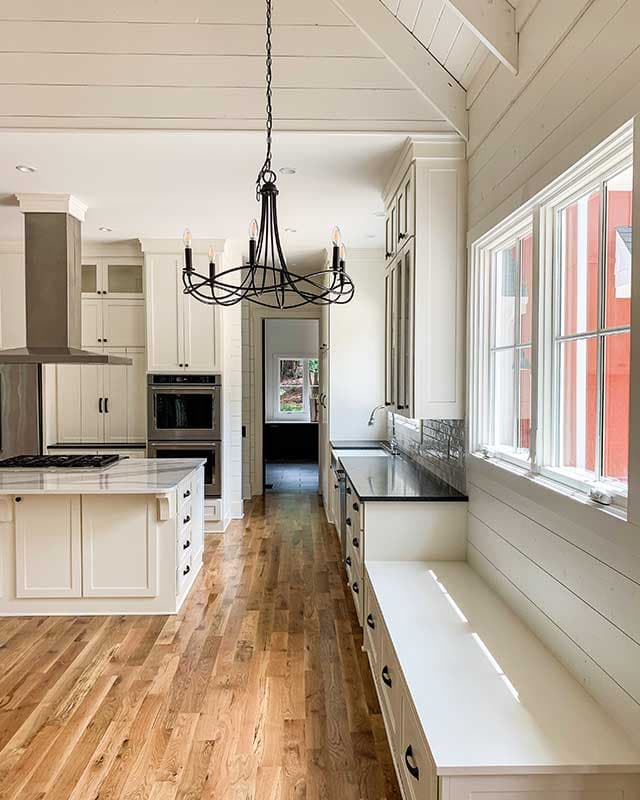

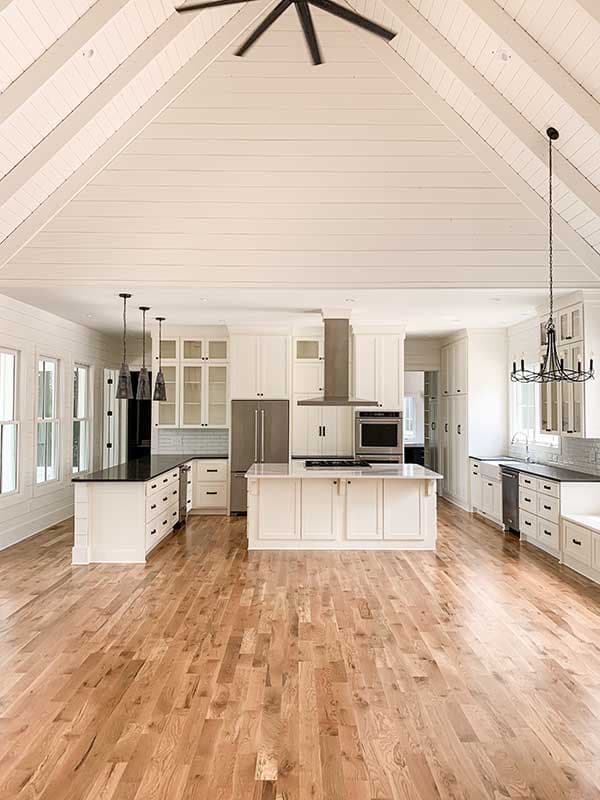

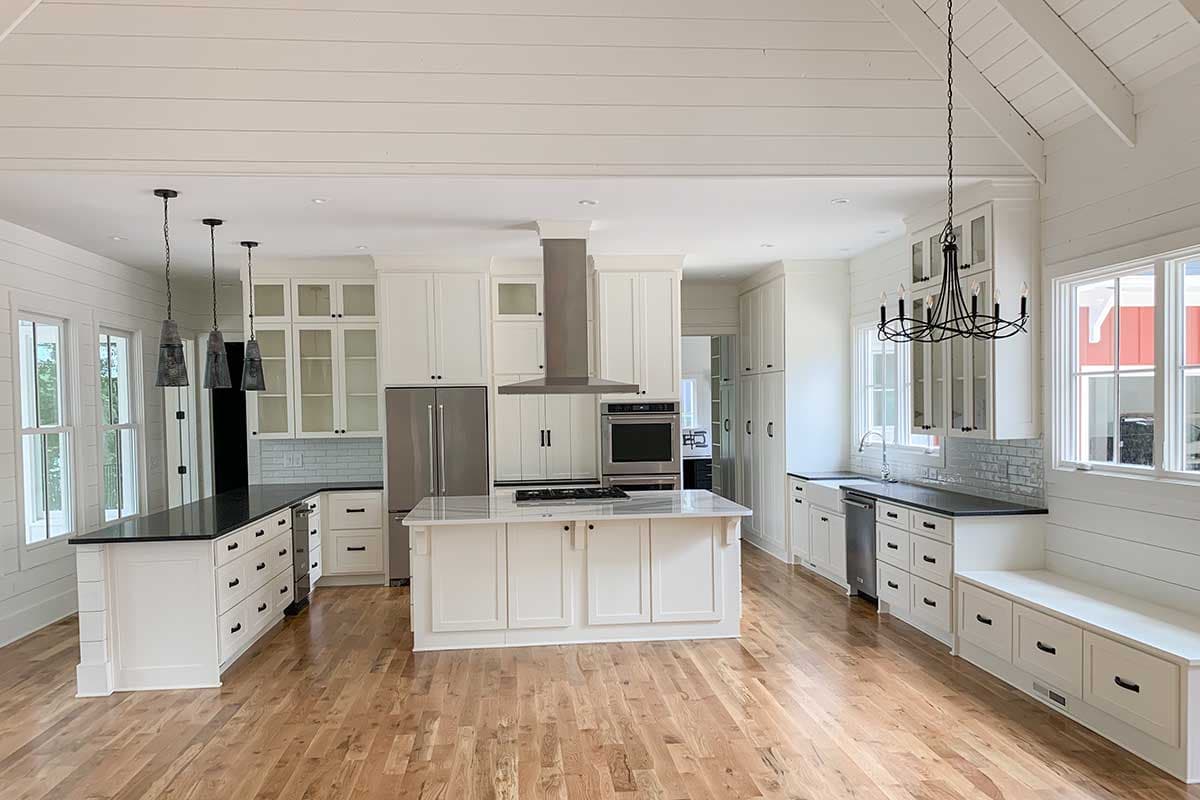

  • A large island in the kitchen has room gives you great prep space as well as casual seating.

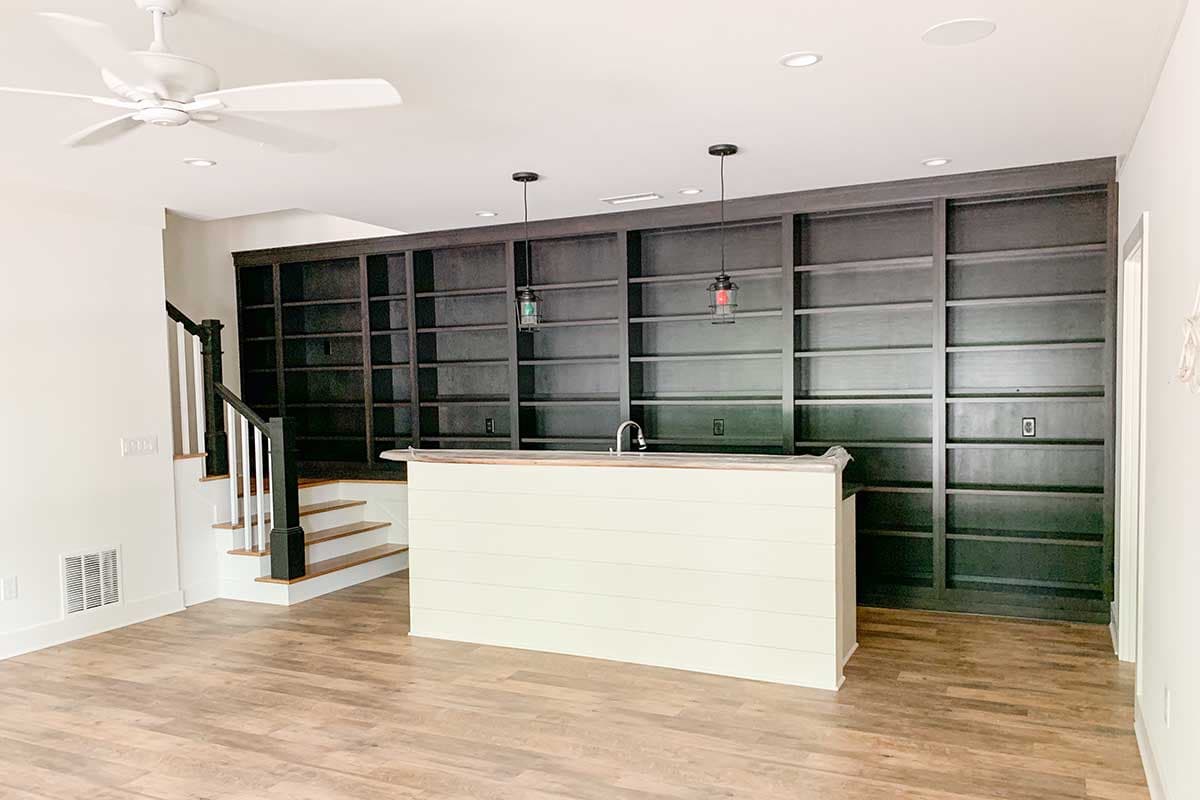

  • The finished lower level gives you two more bedrooms and a rec room with web bar.
  • The car barn has room not only for standard vehicles but also parking for your RV. Stairs go up to a studio complete with a kitchenette and full bath.

The plans include the following:

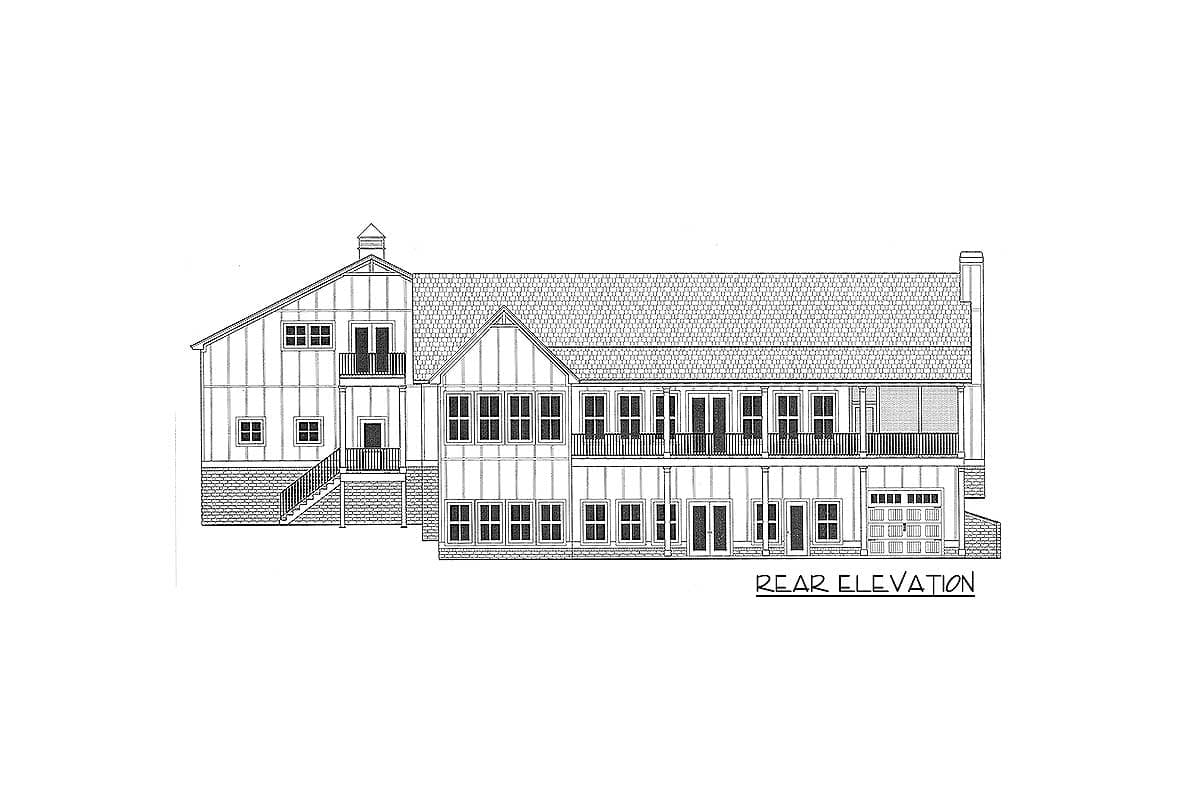

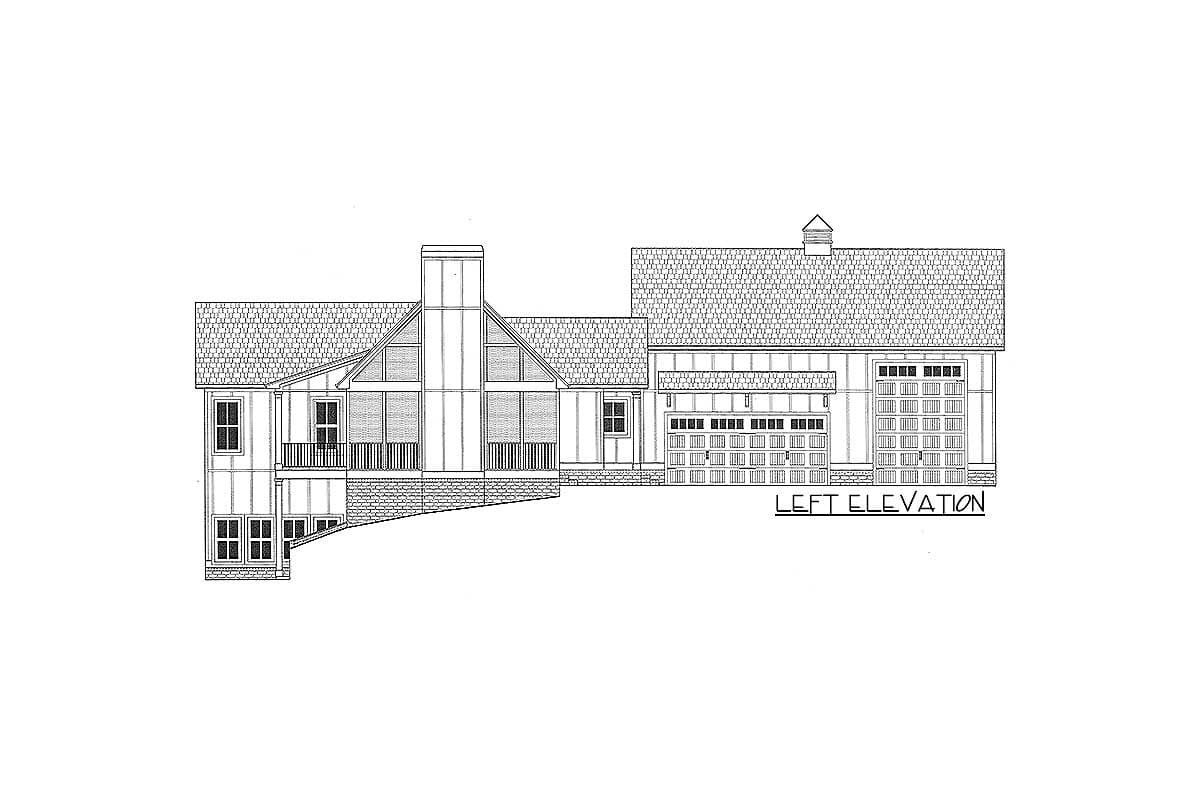

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

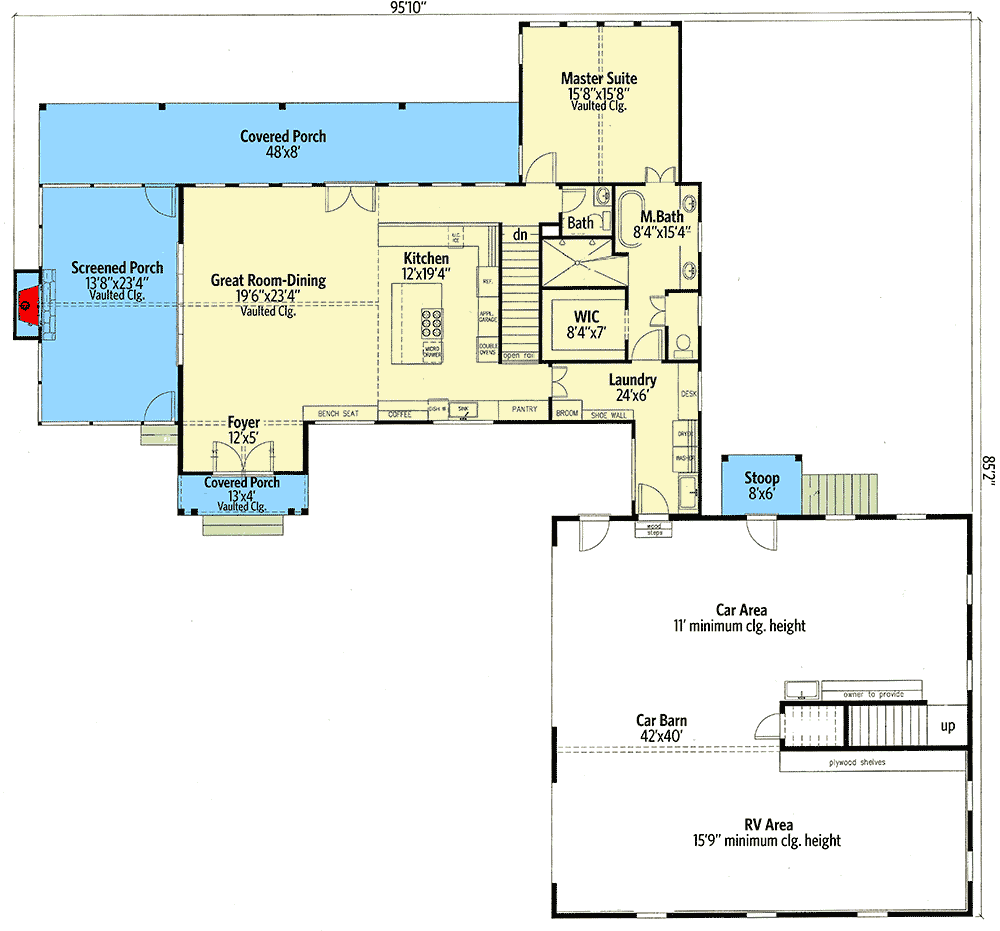

Exclusive Craftsman Ranch Home Plan with Barndominium Car Studio - 24388TW floor plan - Main Level

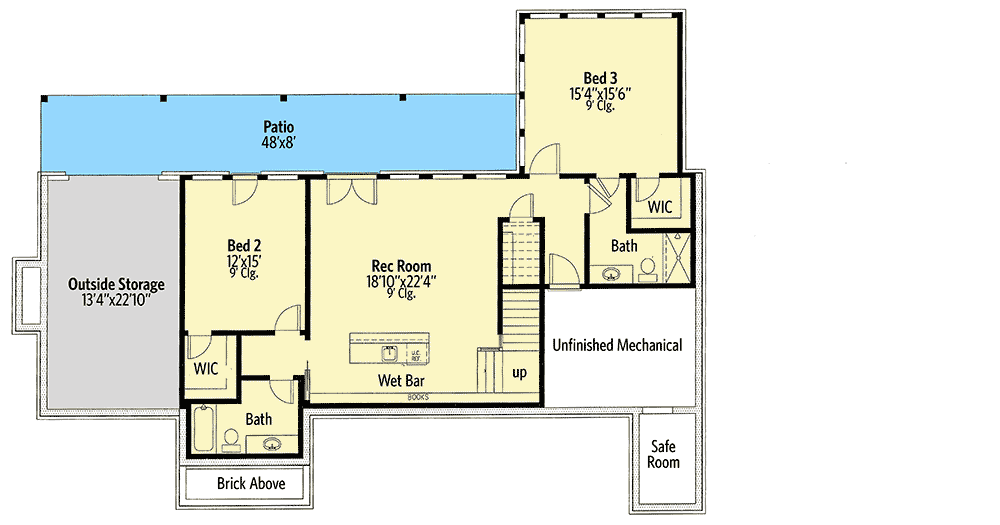

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Craftsman Ranch Home Plan with Barndominium Car Studio - 24388TW floor plan - Lower Level

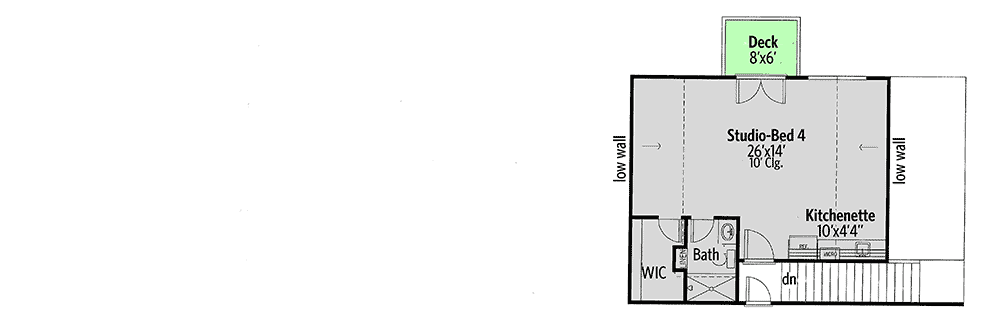

Optional Second Floor Above Garage

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Craftsman Ranch Home Plan with Barndominium Car Studio - 24388TW floor plan - Optional Second Floor Above Garage

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,995 sq. ft.
  • Lower Level: 1,345 sq. ft.
  • 1st Floor: 1,650 sq. ft.
  • Screened Porch: 336 sq. ft.
  • Porch, Rear: 384 sq. ft.
  • Porch, Front: 52 sq. ft.
  • Bonus: 574 sq. ft.
  • Basement Unfinished: 305 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 95' 10"
  • Depth: 85' 2"
  • Max ridge height: 25' 0"

Garage

  • Type: RV Garage, Attached
  • Area: 1677 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Exclusive Craftsman Ranch Home Plan with Barndominium Car Studio

  • 2,995

    Heated s.f.

  • 3-4

    Beds

  • 3 - 4

    Baths

  • 1-2

    Floors

  • 3 - 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • CAD + PDF - Single-Build $1,550
  • View all purchase option online

About This Plan

  • French doors open to reveal a vaulted interior in this 3-bed Exclusive Craftsman ranch home plan with an accompanying car barn with studio above.
  • The vaulted space continues to the screened porch which has its own fireplace. A broad 8'-deep porch in back gives you another great space to enjoy the fresh air.
  • Your master suite is vaulted and has great views to the back.
  • A large island in the kitchen has room gives you great prep space as well as casual seating.
  • The finished lower level gives you two more bedrooms and a rec room with web bar.
  • The car barn has room not only for standard vehicles but also parking for your RV. Stairs go up to a studio complete with a kitchenette and full bath.

Floor Plans

  • Main Level

  • Lower Level

  • Optional Second Floor Above Garage

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,995 sq. ft.
  • Lower Level: 1,345 sq. ft.
  • 1st Floor: 1,650 sq. ft.
  • Screened Porch: 336 sq. ft.
  • Porch, Rear: 384 sq. ft.
  • Porch, Front: 52 sq. ft.
  • Bonus: 574 sq. ft.
  • Basement Unfinished: 305 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 95' 10"
  • Depth: 85' 2"
  • Max ridge height: 25' 0"

Garage

  • Type: RV Garage, Attached
  • Area: 1677 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick And Truss
Plan 24388TW
View this and more for this plan by visiting www.architechtecturaldesigns.com/24388TW
|
