Plan: 790062GLV

Exclusive Farmhouse Plan with Second-Level Master Bed and Laundry

2,640 4 3 2 3
Pageloader

Exclusive Farmhouse Plan with Second-Level Master Bed and Laundry

Plan 790062GLV

  • 2,640

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • Country charm defines this beautiful and exclusive, 4-bedroom farmhouse plan. Board and batten siding, along with stone accents, add texture to the exterior.
  • A functional, front porch invites guests through the french doors and into a two-story foyer. A powder bath and quiet study sits to the left, while the family foyer with built-in benches sits to the right.
  • A desirable,  open-concept floor plan, consisting of the great room, kitchen, and dining area, provides a comfortable space for everyday living. An oversized, kitchen island offers seating for casual meals, and plenty of natural light filters through the large windows.
  • The master bedroom resides on the second level and includes a sprawling walk-in closet and a bathroom with two sinks, a shower enclosure, and a toilet room. The laundry room is centrally located for ease of use.
  • Two nearly identical bedrooms sit next to a 4-fixture bathroom with a separate room for the toilet and tub, and a fourth bedroom lies above the garage.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations (when available)

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Plan details



Exclusive Farmhouse Plan with Second-Level Master Bed and Laundry

  • 2,640

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $1,000
  • PDF - single-use $1,800
  • 5 Sets $1,800
  • CAD $3,600
  • View all purchase option online

About This Plan

  • Country charm defines this beautiful and exclusive, 4-bedroom farmhouse plan. Board and batten siding, along with stone accents, add texture to the exterior.
  • A functional, front porch invites guests through the french doors and into a two-story foyer. A powder bath and quiet study sits to the left, while the family foyer with built-in benches sits to the right.
  • A desirable,  open-concept floor plan, consisting of the great room, kitchen, and dining area, provides a comfortable space for everyday living. An oversized, kitchen island offers seating for casual meals, and plenty of natural light filters through the large windows.
  • The master bedroom resides on the second level and includes a sprawling walk-in closet and a bathroom with two sinks, a shower enclosure, and a toilet room. The laundry room is centrally located for ease of use.
  • Two nearly identical bedrooms sit next to a 4-fixture bathroom with a separate room for the toilet and tub, and a fourth bedroom lies above the garage.

Floor Plans

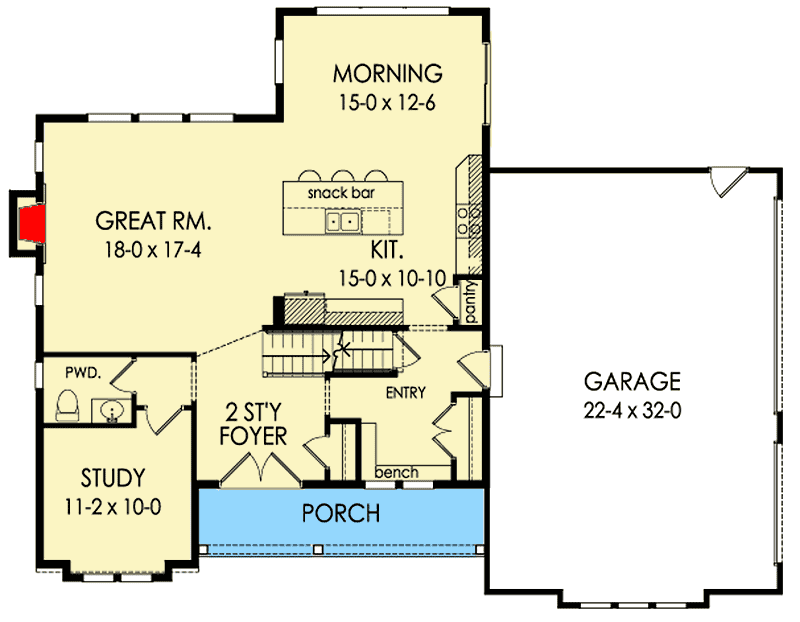

  • Main Level

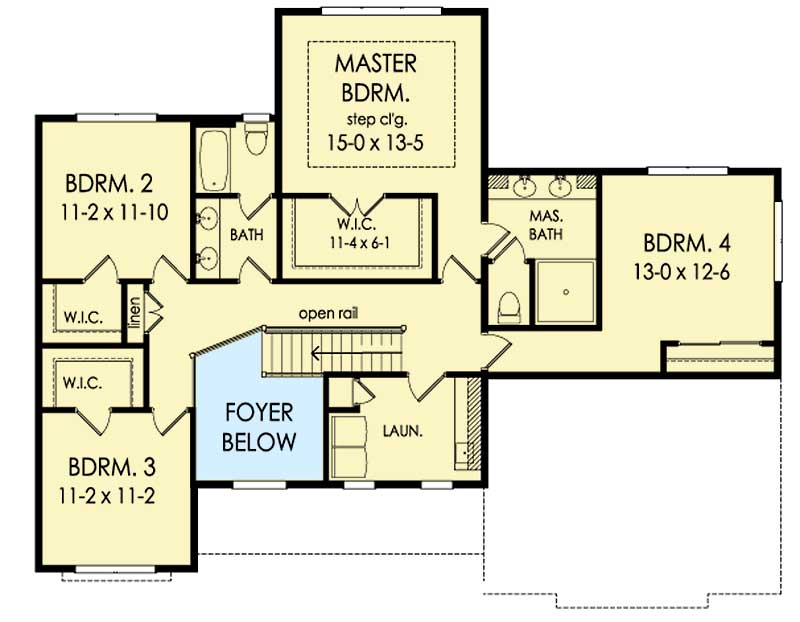

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,640 sq. ft.
  • 1st Floor: 1,135 sq. ft.
  • 2nd Floor: 1,505 sq. ft.
  • Porch, Combined: 106 sq. ft.
  • Basement Unfinished: 1,161 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 45' 0"
  • Max ridge height: 31' 6"

Garage

  • Type: Attached
  • Area: 718 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss

Architectural Style

  • Country
  • Farmhouse

Special features

  • 2nd Floor Laundry
  • 2nd Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • PDF

Plan Collections

  • Exclusive
