Exclusive Hill Country House Plan with Porte Cochere and Unique Angled Master Suite

Plan 48605FM

  • 4,589

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • Exposed rafter tails add to the immense curb appeal on this exclusive, Hill Country house plan, wrapped in stone and stucco.
  • Two double garages attach to the right side of home, creating a parking courtyard.
  • Once inside, enjoy clean sightlines from the entry to the adjacent dining room and great room. Oversized glass doors create a seamless flow between the indoor and outdoor living spaces.
  • The uniquely angled master suite shares the left side of the home with a quiet study, while the deluxe master bathroom resembles a spa with its grand size and large tile shower. A recreation room and guest suite complete the main level.
  • Upstairs, a built-in desk lines the hallway that connects two additional bedroom suites, and a second laundry room serves as a bonus.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

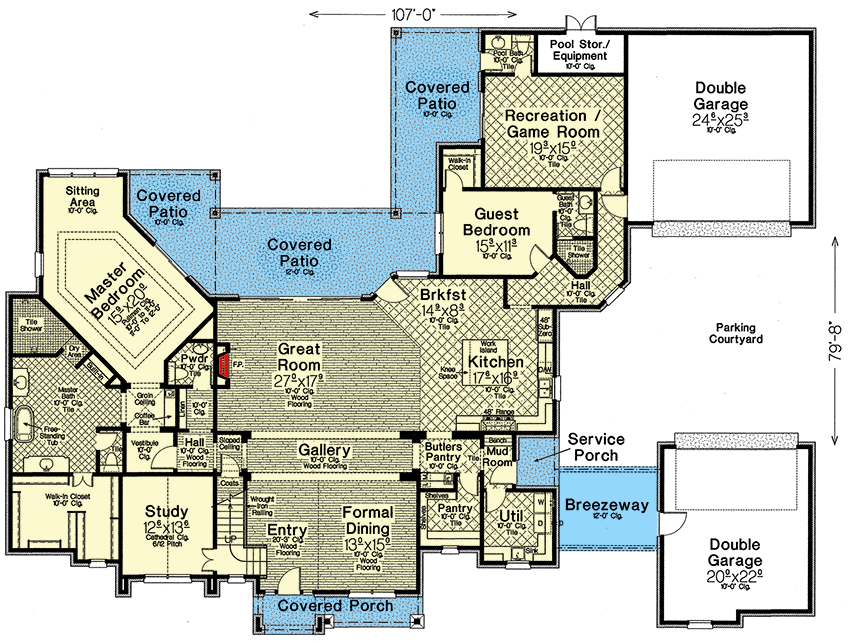

Exclusive Hill Country House Plan with Porte Cochere and Unique Angled Master Suite - 48605FM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

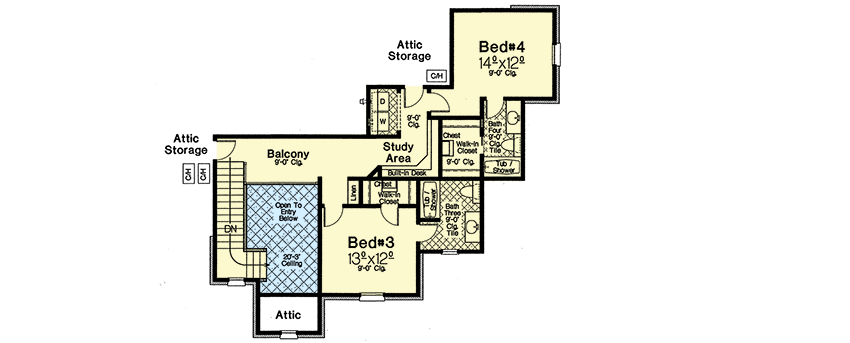

Exclusive Hill Country House Plan with Porte Cochere and Unique Angled Master Suite - 48605FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,589 sq. ft.
  • 1st Floor: 3,779 sq. ft.
  • 2nd Floor: 810 sq. ft.
  • Covered Patio: 667 sq. ft.
  • Porch, Front: 99 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 107' 0"
  • Depth: 79' 8"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1143 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12

Architectural Style

Special features

Plan Collections

Exclusive Hill Country House Plan with Porte Cochere and Unique Angled Master Suite

  • 4,589

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 5 Sets $1,990
  • 8 Sets $2,130
  • PDF - Single-Build $2,280
  • PDF - Unlimited Build $2,780
  • CAD - Single-Build $3,621
  • CAD - Unlimited Build $4,621
  • View all purchase option online

About This Plan

  • Exposed rafter tails add to the immense curb appeal on this exclusive, Hill Country house plan, wrapped in stone and stucco.
  • Two double garages attach to the right side of home, creating a parking courtyard.
  • Once inside, enjoy clean sightlines from the entry to the adjacent dining room and great room. Oversized glass doors create a seamless flow between the indoor and outdoor living spaces.
  • The uniquely angled master suite shares the left side of the home with a quiet study, while the deluxe master bathroom resembles a spa with its grand size and large tile shower. A recreation room and guest suite complete the main level.
  • Upstairs, a built-in desk lines the hallway that connects two additional bedroom suites, and a second laundry room serves as a bonus.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,589 sq. ft.
  • 1st Floor: 3,779 sq. ft.
  • 2nd Floor: 810 sq. ft.
  • Covered Patio: 667 sq. ft.
  • Porch, Front: 99 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 107' 0"
  • Depth: 79' 8"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1143 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
Plan 48605FM
