Exclusive Master-On-Main Farmhouse Cottage Plan

Plan 500036VV

  • 2,651

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • A master-on-main is a nice touch on this 4-bed exclusive modern farmhouse plan.
  • The front porch is 8'4"-deep making it perfect for a rocking chair. Or three.
  • A fireplace anchors the living room which is at the center of the open concept layout.
  • The kids' bedrooms upstairs and share a bathroom with two sinks. A large playroom and a closet - for linens or for toys - completes the floor.
  • Related Plan: Get a larger version and a detached garage with house plan 500018VV (3,134 sq. ft.).

This house plan includes the following:
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

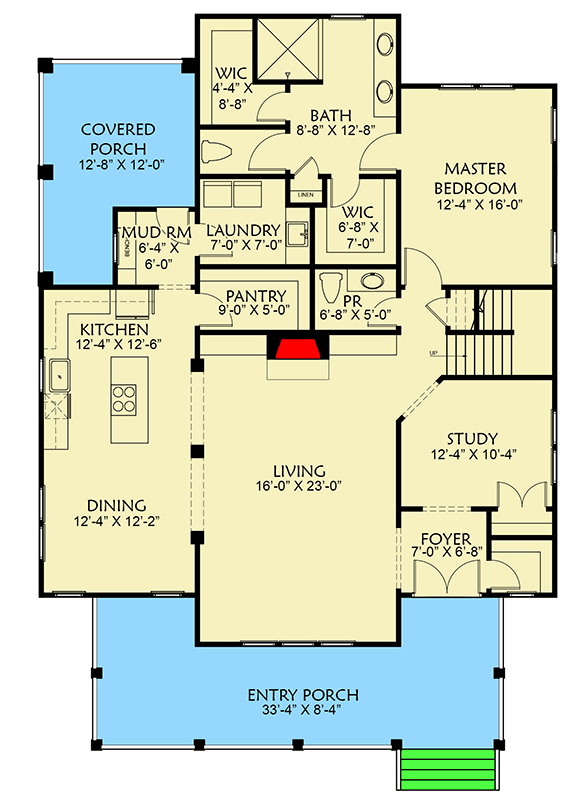

Exclusive Master-On-Main Farmhouse Cottage Plan - 500036VV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

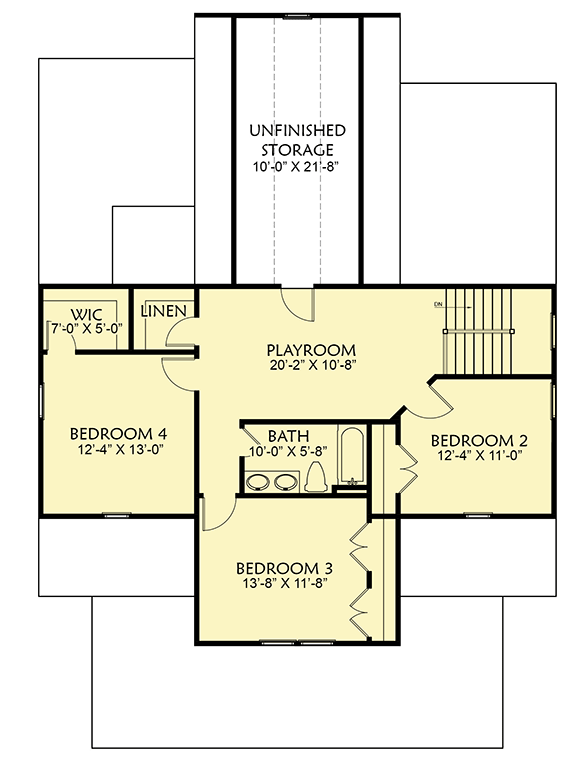

Exclusive Master-On-Main Farmhouse Cottage Plan - 500036VV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,651 sq. ft.
  • 1st Floor: 1,746 sq. ft.
  • 2nd Floor: 905 sq. ft.
  • Storage: 235 sq. ft.
  • Entry: 344 sq. ft.
  • Porch, Rear: 190 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 59' 8"
  • Max ridge height: 27' 8"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Exclusive Master-On-Main Farmhouse Cottage Plan

  • 2,651

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD - Single-Build $2,595
  • CAD - Unlimited Build $3,095
  • View all purchase option online
