Plan 910012WHD
EXCLUSIVE
Exclusive Modern Farmhouse Plan with Optional Finished Lower Level
Heated S.F.
2,506
Beds
3-5
Baths
2.5 - 3.5
Stories
1
What's Included
Floor Plan
PRINT PLANS

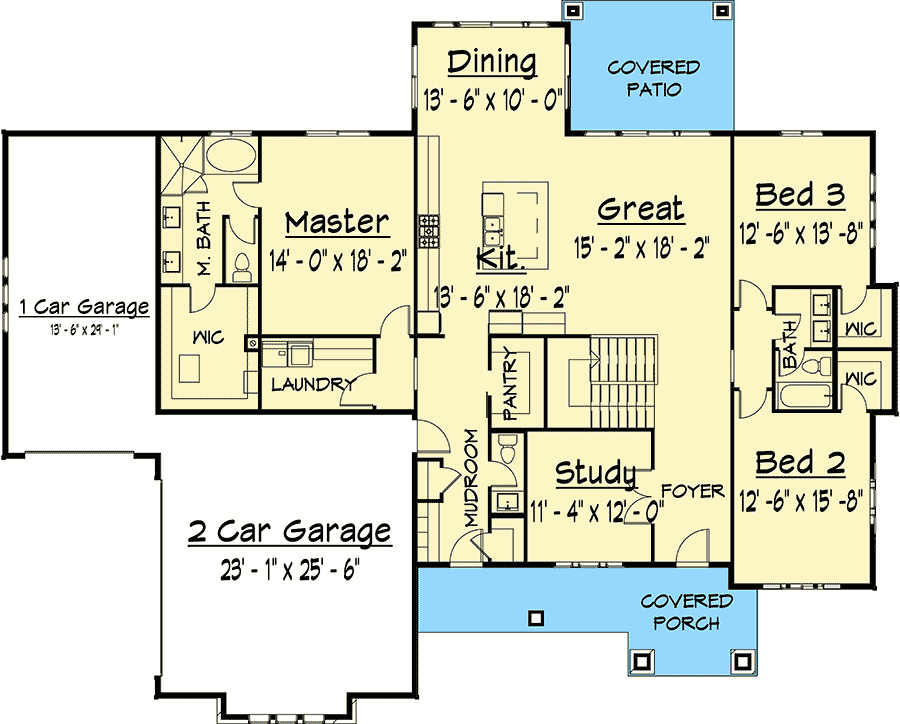

Main Level
Reverse Floor Plan
Exclusive Modern Farmhouse Plan with Optional Finished Lower Level - 910012WHD floor plan - Main Level
Optional Lower Level
Reverse Floor Plan
Exclusive Modern Farmhouse Plan with Optional Finished Lower Level - 910012WHD floor plan - Optional Lower Level
Plan Details

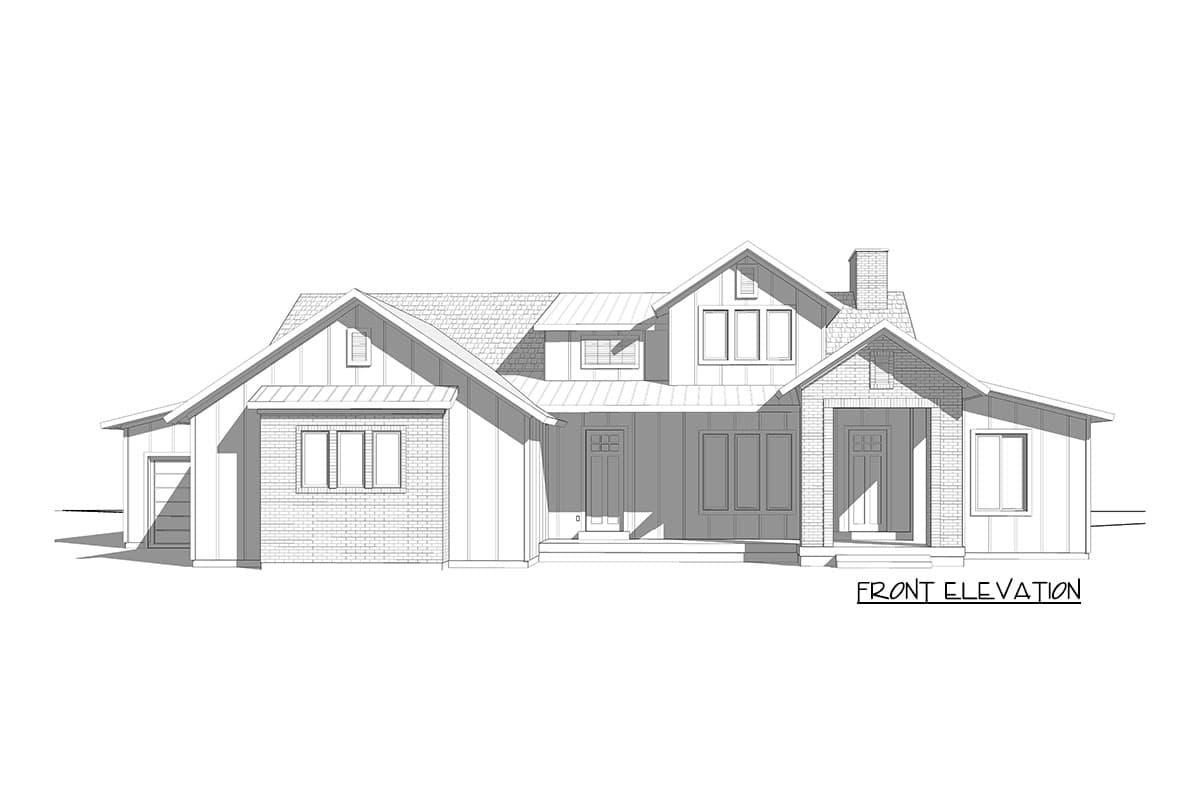

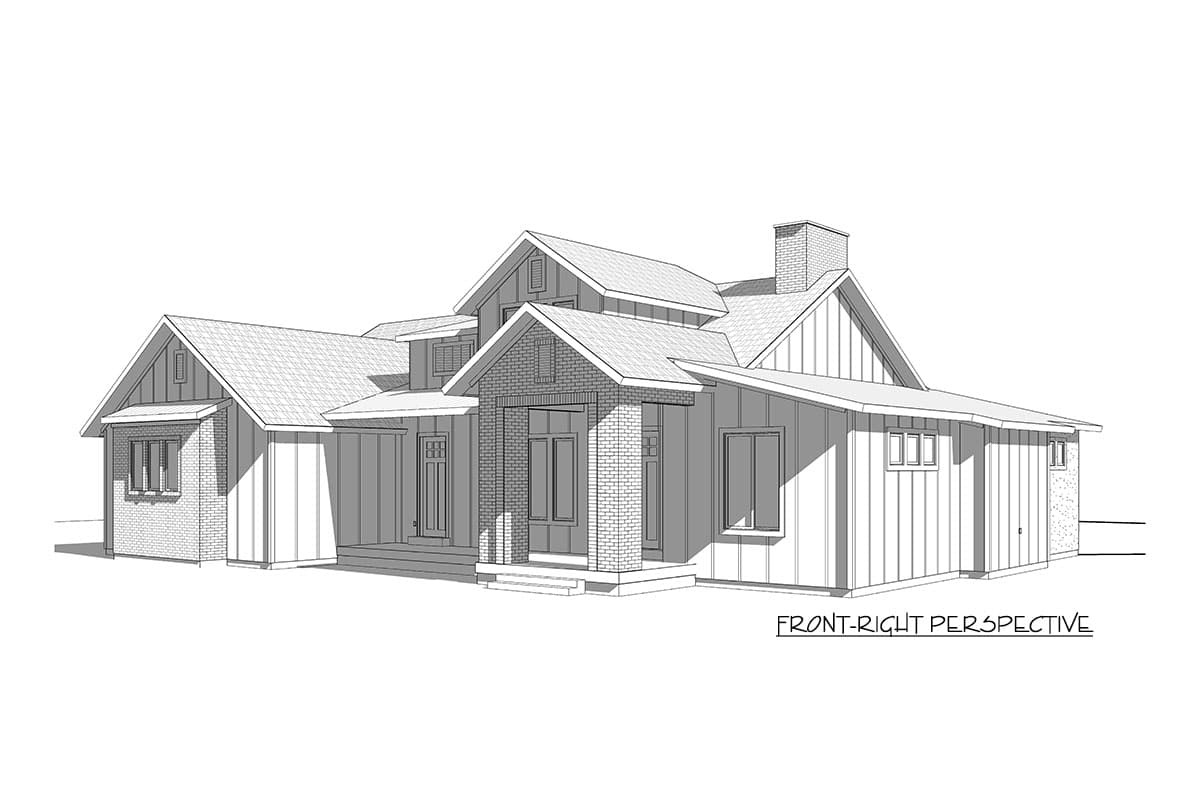

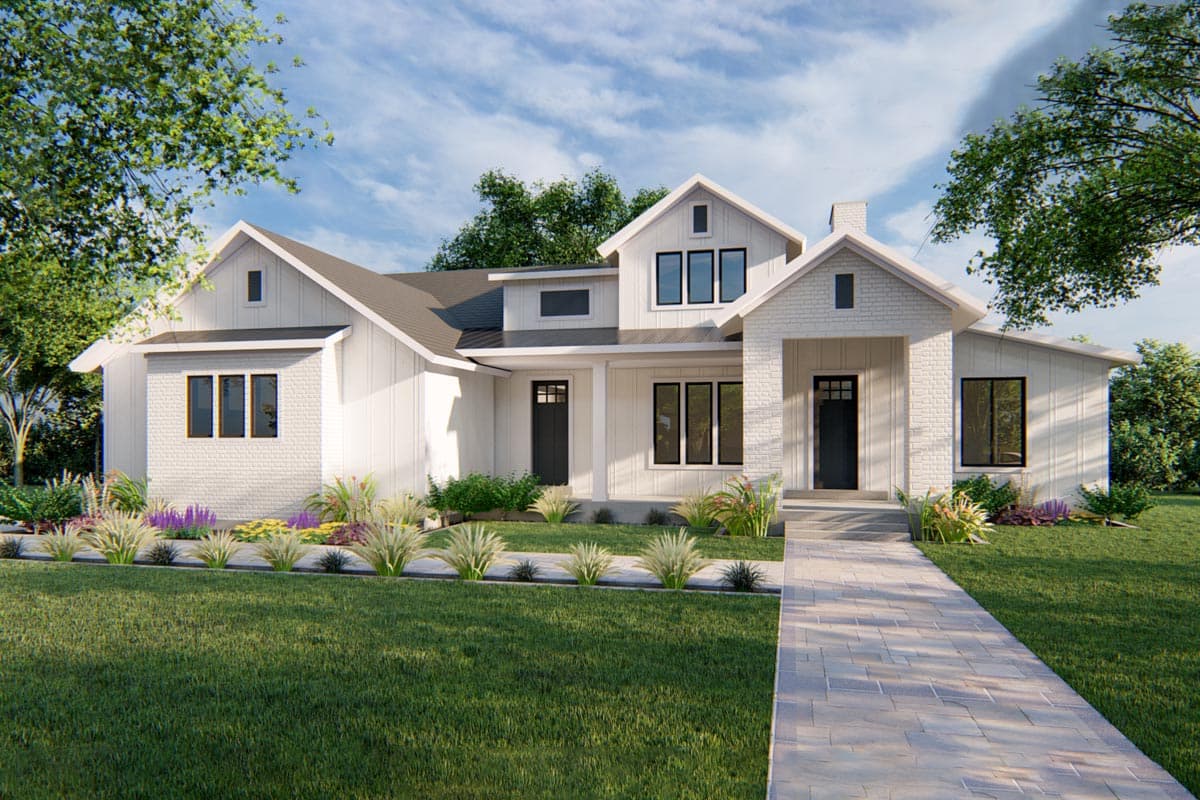

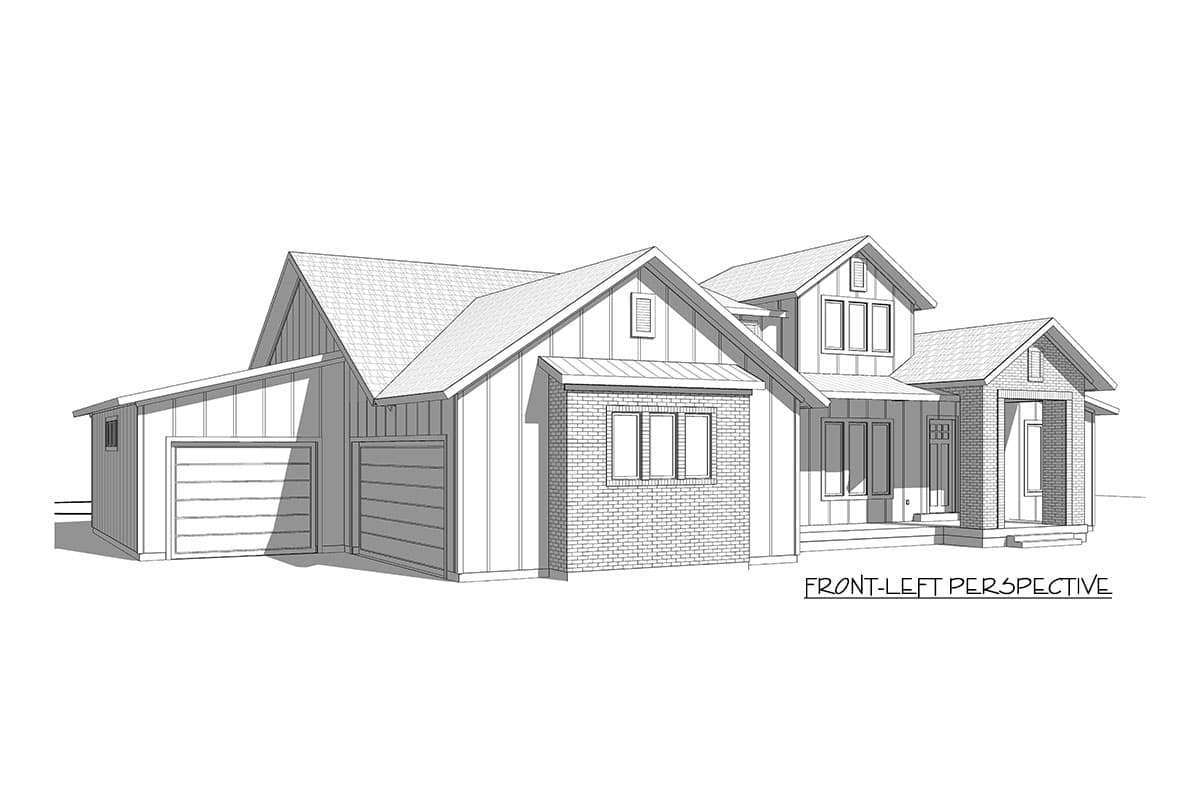

  • This modern farmhouse plan, exclusive to Architectural Designs, has a combination of brick and board and batten on the exterior with a shed dormer and covered entry and two gables, one with a box bay window.
  • From the front porch, guests are welcome to enter through the formal entry, where a private study resides behind french doors, or family and friends may enter through the family foyer, which leads into a mudroom with a powder bath.

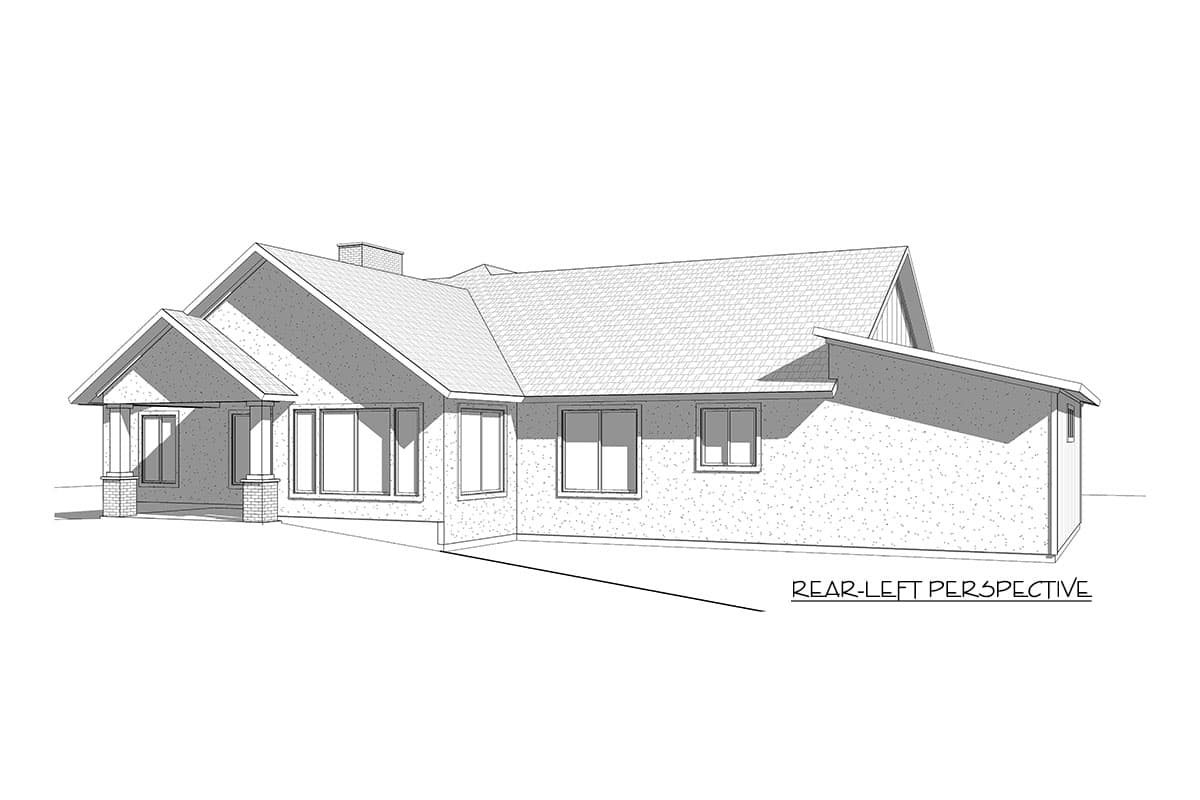

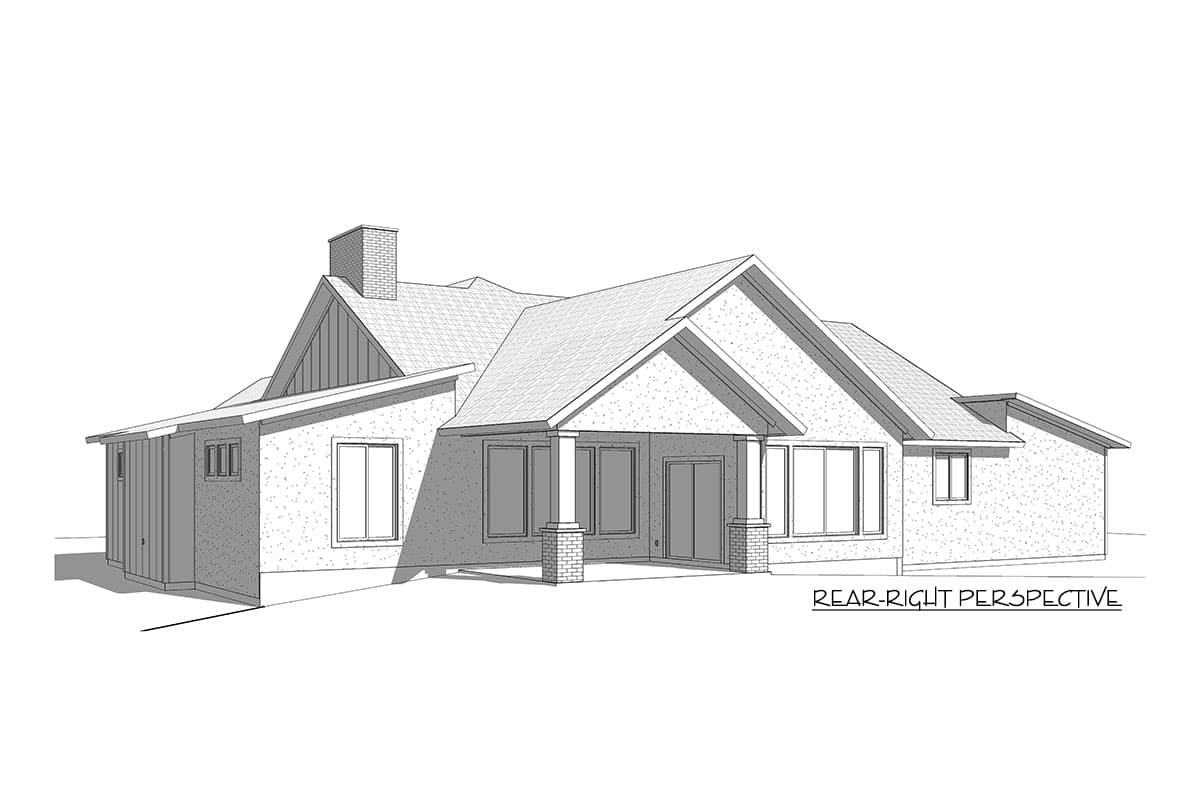

  • The open layout is towards the back of the home, which takes advantage of the rearward views, and extends onto a covered patio for outdoor enjoyment.
  • The master suite is nestled next to the 3-car garage, and includes a 5-fixture bath and walk-in closet. Close proximity to the laundry room is an added bonus. Bedrooms 2 and 3, on the opposite side of the home, share the hall bath.
  • Finish the lower level as designed and increase living space by 2,377 sq. ft. Discover a spacious family / game room with a wet bar, exercise room, theater, and two bedrooms sharing a bath.
  • Related Plans: Get an alternate exterior with house plans 910007WHD and 910008WHD.
What's Included
This house plan includes:
  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive Modern Farmhouse Plan with Optional Finished Lower Level

  • 2,506

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,506 sq. ft.
  • 1st Floor: 2,506 sq. ft.

Dimensions

  • Width: 82' 0"
  • Depth: 66' 0"
  • Max ridge height: 24' 9"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1062 sq. ft.
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Stick And Truss
