Exclusive Modern House Plan with Vaulted Casita and Wine Room

Plan 85248MS

  • 3,045

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Slanted shed roof lines add excitement to this Modern house plan (exclusive to Architectural Designs!) that has 11' high ceilings on the main floor.
  • The kitchen boasts a generous island and walk-in pantry and has marvelous views of the open great room and dining area.
  • A covered rear deck lies in full view.
  • There is a fully functional independent-living Casita ideal for in-laws or guest.
  • Use the den as an additional bedroom if desired.
  • On the fully finished lower level you get a 3rd bedroom, bathroom, bonus room and wine room.

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

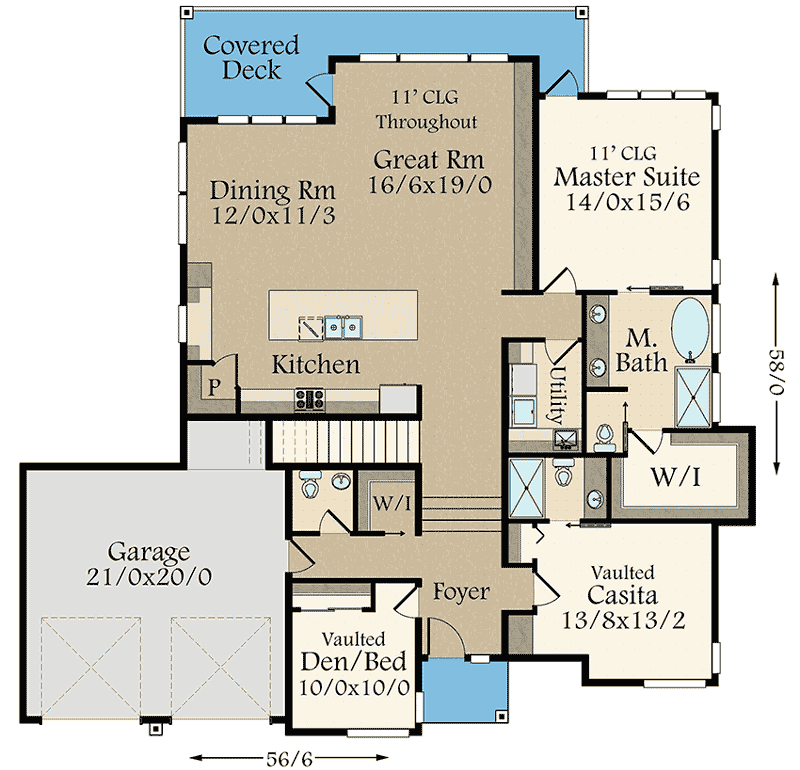

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Modern House Plan with Vaulted Casita and Wine Room - 85248MS floor plan - Main Level

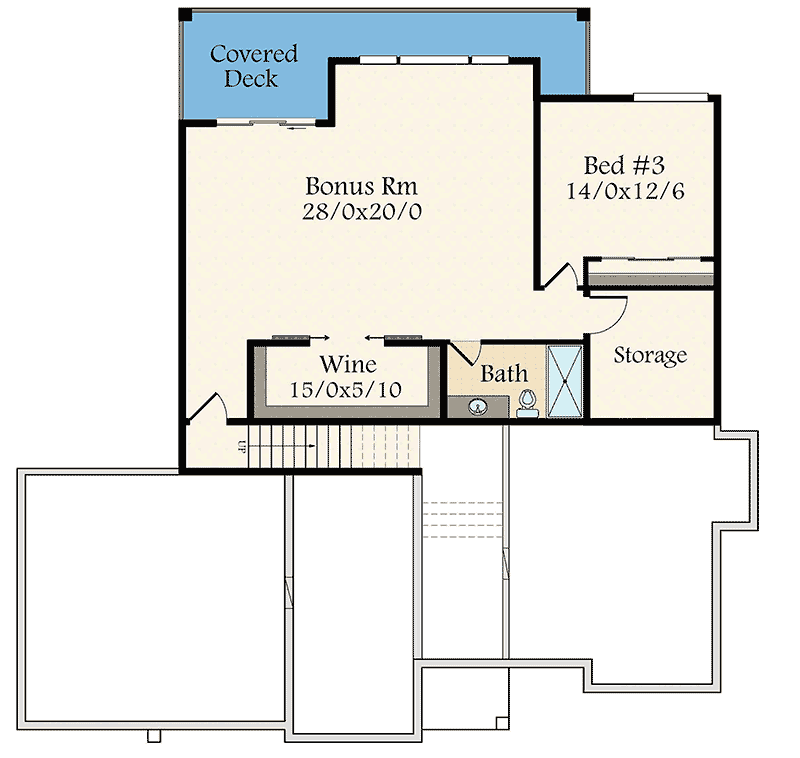

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Modern House Plan with Vaulted Casita and Wine Room - 85248MS floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,045 sq. ft.
  • Lower Level: 1,066 sq. ft.
  • 1st Floor: 1,979 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 6"
  • Depth: 58' 0"
  • Max ridge height: 16' 0"

Garage

  • Type: Attached
  • Area: 477 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"
Room Details Ceiling Type Width Depth Height
Den Vaulted

Architectural Style

Special features

Plan Collections

Exclusive Modern House Plan with Vaulted Casita and Wine Room

  • 3,045

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,796
  • 6 Sets + PDF $2,131
  • CAD + PDF - Single-Build $3,045
  • View all purchase option online

About This Plan

  • Slanted shed roof lines add excitement to this Modern house plan (exclusive to Architectural Designs!) that has 11' high ceilings on the main floor.
  • The kitchen boasts a generous island and walk-in pantry and has marvelous views of the open great room and dining area.
  • A covered rear deck lies in full view.
  • There is a fully functional independent-living Casita ideal for in-laws or guest.
  • Use the den as an additional bedroom if desired.
  • On the fully finished lower level you get a 3rd bedroom, bathroom, bonus room and wine room.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,045 sq. ft.
  • Lower Level: 1,066 sq. ft.
  • 1st Floor: 1,979 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 6"
  • Depth: 58' 0"
  • Max ridge height: 16' 0"

Garage

  • Type: Attached
  • Area: 477 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"
