Plan 64504SC
EXCLUSIVE
Exclusive Modern Split Bedroom Modern Farmhouse Plan with Large Covered Patio
Heated S.F.
2,697
Beds
4
Baths
3.5
Stories
2
Cars
2
Flyer
What's Included
Plan Details
  • This modern farmhouse plan gives has a broad front porch and large covered patio in back giving you two places to enjoy the fresh air and shade.
  • Step in off the front porch and behold the open floor plan with views extending across the vaulted living room to the covered patio in back.
  • The kitchen has a conveniently located walk-in pantry and an island with casual seating for up to four.
  • A split bedroom layout maximizes your privacy with the master suite set off on the left side of the home. A large walk-in closet, accessible from the 5-fixture bath, has direct access to the laundry room. Across the home, two bedrooms share a Jack and Jill bath and have walk-in closets of their own.
  • The home comes with bonus space over the garage that can be put to many uses.
  • Enjoy entertaining out back on the covered patio. At 16'11" at its deepest, it gives you plenty of room for furniture.
  • Related Plans: Reposition the garage to the back with house plans 64501SC, 64471SC and 64464SC.
What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.

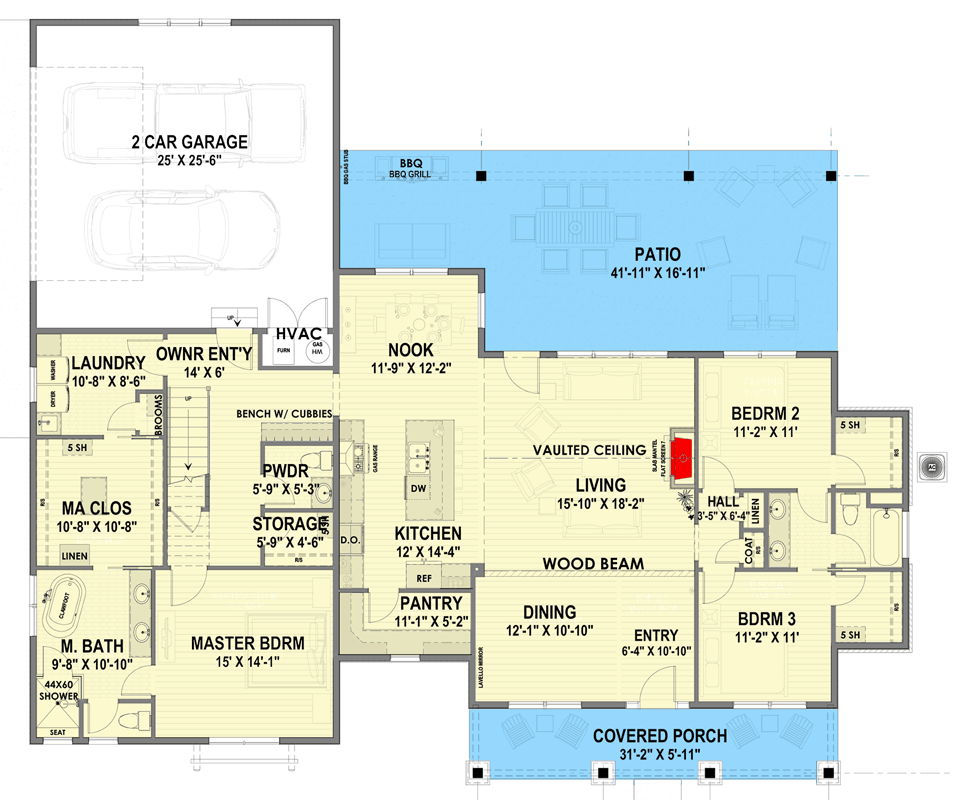

  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

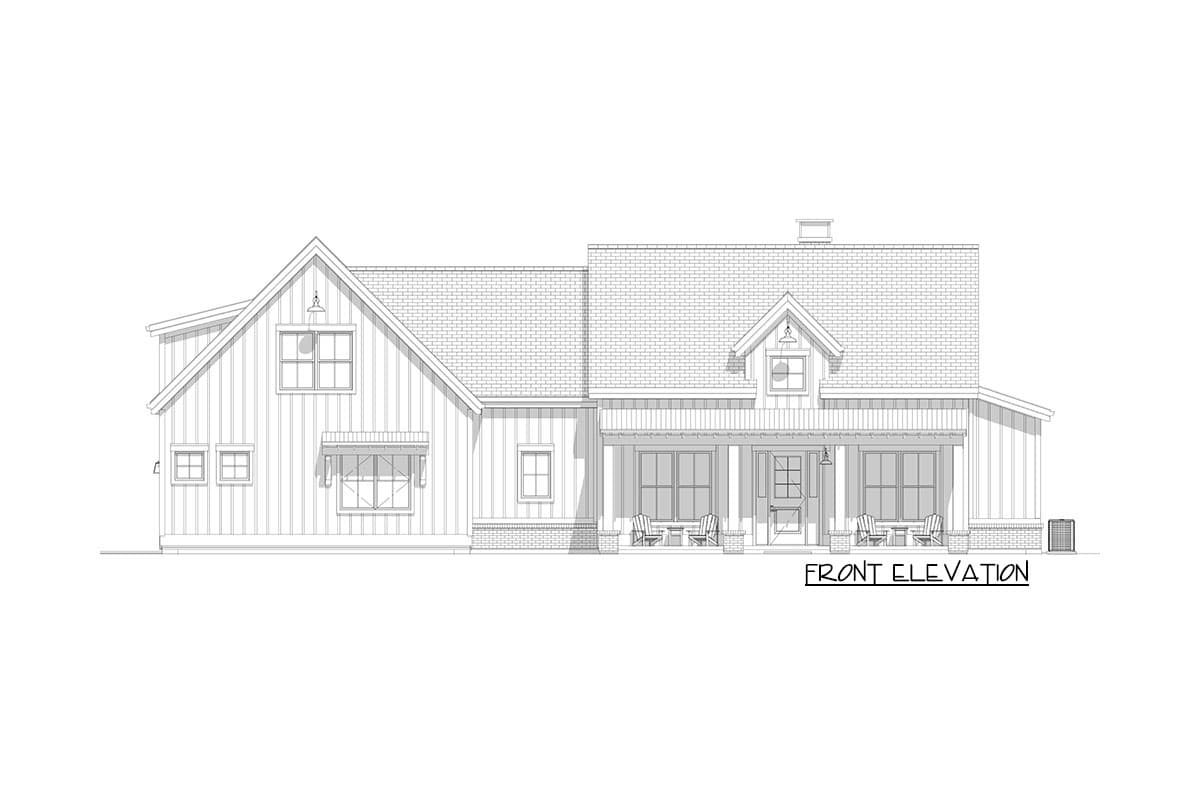

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

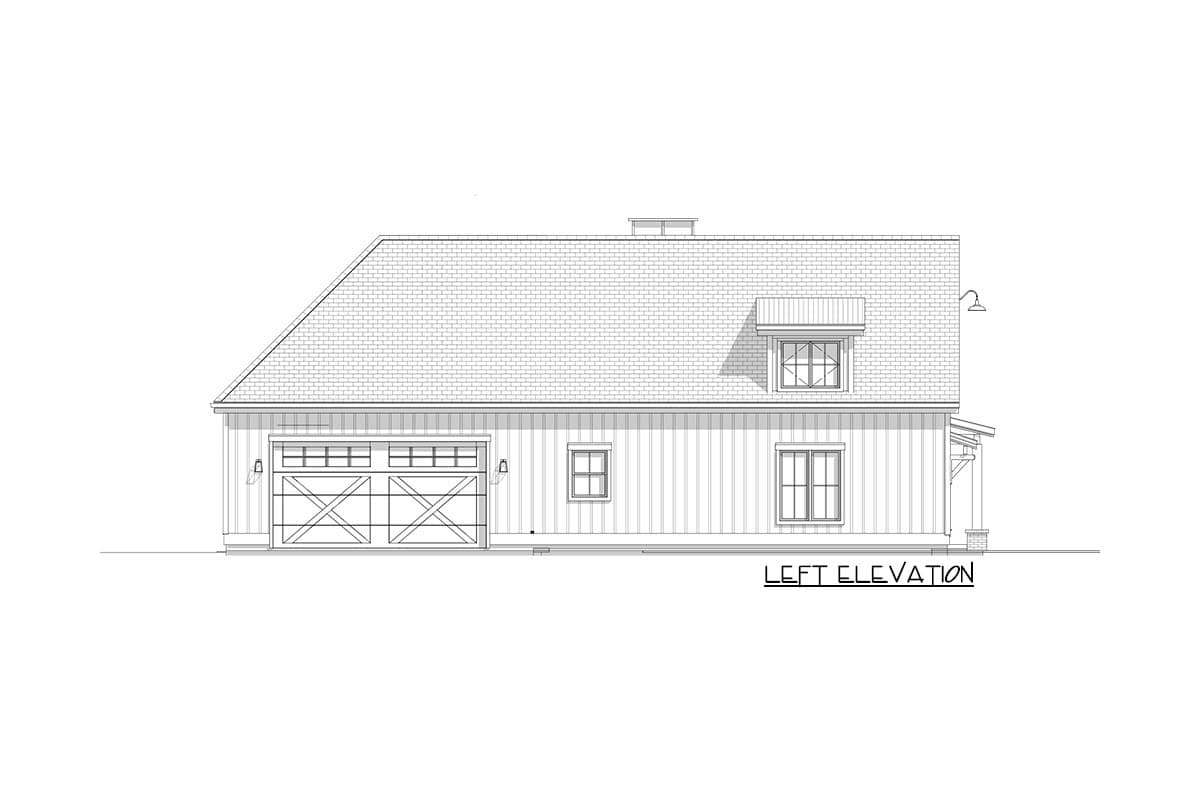

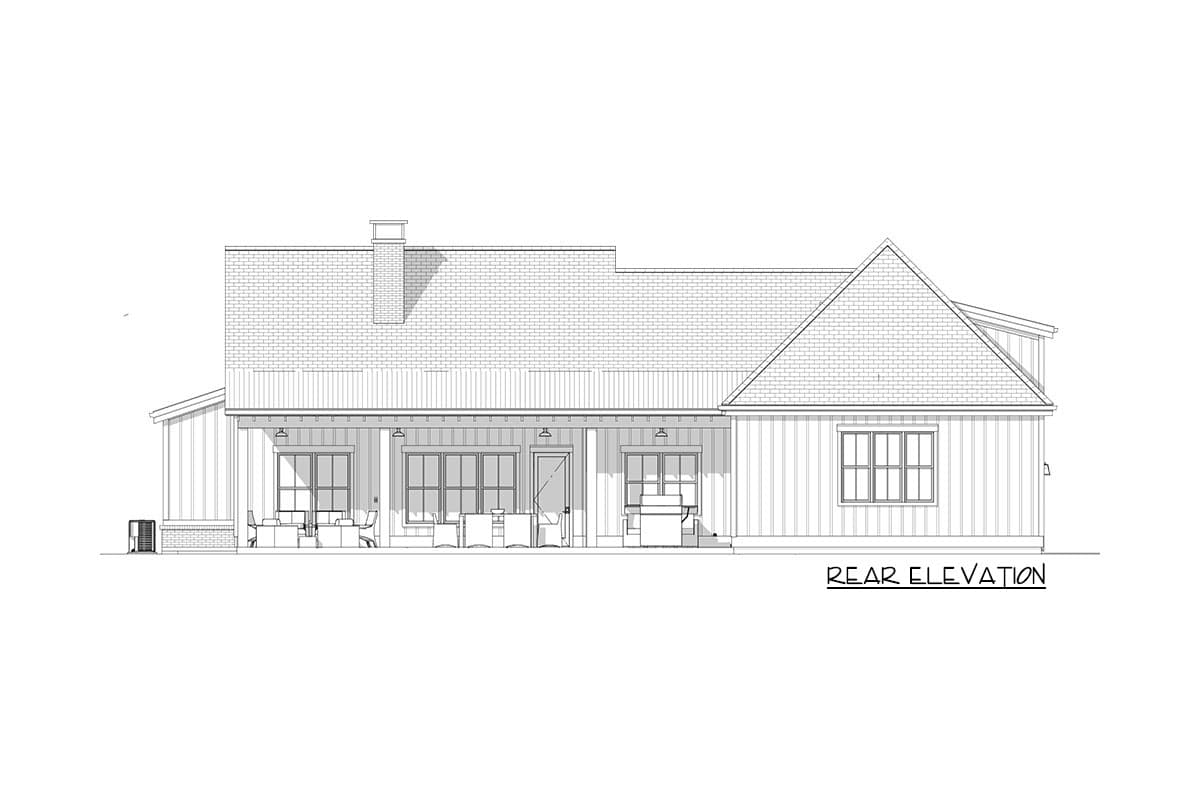

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive Modern Split Bedroom Modern Farmhouse Plan with Large Covered Patio

  • 2,697

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

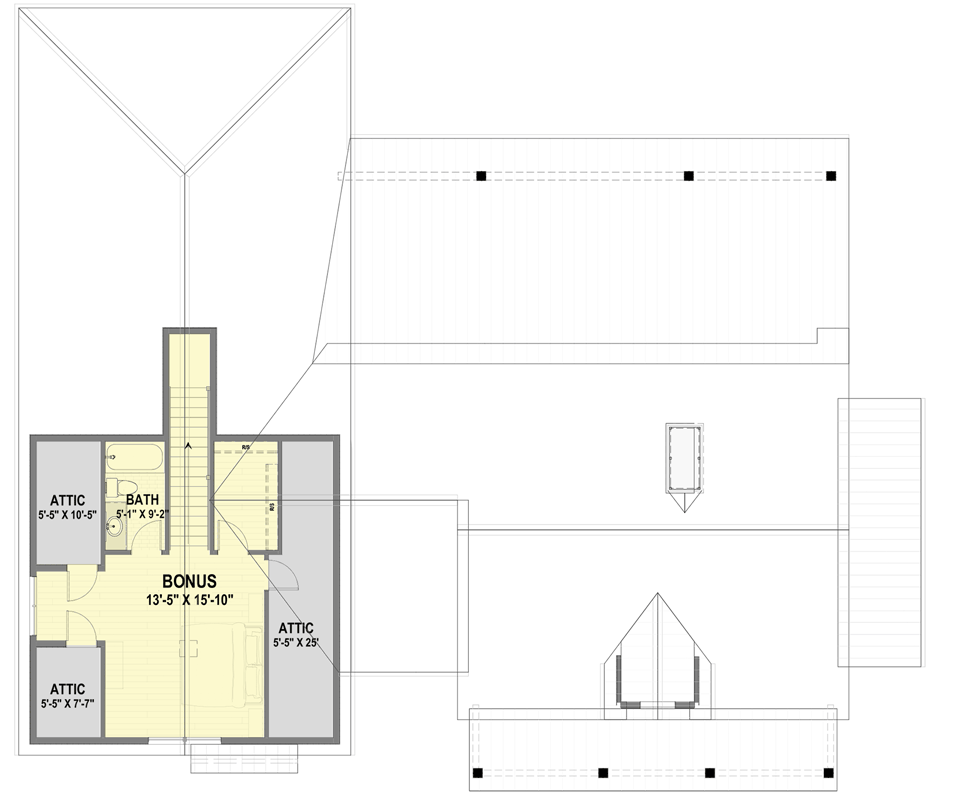

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total: 2,697 sq. ft.
  • 1st Floor: 2,315 sq. ft.
  • 2nd Floor: 382 sq. ft.

Dimensions

  • Width: 74' 0"
  • Depth: 64' 6"
  • Max ridge height: 26' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 695 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Basement, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 2 on 12
  • Secondary Pitch: 9 on 12
