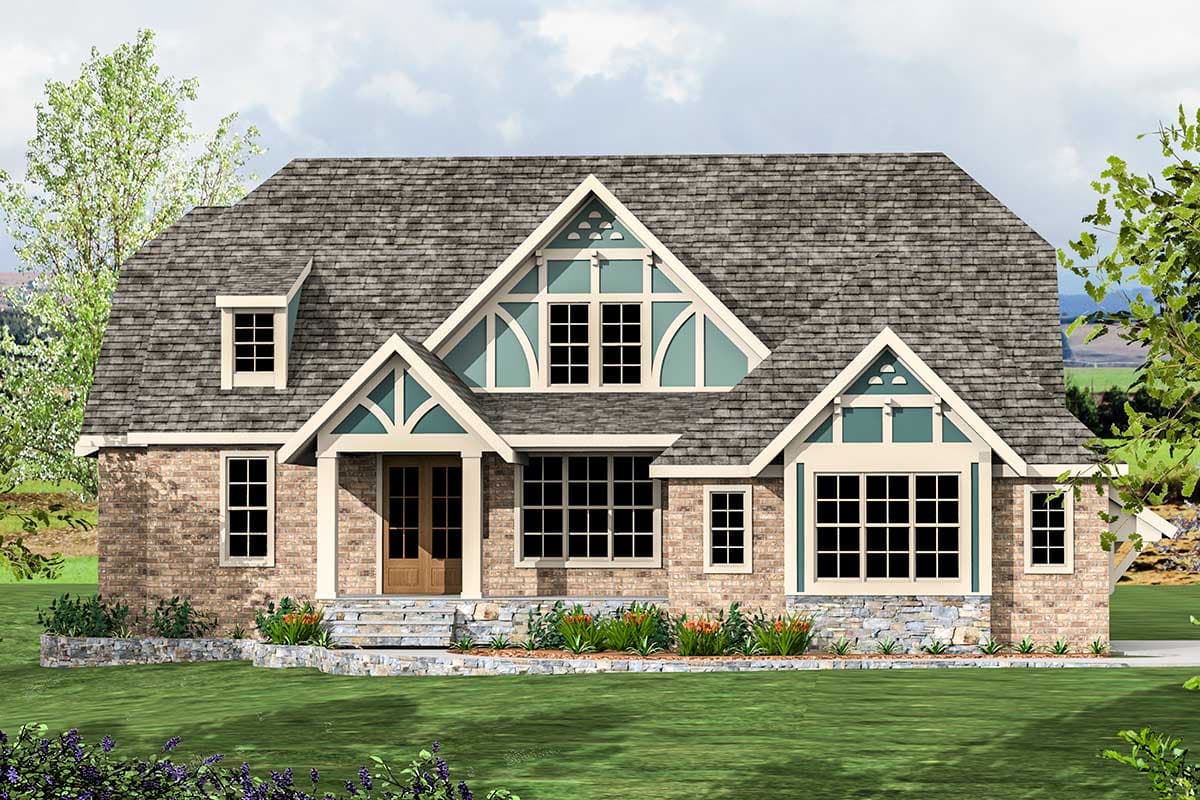

Exclusive Modern Tudor House Plan

Heated S.F.
3,155
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 500039VV

Main Level
Main Level
2nd Floor
2nd Floor

Plan 500039VV

M-F 9am-5pm EST |

1-203-761-8500

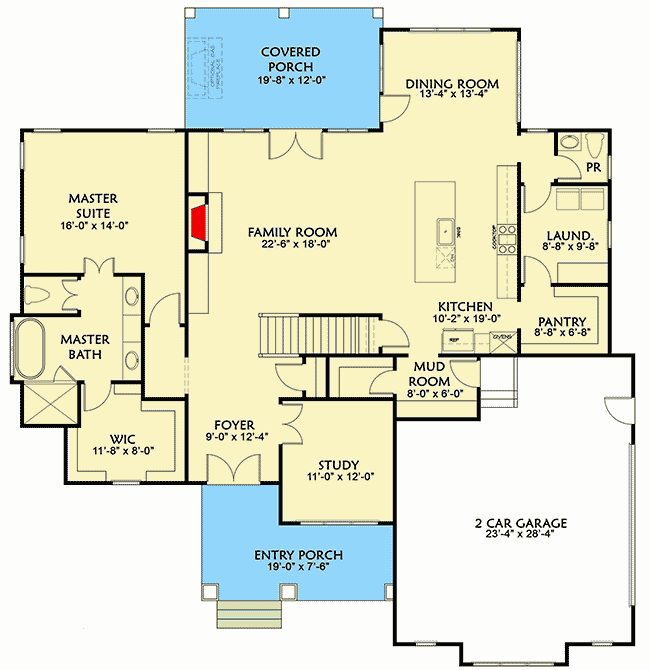

Main Level

Plan 500039VV: Exclusive Modern Tudor House Plan - Floor Plan - Main Level - European, Traditional, Tudor

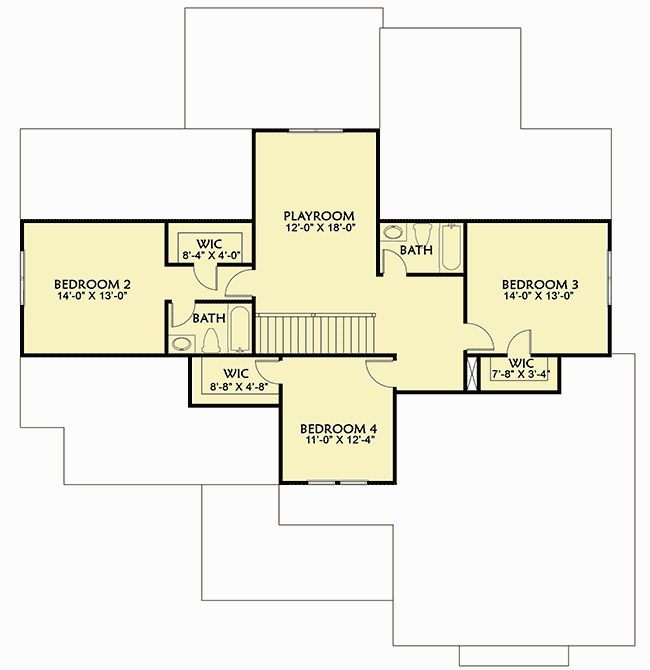

2nd Floor

Plan 500039VV: Exclusive Modern Tudor House Plan - Floor Plan - 2nd Floor - European, Traditional, Tudor

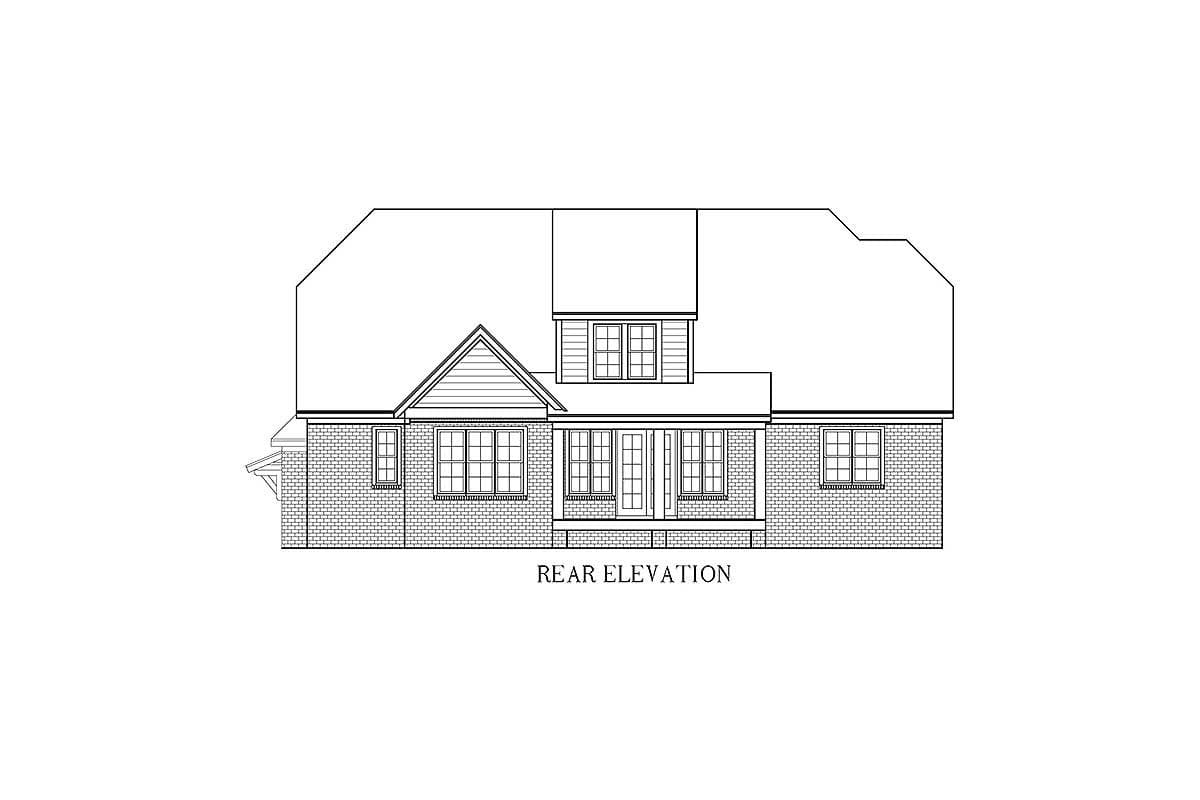

Plan Details

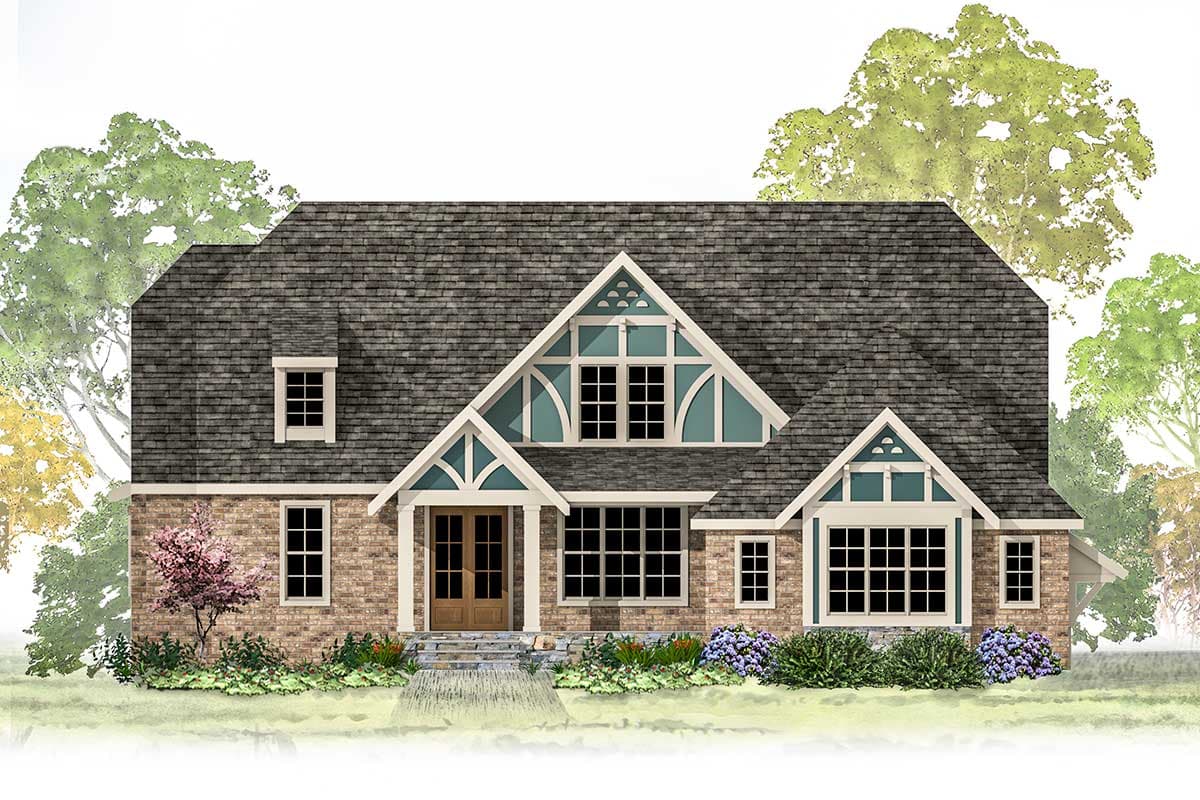

  • An updated version of the popular Tudor style, this house plan (exclusive to Architectural Designs!) has the clipped roof lines and decorative wood trim to go along with a modern, functional layout inside.
  • You get a quiet study and a big open floor plan that is much in demand today.
  • A huge island in the kitchen adds extra counter space and storage and there's a large walk-in pantry too.
  • No stairs to climb for homeowners who get a secluded master suite on the main floor.
  • Upstairs, every bedroom features a large walk-in closet and there's a giant playroom just for the kids.

What's Included

  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,155 sq. ft.

1st Floor

2,025 sq. ft.

2nd Floor

1,130 sq. ft.

Porch, Front

180 sq. ft.

Porch, Rear

233 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 0"

Depth

65' 4"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

642 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Tudor

Special Features

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Playroom

Walk-in Pantry

Plan Collections

Exclusive

Home Office

Square Footage Breakdown

Total Heated Area

3,155 sq. ft.

1st Floor

2,025 sq. ft.

2nd Floor

1,130 sq. ft.

Porch, Front

180 sq. ft.

Porch, Rear

233 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 0"

Depth

65' 4"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

642 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Tudor

Special Features

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Playroom

Walk-in Pantry

Plan Collections

Exclusive

Home Office
