Mountain Craftsman Home Plan with Angled 3-Car Garage

Plan 95081RW

  • 2,803

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This mountain Craftsman home plan has an angled 3-car garage angled from the main body of the home on the left with a large gable centered over the second and third garage doors giving you the ability to use that space as a bonus room.
  • Inside, the vaulted great room takes center stage with exposed trusses (non-structural), a fireplace on the right and access to the covered, vaulted patio.
  • The kitchen has a large island and views to the dining room and great room. A door gives you access to the outdoors for dining al fresco.
  • Located near the office with a vaulted ceiling, the master suite has a private patio accessible by sliding doors and a large walk-in closet. Two more bedrooms are located across the home and each have walk-in closets and their own private bathrooms.
  • Stairs go down to an unfinished basement matching the footprint of the main floor's living area.
  • Related Plan: Get an alternate version with house plan 95046RW (3,623 sq. ft.).

This house plan has 8 pages as follows:

  1. Cover page with general notes
  2. Front and rear elevations
  3. Side elevations
  4. Main floor plan
  5. Foundation plan (architectural)
  6. Roof plan (architectural)
  7. Sections (2) and exposed truss detail
  8. Electrical plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

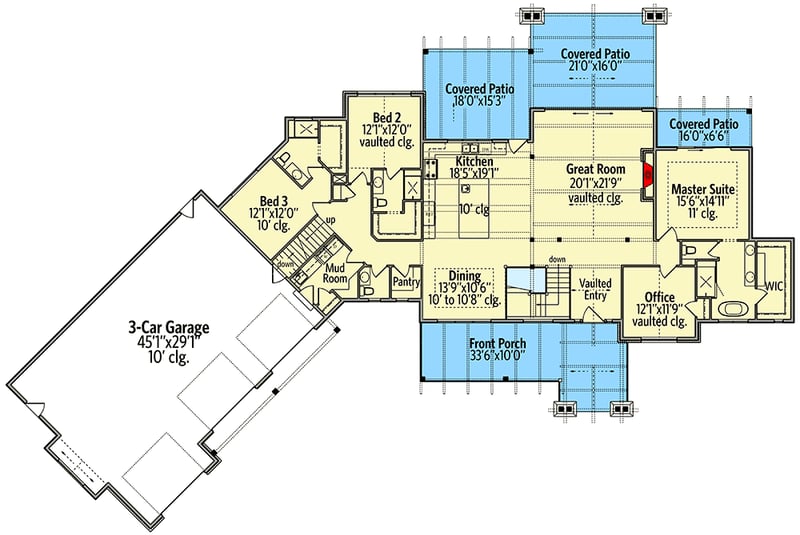

Mountain Craftsman Home Plan with Angled 3-Car Garage - 95081RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

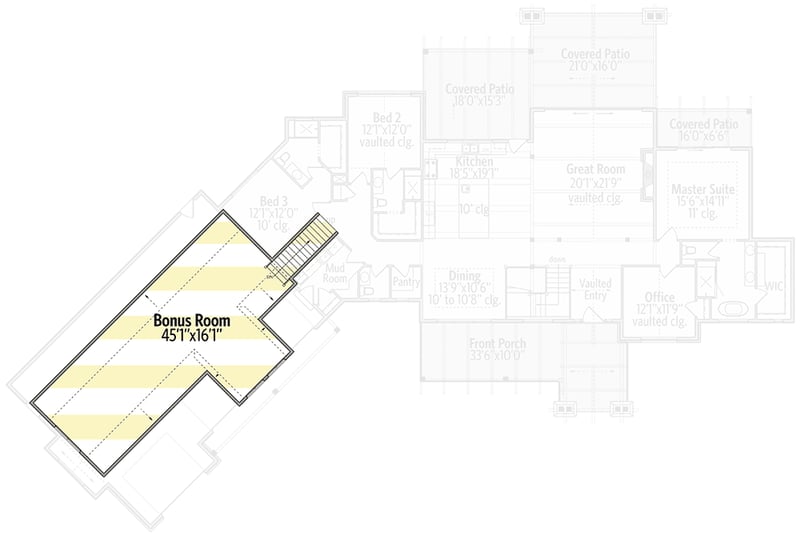

Mountain Craftsman Home Plan with Angled 3-Car Garage - 95081RW floor plan - Bonus

Mountain Craftsman Home Plan with Angled 3-Car Garage

  • 2,803

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,803 sq. ft.
  • 1st Floor: 2,803 sq. ft.

Dimensions

  • Width: 131' 10"
  • Depth: 66' 9"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1478 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
