Exclusive Mountain Home Plan with Wraparound Deck and Vaulted Loft

Plan 365013PED

This plan plants 10 trees

2,028
Heated s.f.
2
Beds
2
Baths
2
Stories

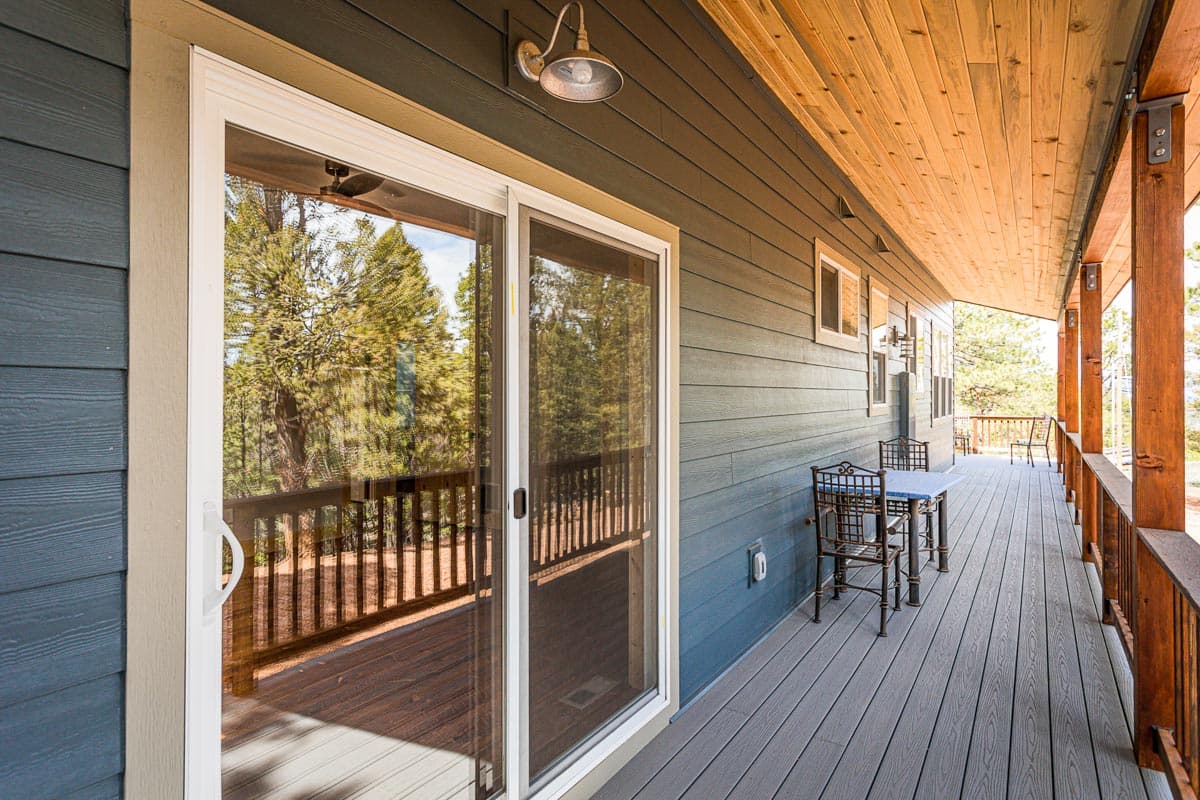

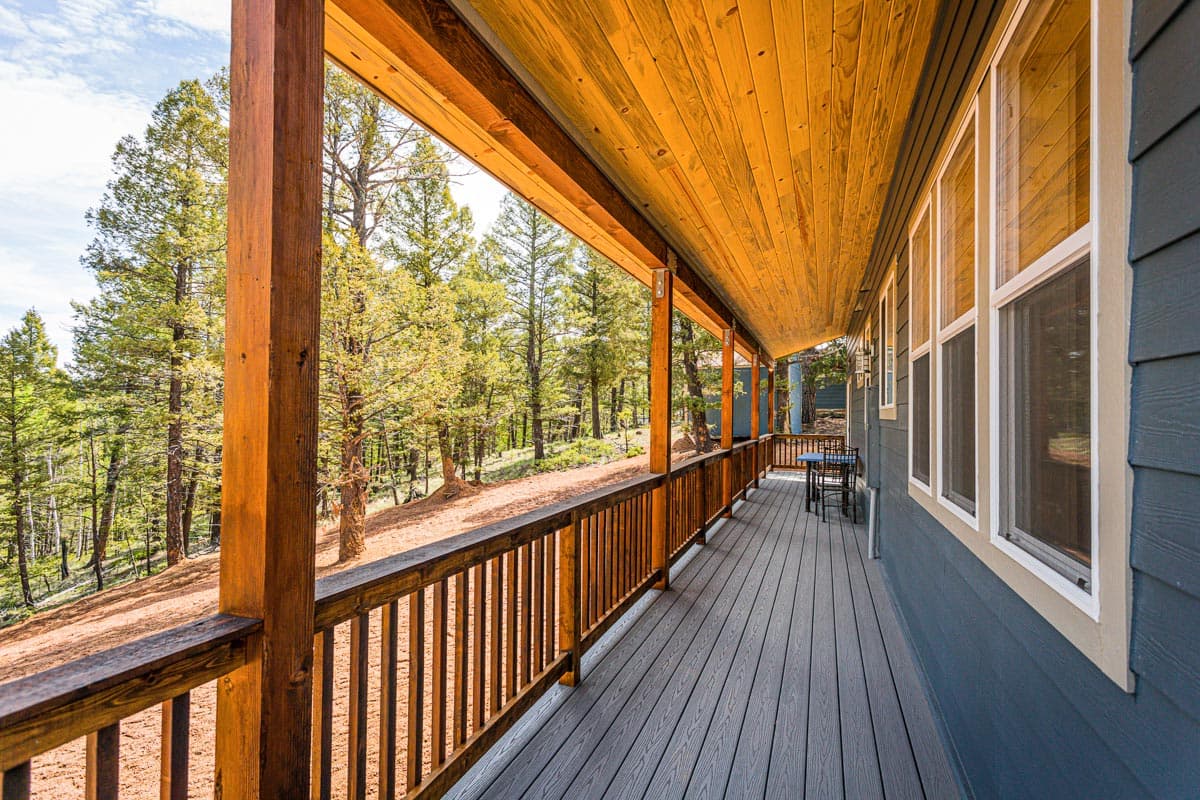

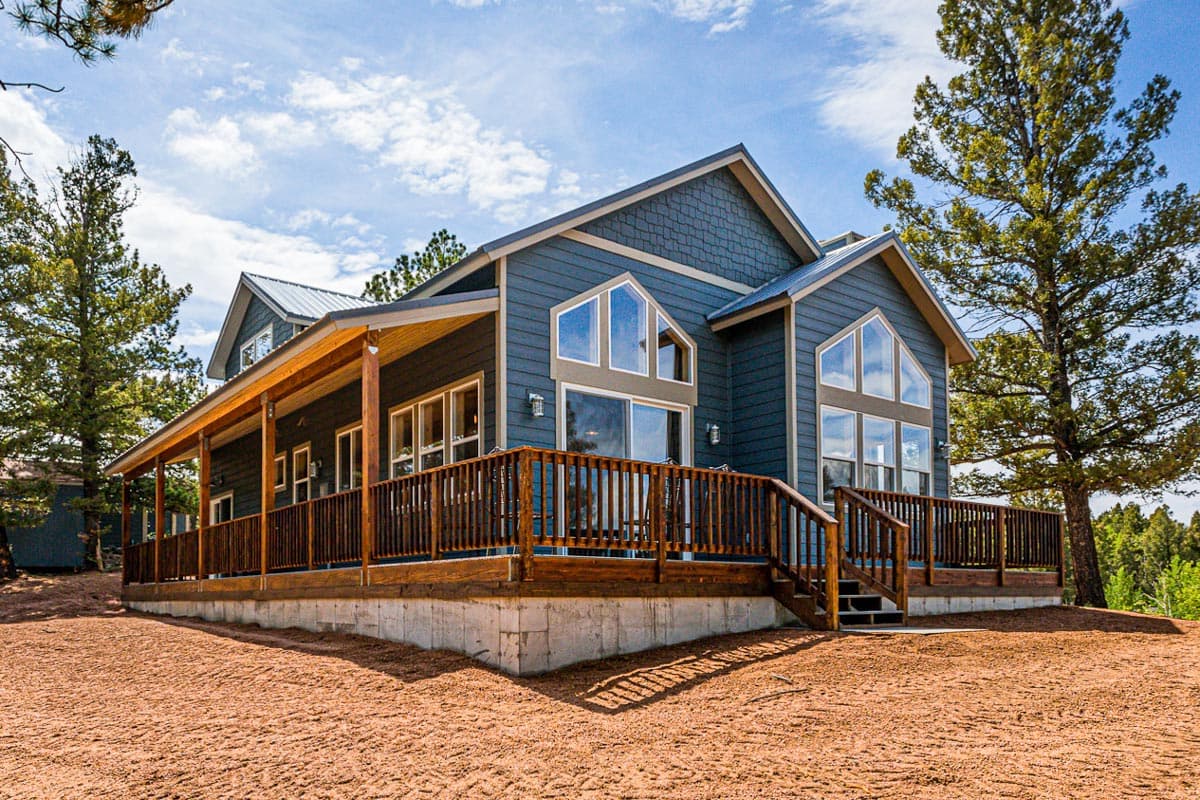

Enjoy the surrounding landscape from the wraparound deck on this exclusive, mountain home plan.

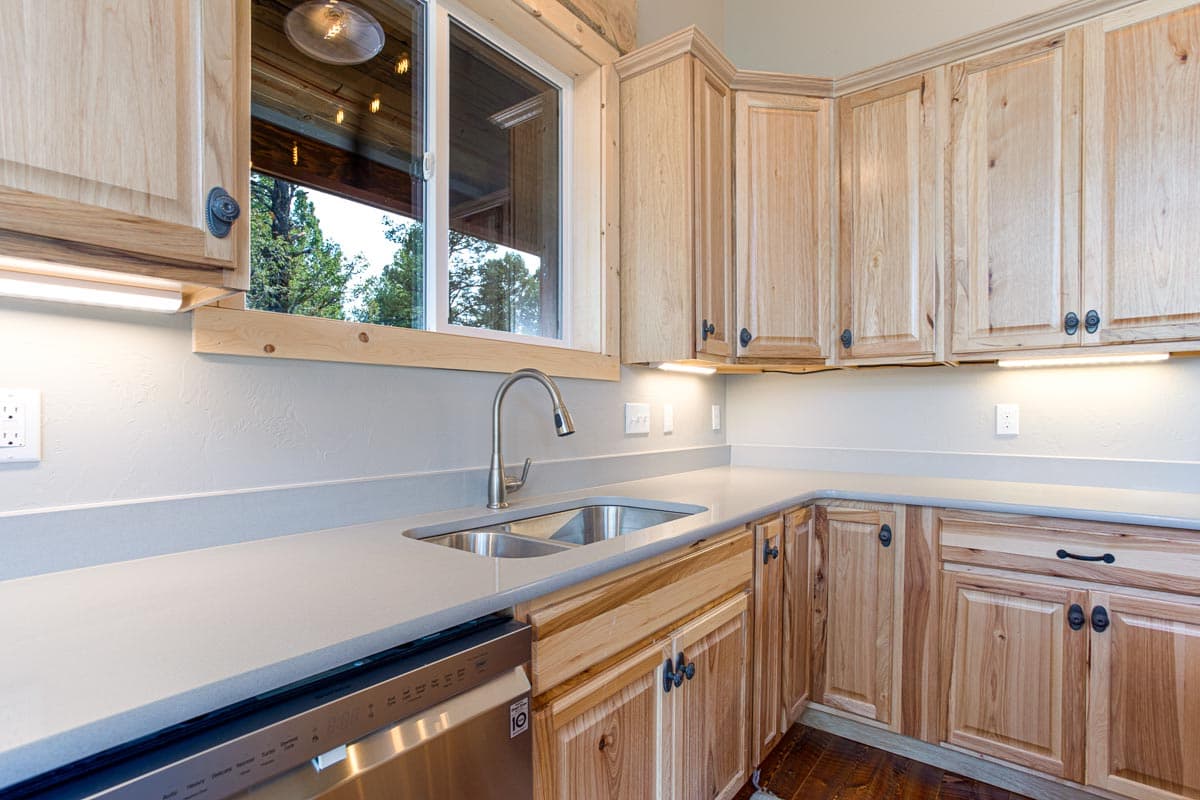

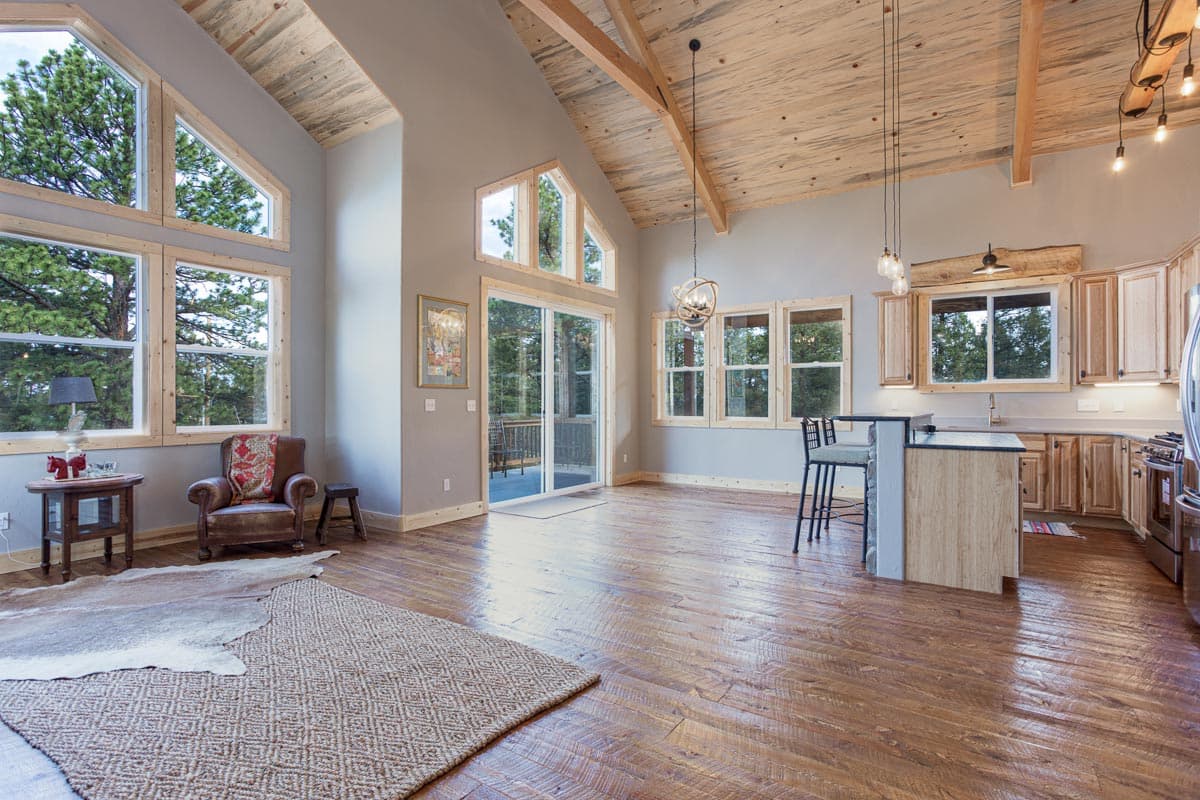

The blended great room, dining area, and kitchen has a vaulted ceiling (20'5" at the highest point) and flows onto a spacious deck through sliding doors.

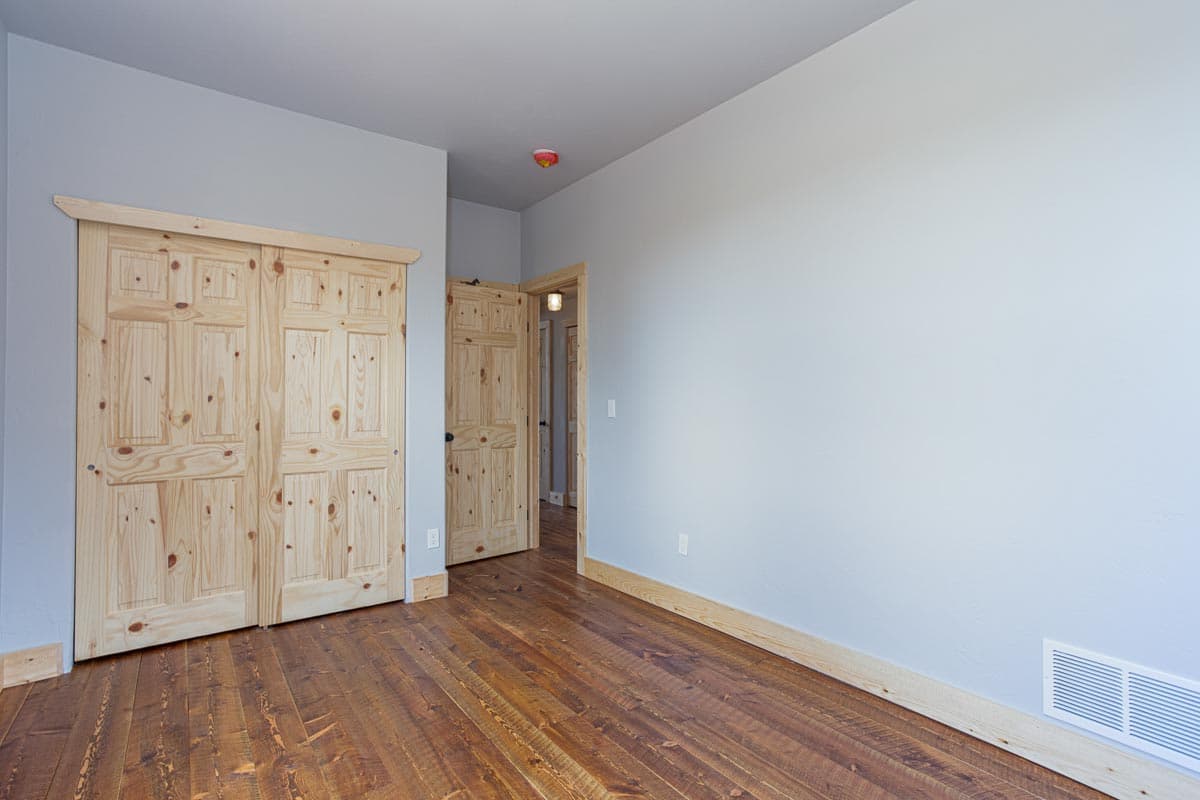

The bedrooms are located on the main level, separated by a laundry closet.

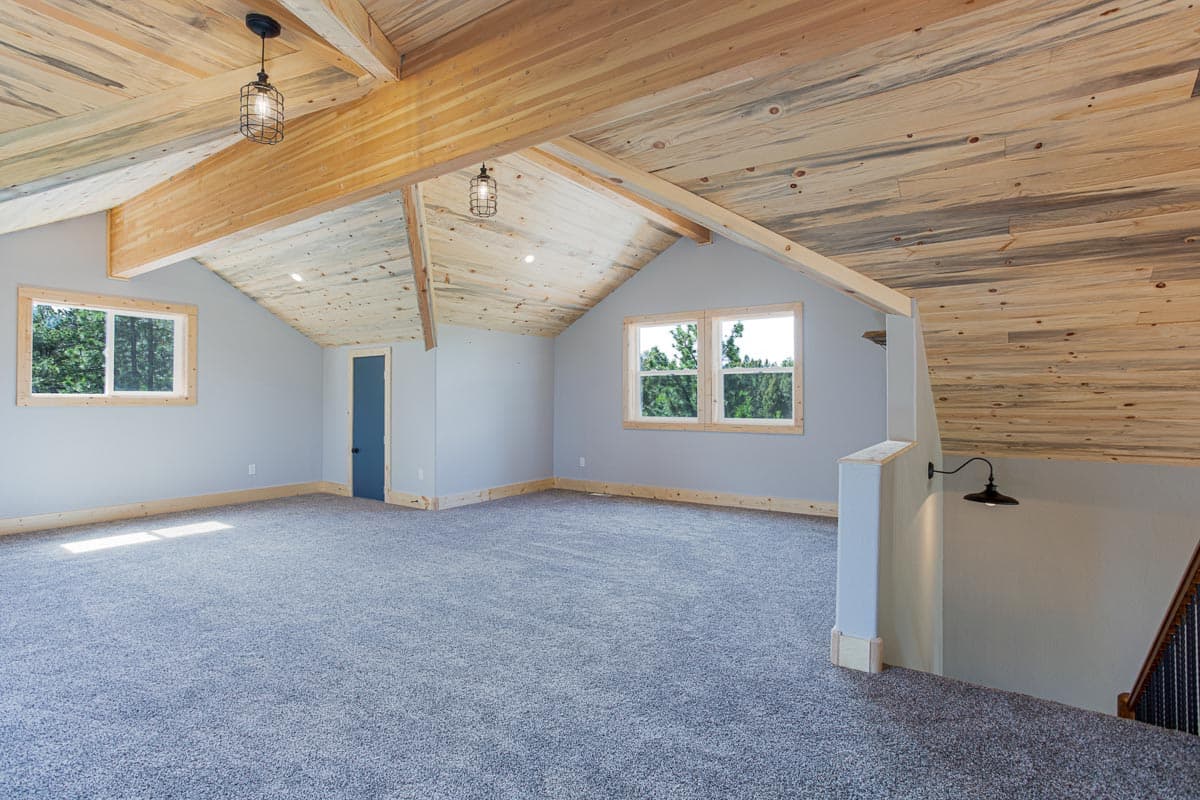

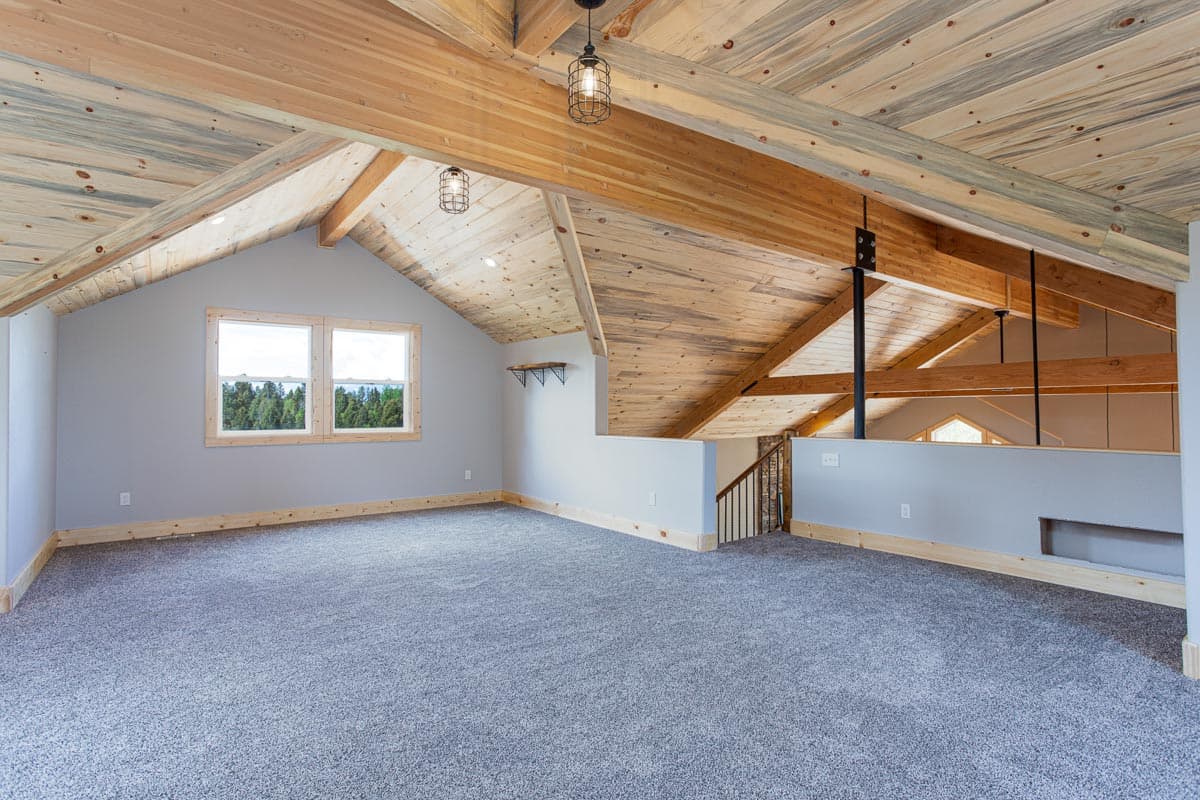

Upstairs, a 672 square foot loft provides a flexible space that can serve as a media room, office, or bunk room.

Each plan set includes the following:

Cover sheet with general information
Detailed floor plans for each floor

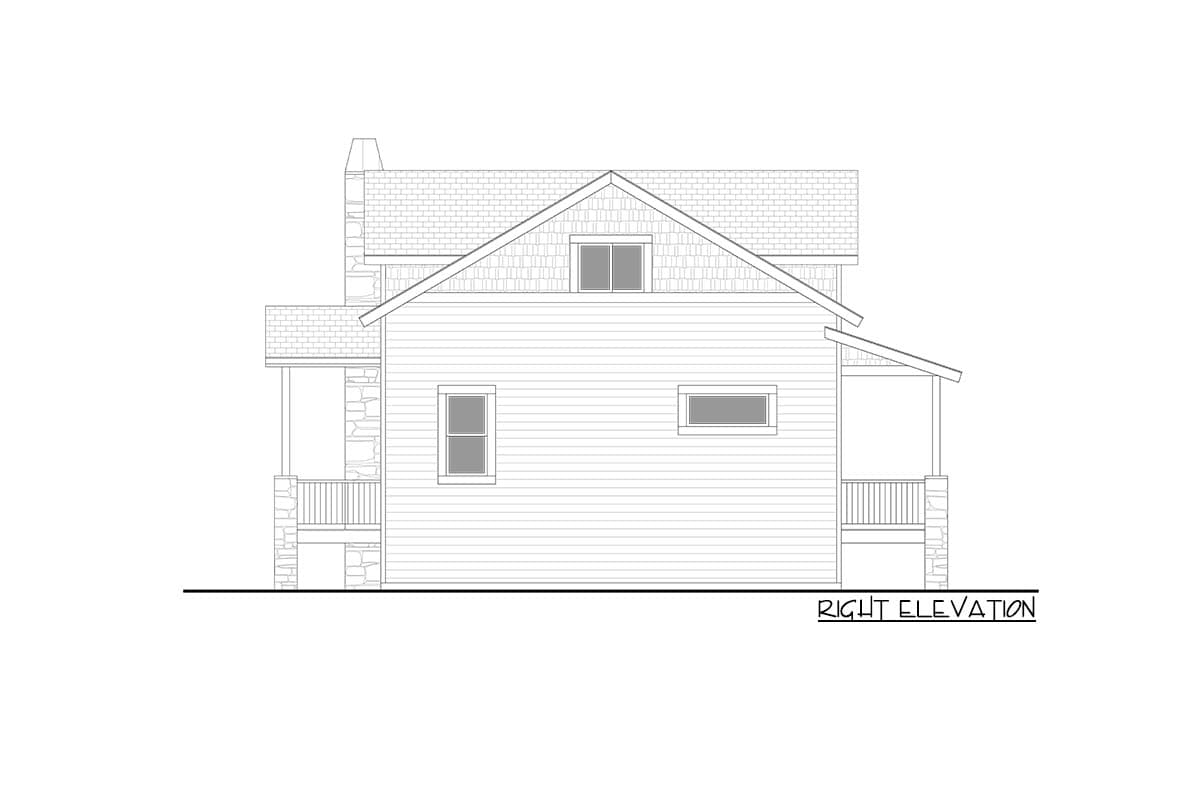

Elevations for each side of the home
Roof plan
Building section and details
Electrical schematic plans for each floor
Foundation plan

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

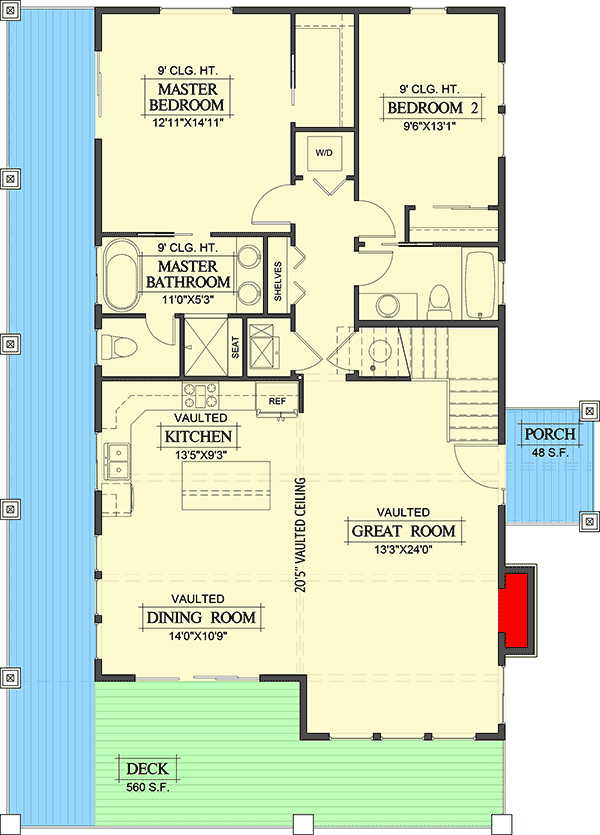

Exclusive Mountain Home Plan with Wraparound Deck and Vaulted Loft - 365013PED floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

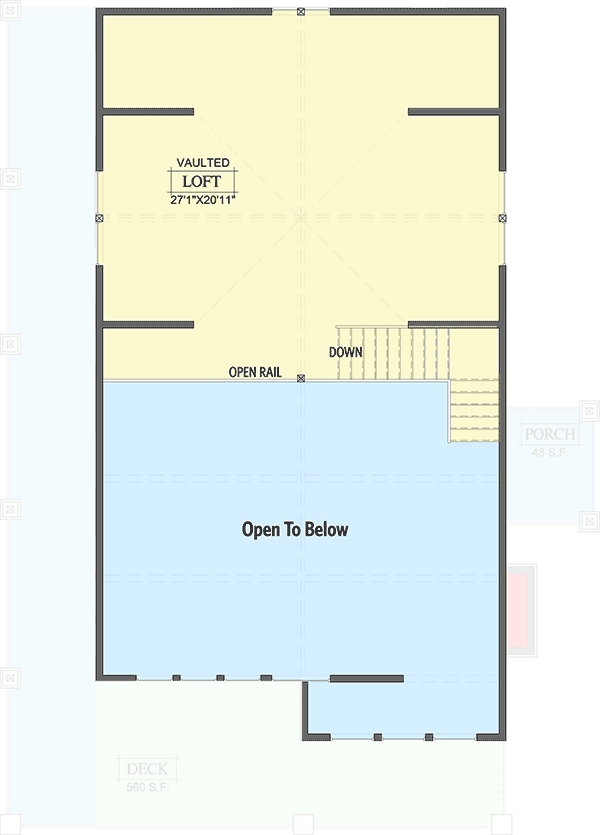

Exclusive Mountain Home Plan with Wraparound Deck and Vaulted Loft - 365013PED floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 2,028 sq. ft.
1st Floor: 1,356 sq. ft.
2nd Floor: 672 sq. ft.

Deck: 560 sq. ft.
Porch, Front: 48 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 2

Foundation Type

Standard Foundations: Crawl

Optional Foundations: Walkout, Slab, Basement

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 28' 0"
Depth: 50' 0"

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 7 on 12

Framing Type: Stick
