Exclusive Narrow Lot Northwest House Plan

Plan 85227MS

  • 2,116

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Decorative wood trim adorns the exterior of this Northwest house plan that is exclusive to Architectural Designs.
  • Only 48' wide, the home works well on a narrow lot.
  • With the great room and dining room open to each other, the main floor feels huge.
  • The half wall peninsula bar in the kitchen keeps the sight lines open to the dining room.
  • Building out over the garage gives you a second floor that is even bigger than the first.
  • Vaulted ceilings top the master suite and bedroom 2.

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

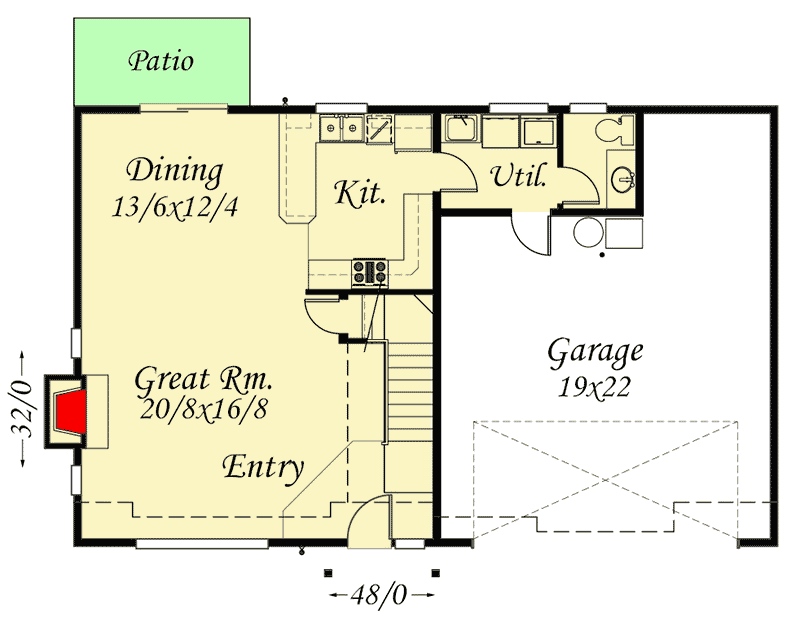

Exclusive Narrow Lot Northwest House Plan - 85227MS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

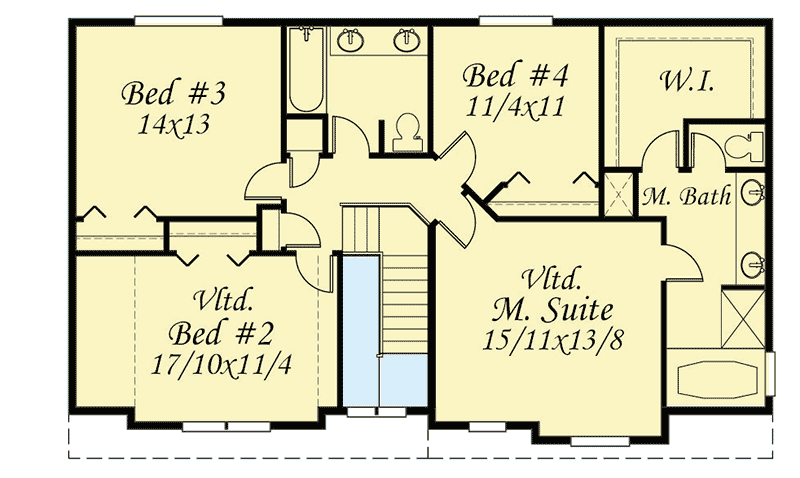

Exclusive Narrow Lot Northwest House Plan - 85227MS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,116 sq. ft.
  • 1st Floor: 863 sq. ft.
  • 2nd Floor: 1,253 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 32' 0"
  • Max ridge height: 25' 11"

Garage

  • Type: Attached
  • Area: 390 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Architectural Style

Special features

Plan Collections

Exclusive Narrow Lot Northwest House Plan

  • 2,116

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,248
  • 6 Sets + PDF $1,481
  • CAD + PDF - Single-Build $2,116
  • View all purchase option online

About This Plan

  • Decorative wood trim adorns the exterior of this Northwest house plan that is exclusive to Architectural Designs.
  • Only 48' wide, the home works well on a narrow lot.
  • With the great room and dining room open to each other, the main floor feels huge.
  • The half wall peninsula bar in the kitchen keeps the sight lines open to the dining room.
  • Building out over the garage gives you a second floor that is even bigger than the first.
  • Vaulted ceilings top the master suite and bedroom 2.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,116 sq. ft.
  • 1st Floor: 863 sq. ft.
  • 2nd Floor: 1,253 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 32' 0"
  • Max ridge height: 25' 11"

Garage

  • Type: Attached
  • Area: 390 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front
