Plan 665002GWL Exclusive New American Craftsman Home Plan with Huge Patio in Back

Exclusive New American Craftsman Home Plan with Huge Patio in Back

Plan 665002GWL

  • 2,895

    Heated s.f.

  • 4-6

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

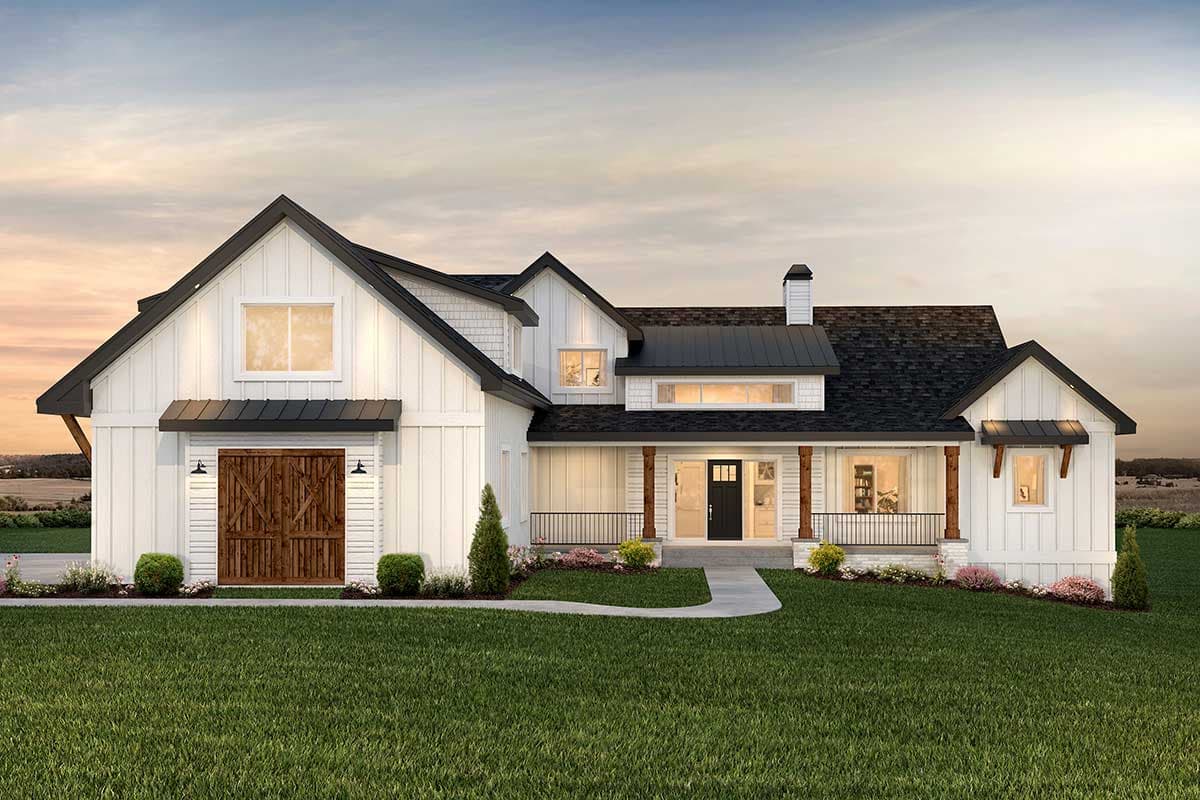

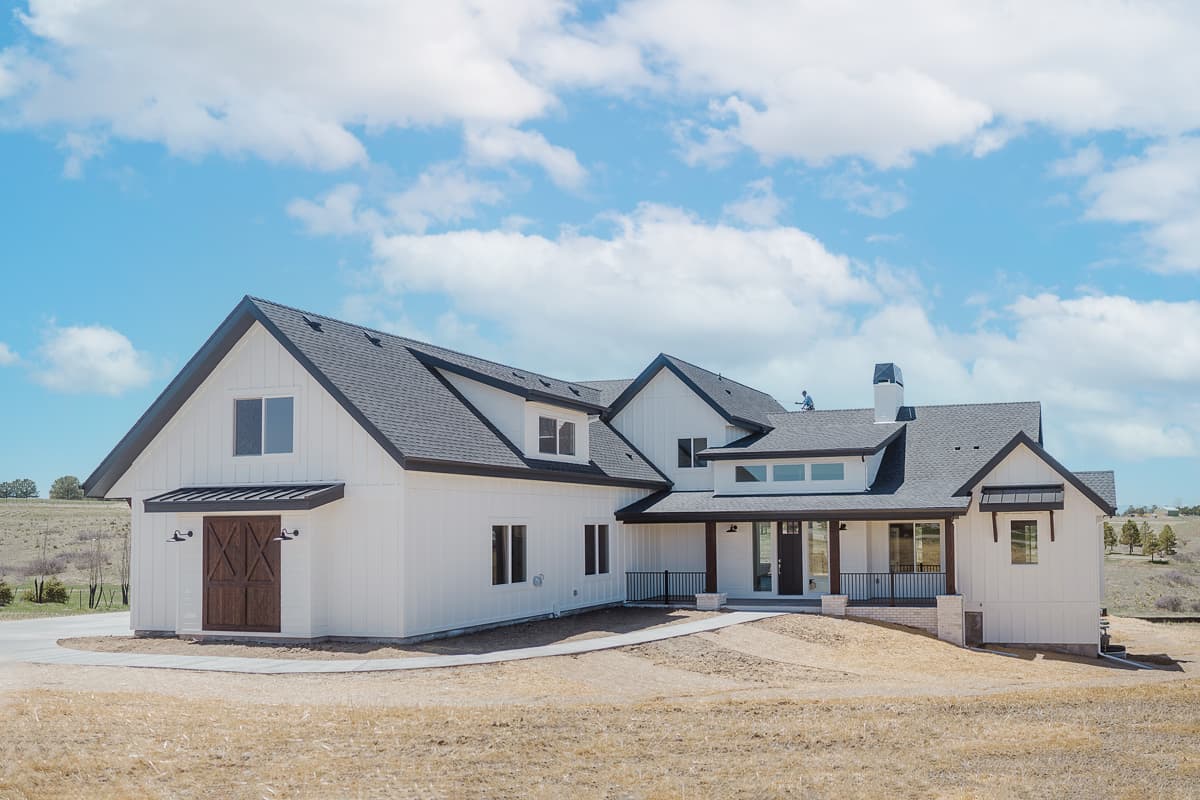

  • Mixed materials - board and batten, shingles, wood timbers and brick - combine in winning form on this exclusive New American Craftsman home plan. A shed dormer over the front porch and a barn-like garage door add to the curb appeal.
  • Step inside off the front porch and stairs going down to the basement are on your left and your views extend through the great room where sliding doors open to reveal the huge patio in back.
  • The kitchen is centrally located with equally convenient access to both the dining room and the great room. A large walk-in pantry (5'8" by 10'7") is also conveniently located by the kitchen and the garage entry.
  • The master suite is the only bedroom on the main floor and has a vaulted ceiling, a five fixture bath and a divided walk-in closet.
  • Upstairs, three bedrooms share two baths and a bonus room over the garage gives you 580 square feet of expansion space.
  • The basement gives you the potential to add two more bedrooms (a third extra one if you use the future room as a bedroom) as well as open space for games and a large mechanical room.

  • Cover sheet
  • Foundation
  • Floorplan(s)
  • Door & Window schedules

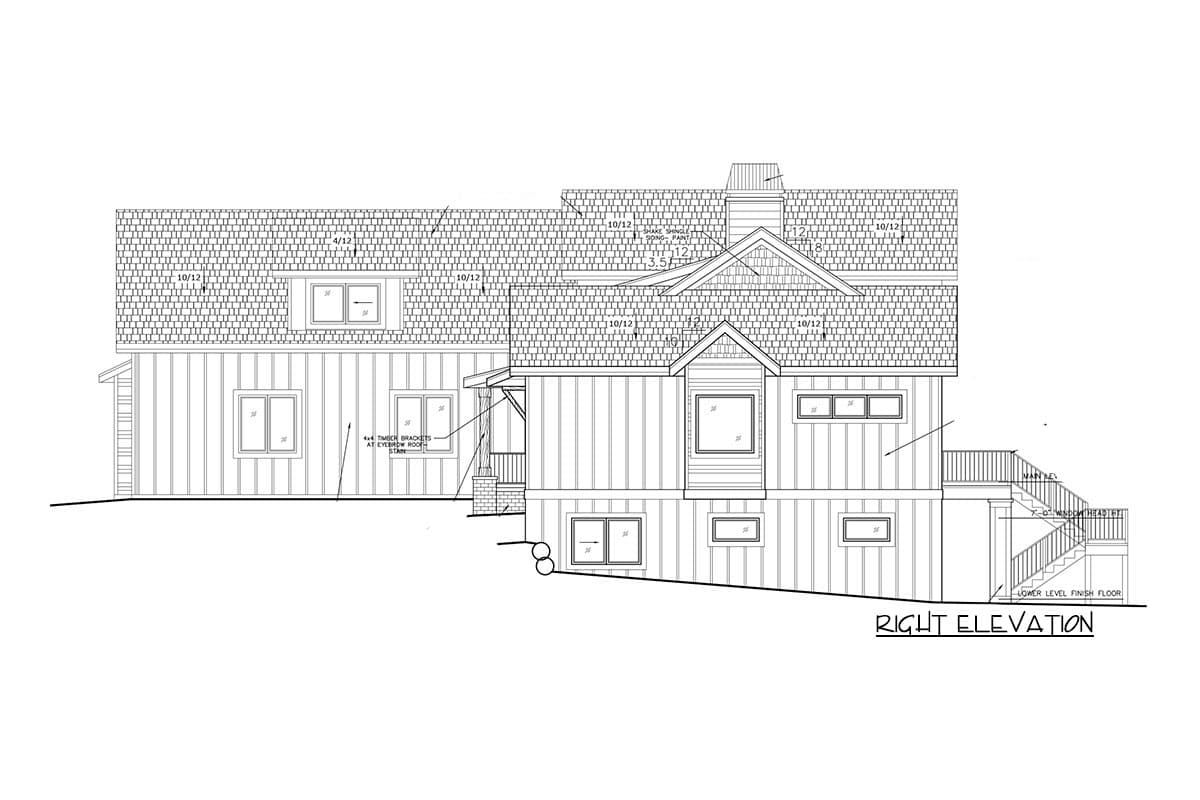

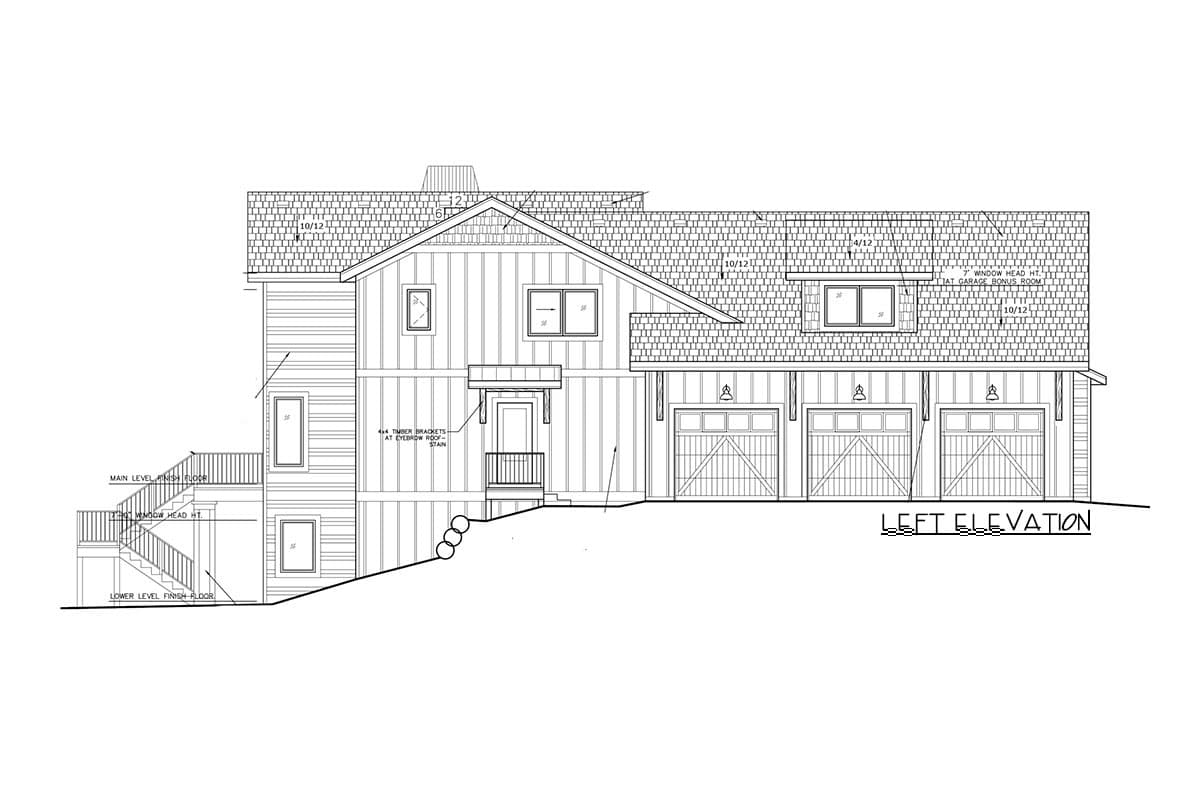

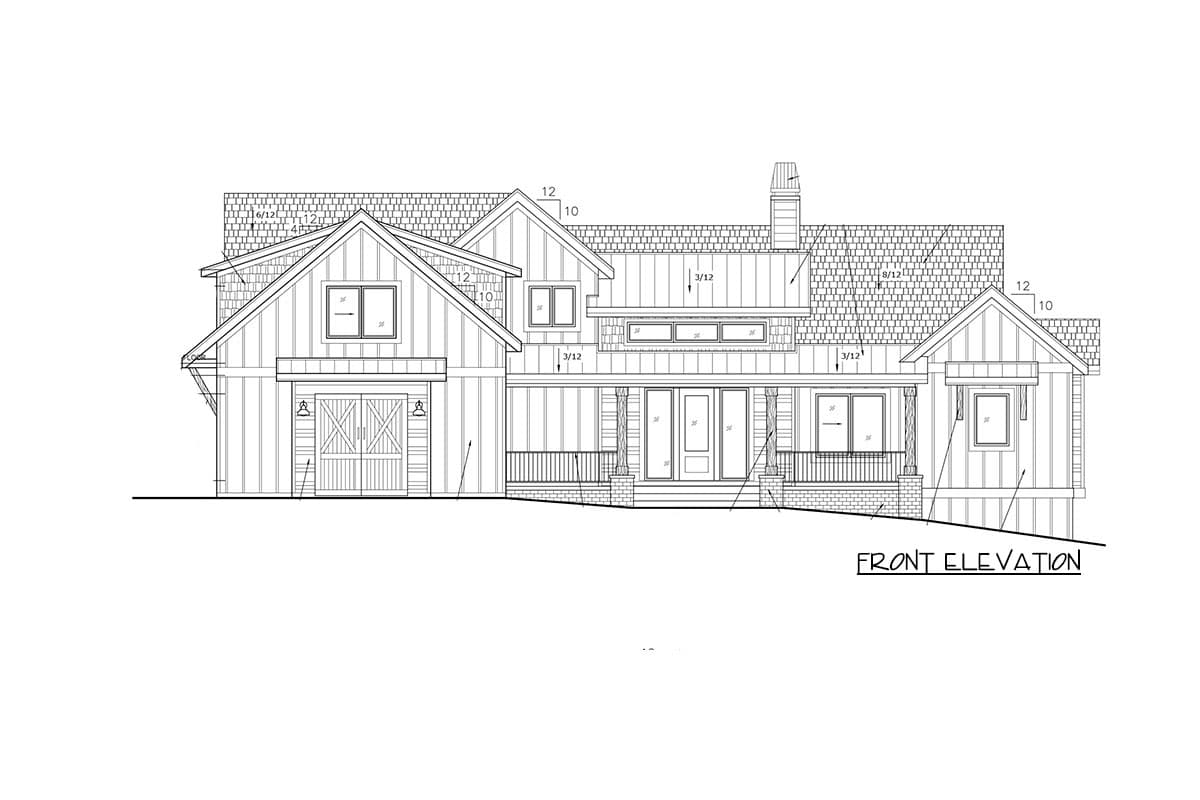

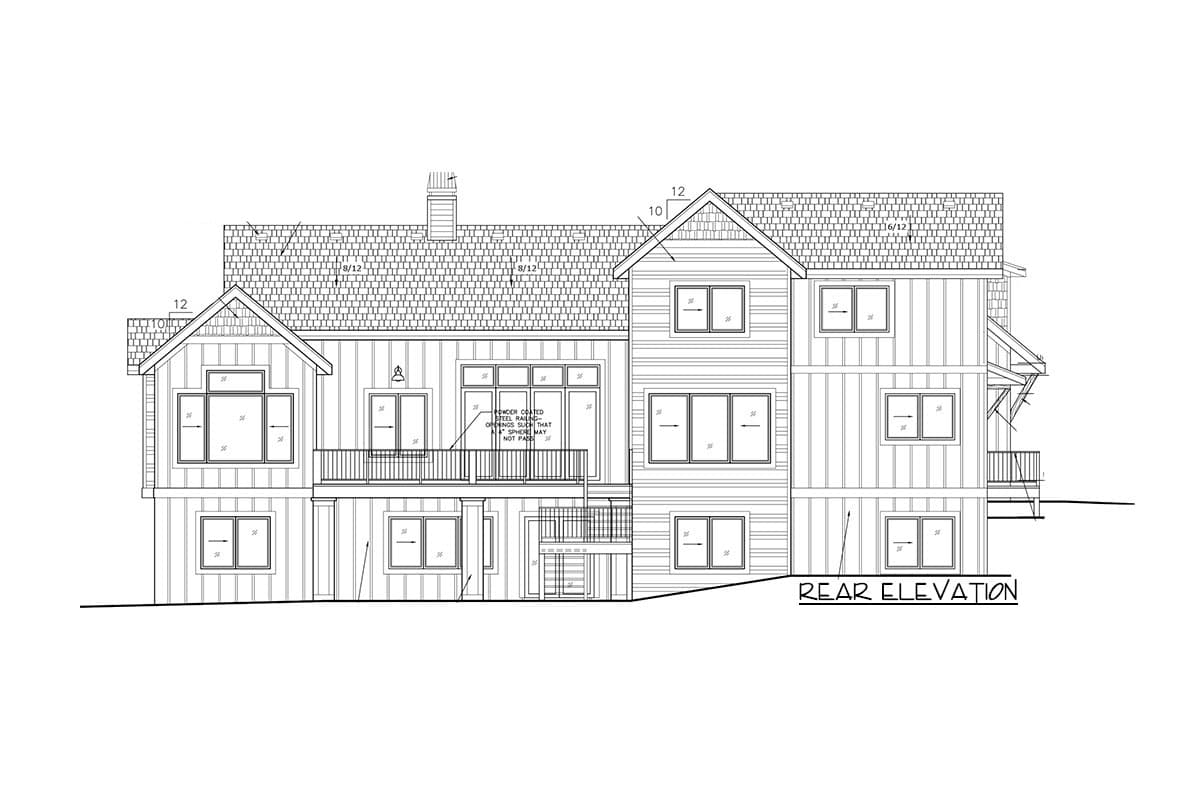

  • All elevations
  • Building sections
  • Roof plan
  • Electrical plan(s)

The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

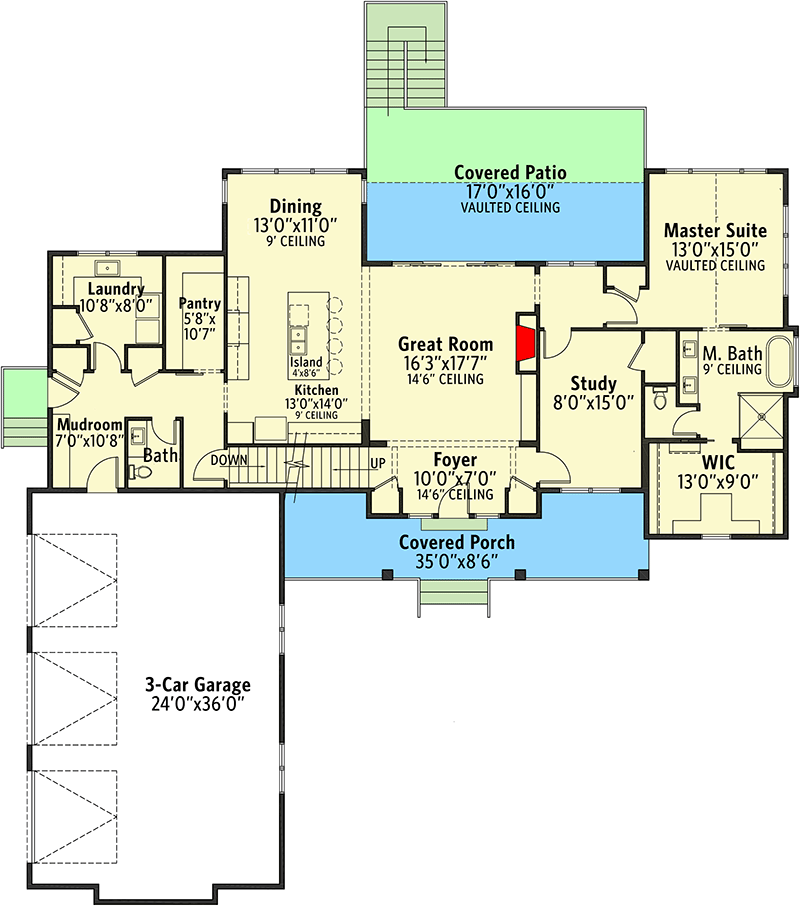

Exclusive New American Craftsman Home Plan with Huge Patio in Back - 665002GWL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

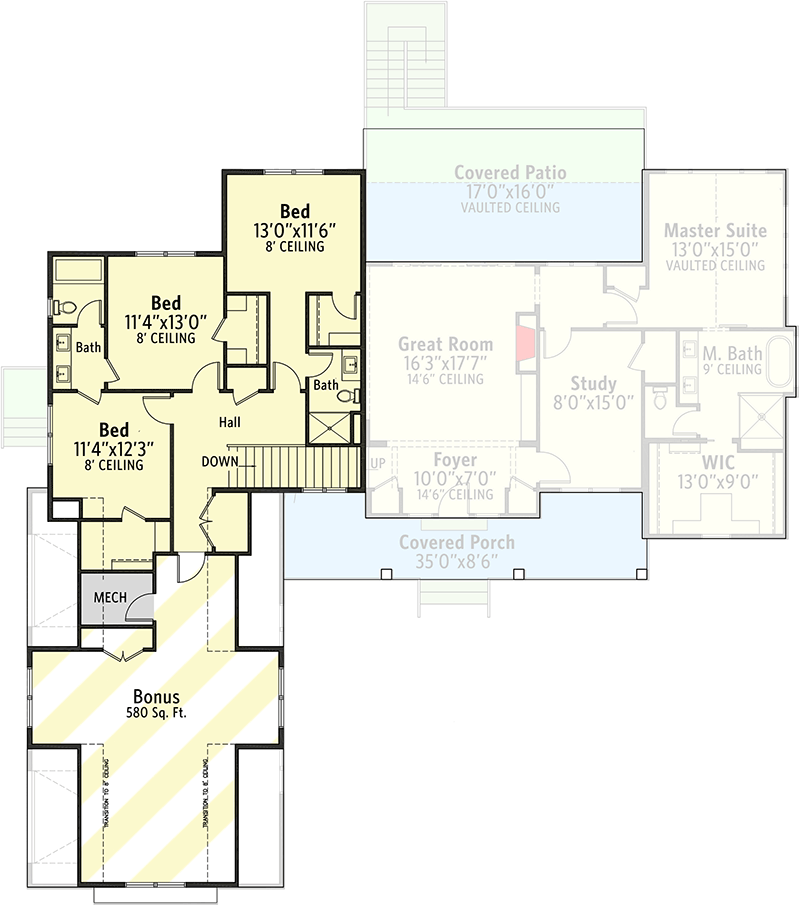

Exclusive New American Craftsman Home Plan with Huge Patio in Back - 665002GWL floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

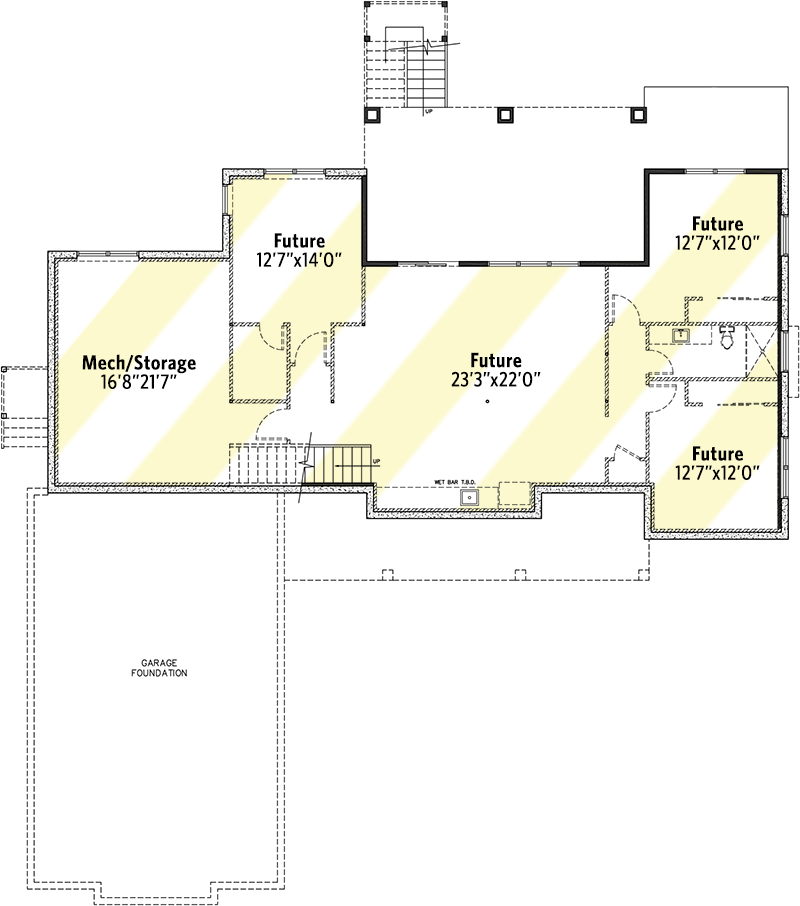

Exclusive New American Craftsman Home Plan with Huge Patio in Back - 665002GWL floor plan - Lower Level

Plan details

Exclusive New American Craftsman Home Plan with Huge Patio in Back

  • 2,895

    Heated s.f.

  • 4-6

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,497
  • CAD - Single-Build $2,197
  • View all purchase option online

About This Plan

  • Mixed materials - board and batten, shingles, wood timbers and brick - combine in winning form on this exclusive New American Craftsman home plan. A shed dormer over the front porch and a barn-like garage door add to the curb appeal.
  • Step inside off the front porch and stairs going down to the basement are on your left and your views extend through the great room where sliding doors open to reveal the huge patio in back.
  • The kitchen is centrally located with equally convenient access to both the dining room and the great room. A large walk-in pantry (5'8" by 10'7") is also conveniently located by the kitchen and the garage entry.
  • The master suite is the only bedroom on the main floor and has a vaulted ceiling, a five fixture bath and a divided walk-in closet.
  • Upstairs, three bedrooms share two baths and a bonus room over the garage gives you 580 square feet of expansion space.
  • The basement gives you the potential to add two more bedrooms (a third extra one if you use the future room as a bedroom) as well as open space for games and a large mechanical room.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,895 sq. ft.
  • 1st Floor: 2,000 sq. ft.
  • 2nd Floor: 895 sq. ft.
  • Bonus: 575 sq. ft.
  • Basement Unfinished: 2,000 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 72' 0"
  • Depth: 70' 0"

Garage

  • Type: Attached
  • Area: 965 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
